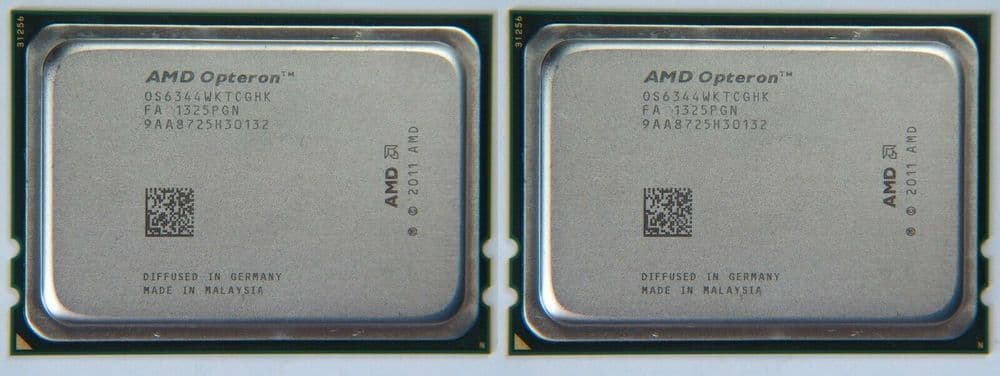

2x AMD OPTERON 12-CORE PROCESSOR 12C 6344 2.6GHZ 16MB L3 CACHE CPU OS6344WKTCGHK

mpn: OS6344WKTCGHK

product brand: AMD

excluding vat: £155.17

including vat: £186.20

information

2 x AMD OPTERON 12-CORE PROCESSOR 12C 6344 2.6GHZ 16MB L3 CACHE CPU OS6344WKTCGHK

Matching Pairs

New pulls from new servers

TESTED

Includes:

2 x AMD OPTERON 12-CORE PROCESSOR 12C 6344 2.6GHZ 16MB L3 CACHE CPU OS6344WKTCGHK

General information
Type	CPU / Microprocessor
Market segment	Server
Family	AMD Opteron 6300 series
Model number	6344
CPU part numbers	OS6344WKTCGHK is an OEM/tray microprocessor OS6344WKTCGHKWOF is a boxed processor without fan and heatsink
Frequency ?	2600 MHz
Maximum turbo frequency	2900 MHz (more than 6 cores) 3200 MHz (6 cores or less)
Bus speed ?	3200 MHz HyperTransport links (6.4 GT/s per link)
Package	1944-land organic Land Grid Array (LGA)
Socket	Socket G34
Architecture / Microarchitecture
Microarchitecture	Piledriver
Platform	Maranello
Processor core ?	Abu Dhabi
Core stepping ?	OR-C0
Manufacturing process	0.032 micron silicon-on-insulator (SOI) technology
Die	316mm²
Data width	64 bit
The number of CPU cores	12
The number of threads	12
Floating Point Unit	Integrated (shared between two cores in each module)
Level 1 cache size ?	6 x 64 KB 2-way set associative shared instruction caches 12 x 16 KB 4-way set associative data caches
Level 2 cache size ?	6 x 2 MB 16-way set associative shared exclusive caches
Level 3 cache size	2 x 8 MB shared caches
Physical memory	384 GB (per socket) ^[1]
Multiprocessing	Up to 4 processors
Features	MMX instructions Extensions to MMX SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ? SSE4a ? AES / Advanced Encryption Standard instructions AVX / Advanced Vector Extensions BMI1 / Bit Manipulation instructions 1 F16C / 16-bit Floating-Point conversion instructions FMA3 / 3-operand Fused Multiply-Add instructions FMA4 / 4-operand Fused Multiply-Add instructions TBM / Trailing Bit Manipulation instructions XOP / eXtended Operations instructions AMD64 / AMD 64-bit technology ? AMD-V 2.0 / AMD Virtualization technology 2.0 EVP / Enhanced Virus Protection ? Turbo Core 2.0 technology
Low power features	AMD-P 2.0: C6 state TDP power cap
Integrated peripherals / components
Integrated graphics	None
Memory controller	The number of controllers: 1 Memory channels: 4 Supported memory: UDDR3-1600, RDDR3-1600, ULV RDDR3-1333, LRDIMM-1333 DIMMs per channel: 3 Maximum memory bandwidth (GB/s): 51.2
Other peripherals	HyperTransport 3.0 technology with 4 HT links
Electrical / Thermal parameters
Maximum operating temperature ?	70.4°C
Thermal Design Power ?	115 Watt
Notes on AMD Opteron 6344
Die size is per die. The package houses two dies

CS See RJ -12 dup .co.uk dup pair

specifications

MPN:

OS6344WKTCGHK

to request a price please fill out the form below...
