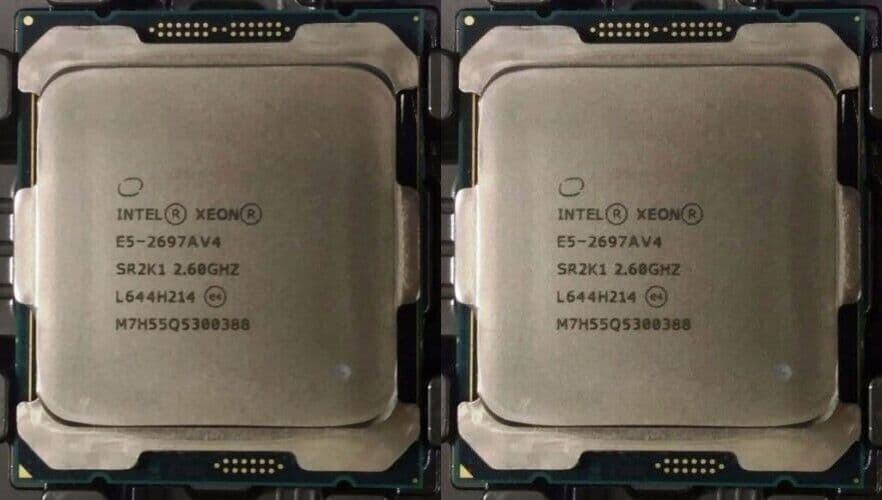

2 x Intel Xeon 16-Core E5-2697Av4 2.60Ghz LGA2011-3 40MB Cache CPU Processor SR2K1
Model: Xeon E5-2697Av4
P/N: SR2K1
Pull From Working Servers
Tested
1 Year Warranty
Included
- 2 x Intel Xeon 16-Core E5-2697Av4 2.60Ghz LGA2011-3 40MB Cache CPU Processor SR2K1
Specification:
Essentials
- Product Collection: Intel Xeon Processor E5 v4 Family
- Code Name: Products formerly Broadwell
- Vertical Segment: Server
- Processor Number: E5-2697AV4
- Lithography: 14 nm
Performance
- # of Cores: 16
- # of Threads: 32
- Processor Base Frequency: 2.60 GHz
- Max Turbo Frequency: 3.60 GHz
- Cache: 40 MB SmartCache
- Bus Speed: 9.6 GT/s
- # of QPI Links: 2
- TDP: 145 W
Supplemental Information
- Embedded Options Available: No
Memory Specifications
- Max Memory Size (dependent on memory type): 1.5 TB
- Memory Types: DDR4 1600/1866/2133/2400
- Max # of Memory Channels: 4
- Max Memory Bandwidth: 76.8 GB/s
- Physical Address Extensions: 46-bit
- ECC Memory Supported: Yes
Graphics Specifications
- Processor Graphics: None
Expansion Options
- Scalability: 2S
- PCI Express Revision: 3.0
- PCI Express Configurations: x4, x8, x16
- Max # of PCI Express Lanes: 40
Package Specifications
- Sockets Supported: FCLGA2011-3
- Max CPU Configuration: 2
- TCASE: 78°C
Advanced Technologies
- Intel Turbo Boost Technology: 2.0
- Intel vPro Technology: Yes
- Intel Hyper-Threading Technology: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel TSX-NI: Yes
- Intel 64: Yes
- Instruction Set: 64-bit
- Instruction Set Extensions: AVX 2.0
- Idle States: Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel Demand Based Switching: Yes
- Thermal Monitoring Technologies: Yes
- Intel Flex Memory Access: No
- Intel Identity Protection Technology: No
Security & Reliability
- Intel AES New Instructions: Yes
- Secure Key: Yes
- Intel OS Guard: Yes
- Intel Trusted Execution Technology: Yes
- Execute Disable Bit: Yes
CS See RJ -32 dup dup .com
specifications
-
MPN:E5-2697Av4
