In Stock & Ready to Ship2 x 1200W Power Supplies
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5" & 2.5" drive trays
- Tool-less top covers
- Tool-less backplane
- Tool-less slide rails
• 12Gb/s SAS expander chip on backplane
• Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
• 3.5" drive tray comes with 4 screw holes to adapt to 2.5" drive

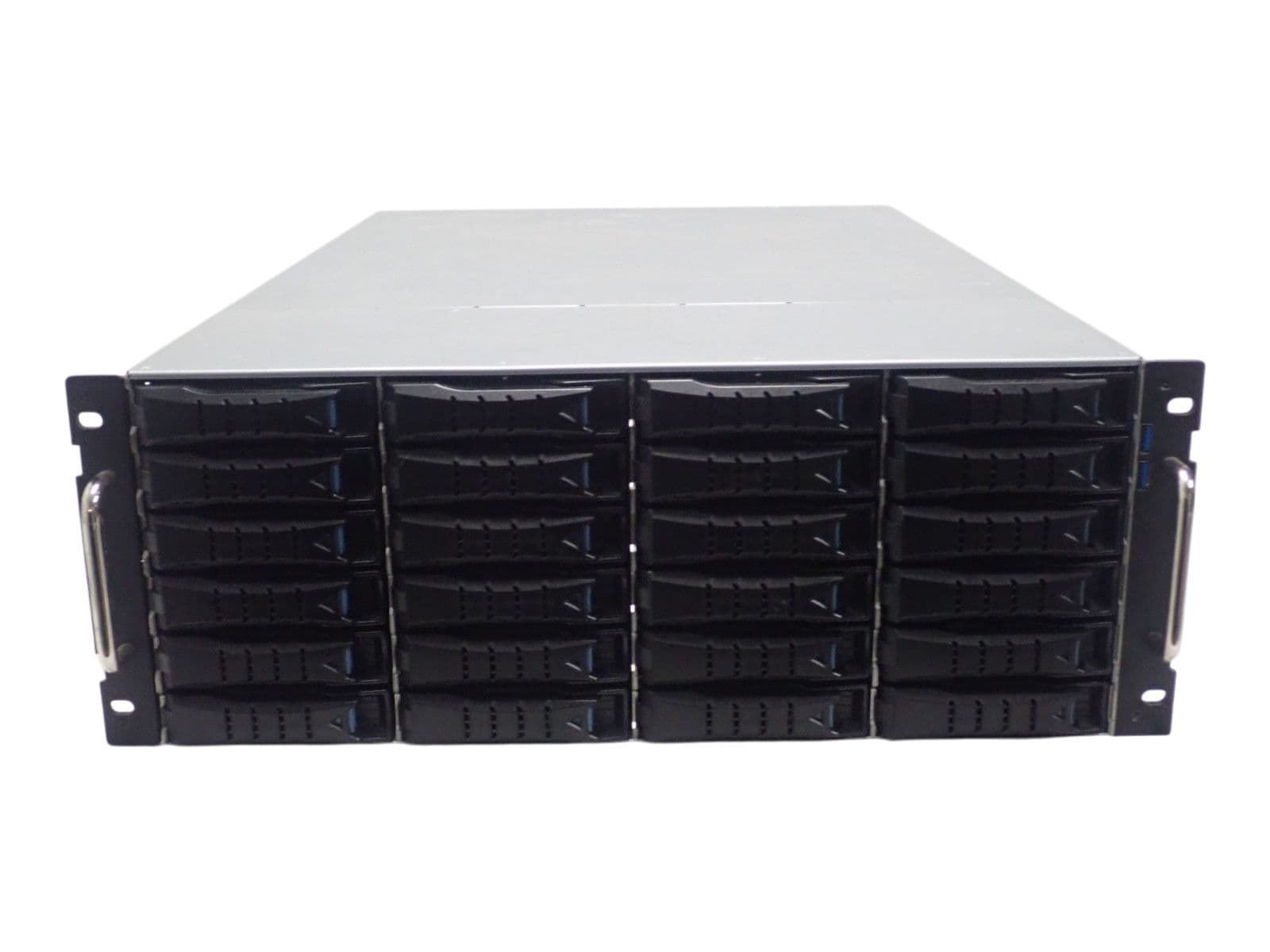

• 36 (24 front + 12 rear) bays to provide high-density storage in a 4U server chassis
• Comes with a redundant PSU 80+ Platinum

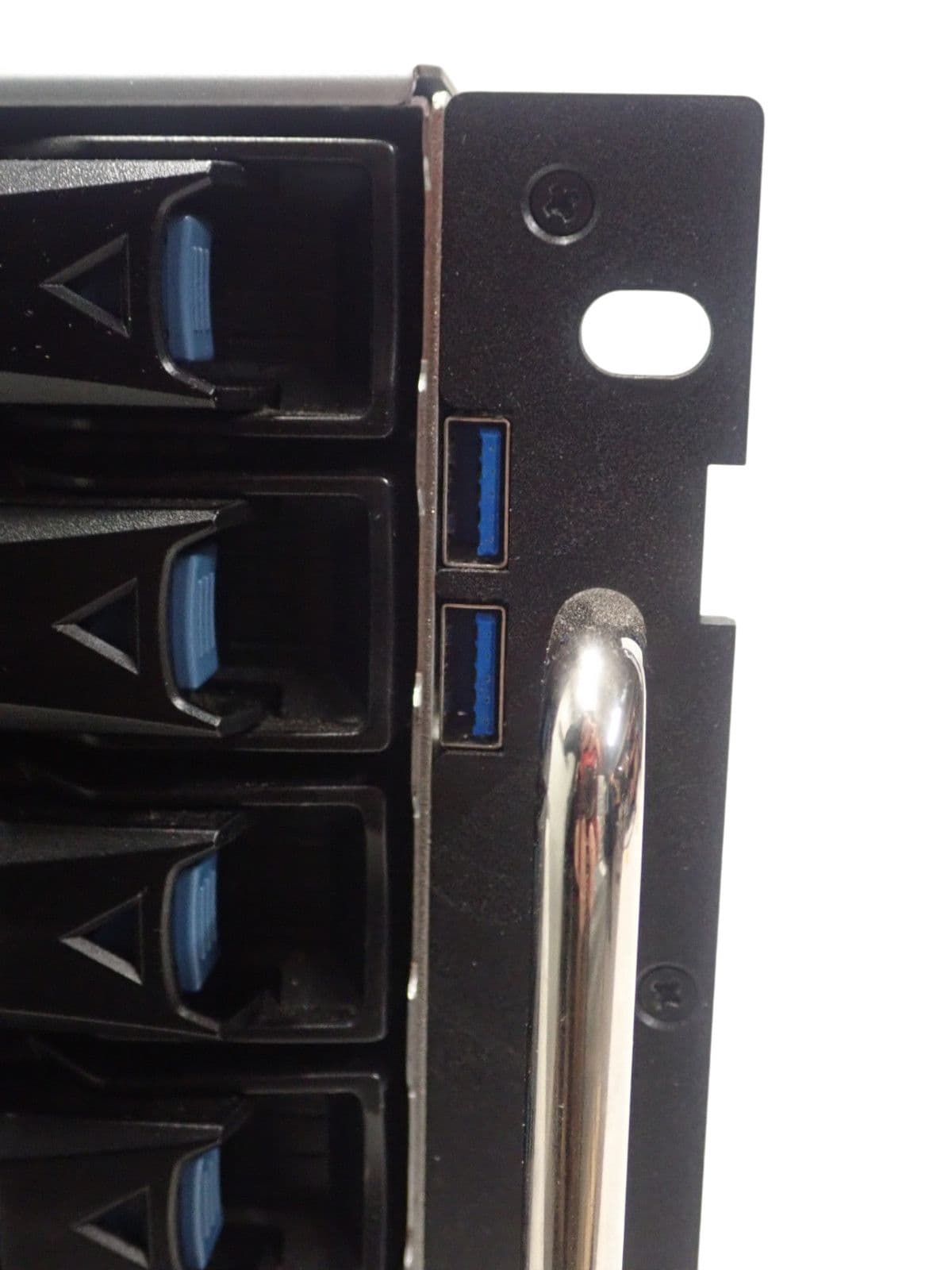

• Two front access USB 3.0 ports
Dimensions (W x D x H):
- mm: 430 x 680 x 174.3
- inches: 16.9 x 26.8 x 6.9
Industry Standard: EIA-RS310D
Material: Heavy-duty preplated SPGC cold-rolled steel
Front Colour Panel: Black
Cooling: Middle: 6 x 80x38mm PWM & low-power consumption hot swap fans
Power Supply: 1200W 1+1 redundant PSU PMBus 1.2 80+ Platinum
Expansion Slots: 7 low profle

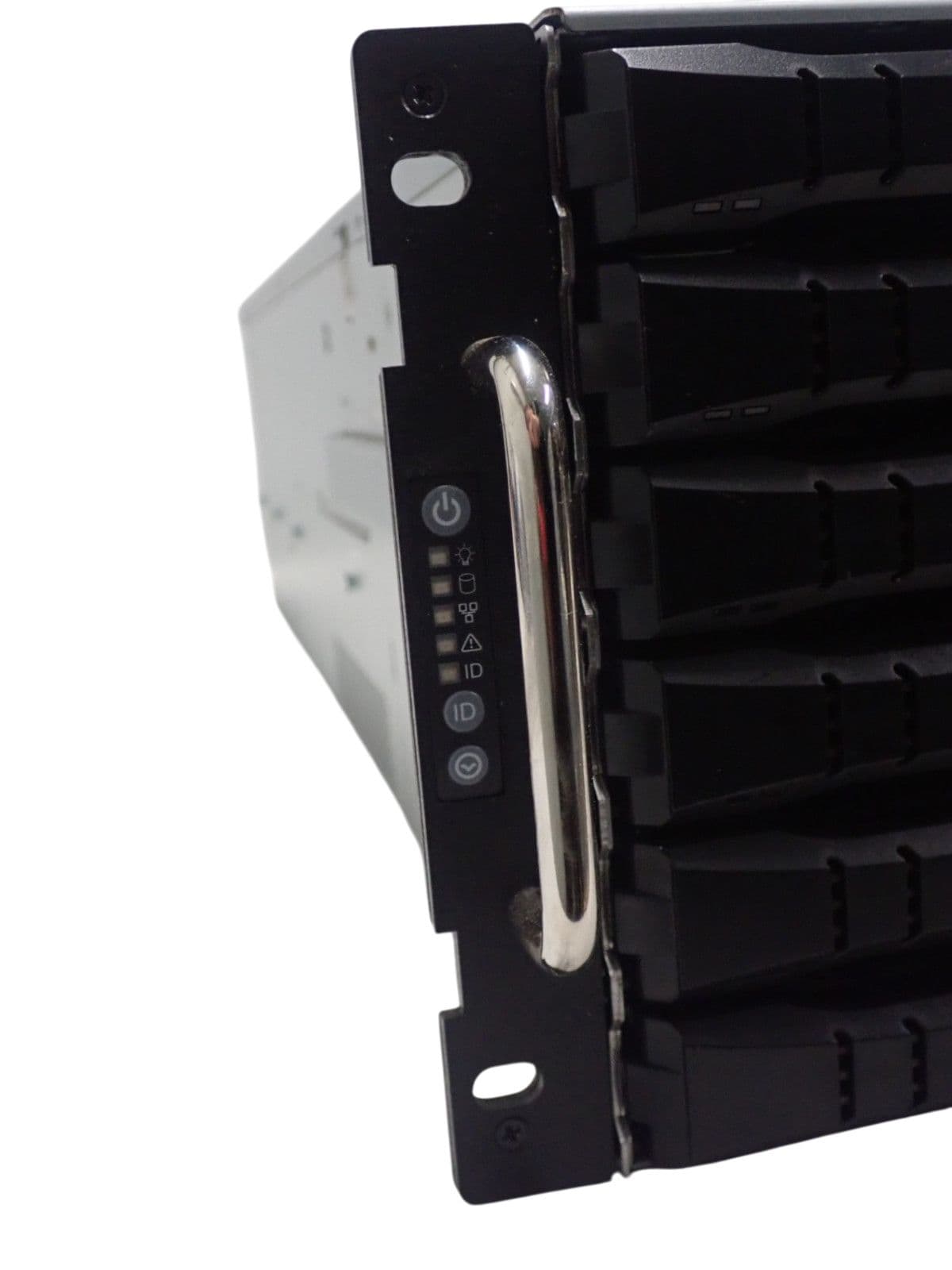

Front Panel: System power on/off, System reset, System ID and 2 x USB3.2 Gen1 x1 ports
LED Indicators: Power, LAN, Drive, ID and Alert
System Board: H12SSL-i Single AMD EPYC™ 7003/7002 Series Processor 8 DIMMs DDR4
Drive Bays:

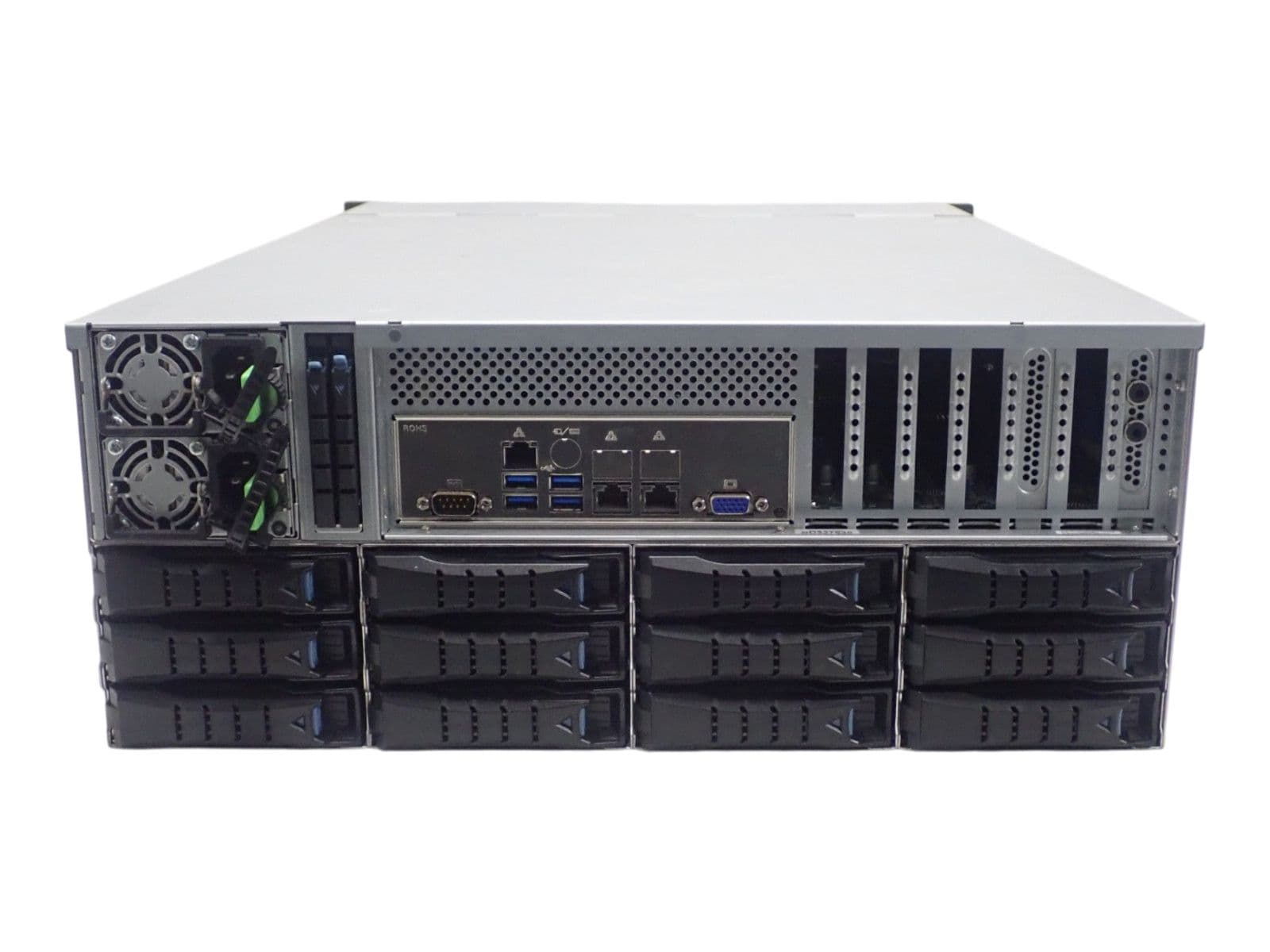

- External: 36 x 3.5" hot swap (24 Front + 12 Rear)
- External (Rear): 2 x 2.5" (7mm) hot swap
Backplane:
- 1 x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors
- 1 x 12-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
Storage Temperature: 0°C(32°F) ~ 50°C(122°F)
Humidity: 5% ~ 95% non-condensing
