AIC RSC-4BT CTO 2x 3rd Gen Scalable CPU 18-DIMM 38-Bay X12DPi-NT6 Storage Server
AIC RSC-4BT CTO 2x 3rd Gen Scalable CPU 18-DIMM 38-Bay X12DPi-NT6 Storage Server
AIC RSC-4BT CTO 2x 3rd Gen Scalable CPU 18-DIMM 38-Bay X12DPi-NT6 Storage Server

AIC RSC-4BT CTO 2x 3rd Gen Scalable CPU 18-DIMM 38-Bay X12DPi-NT6 Storage Server

product code: XE1-4BT00-01-1/REF
mpn: RSC-4BT
product brand: AIC Supermicro
product condition: Used
excluding vat: £3,325.00
including vat: £3,990.00
LinkedIn
information

AIC RSC-4BT CTO 2x 3rd Gen Scalable CPU 18-DIMM 38-Bay X12DPi-NT6 Storage Server

Chassis Part number: XE1-4BT00-01
Model: RSC-4BT
Motherboard Part number: X12DPi-NT6

In Good Condition, Full Working Order
Tested
2 Year Warranty


Configure-to-Order CTO - No Processors, No Memory, No Hard Drives Included

Includes 2x Heatsinks, 2x PSU, and Rails

Includes:

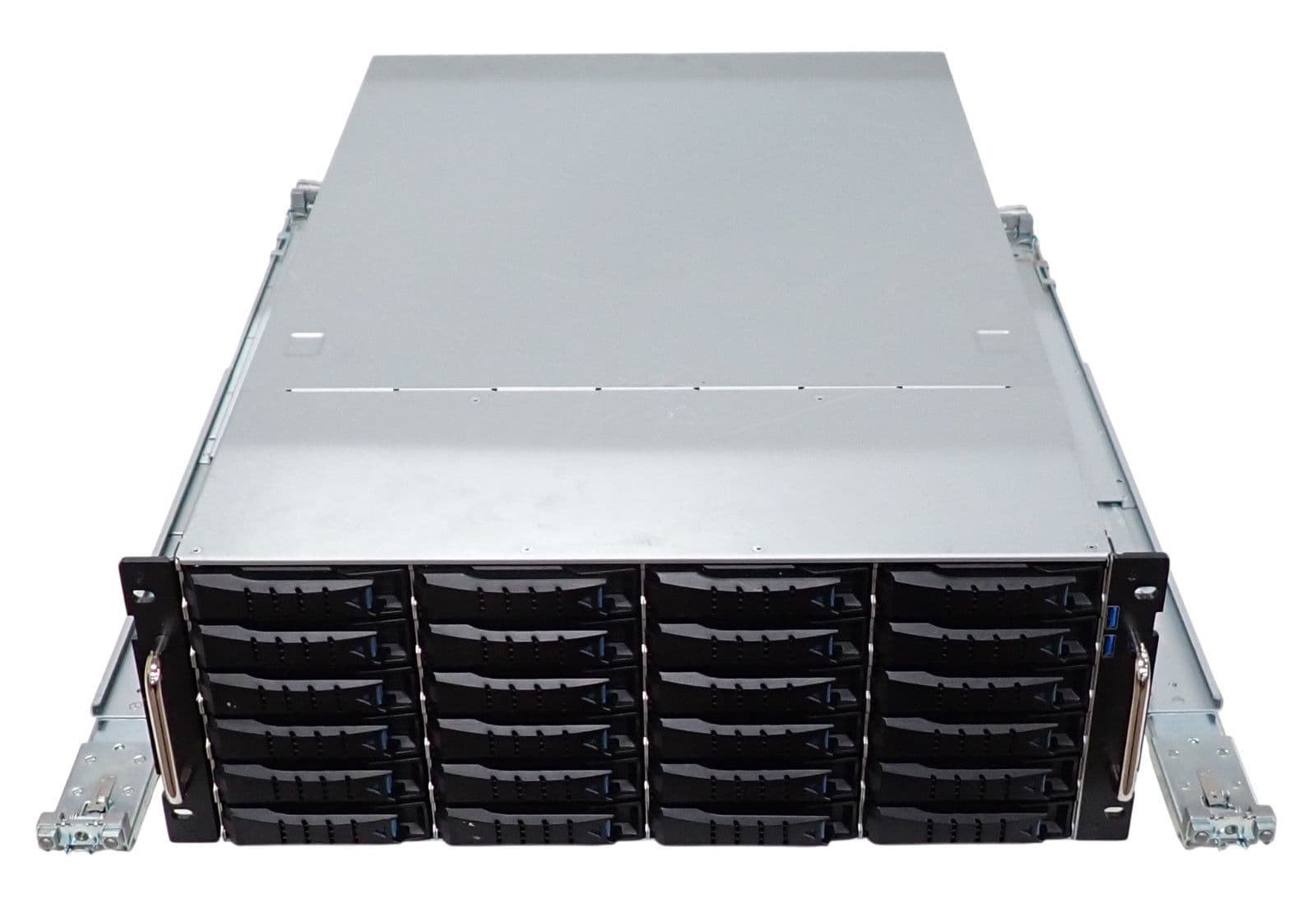

  • 1 x AIC RSC-4BT 4U Storage Server Chassis with:
    • 2 x Heatsinks

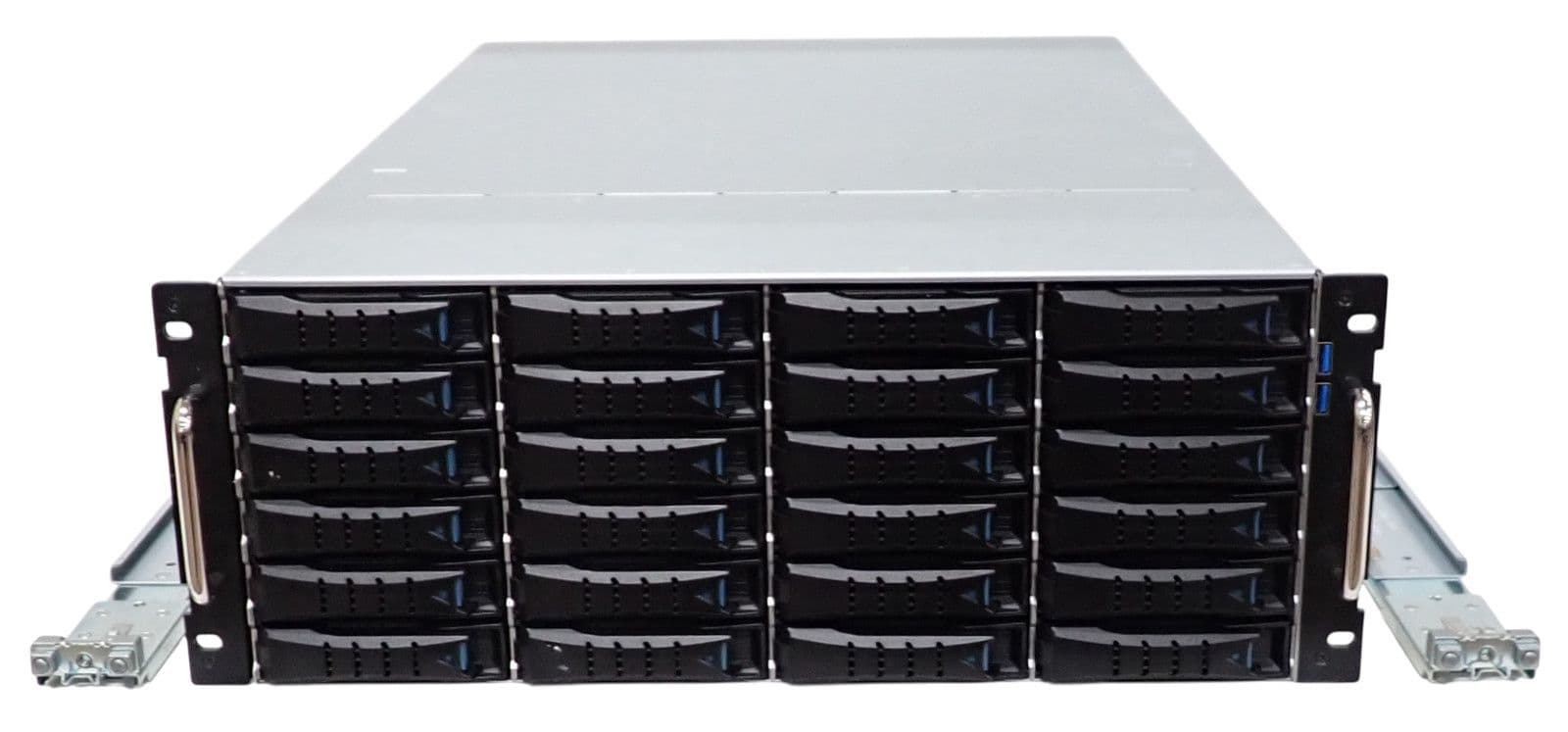

    • 24 x 3.5" SAS/SATA Front Hard Drive Bays with:
      • 24 x 3.5" Caddies

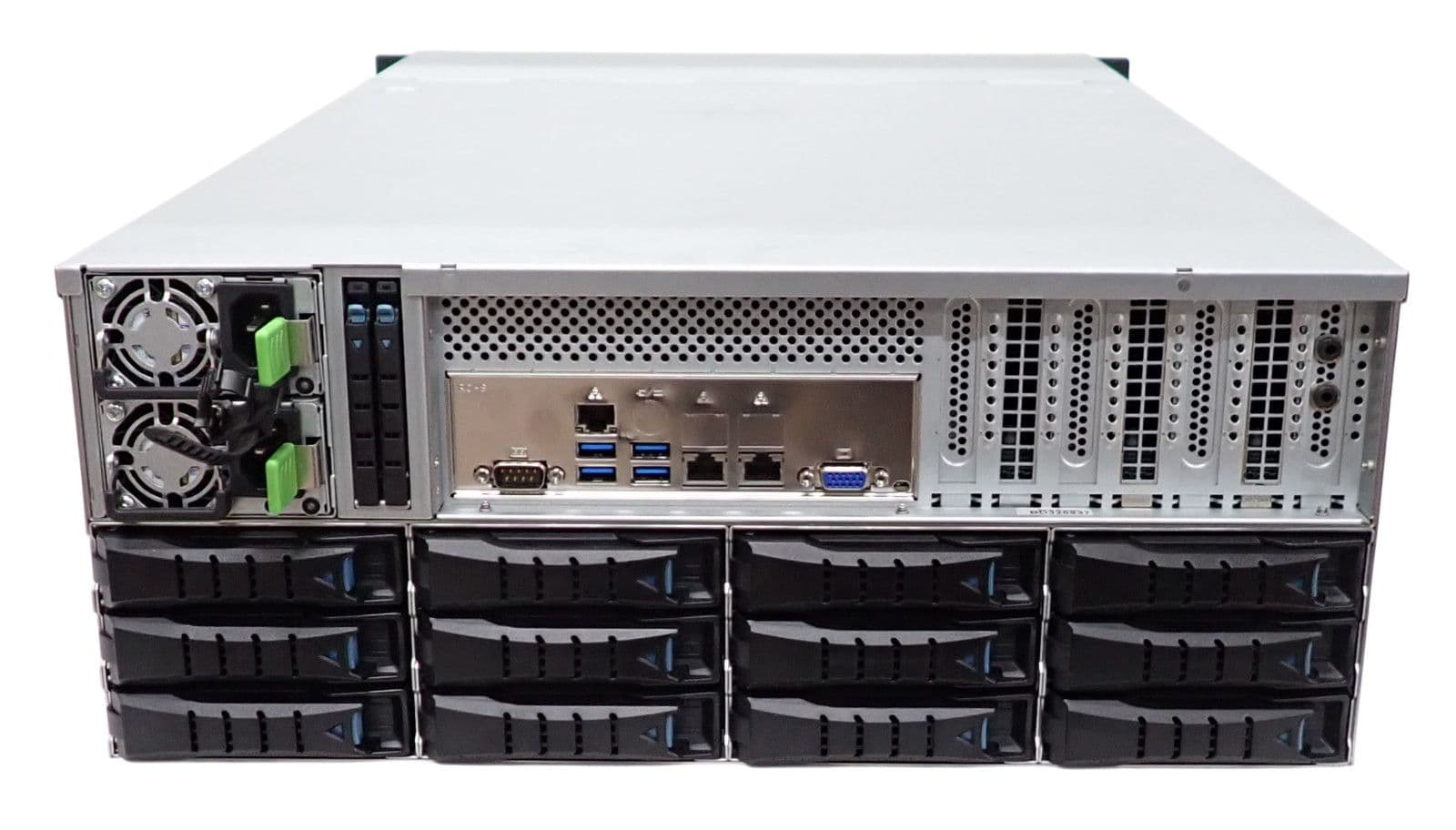

    • 12 x 3.5" SAS/SATA Rear Hard Drive Bays with:
      • 12 x 3.5" Caddies
    • 2 x 2.5" SATA Rear Hard Drive Bays with:
      • 2 x 2.5" Caddies
    • Motherboard - X12DPi-NT6
    • 2 x 1200W Power Supplies
  • 1 x Set Of Rails
Key Features
  • Tool-less design supports quick installation and easy maintenance:
    • Tool-less 3.5" & 2.5" drive trays
    • Tool-less top covers
    • Tool-less backplane
    • Tool-less slide rails
  • 12Gb/s SAS expander chip on backplane
  • Specially designed hot swap and low power consumption fans minimize rotational vibration and provide superior cooling
  • 3.5" drive tray comes with 4 screw holes to adapt to 2.5" drive
  • 36 (24 front + 12 rear) bays to provide high-density storage in a 4U server chassis
  • Comes with a redundant PSU 80+ Platinum
  • Two front access USB3.2 Gen1 x1 ports
Specification:
  • Dimensions (W x D x H):
    • mm: 430 x 680 x 174.3
    • inches: 16.9 x 26.8 x 6.9
  • Industry Standard: EIA-RS310D
  • Material: Heavy-duty preplated SPGC cold-rolled steel
  • Front Colour Panel: Black
  • Cooling: Middle: 6 x 80x38mm PWM & low-power consumption hot swap fans
  • Power Supply: 1200W 1+1 redundant PSU PMBus 1.2 80+ Platinum
  • Expansion Slots: 7 low profle
  • Front Panel: System power on/off, System reset, System ID and 2 x USB3.2 Gen1 x1 ports
  • LED Indicators: Power, LAN, Drive, ID and Alert
  • System Board: 12"(W) x 13"(D) E-ATX/SSI EEB 3.6 compliant MB
  • Drive Bays:
    • External: 36 x 3.5" hot swap (24 Front + 12 Rear)
    • External (Rear): 2 x 2.5" (7mm) hot swap
  • Backplane:
    • 1 x 24-port 12Gb SATA/SAS backplane with 36-PHY expander chip and 3 SFF-8643 connectors
    • 1 x 12-port 12Gb SATA/SAS backplane with 28-PHY expander chip and 3 SFF-8643 connectors
  • Storage Temperature: 0°C(32°F) ~ 50°C(122°F)
  • Humidity: 5% ~ 95% non-condensing
  • Gross Weight (w/ PSU & Rail):
    • kgs: 40.4
    • lbs: 89
Manufacturer Motherboard Specification:
Physical Stats
Form Factor
  • E-ATX
Dimension
  • 12" x 13" (30.48cm x 33.02cm)
Processor
CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
  • Up to 40 cores
System Memory
Memory Capacity
  • 18 DIMM slots
  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 4TB ECC RDIMM, DDR4-3200MT/s
  • P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type
  • 3200/2933/2666 MT/s ECC DDR4 LRDIMM (3DS), RDIMM
DIMM Sizes
  • LRDIMM: 256GB
  • RDIMM: 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550
Input / Output
SATA
  • 14 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
USB
  • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
  • 2 USB 2.0 port(s) (2 via header)
Video Output
  • 2 VGA (1 rear bezel, 1 front panel) port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 4 PCIe 4.0 x16,
  • 2 PCIe 4.0 x8
M.2
  • M.2 Interface: 1 PCIe 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, 8 -fan status, LAN temperature
LED
  • Power LED
  • BMC/IPMI Heartbeat LED
  • UID/Remote UID
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
Other Features
  • WOL, UID, RoHS, Node manager support, Dual cooling zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, ATX power connector, ACPI power management, SDDC, RoT, NCSI header
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
