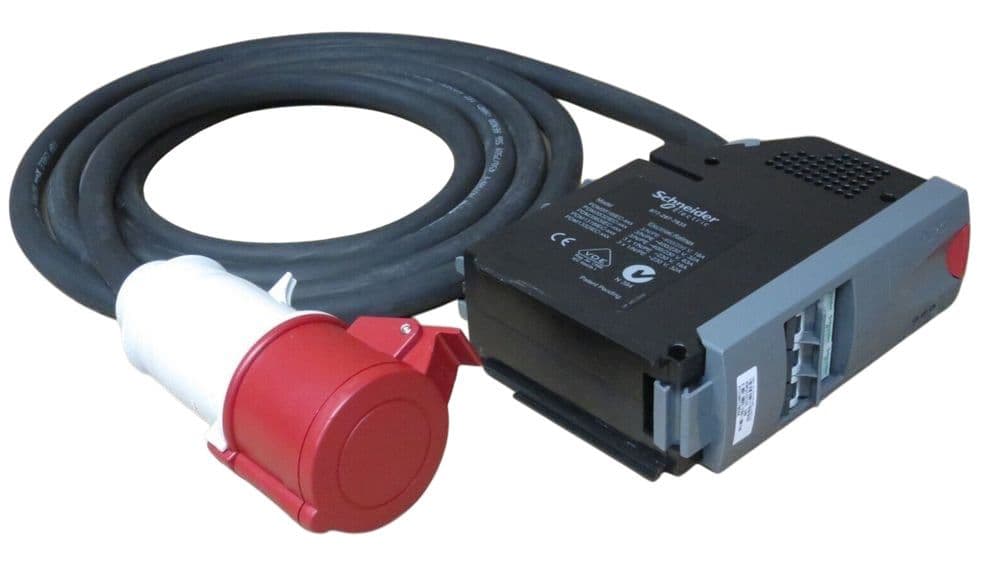

APC PDM3532IEC-380 Power Distribution Module 3 Phase 400v 3 Pole 5 Wire 32A 3.8m
Part Number: PDX516IEC-300
In Good Condition
Full Working Order
Tested
2 Years Warranty Included
Includes:
- 1 x APC PDM3532IEC-380 Power Distribution Module 3 Phase 400v 3 Pole 5 Wire 32A 3.8m
Specifications
| Main Input Voltage | 400 V 3 phases |
|---|---|
| Main Output Voltage | 230 V 400 V 3 phases |
| Provided equipment | Installation guide |
| Colour | Grey |
|---|---|
| height | 15.2 cm |
| Width | 43.2 cm |
| Depth | 40.6 cm |
| Net weight | 2.99 kg |
| Network frequency | 50 Hz |
|---|---|
| Max line current | 32 A |
| Max current draw | 32 A |
|---|---|
| Number of power socket outlets | 1 IEC 309 32 A |
| product certifications | CE VDE |
|---|
| Ambient air temperature for operation | 0…30 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Ambient air temperature for storage | 0…40 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.2 cm |
| Package 1 Width | 40.6 cm |
| Package 1 Length | 43.2 cm |
| Package 1 Weight | 2.7 kg |
DJ PDM3532IEC-380/REF - 1
specifications
-
MPN:PDM3532IEC-380
