Home / UPS / APC Smart-UPS X-Series SMX3000HV 3000VA 2700W 4U Rackmount UPS 8x C13 + 2x C19 (1)

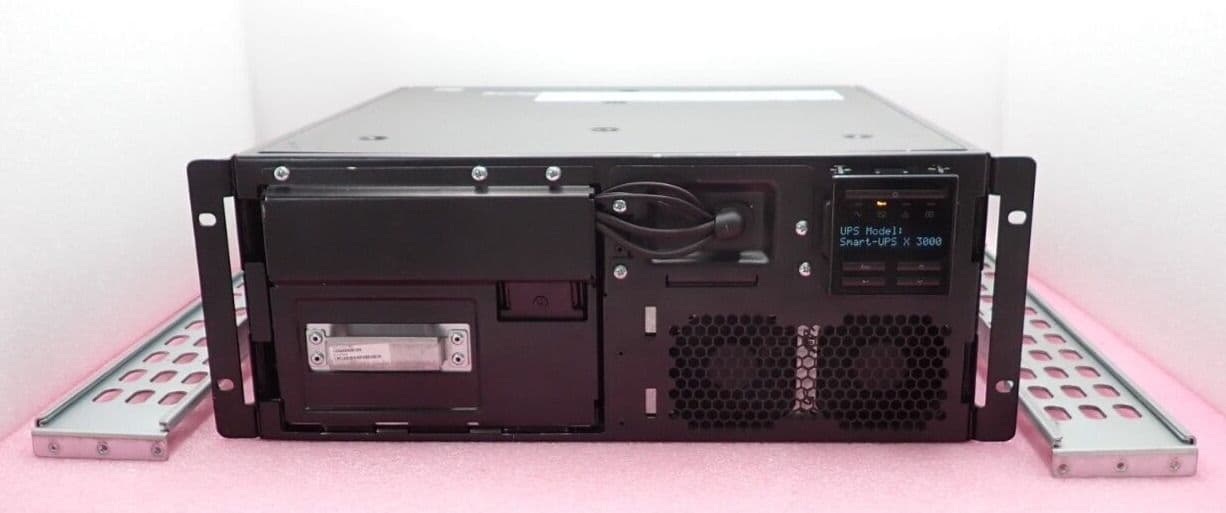

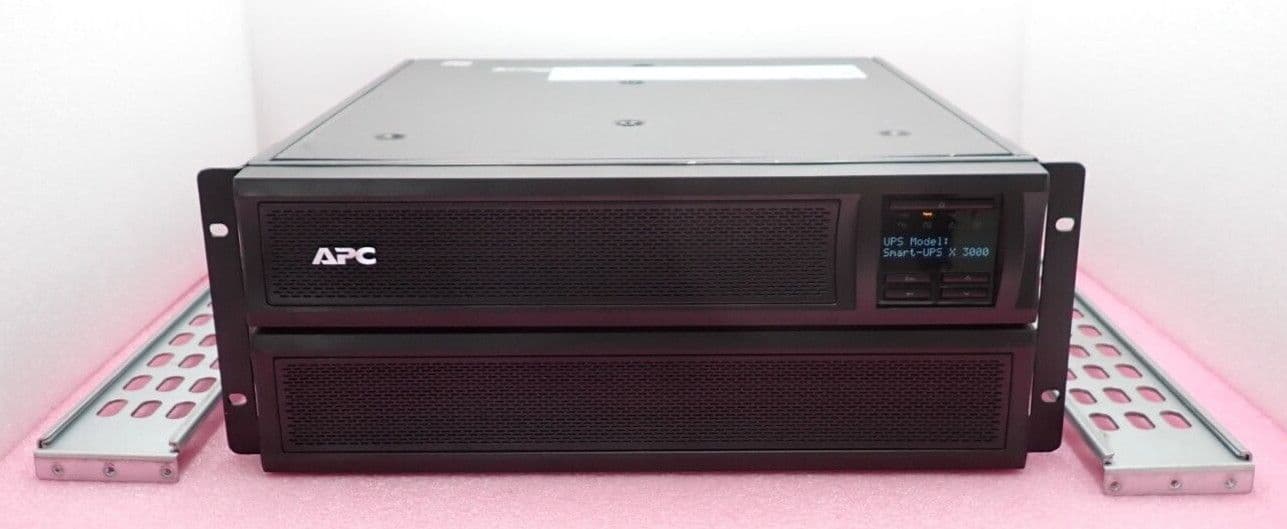

APC Smart-UPS X-Series SMX3000HV 3000VA 2700W 4U Rackmount UPS 8x C13 + 2x C19 (1)

product code: SMX3000HV/REF

mpn: SMX3000HV

product brand: APC

product condition: Used

excluding vat: £522.50

including vat: £627.00

information

APC Smart-UPS X-Series SMX3000HV 3000VA 2700W 4U Rackmount UPS 8x C13 + 2x C19 In Good Condition, Full Working Order Tested Supplied with new batteries Rails Included Short Depth Includes:

1 x APC Smart-UPS X-Series SMX3000HV 3000VA 2700W 4U Rackmount UPS 8x C13 + 2x C19
1 x Set Of Rails

Overview Presentation Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Main

Main Input Voltage:
- 208 V
- 230 V
Other Input Voltage:
- 220 V
- 240 V
Main Output Voltage: 230 V
Other Output Voltage:
- 208 V
- 220 V
- 240 V
Rated power in W: 2700 W
Rated power in VA: 3000 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type:
- IEC 320 C20
- Schuko CEE 7 / EU1-16P
- BS1363A British
output connection type:
- 8 IEC 320 C13
- 2 IEC Jumpers
- 2 IEC 320 C19
Number of rack unit: 4U
Battery type: Lead-acid battery

Complementary

Communication port type: SmartSlot

Batteries & Runtime

Extended runtime: 1
Number of battery Filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: APCRBC143
Battery charger power: 245 W rated

General

Number of power module: 0
Number of power module Filled slots: 0
Number of power module free slots: 0
product web sub-family: Extended run
Redundant: No

Physical

Colour: Black
Height: 43.2 cm
Width: 17.8 cm
Depth: 48.3 cm
Net weight: 38.64 kg
Mounting location: Front
Mounting preference: Lower
Mounting mode: Rack-mounted
Two post mountable: 1
USB compatible: Yes

Input

Input voltage limits: 140...280 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

Output

Crest factor: 3 : 1
Harmonic distortion: Less than 5 %
Maximum congurable power in VA: 3000 VA
Maximum congurable power in W: 2700 W
Transfer time: 6 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains

CS 317131 -ups A NB 317133 -top bzl dup w/ex batt a rls

specifications

MPN:

SMX3000HV
