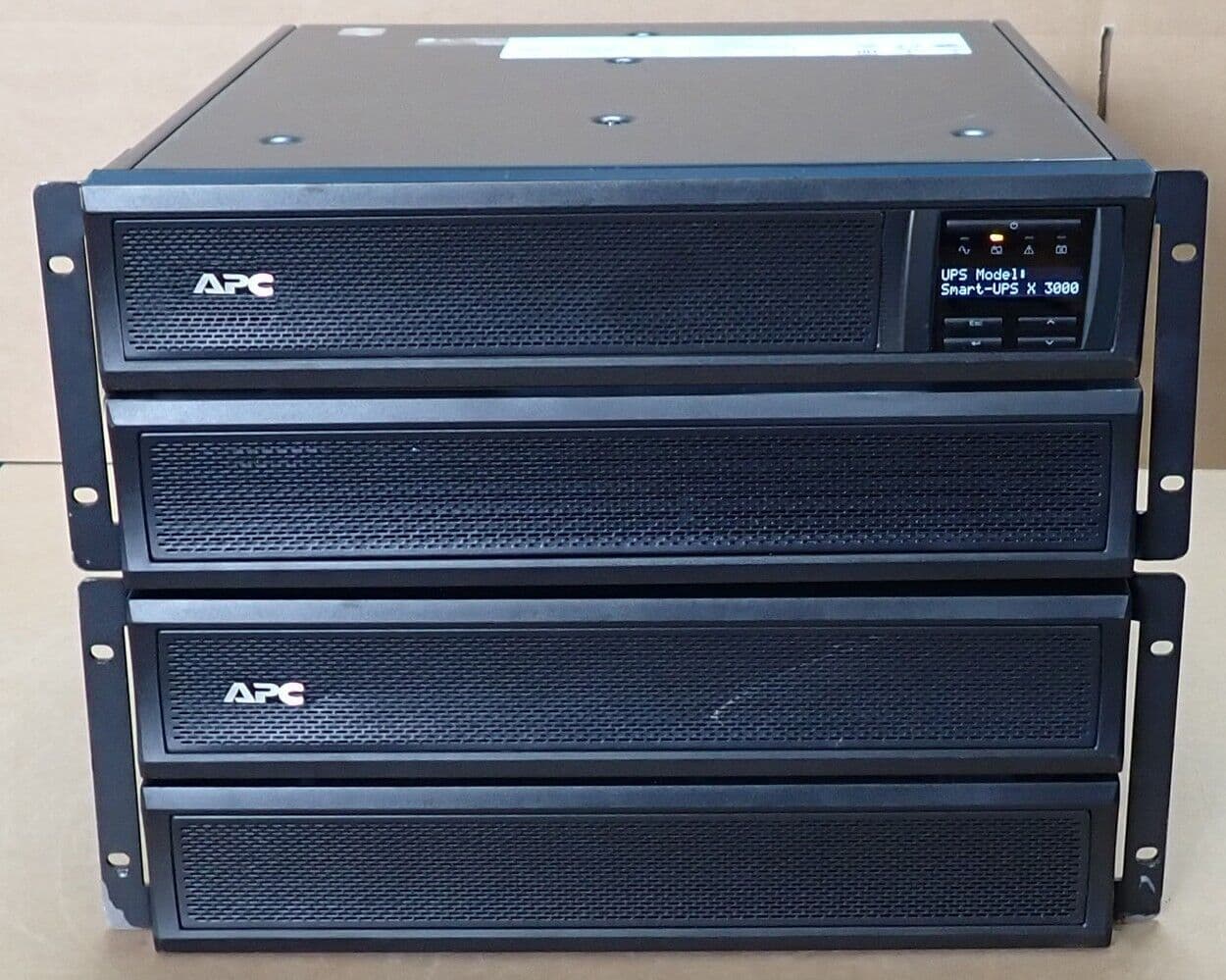

APC Smart-UPS X-Series SMX3000HV 3kVA UPS 8x C13 2x C19 + extended SMX120BP Battery Pack
In Good Condition, Full Working Order
Tested
Batteries Included
Short Depth
Includes:
SMX3000HV:
Overview
Presentation Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Main
Complementary
Batteries & Runtime
General
Physical
Input
Output
SMX120BP:
Main
Batteries & Runtime
Physical
- 1 x APC Smart-UPS X-Series SMX3000HV 3kVA Rack/tower convertible 4U 8x C13 2x C19 UPS
- 1 x APC Smart-UPS SMX120BP 120V, 1200VAh, Rackmount, 4U External Battery Pack
- 2 x Rail Kits
- Main Input Voltage:
- 208 V
- 230 V
- Other Input Voltage:
- 220 V
- 240 V
- Main Output Voltage: 230 V
- Other Output Voltage:
- 208 V
- 220 V
- 240 V
- Rated power in W: 2700 W
- Rated power in VA: 3000 VA
- Product or component type: Uninterruptible power supply (UPS)
- Input Connection Type:
- IEC 320 C20
- Schuko CEE 7 / EU1-16P
- BS1363A British
- output connection type:
- 8 IEC 320 C13
- 2 IEC Jumpers
- 2 IEC 320 C19
- Number of rack unit: 4U
- Battery type: Lead-acid battery
- Communication port type: SmartSlot
- Extended runtime: 1
- Number of battery Filled slots: 0
- Number of battery free slots: 0
- Battery recharge time: 3 h
- Number of battery replacement quantity: 1
- Battery life: 3…5 year(s)
- Replacement battery: APCRBC143
- Battery charger power: 245 W rated
- Number of power module: 0
- Number of power module Filled slots: 0
- Number of power module free slots: 0
- product web sub-family: Extended run
- Redundant: No
- Colour: Black
- Height: 43.2 cm
- Width: 17.8 cm
- Depth: 48.3 cm
- Net weight: 38.64 kg
- Mounting location: Front
- Mounting preference: Lower
- Mounting mode: Rack-mounted
- Two post mountable: 1
- USB compatible: Yes
- Input voltage limits: 140...280 V
- Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
- Crest factor: 3 : 1
- Harmonic distortion: Less than 5 %
- Maximum congurable power in VA: 3000 VA
- Maximum congurable power in W: 2700 W
- Transfer time: 6 ms typical : 10 ms maximum
- UPS type: Line interactive
- Wave type: Sine wave
- Output frequency: 50/60 Hz +/- 3 Hz sync to mains
- Product or component type: Battery
- Number of rack unit: 4U
- Battery type: Lead-acid battery
- Range of product: Smart-UPS Battery Systems
- Number of battery blocks per string: 10
- Device mounting: Enclosed battery cartridge
- Number of battery Filled slots: 0
- Number of battery free slots: 0
- Number of battery replacement quantity: 2
- Battery voltage: 120 V
- Replacement battery: APCRBC143
- Colour: Black
- Height: 43.2 cm
- Width: 17.8 cm
- Depth: 48.3 cm
- Net weight: 60.91 kg
- Mounting mode: Rack-mounted
CS 317131 -ups A NB 317132 -ex batt A NB 317133 -top bzl + ex batt bzls ups dup ex batt dup
specifications
-
MPN:SMX3000HV
