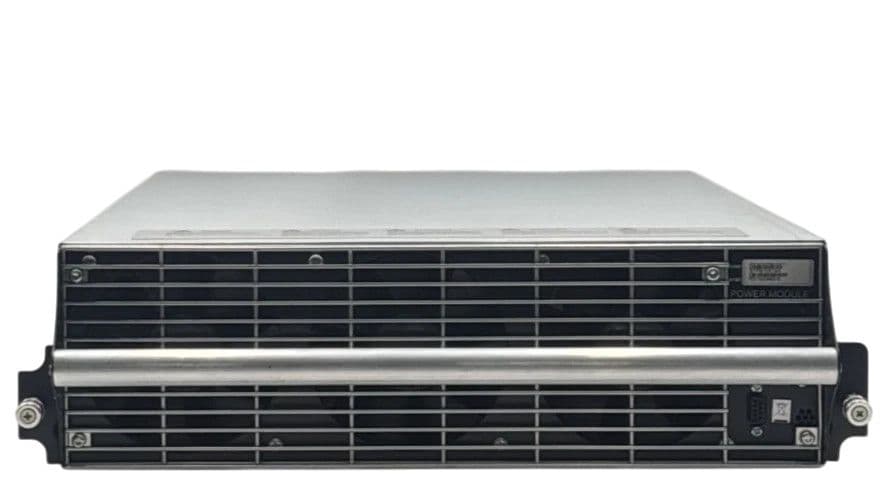

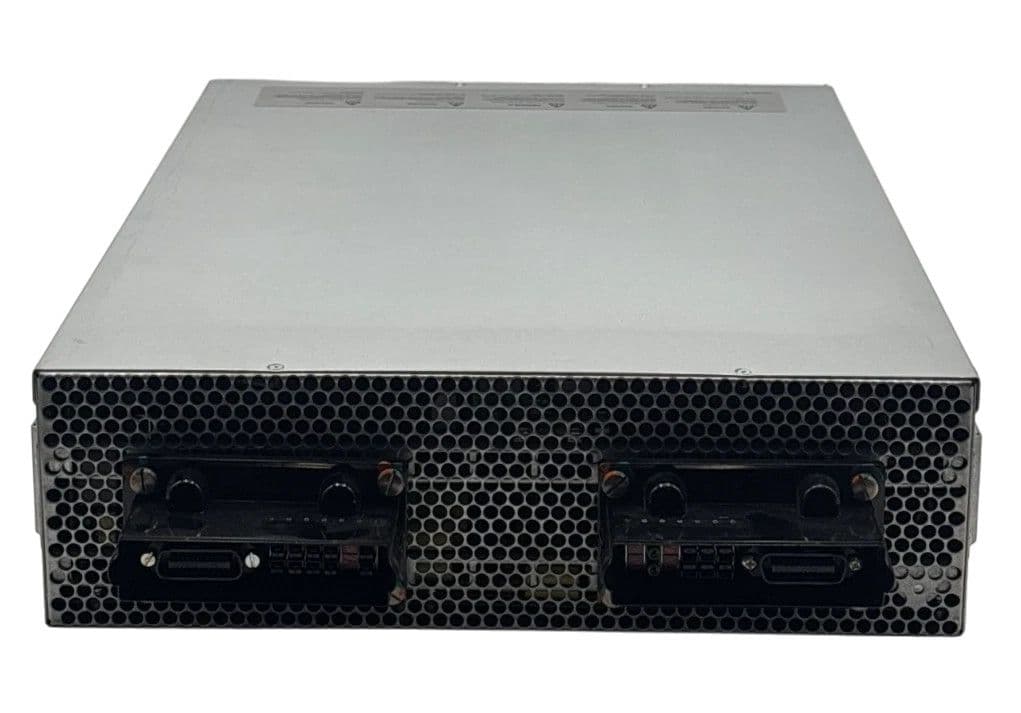

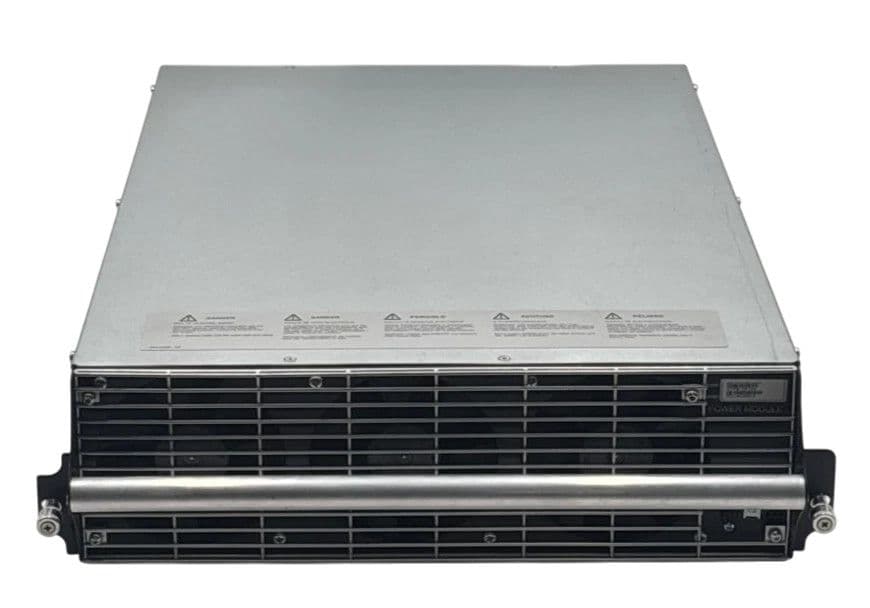

APC SYPM10K16H Symmetra PX 3-Phase Power 10/16kVA 16kW 16000VA 400v UPS Module (1)
APC SYPM10K16H Symmetra PX 3-Phase Power 10/16kVA 16kW 16000VA 400v UPS Module (1)
APC SYPM10K16H Symmetra PX 3-Phase Power 10/16kVA 16kW 16000VA 400v UPS Module (1)
APC SYPM10K16H Symmetra PX 3-Phase Power 10/16kVA 16kW 16000VA 400v UPS Module (1)
APC SYPM10K16H Symmetra PX 3-Phase Power 10/16kVA 16kW 16000VA 400v UPS Module (1)

APC SYPM10K16H Symmetra PX 3-Phase Power 10/16kVA 16kW 16000VA 400v UPS Module (1)

product code: SYPM10K16H/REF
mpn: SYPM10K16H
product brand: APC
product condition: Used
excluding vat: £1,520.00
including vat: £1,824.00
LinkedIn
information
APC SYPM10K16H Symmetra PX 3-Phase Power 10/16kVA 16kW 16000VA 400v UPS Module

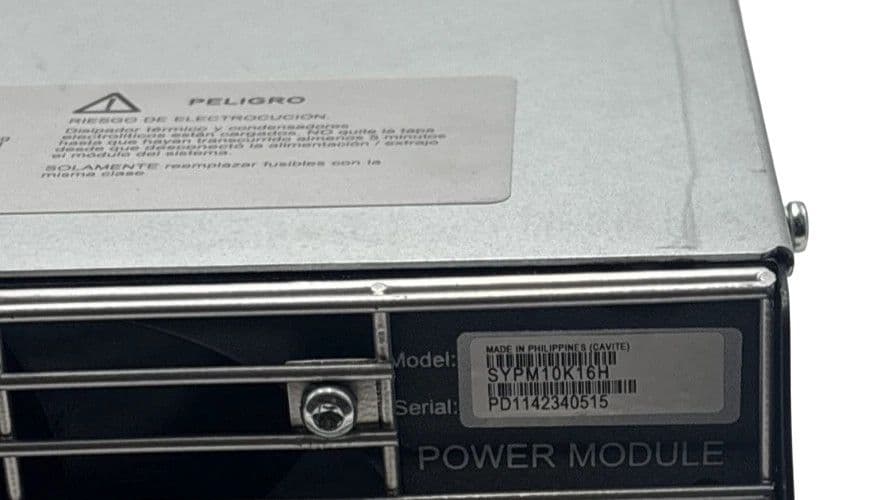

P/N: SYPM10K16H

In Good Condition

Full Working Order

Tested, 2 Year Warranty

Includes:

  • 1 x APC SYPM10K16H Symmetra PX 3-Phase Power 10/16kVA 16kW 16000VA 400v UPS Module
Specification:
Overview
Presentation A 16kW high efficiency power module for the Symmetra PX160kW & PX48kW. This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10kW of power protection if installed in a PX80kW, 40KW or 20kW all-in-one.
Main
Main Input Voltage 400 V 3 phases
Main Output Voltage 230 V
400 V 3 phases
Rated power in W 16000 W
Rated power in VA 16000 VA
Output connector type Hard wire 5-wire (3P + N + E) 1
Provided equipment Installation guide
Batteries & Runtime
Number of battery filled slots 0
Number of battery free slots 0
Additional information Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Physical
Height 13.2 cm
Width 48.3 cm
Depth 70 cm
Net weight 28.5 kg
Mounting location Front
USB compatible No
Input
Network frequency 40...70 Hz
Number of input connectors 1 hard wire 5-wire (3P + N + E)
Input voltage limits 340...477 V
Maximum input current 33 A
Max short time withstand current 30 kA
Input harmonic distortion Less than 5 % for full load
Input Power Factor at Full Load 0.99
Output
Maximum configurable power in W 16000 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains
50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Crest factor Unlimited
UPS type Double conversion online
Output voltage tolerance +/- 1% static and +/- 5% at 100% load step
Output harmonic distortion < 2% for 0 to 100% linear load and < 6% for full non-linear load
Output overload operation 10 minutes at 125% and 60 seconds at 150%


DJ SYPM10K16H/REF - 2
