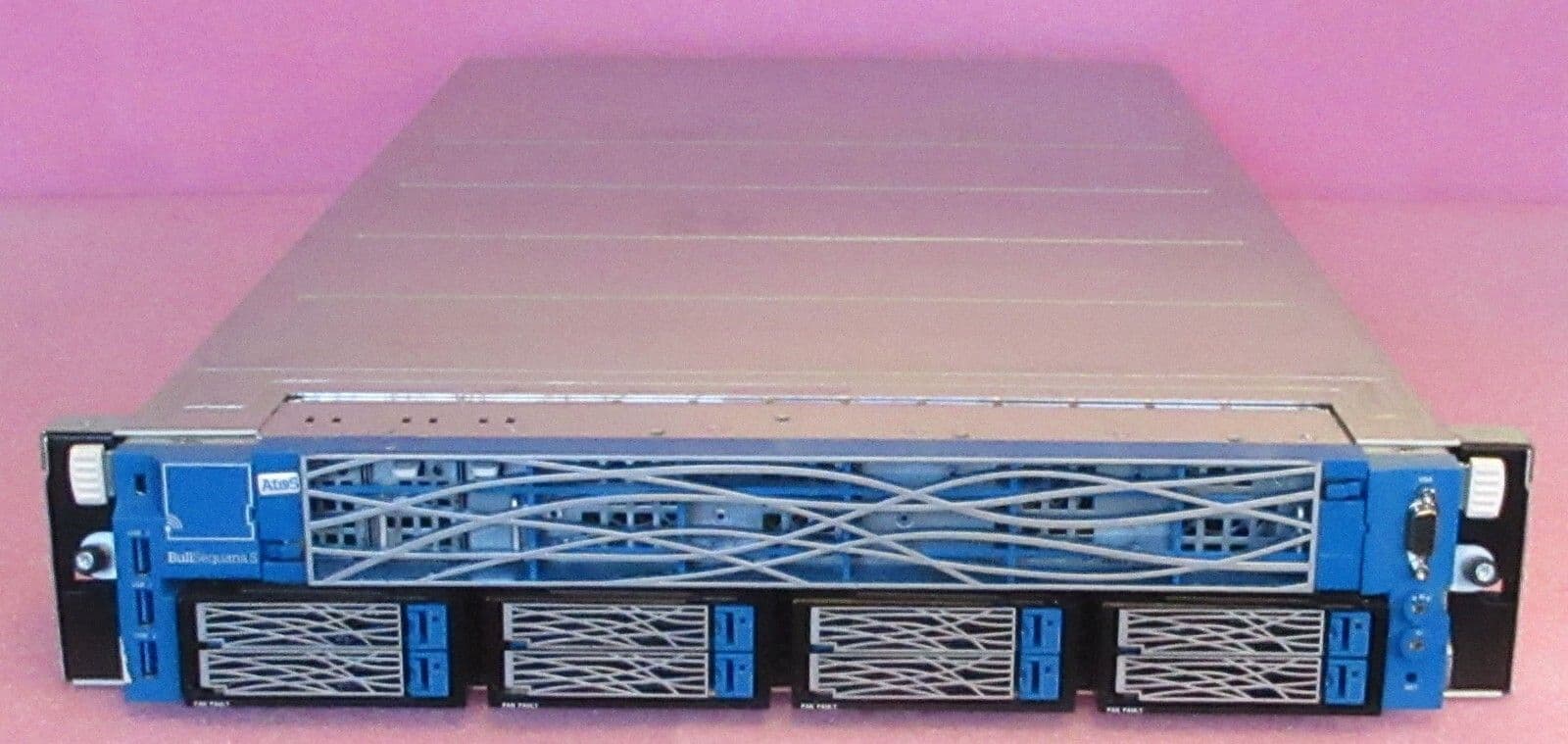

Atos BullSequana S S200 2U Modular 2x 2nd Gen Scalable CPU 24-DIMM CTO Server

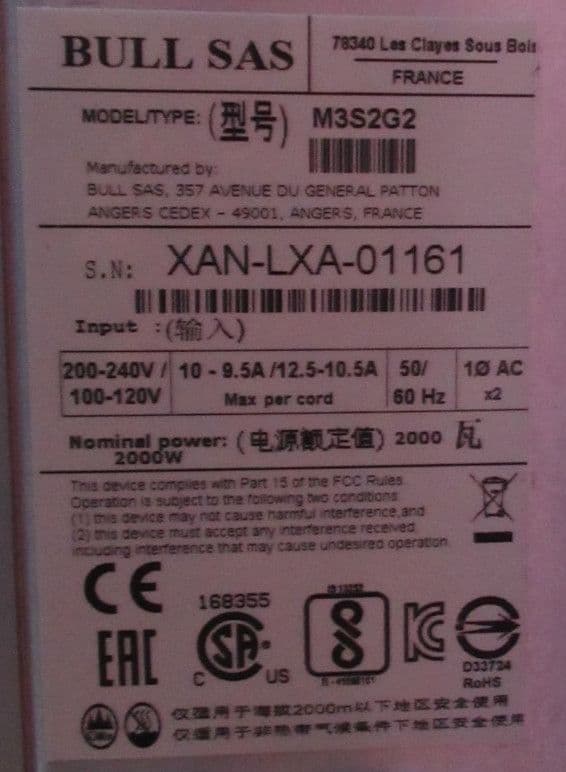

M3S2G2

In Good Condition Full Working Order

Tested

2 Year Warranty

Configure-To-Order CTO - No Processors, No Memory, No Drives Or Internal Caddies Included - these are required in order to operate

Includes:

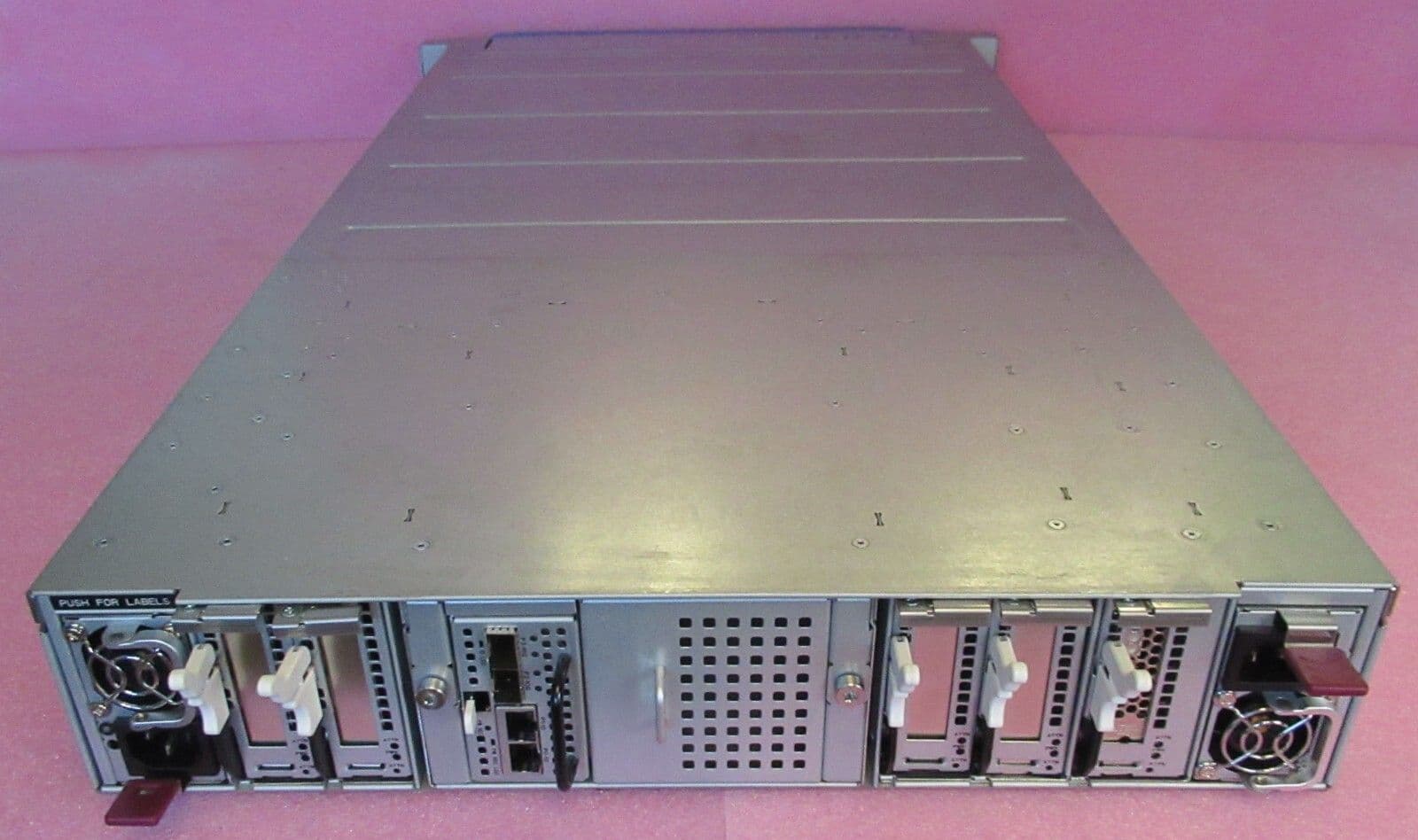

• 1x Atos BullSequana S S200 Chassis with:
  • 1x Atos BullSequana 2-Port 1GbE RJ45 + 2-Port 10Gb SFP+ I/O Management Module 11452105-002
  • 2x 2000W 80+ Platinum Power Supply
  • 4x Empty PCIe Blades
  • 1x PCIe Blade With:
    • 1x Riser Card 1x (PCIe x8 Slot) 11365054-005 with:
      • 1x LSI MegaRAID SAS 12G 9361-8i RAID Controller Card With 1GB Cache

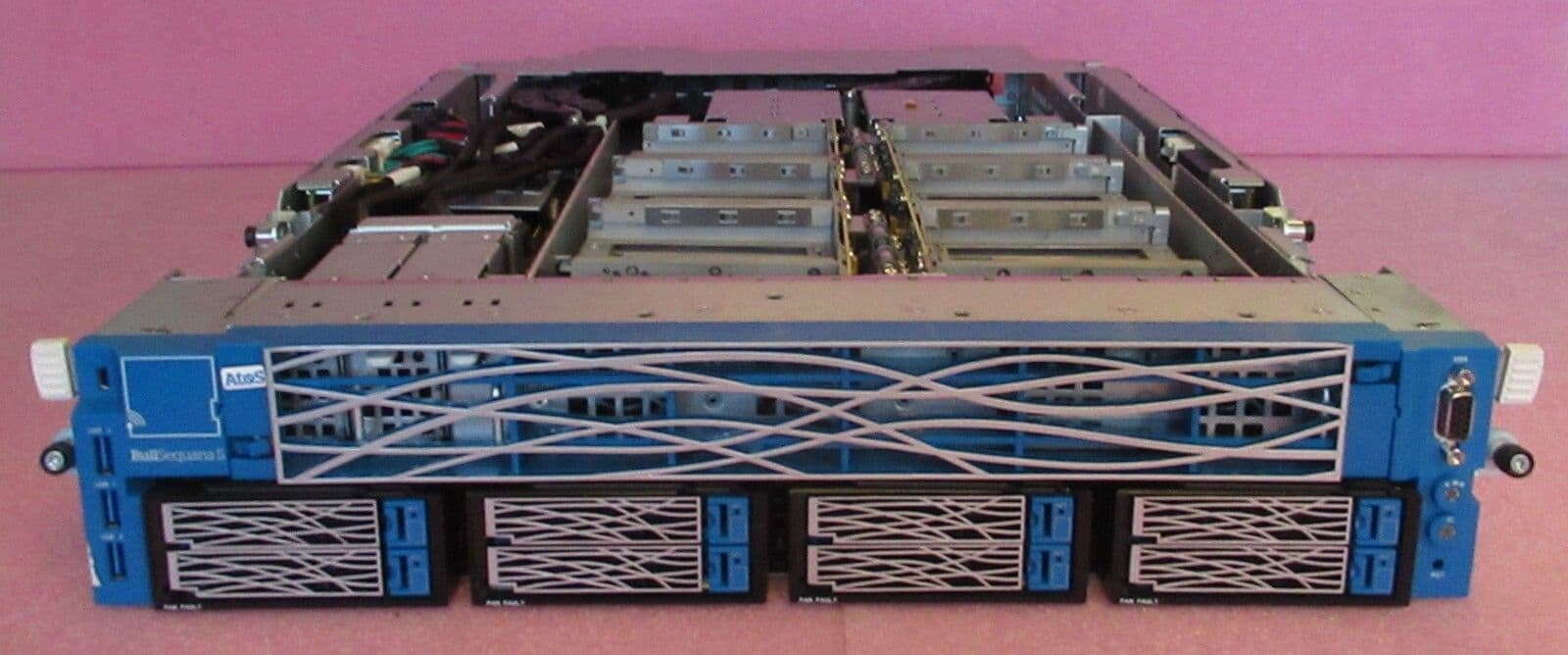

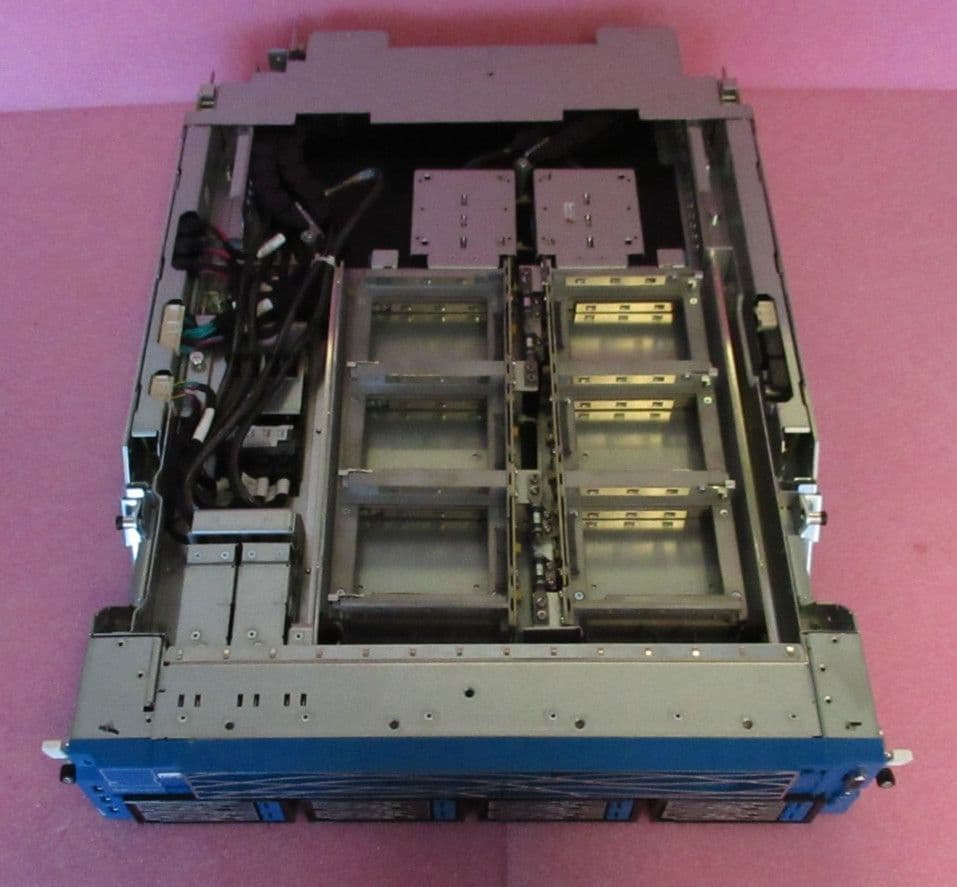

• 1x Atos BullSequana S S200 Compute Unit with:
  • 8x 2.5'' Front Bays (No Backplane Included)
  • 12x 2.5'' SAS Internal Bays (No Caddies Included)
  • Motherboard - 12001509-006
  • 2 x Processor Heatsinks
  • 1x LSI MegaRAID MR 9361-16i 16-Port SAS 12Gb/s RAID Controller Card with 2GB Cache

Manufacturer Specification:

DESIGN

• Form Factor: 2U

PROCESSORS

• Name: Intel Xeon Scalable Processors
• Numbers: 2 max 56 cores / 112 threads
• Type: 8200, 6200, 5200, 4200 series
• Processor cores available: 4, 8, 10, 12, 16, 18, 20, 22, 24, 26 or 28
• L3 shared cache: 77MB

ARCHITECTURE

• Chipset: Intel C627 Chipset
• Ultra-Path Interconnect (UPI): Intel UPI: 2-3 links per socket - up to 10.4 GT/s
• Scalability: 2 processors
• Hardware Partitioning: No

MEMORY

• Memory Slots: 24
• Min / max DRAM: 64GB - up to 3TB
• DRAM Type: DDR4 RDIMM, LR-DIMM
• Persistent Memory (DCPMM)*: up to 6 TB ( 12 x 512 GB)

EMBEDDED I/O PORTS

• Network Interface Controller (NIC):
  • 4 x 10Gb/s Base-T Ethernet ports or
  • 2 x 10Gb/s Optical Ethernet ports (DAC or SFP+) + 2 x 1Gb/s Base-T Ethernet ports
• Management ports: Management interface shared with 1GbE port (plus 100 Mb/s with Private Ethernet management switch for 4S & 8S)
• USB ports: 4 x USB 3.0 (3 x front + 1 x internal) + 1 x USB 2.0

I/O

• I/O slots: Up to 5 Gen3 PCIe x 8 hot pluggable slots (or 2 x 16 + 1 x 8) per Compute Unit
• NIC PCIe blade: 1GbE, 10GbE, 25GbE, 100GbE/IB (1,2 or 4 ports per PCI blade according to model)
• HBA PCIe blade: 8Gb/s: 2ports per PCIe blade - 16Gb/s: 2 or 4 ports per PCIe blade - 32Gb/s: 2 ports per PCIe blade
• SAS/SATA PCIe blade: 12Gb/s: 2 ext. ports per PCIe blade

STORAGE

• Compute Unit:
  • Hot-pluggable Front Disk Blades
  • Up to 8 x 2.5" SSD/HDDs
• Storage Unit**:
  • Up to 12 x 2.5" SSDs/HDDs or
  • Up to 4 x 3.5" HDDs or
  • Up to 4 x 2.5'' NVMe U.2 drives
• Storage Controller:
  • RAID controllers:
    • On board SATA 6Gb/s RAID1 controller, up to 2 disks (Compute Unit)
    • SAS 12Gb/s and SATA 6Gb/s, up to 8 disks (Compute Unit) and 12 disks (Storage Unit)
  • Host Bus Adapter:
    • SAS 12Gb/s and SATA 6Gb/s, up to 8 disks (Compute Unit) and 12 disks (Storage Unit)
• Micro SD: Dual MicroSD (RAID) on internal USB port (VMware boot only for some processors)
• SAN: Dell EMC, HitachiVantara, NetApp, ...

VIDEO

• Video controller: 1
• Memory: 8MB
• GPUs: GPU Unit*: Up to 2 GPUs

SECURITY

• Security features: TPM 2.0, Secure boot, 2-level password

POWER SUPPLY

• Hot-swap Power Supply Unit (PSU): 1 + 1 per module
• PSU number: 2, redundant
• PSU type: Label 80+ Titanium & Platinum, 96% efficiency
• Max power output per PSU: 2000 watts
• Auto-sensing: 220V 60/50Hz

COOLING

• Fan specifications: Up to 14 hot-plug, N+1 redundant

PHYSICAL SPECIFICATIONS

• Dimensions (HxLxW) (max): 89 (2U) x 446 mm (19") x 850 mm
• Weight: Up to 43 kg
• Operating constraints:
  • Ambient air temperature: +10°C to +35°C, gradient 20°C/hour
  • Relative humidity (non condensing): 20% to 60%, gradient 5%/hour

OS & SOFTWARE

• Operating System: VMware vSphere (ESXiTM), Red Hat Enterprise Linux ,Suse Linux Enterprise Server, Microsoft Windows Server,
• Oracle VM, Oracle Linux

SYSTEM MANAGEMENT

• BMC: IPMI 2.0
• Remote management: Standard via on-board iBMC (connection through the management port)
• Management software: BMC (Server Hardware Console), IPMI 2.0, RedFish, iCare

AVAILABILITY & RAS FEATURES

• RAS features: Advanced Error Detection and Correction (AEDC), Viral Mode of error containment, PCIe "Stop and Scream", Virtual (soft) Partitioning, PCI Express ECRC, PCIe Corrupt Data Containment (Data Poisoning), PCIe Link CRC Error Check and Retry, PCIe Link Retraining and Recovery, PCI Express Live Error Recovery, DDR4 Wr Data CRC check/retry, DDR4 Command/Address Parity Check and Retry, Intel UPI Link Level Retry, Intel UPI Protocol Protection via 16 bit Rolling CRC, Intel UPI Dynamic Link width reduction, Core disable for Fault Resilient Boot, Power up, Post Package Repair, Failed DIMM Isolation, PCIe Card Hot Plug (Add/Remove/Swap), PIROM for System Information Storage
• Serviceability:
  • Hot-plug devices: PCIe blades (depending on OS), disks, fans
  • hot-swap devices: Power Supply Unit
• Redundancy: Power supplies, fans, disks with RAID
