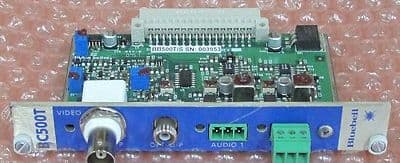

Bluebell BC500T Single Channel Electrical to Optical Converter Composite Card

Bluebell BC500T Single Channel Electrical to Optical Converter Composite Card

mpn: BB500T/S
product brand: Bluebell
product condition: Used
excluding vat: £33.25
including vat: £39.90
LinkedIn
information

Bluebell BC500T Single Channel Electrical to Optical Converter Composite Card

BB500T/S

TESTED

Included

  • 1 x Bluebell BC500T Single Channel Electrical to Optical Converter Composite Card

The BC500T is a transmitter for the conversion of composite analogue video and two analogue audio channels into fibre optical cable. The incoming video signal is line equalised prior to FM modulation and transmission down a single optical fibre. Two separate audio channels are also filtered and presented to the optical driver. The card does not rely on a video signal for transmission and can be used as an audio only transmission system. All Bluebell cards are designed to retain maximum integrity of the signal path offering excellent jitter free optical transport.

Specifications for each channel
Electrical Input Video
Standards Composite 1V pk-pk PAL, NTSC, SECAM
Connector 75 Ohm BNC
Diff. Phase < 1º
Diff. Gain < 1% (at sub-carrier 3.58/4.43 MHz)
Electrical Input Video
Format 2 x Balanced Line Level Analogue Audio
Connector 2 x Phoenix Terminal Block
Format 20 Hz to 20 kHz +/-0.25 dB distortion
0 dB system gain 18dBu ref. 1 mW into 600R adjustable
Impedance 100 kOhm
Optical Output
Connector * 1 x female FC/PC, ST or SC
See Ordering Information
Wavelength

850 nm, 1310 nm, 1550 nm, CWDM
See Ordering Information
Optical Power -14 dBm @ 850nm
-6 dBm @ 1310 nm
-6 dBm @ 1510 nm
0 dBm @ 1510 nm for the /L High power version
General card specifications
Depth: 60 mm
Width: 20 mm 4TE
Height: 100 mm (3RU)
Weight: 100 g
Operating Temp: -30 to +70 ºC
Power: 2.2 W
Signal detect: LED on for loss of signal
No of slots: 1
Conformance
EMI/RFI: Complies with 89/336/EEC
Electrical: Complies with EN 61000-6-1, EN61000-6-2
Laser Safety Complies with Class 1 laser product
24 CFR 1040.10 & 1040.11
RoHS: Complies with Directive 2002/95/EC

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

PE 81800 I/B 81811 B.S
specifications
  • MPN:
    BB500T/S
