Brocade 6510 48-Port 16Gb Managed 1U FC Switch BR-6510-24-8G-R (24-Port Active)
Brocade 6510 48-Port 16Gb Managed 1U FC Switch BR-6510-24-8G-R (24-Port Active)
Brocade 6510 48-Port 16Gb Managed 1U FC Switch BR-6510-24-8G-R (24-Port Active)
Brocade 6510 48-Port 16Gb Managed 1U FC Switch BR-6510-24-8G-R (24-Port Active)

Brocade 6510 48-Port 16Gb Managed 1U FC Switch BR-6510-24-8G-R (24-Port Active)

mpn: 6510
product brand: Brocade
product condition: Used
excluding vat: £1,045.00
including vat: £1,254.00
LinkedIn
information

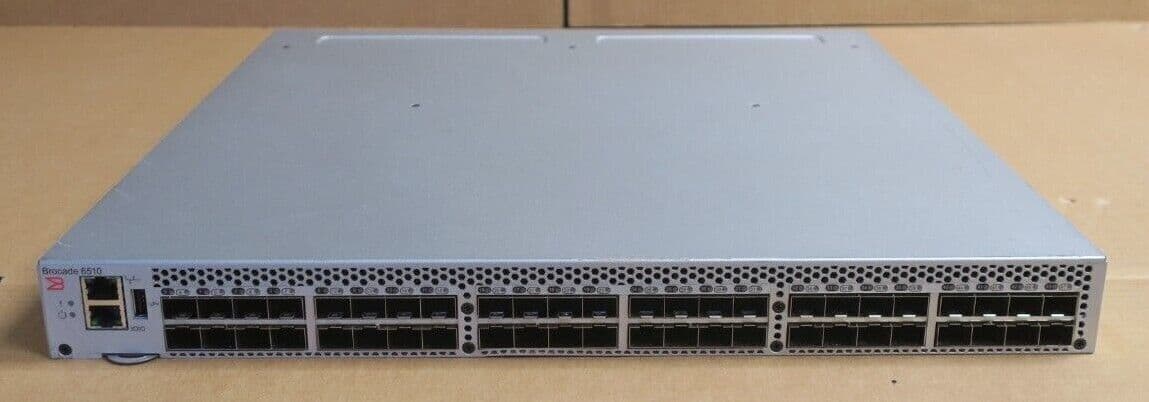

Brocade 6510 48-Port 16Gb Managed 1U FC Switch BR-6510-24-8G-R
Model: 6510

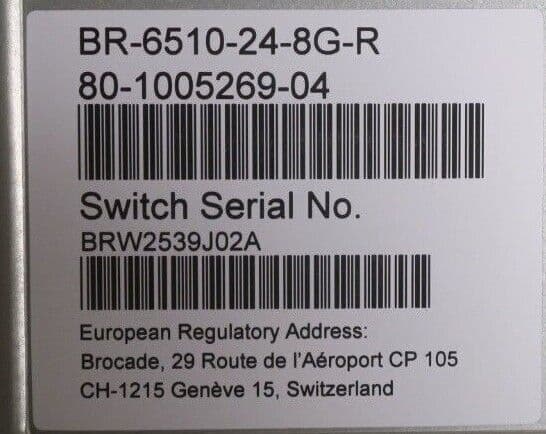

P/N: BR-6510-24-8G-R

In Good Condition, Full Working Order
Tested
2 Year Warranty

24-Ports Active
Rear To Front Airflow
Included
  • 1 x Brocade 6510 48-Port 16Gb Managed 1U FC Switch BR-6510-24-8G-R (24-Port Active)
  • 2 x 125W Power Supply PSU - 23-000092-02
Overview
The Brocade 6510 Switch meets the demands of hyper-scale, private cloud storage environments by delivering market-leading 16 Gbps Fibre Channel technology and capabilities that support highly virtualized environments. Designed to enable maximum flexibility and reliability, the Brocade 6510 is configurable in 24, 36, or 48 ports and supports 2, 4, 8, 10, or 16 Gbps speeds in an efficiently designed 1U package.

Flexible, Easy-to-Use Entry-Level SAN Switch for Private Cloud Storage
To keep pace with growing business demands, data centers are transitioning to highly virtualized, private cloud storage environments. This approach enables organizations to consolidate and simplify their IT resources, resulting in increased business agility and lower capital and operating expenses. But virtualization is not without its challenges. Data centers must keep up with the explosive data growth and dynamic changes driven by virtualized workloads. Selecting the right network is key to realizing the full benefits of these cloud-based architectures.

The Brocade 6510 Switch meets the demands of hyper-scale, private cloud storage environments by delivering market-leading 16 Gbps Fibre Channel technology and capabilities that support highly virtualized environments. Designed to enable maximum flexibility and reliability, the Brocade 6510 is configurable in 24, 36, or 48 ports and supports 2, 4, 8, 10, or 16 Gbps speeds in an efficiently designed 1U package.

A simplified deployment process and a point-and-click user interface make the Brocade 6510 both powerful and easy to use. The Brocade 6510 offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.

Highlights
  • Provides exceptional price/performance value, combining flexibility, simplicity, and enterprise-class functionality in a 48-port switch
  • Enables fast, easy, and cost-effective scaling from 24 to 48 ports
  • Leverages Brocade Fabric Vision technology's powerful monitoring, management, and diagnostic tools to simplify administration, increase uptime, and reduce costs
  • Helps pinpoint problems faster and simplify SAN configuration and management with Brocade Network Advisor
  • Simplifies deployment with the Brocade EZSwitchSetup wizard and supports high-performance fabrics by using Brocade ClearLink D_Ports to identify optic and cable issues
  • Maximizes availability with redundant, hot-pluggable components and non-disruptive software upgrades
Support Business Growth with Enterprise-Class Performance
  • "Pay as you grow" from 24 to 36 ports with Ports on Demand
  • Maximize resiliency with an optional redundant power supply
  • Deliver 40 percent higher performance than comparably priced 10 GbE alternatives
Simplify Operations with Smart Tools
  • Install in three easy steps with Brocade EZSwitchSetup
  • Streamline deployment and troubleshooting with Brocade Fabric Vision technology
  • Centralize monitoring and management while reducing costs with Brocade Network Advisor
Specification
System Architecture
  • Fibre Channel ports:
    • Switch mode (default): 24-, 36-, and 48-port configurations (12-port increments through Ports on Demand [PoD] licenses); universal (E, F, M, D, EX) ports
    • Access Gateway default port mapping: 40 F_Ports, 8 N_Ports
  • Scalability: Full-fabric architecture with a maximum of 239 switches
  • Certified maximum: 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS fabrics; 31 switches, three hops in Brocade M-EOS fabrics; larger fabrics certified as required
  • Performance: Fibre Channel: 2.125 Gbps line speed, full duplex; 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; 10.53 Gbps line speed, full duplex; 14.025 Gbps line speed, full duplex; auto-sensing of 2, 4, 8, and 16 Gbps port speeds; 10 Gbps optionally programmable to fixed port speed
  • ISL trunking: Frame-based Trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS.
  • Aggregate bandwidth: 768 Gbps end-to-end full duplex
  • Maximum fabric latency: Latency for locally switched ports is 700 ns; encryption/compression is 5.5 µsec per node; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default).
  • Maximum frame size: 2112 byte payload
  • Frame buffers: 8192 dynamically allocated
  • Classes of service: Class 2, Class 3, Class F (inter-switch frames)
  • Port typesD_Port (Diagnostic Port), E_Port, EX_Port, F_Port, M_Port (Mirror Port); self-discovery based on switch type (U_Port); optional port type control
  • Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
  • Data traffic types: Fabric switches supporting unicast
  • Media types:
    • 16 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 16 Gbps SWL, LWL, ELWL
    • 10 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 10 Gbps SWL, LWL
    • 8 Gbps: Brocade 6510 requires Brocade hot-pluggable SFP+, LC connector; 8 Gbps SWL, LWL, ELWL
    • Fibre Channel distance subject to fiberoptic cable and port speed
  • USB: One USB port for system log file downloads or firmware upgrades
  • Fabric services: Monitoring and Alerting Policy Suite (MAPS); Flow Vision; Top Talkers for E_Ports, F_ Ports, and Fabric mode; Brocade Adaptive Networking (Ingress Rate Limiting, Traffic Isolation, QoS); Bottleneck Detection; Brocade Advanced Zoning (default zoning, port/ WWN zoning, broadcast zoning, peer zoning); Dynamic Fabric Provisioning (DFP); Dynamic Path Selection (DPS); Brocade Extended Fabrics; Enhanced BB credit recovery; FDMI; Frame Redirection; Frame-based Trunking; FSPF; Integrated Routing; IPoFC; Brocade ISL Trunking; Management Server; NPIV; NTP v3; Port Fencing; Registered State Change Notification (RSCN); Reliable Commit Service (RCS); Server Application Optimization (SAO); Simple Name Server (SNS); Virtual Fabrics (Logical Switch, Logical Fabric)
  • Extension: Fibre Channel, in-flight compression (Brocade LZO) and encryption (AES-GCM-256); integrated optional 10 Gbps Fibre Channel for DWDM MAN connectivity
Management
  • Supported management software: HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools; Brocade Network Advisor SAN Enterprise or Brocade Network Advisor SAN Professional/Professional Plus; Command Line Interface (CLI); SMI-S compliant; Administrative Domains; trial licenses for add-on capabilities
  • Security: AES-GCM-256 encryption on ISLs; DHCHAP (between switches and end devices), FCAP switch authentication; FIPS 140-2 L2- compliant, HTTPS, IPsec, IP filtering, LDAP with IPv6, OpenLDAP, Port Binding, RADIUS, TACACS+, User-defined Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch
  • Management access: 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port
  • Diagnostics: ClearLink optics and cable diagnostics, including electrical/optical loopback, link traffic/latency/distance; flow mirroring; built-in flow generator; POST and embedded online/ offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, port mirroring, optics health monitoring, power monitoring, RAStrace logging, and Rolling Reboot Detection (RRD)
Mechanical

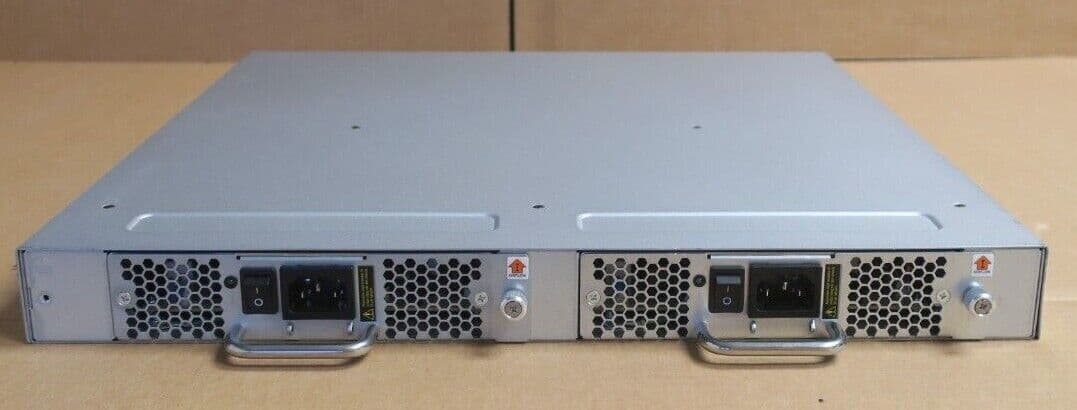

  • Enclosure: Back-to-front airflow; power from back, 1U
  • Size
    • Width: 437.64 mm (17.23 in.)
    • Height: 43.18 mm (1.7 in.)
    • Depth: 443.23 mm (17.45 in.)
  • System weight: 9.16 kg (20.20 lb) with two power supply FRUs, without transceivers
Environmental
  • Operating environment
    • Temperature: 0° to 40°C/32°F to 104°F
    • Humidity: 10% to 85% (non-condensing)
  • Non-operating environment
    • Temperature: −25° to 70°C/−13°F to 158°F
    • Humidity: 10% to 90% (non-condensing
  • Operating altitude: Up to 3000 m (9843 ft)
  • Storage altitude: Up to 12 km (39,370 ft)
  • Shock
    • Operating: Up to 20 G, 6 ms half-sine
    • Non-operating: Half sine, 33 G 11 ms, 3/eg axis
  • Vibration
    • Operating: 0.5 g sine, 0.4 grms random, 5 Hz to 500 Hz
    • Non-operating: 2.0 g sine, 1.1 grms random, 5 Hz to 500 Hz
  • Heat dissipation: 48 ports at 338 BTU/hr
Power
  • Power supply: Dual, hot-swappable redundant power supplies with integrated system cooling fans

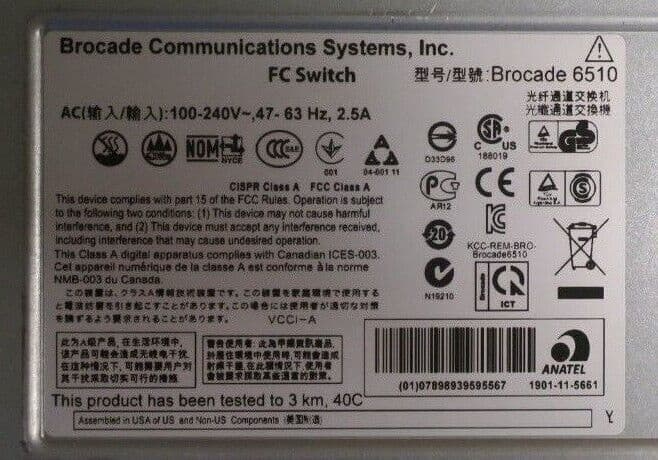

  • AC input: 85 V to 264 V ~5 A to 2.5 A
  • AC Input line frequency: 47 Hz to 63 Hz
  • AC Power consumption: 110 watts with all 48 ports populated with 16 Gbps SWL optics
  • 72 watts for empty chassis with no optics
  • DC input: 40 V to 60 V max current 4.5 A
  • DC Power consumption: 112 W with all 48 ports populated with 16 Gbps SWL optics 53 W for empty chassis with no optics
Boot Log:

SW6510:FID128:admin>version
Kernel: 2.6.14.2
Fabric OS: v7.0.2c
Made on: Fri Feb 22 21:29:23 2013
Flash: Wed Sep 25 14:23:57 2013
BootProm: 1.0.9

SW6510:FID128:admin>switchshow
switchName: SW6510
switchType: 109.1
switchState: Online
switchMode: Native
switchRole: Principal
switchDomain: 1
switchId: fffc01
switchWwn: 10:00:00:27:f8:bc:75:df
zoning: OFF
switchBeacon: OFF
FC Router: OFF
Allow XISL Use:OFF
LSAttributes: [FID: 128, Base Switch: No,Default Switch: Yes, Address Mode 0]

Index PortAddress Media Speed State Proto
==============================================
0 0 010000 -- N16 No_Module FC
1 1 010100 -- N16 No_Module FC
2 2 010200 -- N16 No_Module FC
3 3 010300 -- N16 No_Module FC
4 4 010400 -- N16 No_Module FC
5 5 010500 -- N16 No_Module FC
6 6 010600 -- N16 No_Module FC
7 7 010700 -- N16 No_Module FC
8 8 010800 -- N16 No_Module FC
9 9 010900 -- N16 No_Module FC
10 10 010a00 -- N16 No_Module FC
11 11 010b00 -- N16 No_Module FC
12 12 010c00 -- N16 No_Module FC
13 13 010d00 -- N16 No_Module FC
14 14 010e00 -- N16 No_Module FC
15 15 010f00 -- N16 No_Module FC
16 16 011000 -- N16 No_Module FC
17 17 011100 -- N16 No_Module FC
18 18 011200 -- N16 No_Module FC
19 19 011300 -- N16 No_Module FC
20 20 011400 -- N16 No_Module FC
21 21 011500 -- N16 No_Module FC
22 22 011600 -- N16 No_Module FC
23 23 011700 -- N16 No_Module FC
24 24 011800 -- N16 No_Module FC (No POD License) Disabled
25 25 011900 -- N16 No_Module FC (No POD License) Disabled
26 26 011a00 -- N16 No_Module FC (No POD License) Disabled
27 27 011b00 -- N16 No_Module FC (No POD License) Disabled
28 28 011c00 -- N16 No_Module FC (No POD License) Disabled
29 29 011d00 -- N16 No_Module FC (No POD License) Disabled
30 30 011e00 -- N16 No_Module FC (No POD License) Disabled
31 31 011f00 -- N16 No_Module FC (No POD License) Disabled
32 32 012000 -- N16 No_Module FC (No POD License) Disabled
33 33 012100 -- N16 No_Module FC (No POD License) Disabled
34 34 012200 -- N16 No_Module FC (No POD License) Disabled
35 35 012300 -- N16 No_Module FC (No POD License) Disabled
36 36 012400 -- N16 No_Module FC (No POD License) Disabled
37 37 012500 -- N16 No_Module FC (No POD License) Disabled
38 38 012600 -- N16 No_Module FC (No POD License) Disabled
39 39 012700 -- N16 No_Module FC (No POD License) Disabled
40 40 012800 -- N16 No_Module FC (No POD License) Disabled
41 41 012900 -- N16 No_Module FC (No POD License) Disabled
42 42 012a00 -- N16 No_Module FC (No POD License) Disabled
43 43 012b00 -- N16 No_Module FC (No POD License) Disabled
44 44 012c00 -- N16 No_Module FC (No POD License) Disabled
45 45 012d00 -- N16 No_Module FC (No POD License) Disabled
46 46 012e00 -- N16 No_Module FC (No POD License) Disabled
47 47 012f00 -- N16 No_Module FC (No POD License) Disabled

SW6510:FID128:admin>chassisshow

FAN Unit: 1
Fan Direction: Forward
Time Awake: 0 days

FAN Unit: 2
FanDirection: Forward
Time Awake: 0 days

POWER SUPPLY Unit: 1
PowerSource: AC
Time Awake: 0 days

POWER SUPPLY Unit: 2
PowerSource: AC
Time Awake: 0 days

CHASSIS/WWN Unit: 1
HeaderVersion: 2
Power Usage(Watts): -46
Factory PartNum: 40-1000569-13
Factory SerialNum: BRW2539J02A
Manufacture: Day: 15 Month: 9 Year: 2013
Update: Day: 16 Month: 11 Year: 2016
Time Alive: 366 days
Time Awake: 0 days
ID: BRD0000CA
Part Num: BROCAD0000651

SW6510:FID128:admin>licenseshow
No licensesinstalled.

SW6510:FID128:admin>switchstatusshow
Switch HealthReport Reporttime: 07/15/2022 04:04:52 PM
Switch Name: SW6510
IP address: 172.19.30.126
SwitchState: HEALTHY
Duration: 00:06

Power suppliesmonitor HEALTHY
Temperaturesmonitor HEALTHY
Fans monitor HEALTHY
Flashmonitor HEALTHY
Marginal portsmonitor HEALTHY
Faulty portsmonitor HEALTHY
Missing SFPsmonitor HEALTHY
Error portsmonitor HEALTHY
Fabric Watch isnot licensed
Detailed portinformation is not included




VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£1100 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS 282217
