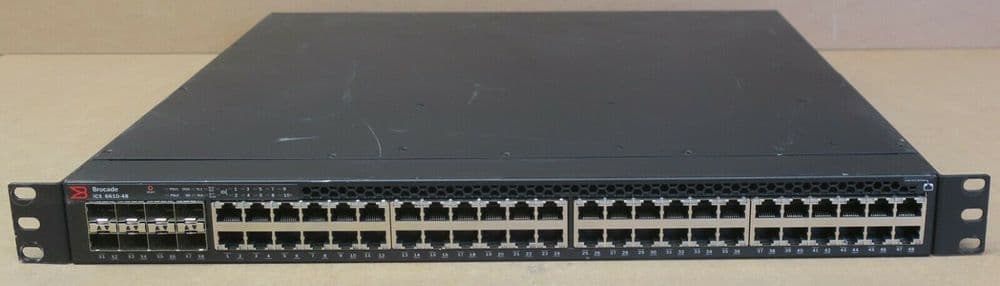

Brocade ICX6610-48-E 48-Port 1GbE + 4x 1/10Gb SFP + 4x 1Gb SFP Port 1U Switch

• Switching capacity (data rate, full duplex): 576 Gbps
• Forwarding capacity (data rate, full duplex): 432 Mpps (wire speed)
• Stacking bandwidth (data rate, full duplex): 320 Gbps
• 10/100/1000 Mbps RJ-45 ports: 48
• 100/1000 Mbps SFP ports: n/a
• Dual-mode 1/10 GbE SFP/SFP+ ports (10 GbE SFP+ optional upgrade license): 8
• 40 Gbps QSFP stacking ports: 4
• PoE Power Budget (two power supplies): n/a
• Maximum PoE Class 3 ports: n/a
• Maximum PoE+ ports: n/a
• Redundant/load-sharing; hot-swappable power supplies (second optional): 2X250 W
• Weight (one power supply/one fan tray): 6.78 kg (14.95 lb)
• Dimensions: 429 mm (16.880 in.) W x 406.4 mm (16.00 in.) D x 44 mm (1.732 in.) H - 1RU
• Airflow: Front to back (reversible)

• Connector options:
  • 10/100/1000 ports: RJ-45
  • 1 Gbps SFP ports: SX, LX, LHA, LHB, 1000Base-BX, CWDM
  • 10 Gbps SFP+ ports: Direct-attached copper (Twinax), SR, LR
  • Stacking ports: 40 GbE QSFP for use with direct-attached 1 meter or 5 meter stacking cable
  • Out-of-band Ethernet management: 10/100/1000 Mbps RJ-45
  • Console management: RJ-45 serial
• Maximum MAC addresses: 32,000
• Maximum VLANs: 4096
• Maximum STP (spanning trees): 254
• Maximum routes (in hardware): 16,000
• Trunking:
  • Maximum ports per trunk: 8
  • Maximum trunk groups: 124
• Maximum jumbo frame size: 9000 bytes

• Temperature:
  • Operating temperature: 0°C to 40°C/32°F to 104°F
  • Storage temperature: −25°C to 70°C/13°F to 158°F
• Humidity: Relative humidity: 5% to 95%, non-condensing
• Altitude: Storage altitude: 10,000 ft (3000 m) maximum
• Acoustic: From 39.6 dB (24 ports, one fan, one power supply) to 48.7 dB (48 ports, two fans, two power supplies)

• Power supplies: Up to two internal, redundant, field-replaceable, load-sharing AC power supplies with dedicated system and PoE power
• Power inlet: C13
• Input voltage: Typical 100 to 240 VAC
• Input line frequency: 50 to 60 Hz
• Power Draw (no PoE Load):
  • With 1 power supply: 165 W
  • With 2 power supplies: 185 W

ICX6610-48 Switch>showversion
Copyright (c) 1996-2011 BrocadeCommunications Systems, Inc.
UNIT 1: compiled on Apr 25 2012 at 16:41:32labeled as FCXS07300c
(5325231 bytes) from Primary/foundry/FGS/os/FCXS07300c.bin
SW: Version 07.3.00cT7f1
Boot-Monitor Image size = 370555,Version:07.3.02T7f5 (grz07302)
HW: Stackable ICX6610-48
==========================================================================
UNIT 1: SL 1:ICX6610-48 48-port Management Module
Serial #: BXN2515K0CT
License: BASE_SOFT_PACKAGE (LID: ************)
P-ENGINE 0: type E02B, rev 01
P-ENGINE 1: type E02B, rev 01
==========================================================================
UNIT 1: SL 2:ICX6610-QSFP 10-port 160G Module
==========================================================================
UNIT 1: SL 3:ICX6610-8-port Dual Mode(SFP/SFP+) Module
==========================================================================
800 MHz Power PC processor 8544E (version 0021/0023)400 MHz bus
65536 KB flashmemory
512 MB DRAM
STACKID 1 system uptime is 2 minutes 6 seconds
The system :started=cold start

ICX6610-48Switch>show license
Index License Name Lid License Type Status License Period License Capacity
Stack unit 1:
1 ICX6610-10G-LIC-POD *********** Normal Active Unlimited 4


ICX6610-48Switch>show chassis
The stack unit 1chassis info:

Power supply 1(NA - AC - Regular) present, status ok
Power supply 1Fan Air Flow Direction: Front to Back
Power supply 2(NA - AC - Regular) present, status ok
Power supply 2Fan Air Flow Direction: Front to Back

Fan 1 ok, speed(auto): [[1]]<->2
Fan 2 not present

Fan controlledtemperature: 31.5 deg-C

Fan speedswitching temperature thresholds:
Speed 1: NM<----->80 deg-C
Speed 2: 75<-----> 85 deg-C (shutdown)

Fan 1 Air FlowDirection: Front to Back
MAC 1 TemperatureReadings:
Current temperature : 23.5 deg-C
MAC 2 TemperatureReadings:
Current temperature : 30.5 deg-C
CPU TemperatureReadings:
Current temperature : 31.5 deg-C
sensor ATemperature Readings:
Current temperature : 20.5 deg-C
sensor BTemperature Readings:
Current temperature : 22.0 deg-C
sensor CTemperature Readings:
Current temperature : 20.0 deg-C
stacking cardTemperature Readings:
Current temperature : 31.0 deg-C
Warning level.......: 82.0 deg-C
Shutdown level......: 85.0 deg-C
Boot Prom MAC :cc4e.2416.6658
Management MAC:cc4e.2416.6658
