- 1 x CISCO 1941/K9 Integrated Services 1GbE Ethernet Router 2U ipbasek9 Rackmount
Cisco 1941 builds on the best-in-class offering of the existing Cisco 1841 Integrated Services Routers by offering 2 models -Cisco 1941 and Cisco 1941W. In addition to the support of a wide range of wireless and wired connectivity options supported on Cisco 1941 Series, Cisco 1941W offers integration of IEEE 802.11n access point which is backwards compatible with IEEE 802.11a/b/g access points.All Cisco 1900 Series Integrated Services Routers offer embedded hardware encryption acceleration, optional firewall, intrusion prevention, and application services. In addition, the platforms support the industries widest range of wired and wireless connectivity options such as T1/E1,xDSL, 3G, 4G LTE, and GE.
Features & Benefits
Service Integration
- The Cisco 1941 Series offer increased levels of services integration with data, security, wireless, and mobility services enabling greater efficiencies cost savings.
- A single Cisco IOS Software Universal image is installed on each ISR G2. The Universal image contains all of the Cisco IOS technology sets which can be activated with a software license. This allows your business to quickly deploy advanced features without downloading a new IOS image. Additionally, larger default memory is included to support the new capabilities.
- The Cisco Services Ready Engine (SRE) enables a new operational model which allows you to reduce capital expenditures (CapEx) and deploy a variety of application services as needed on a single integrated compute services module.
- The Cisco 1900 Series enables deployment in high speed WAN environments with concurrent services enabled up to 25 Mbps.
- Multi-Gigabit Fabric enables high bandwidth module to module communication without compromising routing performance.
- Designed to address customer business requirements, Cisco 1941 Series with the modular architecture, offers performance range of modular interfaces and services as your network needs grow.
- Modular interfaces offer increased bandwidth, a diversity of connection options, and network resiliency.
- The Cisco 1941 Series architecture provides energy savings features that include the following:
- The Cisco 1900 Series offers intelligent power management and allows the customer to control power to the modules based on the time of day. Cisco EnergyWise technology will be supported in the future.
- Services integration and modularity on a single platform performing multiple functions, optimizes raw materials consumption and energy usage.
- Platform flexibility and ongoing development of both hardware and software capabilities lead to a longer product lifecycle, lowering all aspects of the total cost of ownership, including materials and energy use.
- High efficiency power supplies are provided with each platform.
- The Cisco 1941 Series maximizes investment protection by supporting:
- Reuse of a broad array of existing modules supported on the original Integrated Services Routers provides a lower cost of ownership.
- Rich set of Cisco IOS Software features carried forward from the original Integrated Services Routers and delivered in the universal image.
CISCO1941-SEC/K9 Specification
Specification |
|
|
Main Specs |
|
|
Manufacturer |
Cisco Systems, Inc |
|
Manufacturer Part Number |
CISCO1941/K9 |
|
Product Type |
Router |
|
Form Factor |
External - modular - 2U |
|
Dimensions (WxDxH) |
34.3 cm x 29.2 cm x 8.9 cm |
|
Weight |
5.8 kg |
|
DRAM Memory |
512 MB (installed) / 2 GB (max) |
|
Flash Memory |
256 MB (installed) / 8 GB (max) |
|
Routing Protocol |
OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
|
Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Network / Transport Protocol |
IPSec |
|
Remote Management Protocol |
SNMP, RMON |
|
Features |
Cisco IOS IP Base , firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED) |
|
Compliant Standards |
IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag |
|
Power |
AC 120/230 V ( 50/60 Hz |
|
Services and Slot Density |
|
|
Embedded hardware-based crypto acceleration (IPSec + SSL) |
Yes |
|
Total Onboard LAN 10/100/1000 |
2 |
|
RJ-45-Based Ports |
2 |
|
SFP-Based Ports |
0 |
|
SM Slots |
0 |
|
Double-Wide SM Slots |
0 |
|
EHWIC Slots |
2 |
|
Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots) |
1 |
|
ISM Slots |
1 (0 on the Cisco 1941W) |
|
Memory (DDR2 Error Correction Code [ECC] ECC DRAM) - Default |
512 MB |
|
Memory (DDR2 ECC DRAM) - Maximum |
2.0 GB |
|
Compact Flash (external) - Default |
slot 0: 256 MB slot 1: none |
|
Compact Flash (external) - Maximum |
slot 0: 4 GB slot 1: 4 GB |
|
External USB flash memory slots (Type A) |
2 |
|
USB Console Port (Type B) (up to 115.2 kbps) |
1 |
|
Serial Console Port (up to 115.2 kbps) |
1 |
|
Serial Auxiliary Port (up to 115.2 kbps |
1 |
|
Power Supply Options |
AC, POE |
|
Redundant Power Supply Support |
No |
|
Power Specifications |
|
|
AC Input Voltage |
100-240 V ~ |
|
AC Input Frequency |
47-63 Hz |
|
AC Input Current range AC Power Supply (Max) (Amps) |
1.5-0.6 |
|
AC Input Surge Current |
<50 A |
|
Typical Power (No Modules) |
35 W |
|
Maximum Power capacity with AC power supply |
110 W |
|
Maximum Power capacity with PoE power supply (platform only) |
110 W |
|
Maximum PoE device power capacity with PoE power supply |
80 W |
|
Physical Specifications |
|
|
Dimensions (H x W x D) |
3.5 in x 13.5 in x 11.5 in (34.3 cm x 29.2 cm x 8.9 cm) |
|
Rack Height |
2 RU |
|
Rack-mount 19in. (48.3 cm) EIA |
Included |
|
Wall-mount (refer to installation guide for approved orientation) |
Yes |
|
Package Weight |
23.1 lbs (10.48 Kg) |
|
Weight-with AC power supply (no modules) |
12 lbs(5.44 Kg) |
|
Weight-with POE power supply (no modules) |
12.8 lbs (5.8 Kg) |
|
Maximum Weight-Fully Configured |
14 lbs (6.35 Kg) |
|
Airflow |
Front to Side |
|
Environmental Specifications |
|
|
Operating Condition |
|
|
Temperature-5906 feet (1800 m) max. altitude |
0-40°C (32-104°F) |
|
Temperature-9843 feet (3000 m) max. altitude |
0-25°C (32-77°F) |
|
Altitude |
3000 m (10000 ft) |
|
Humidity |
10 to 85% RH |
|
Acoustic: Sound Pressure (Typ/Max) |
26/46 dBA |
|
Acoustic: Sound Power (Typ/Max) |
36/55 dBA |
|
Transportation/Storage Condition |
|
|
Temperature |
-40 - 70 oC (-40 - 158 oF) |
|
Humidity |
5 to 95%RH |
|
Altitude |
4570m (15000 ft) |
|
Regulatory Compliance |
|
|
Safety |
UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1 |
|
EMC |
47 CFR, Part 15 ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3 CNS 13438 EN 300-386 EN 61000 (Immunity) EN 55024, CISPR 24 EN50082-1 |
|
Telecom |
TIA/EIA/IS-968 CS-03 ANSI T1.101 ITU-T G.823, G.824 IEEE 802.3 RTTE Directive |
Router#show version
Cisco IOSSoftware, C1900 Software (C1900-UNIVERSALK9-M), Version 15.2(3)T1, RELEASESOFTWARE (fc1)
Copyright (c) 1986-2012by Cisco Systems, Inc.
Compiled Wed13-Jun-12 13:02 by prod_rel_team
ROM: SystemBootstrap, Version 15.0(1r)M16, RELEASE SOFTWARE (fc1)
Router uptime is2 minutes
System returnedto ROM by power-on
System image fileis "flash0:c1900-universalk9-mz.SPA.152-3.T1.bin"
Last reload type:Normal Reload
Last reloadreason: power-on
This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
third-partyauthority to import, export, distribute or use encryption.
Importers,exporters, distributors and users are responsible for
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.
CiscoCISCO1941/K9 (revision 1.0) with 487424K/36864K bytes of memory.
Processor boardID FCZ2131B07E
6 GigabitEthernet interfaces
1 terminal line
DRAMconfiguration is 64 bits wide with parity disabled.
255K bytes ofnon-volatile configuration memory.
245448K bytes ofATA System CompactFlash 0 (Read/Write)
License Info:
License UDI:
-------------------------------------------------
Device# PID SN
-------------------------------------------------
*0 CISCO1941/K9 FCZ2131B07E
TechnologyPackage License Information for Module:'c1900'
-----------------------------------------------------------------
Technology Technology-package Technology-package
Current Type Next reboot
------------------------------------------------------------------
ipbase ipbasek9 Permanent ipbasek9
security None None None
data None None None
Configurationregister is 0x2102
Router#showlicense
Index 1 Feature:ipbasek9
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Count: Non-Counted
License Priority: Medium
Index 2 Feature:securityk9
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Not in Use, EULA not accepted
License Count: Non-Counted
License Priority: None
Index 3 Feature:datak9
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Not in Use, EULA not accepted
License Count: Non-Counted
License Priority: None
Index 4 Feature:SSL_VPN
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Not in Use, EULA notaccepted
License Count: 0/0 (In-use/Violation)
License Priority: None
Index 5 Feature:ios-ips-update
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Not in Use, EULA notaccepted
License Count: Non-Counted
License Priority: None
Index 6 Feature:hseck9
Index 7 Feature:WAAS_Express
Period left: Not Activated
Period Used: 0 minute 0 second
License Type: EvalRightToUse
License State: Not in Use, EULA notaccepted
License Count: Non-Counted
License Priority: None
Router#show inventory

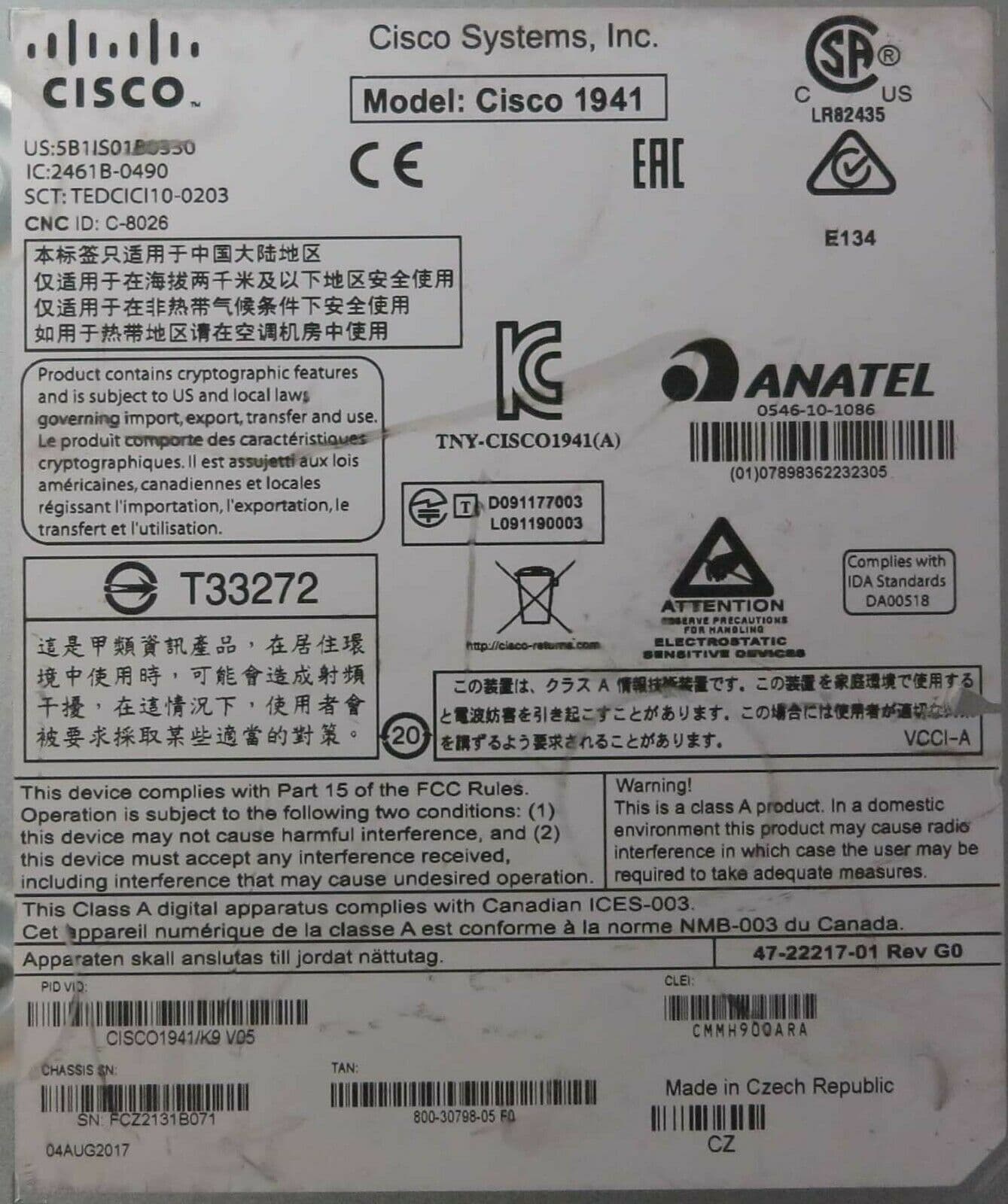

NAME:"CISCO1941/K9 chassis", DESCR: "CISCO1941/K9 chassis"
PID:CISCO1941/K9 , VID: V05 , SN:FCZ2131B07E
NAME: "4Port GE Non-POE EHWIC Switch on Slot 0 SubSlot 0", DESCR: "4 Port GENon-POE EHWIC Switch"
PID:EHWIC-4ESG , VID: V01 , SN:FOC202182HY
NAME:"C1941/C2901 AC Power Supply", DESCR: "C1941/C2901 AC PowerSupply"
PID: PWR-1941-2901-AC , VID: , SN:
Router#
