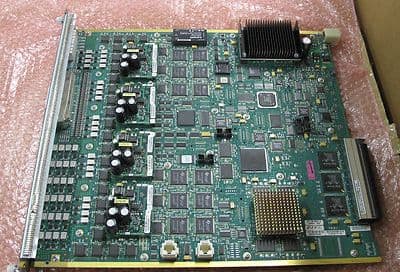

Cisco 24-Port FXS Analog Station Interface Card/Module P/n WS-X6624-FXS

• 1 x Cisco 24-Port FXS Analog Station Interface Card/Module

The WS-X6624-FXS provides 24 FXS ports for analog phones, conference room speaker phones, and fax machines. The FXS module provides legacy analog devices with connectivity into the IP network. This connectivity enables the devices to utilize the IP network infrastructure for toll-bypass applications. The connectivity also enables the devices to communicate with other devices, such as IP phones and H.323 end stations.

Specifications: Analog FXS Interface

• Address signaling formats—In-band DTMF

• Signaling formats—Loop start

• Ringing tone—Programmable

• Ringing voltage—Programmable, based on country

• Ringing frequency—Programmable, based on country

• Physical connector—RJ-21

• Distance—500 ohms maximum loop

Physical Specifications

• Occupies one slot in the Catalyst 6000 family platform
• ​Dimensions (H x W x D)—1.2 x 14.4 x 16 inches (3.0 x 35.6 x 40.6 centimeters [cm])
