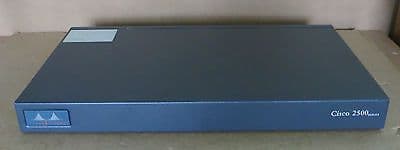

Cisco 2500 Series Model 2503 Dual Serial Router In Good Condition Full Working Order Included
Specification
General
Device Type Router
Enclosure Type Desktop - Modular
Compatible Slots None
Data Link Protocol ISDN , Serial , Ethernet
Data Transfer Rate 10.0 Mbps
Remote Management Protocol SNMP
Features IPX-routing , NAT support , IP-routing
Compliant Standards IEEE 802.3
Processor 1.0 x Motorola 68030 20.0 MHz
Expansion / Connectivity
Interfaces WAN : 2.0 x Ethernet 10Base-T - 15 pin D-Sub (DB-15) - 2.0 , Serial : 1.0 x Synchronous - RJ-45 - 1.0 , 1.0 x Ethernet AUI - RJ-45 - 1.0 , 1.0 x ISDN BRI - 60 pin D-Sub (DB-60) - 1.0
Expansion Slot(s) Memory
Expansion Bays None
Networking
Connectivity Technology Wired
Networking type Router
Network / Transport Protocol DECnet , TCP/IP , APPN , IPX/SPX , AppleTalk
Status Indicators Link activity , Link OK , Power
Power
Power Device Power adapter - External
Power Consumption Operational 40.0 Watt
Compliant Standards EPA Energy Star
Communications
Type 1.0 x ISDN terminal adapter
Miscellaneous
Width 17.5 in
Depth 10.6 in
Height 1.7 in
Weight 9.9 lbs
Enclosure Color Black
Modem
Digital Signaling Protocol ISDN BRI
Data Compression Protocol IETF PPP LZS
Software / System Requirements
OS Provided Cisco IOS
Software Included Drivers & Utilities
Environmental Parameters
Min Operating Temperature 32.0 °F
Max Operating Temperature 104.0 °F
Humidity Range Operating 5 - 95%
|
HS 96908
specifications
-
MPN:2500 Series Model 2503
