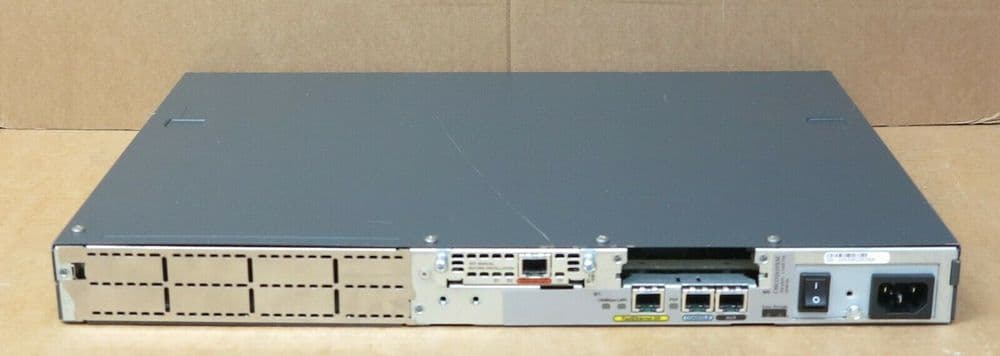

Cisco 2610XM 10/100 Mbps Ethernet Router 32Mb 1U Wired 2600 Series + WIC1B-S/T

Name: Cisco 2610XM 10/100 Mbps Ethernet Router 32Mb 1U Wired 2600 Series + WIC1B-S/T
Brand: Cisco
Price: 39.90 GBP
Availability: InStock

mpn: 2610XM

product brand: Cisco

product condition: Used

excluding vat: £33.25

including vat: £39.90

information

Cisco 2610XM 10/100 Mbps Ethernet Router 32Mb 1U Wired

2600 Series + WIC1B-S/T

Model: 2610XM

In Good Condition

In Full Working Order

Tested

Includes 1 x WIC1B-S/T Module

Missing Front Bezel

Included

1 x Cisco 2610XM 10/100 Mbps Ethernet Router 32Mb 1U Wired 2600 Series + WIC1B-S/T

Overview

The Cisco 2600 Series is an award-winning series of modular multiservice access routers, providing flexible LAN and WAN configurations, multiple security options, voice and data integration, and a range of high-performance processors. The wide range of features and interfaces and the flexibility of adding more than 50 modules makes the Cisco 2600 Series the ideal branch-office router for today's and tomorrow's customer

requirements.

The Cisco 2600 Series of modular routers includes the Cisco 2612, Cisco 2600XM models, and the Cisco 2691. These models deliver extended performance, high density, enhanced security performance, and concurrent application support to meet the growing demands of branch offices. In addition, numerous Cisco 2600 Series product bundles have been introduced. These bundles offer an additional cost savings and provide easy ordering to meet branch-office requirements.

As companies grow, the diversity of protocols, increased performance, LAN media, WAN services, and networking equipment required to support mission-critical network services expand dramatically. With extensive support for multi-protocol data routing, voice/data integration, DSL access, ATM, dial access services, and integrated switching, the Cisco 2600 Series provides a flexible, scalable integrated solution that simplifies the process of deploying and managing the branch office network solutions.

The Cisco 2600 Series offers a comprehensive feature set ideal for solutions requiring the following support:

Multiservice voice/data integration
VPN access with Firewall and Encryption options
Analog dial access services
Routing with bandwidth management
Inter-VLAN routing
Delivery of high-speed business class DSL access
Cost effective ATM access
Integration of flexible routing and low density switching
Integration of Content Networking
Integration of Intrusion Detection Systems

Specifications

Processor: Motorola MPC860 40 MHz
Flash Memory: 4 to 16 MB
System Memory (DRAM): 16 to 64 MB
WAN Interface Card Slots: 2
Network Module Slot: 1
AIM Slot: 1
Console/Aux Speed: 115.2 kbps (maximum)
Width: 17.5 in. (44.5 cm)
Height: 1.69 in. (4.3 cm)
Depth: 11.8 in. (30 cm)
Weight (min): 8.85 lb. (4.02 kg)
Weight (max): 10.25 lb. (4.66 kg)
Power Dissipation: 72W (maximum)
AC Input Voltage: 100 to 240 VAC
Frequency: 47 to 64 Hz
AC Input Current: 1.5 amps
DC Input Voltage: -38V to -75V
DC Input Current: 2 amps
Operating Temperature: 32 to 104 F (0 to 40 C)
Nonoperating Temperature: -13 to 158 F (-25 to 70 C)
Relative Humidity: 5 to 95% noncondensing
Noise Level (min): 38 dbA
Noise Level (max): 42 dbA

Bootlog

Router>showversion

CiscoInternetwork Operating System Software

IOS (tm) C2600Software (C2600-I-M), Version 12.3(6c), RELEASE SOFTWARE (fc1)

Compiled Tue20-Jul-04 05:25 by kellythw

Image text-base:0x80008098, data-base: 0x80C84ECC

ROM: SystemBootstrap, Version 12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1)

Router uptime is0 minutes

System returnedto ROM by reload

System image fileis "flash:c2600-i-mz.123-6c.bin"

cisco 2610XM(MPC860P) processor (revision 0x400) with 126976K/4096K bytes of memory.

Processor boardID JHY0902K0AA (444156592)

M860 processor:part number 5, mask 2

Bridgingsoftware.

X.25 software,Version 3.0.0.

Basic Rate ISDNsoftware, Version 1.1.

1FastEthernet/IEEE 802.3 interface(s)

1 ISDN Basic Rateinterface(s)

32K bytes ofnon-volatile configuration memory.

32768K bytes ofprocessor board System flash (Read/Write)

Configurationregister is 0x2142

Router>showhardware

CiscoInternetwork Operating System Software

IOS (tm) C2600Software (C2600-I-M), Version 12.3(6c), RELEASE SOFTWARE (fc1)

Compiled Tue20-Jul-04 05:25 by kellythw

Image text-base:0x80008098, data-base: 0x80C84ECC

ROM: SystemBootstrap, Version 12.2(8r) [cmong 8r], RELEASE SOFTWARE (fc1)

Router uptime is1 minute

System returnedto ROM by reload

System image fileis "flash:c2600-i-mz.123-6c.bin"

cisco 2610XM(MPC860P) processor (revision 0x400) with 126976K/4096K bytes of memory.

Processor boardID JHY0902K0AA (444156592)

M860 processor:part number 5, mask 2

Bridgingsoftware.

X.25 software,Version 3.0.0.

Basic Rate ISDNsoftware, Version 1.1.

1FastEthernet/IEEE 802.3 interface(s)

1 ISDN Basic Rateinterface(s)

32K bytes ofnon-volatile configuration memory.

32768K bytes ofprocessor board System flash (Read/Write)

Configurationregister is 0x2142

Router>showinventory

NAME:"", DESCR: "2610XM chassis, Hw Serial#: 444156592, Hw Revision:0x400"

PID: , VID: , SN:

Router>
