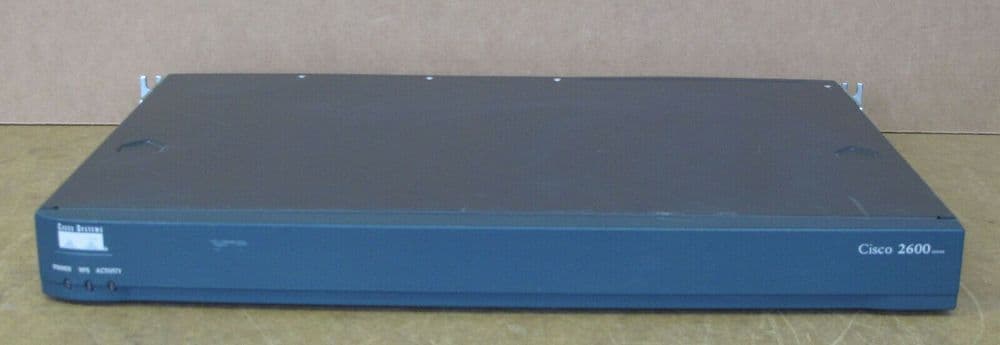

Cisco 2621XM Ethernet Router 10/100MB 2600 Series 1U Wired 240V NM-2CE1T1-PRI

Overview
The Cisco 2600 series shares modular interfaces with the popular Cisco 1600 and 3600 series, providing a cost-effective solution to meet today's remote branch office needs and for evolving applications such as:

• Multiservice voice/data integration
• Departmental dial services
• Extranet/VPN access

The modular architecture of the Cisco 2600 series provides the versatility needed to adapt to changes in network technology as new services and applications become available. Driven by a powerful RISC processor, the Cisco2600 series provides the extra power needed to support the advanced quality of service (QoS), security, and network integration features required in today's remote branch offices.The Cisco 2600 series features single or dual-Ethernet LAN interfaces, two Cisco WAN interface card slots, a Cisco network module slot, and a new Advanced Integration Module (AIM) slot. The WAN interface cards available for the Cisco 1600, 2600, and 3600 series routers support a variety of serial, Integrated Services Digital Network Basic Rate Interface (ISDNBRI), and integrated channel service unit/data service unit(CSU/DSU) options for primary and backup WAN connectivity. Network modules available for the Cisco 2600 and 3600 series support a range of high-density serial, dial concentration, and multiservice voice/data integration options.

Key Benefits
The Cisco 2600 series supports the value of end-to-end Cisco network solutions with the following benefits:

• Multiservice integration—Complementing the industry-leading Cisco 2500 series, the Cisco 2600 series extends the versatility, integration, and power of the Cisco 3600 series to smaller, remote branch offices. The Cisco 2600 series reinforces Cisco's commitment to add multiservice voice/data integration capabilities to its product portfolio, enabling corporate customers to control costs and allowing service providers to offer broader managed service options.
• Investment protection—Because the Cisco 2600 series supports field-upgradable modular components, customers can easily change network interfaces without a "forklift upgrade" of the entire remote branch office solution. The new AIM slot of the Cisco 2600 platform further protects investments by offering the expandability to support advanced services such as hardware-assisted data compression and data encryption.
• Lower cost of ownership—Integrating the functions of CSU/DSUs, ISDN Network Termination (NTI) devices, and other equipment found in remote branch office wiring closets in a single, compact unit provides a space-saving solution that can be managed remotely using network management applications such as CiscoWorks and CiscoView.
• Part of a Cisco end-to-end solution—As part of Cisco'scomprehensive end-to-end networking solution, the Cisco 2600 series allows businesses to extend a cost-effective, seamless network infrastructure to the remote branch office.

Specifications

• Processor: Motorola MPC860 40 MHz
• Flash Memory: 32 to 48 MB
• System Memory (DRAM): 128 to 256 MB
• WAN Interface Card Slots: 2
• Network Module Slot: 1
• AIM Slot: 1
• Console/Aux Speed: 115.2 kbps (maximum)

Power

• Power Dissipation: 72W (maximum)
• AC Input Voltage: 100 to 240 VAC
• Frequency: 47 to 64 Hz
• AC Input Current: 1.5 amps
• DC Input Voltage: -38V to -75V
• DC Input Current: 2 amps

Environmental

• Operating Temperature: 32 to 104 F (0 to 40 C)
• Nonoperating Temperature: -13 to 158 F (-25 to 70 C)
• Relative Humidity: 5 to 95% noncondensing
• Noise Level (min): 38 dbA
• Noise Level (max): 42 dbA

Dimensions & Weight

• Width: 17.5 in. (44.5 cm)
• Height: 1.69 in. (4.3 cm)
• Depth: 11.8 in. (30 cm)
• Weight (min): 8.85 lb. (4.02 kg)
• Weight (max): 10.25 lb. (4.66 kg)
