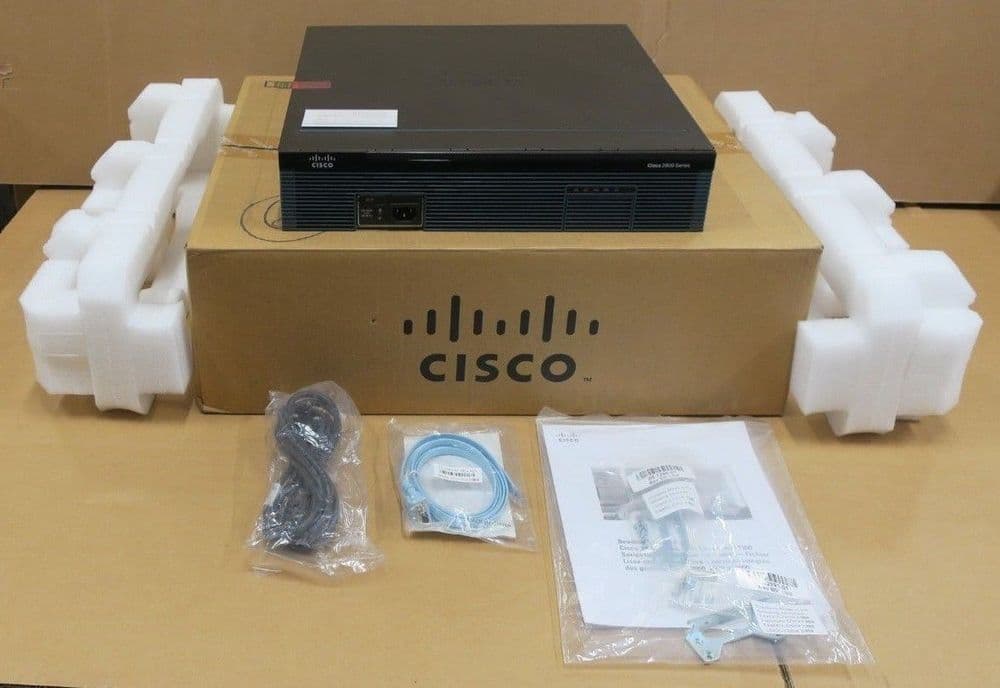

CISCO2951/K9
In Very Good Condition, Full Working Order
Boxed
Included
- 1 x CISCO2951/K9 - Security Bundle Integrated Services Router
- 1 x Cisco SM-ES3G-16-P
-
SM-ES3G-16-P
Router Service modules
- 16 * 10/100/1000 POE Gigabit Ethernet port
- Supported router: 2911/2921/2951/3925/3945
- Cisco Enhanced PoE, up to 20 Watts per port
- IP base feature set with update option to IP service feature set
- Layer 3 switching, IP routing, power redundant
- Ease of management, secure network connectivity, energy efficient
- IP SLA, private Vlans, RPF, MAB, advanced ACLs, advanced QoS
SM-ES3G-16-P is 16 Gigabit Ethernet ports EtherSwitch Service Module for 2900-series, 3900-series router which has identical capacity to Catalyst 3560 series switch. SM-ES3G-16-P offers POE capacity that powers 20W per port; you can connect IP phones, wireless access points and IP-based video cameras from a single platform. The Cisco Enhanced EtherSwitch Service Modules offers cost-efficiency solution to meet branch office or small to midsize business offices needs with no requiring physical room.
SM-ES3G-16-P runs independently of host router resource, it has their own processors, switching engines, flash memory and own upgradable IP base IOS to ensure maximum concurrent switching and routing performance. Cisco EnergyWise technology monitors power consumption, and takes action based on business rules to reduce power consumption. The integration of Cisco Enhanced EtherSwitch Service Modules with existing router delivers various benefits, which include simplifying network management and troubleshooting, enhancing scalability, offering investment protection; minimizing downtime that affects business operations.
| Model info | SM-ES3G-16-P | |
| Product Type | Cisco Enhanced EtherSwitch Service Module | |
| Port Density | 16 * 10/100/1000 GE ports | |
| Power over Ethernet (PoE) | up to 20W per port | |
| Routing Protocol | RIP-1, RIP-2, HSRP, static IP routing, RIPng | |
| Remote Management Protocol | SNMP 1, SNMP 2,Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI | |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ | |
| Supported router | 2911 / 2921 / 2951 / 3925 / 3945 | |
| Service Module Width | single slot | |
| Power Redundancy | RPS 2300 | |
| IP base feature | • QoS • ACLs • Static Routing • RIP v1,v2 • HSRP |
|
| IP service feature | • IP unicast and IP Multicast routing • EIGRP • OSPF • BGP • PIM • IPv6 routing |
• OSPFv3 • EIGRPv6 • IP SLA • VRF-lite |
| Security Features | • Dynamic ARP Inspection (DAI) • DHCP Snooping • IP Source Guard • Private VLANs • Unicast Reverse Path Forwarding (RPF) • IEEE 802.1x • Multidomain Authentication • MAC Authentication Bypass • Advanced ACLs • Administrative Traffic Protection • Switched Port Analyzer (SPAN) |
• Centralized Authentication • MAC Address Authentication • Port Security • Console Security • Bridge Protocol Data Unit (BPDU) Guard • Spanning-Tree Root Guard (STRG) • Dynamic VLAN Assignment • IGMP Filtering |
CS 191478
-
MPN:CISCO2951/K9 SM-ES3G-16-P
