Cisco 7304 Series 4-Slot Router Chassis 1x C7304-NPE-G100 2x SPA-4FE 2x PSU

Name: Cisco 7304 Series 4-Slot Router Chassis 1x C7304-NPE-G100 2x SPA-4FE 2x PSU
Brand: Cisco
SKU: 81612
Price: 228.00 GBP
Availability: InStock

mpn: 7304 Series Router

product brand: Cisco

product condition: Used

excluding vat: £190.00

including vat: £228.00

information

Cisco 7304 Series 4-Slot Router Chassis 1x C7304-NPE-G100

2x SPA-4FE 2x PSU

Model: Catalyst 7304

In Good Condition

In Full Working Order

Tested

2 Year Warranty

Not Supplied With Rack Ears

Included

1 x Cisco Catalyst 7304 Series 4-Slot Router Chassis
1 x Cisco Network Processor Engine G100 - C7304-NPE-G100
1 x Cisco 7304 SPA Carrier With:
- 2 x Cisco SPA-4FE-7304 4-Port 10/100 Fast Ethernet Shared Port Adapter

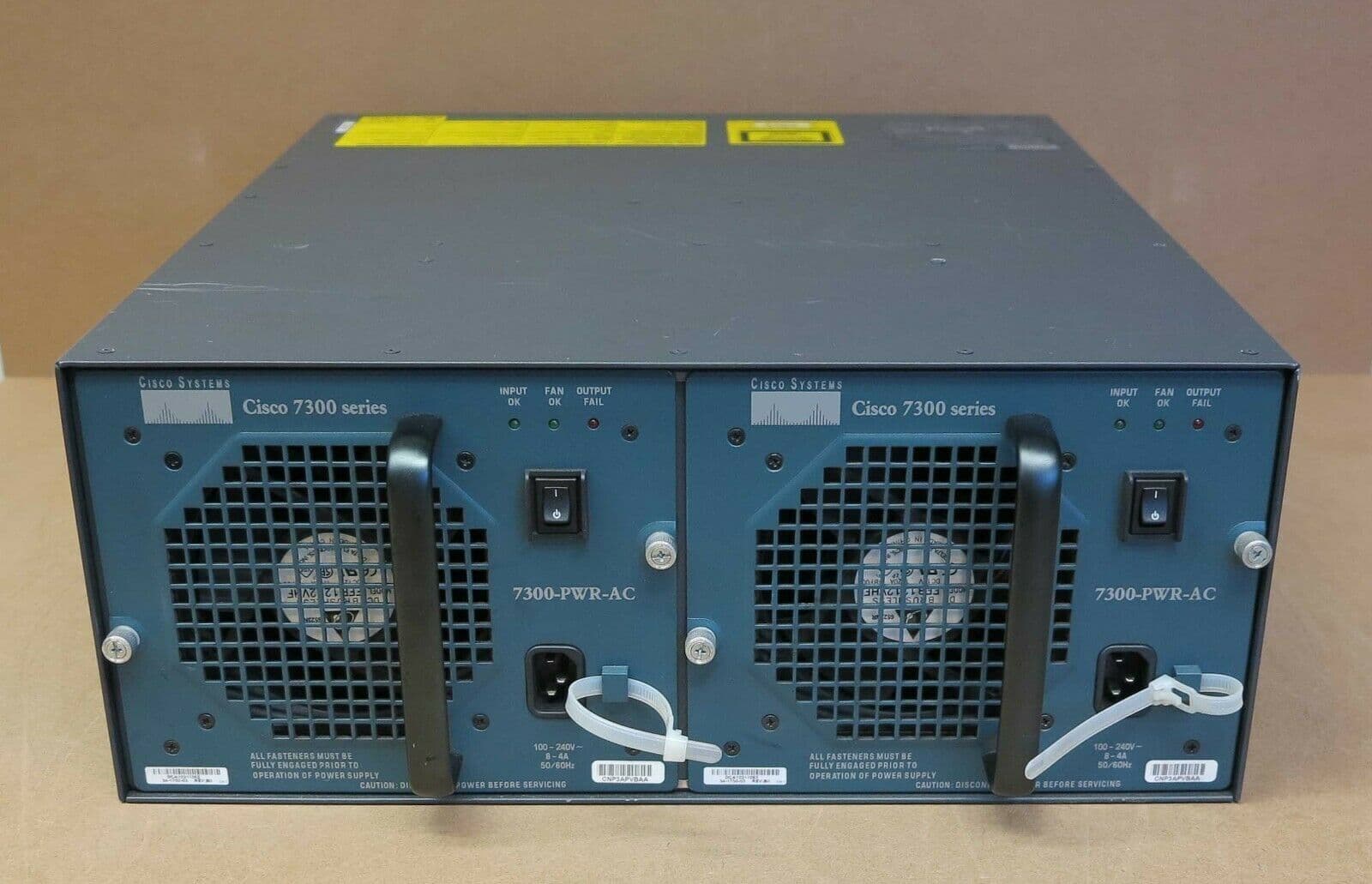

2 x 540W PSU - 34-1750-03

CISCO 7304 CHASSIS

Cisco 7300 Series routers are optimized for flexible, scalable, high-performance IP and Multiprotocol Label Switching (MPLS) services at the service provider and enterprise network edge. Providing powerful processing, a broad set of interfaces, and a compact form factor, Cisco 7300 Series routers are ideal for feature-rich, multigigabit network applications.

The Cisco 7304 Router is a midrange, price-performance optimized router with a compact (4-rack-unit [RU]), modular (4-slot) form factor (Figure 1). It delivers high-performance services in IP/MPLS networks and is optimized for the network edge, where the service provider meets the enterprise. Targeted applications include service provider edge and IP edge routing, service provider managed service customer premises equipment (CPE), and enterprise Internet gateway and enterprise WAN aggregation.

The Cisco 7304 provides numerous connectivity options, from DS0 to Gigabit Ethernet and OC-48/STM-16, in an architecture engineered for high availability and multiprotocol support. With built-in Gigabit Ethernet ports and support for Cisco 7200 Series port adapters, the Cisco 7304 is a leading-edge, flexible, feature-rich router for the network edge.

The Cisco 7304 platform offers two processor options: the NPE-G100 general-purpose processor (approximately 1 mpps) optimized for flexible feature support, and the high-performance NSE-100 (approximately 3.5 mpps) that delivers an evolving set of application-specific, hardware-accelerated IP services through Cisco Parallel Express Forwarding (PXF) technology.

The Cisco 7304 is a perfect fit at the edge, where service provider and enterprise networks meet. It provides the option of either the NPE-G100 or the NSE-100 for high-performance routing with a breadth of high-touch IP services, numerous interfaces, and robust, high-availability design.

Cisco 7304 Chassis Features

4-RU (7-in.) compact chassis
4-slot modular system
Network Equipment Building Standards (NEBS) Level 3 compliance
Redundant route processor (NSE-100 or NPE-G100)
Redundant power supplies (AC or DC)
Front-to-back airflow for optimal cooling
Rack density

Specification

Physical

4-RU (7-in.) chassis 4 line-card slots per chassis
Dimensions (H x W x D): 7 x 17.2 x 20.5 in.
Weight: 28 lb (without power supply; power supplies 8 lb each)

Power Requirements

AC Input Power Supply/Chassis
- AC input voltage: 100 to 240 VAC
- AC Input Current
- 8A at Vin = 100 VAC and maximum load (540W)
- 4A at Vin = 200 VAC and maximum load (540W)
DC Input Power Supply/Chassis
- DC input voltage: -48 to -60 VDC
- DC Input Current
- 16A at Vin = -48 VDC and maximum load (540W)
Mean time between failure (MTBF): 5.5 years for system configuration

Environmental Conditions

Operating Condition
- Temperature: 32 to 104°F (0 to 40°C)
- Altitude: 6500ft (2000 m)
- Humidity: 10 to 85 percent noncondensing
Storage Condition
- Temperature: -4 to 149°F (-20 to 65'C)
- Humidity: 5 to 95 percent noncondensing

Bootlog

Router(boot)>show version

Cisco IOSSoftware, 7300 Software (C7300-BOOT-M), Version 12.2(28)SB, RELEASE SOFTWARE(fc2)

Compiled Sat18-Mar-06 00:05 by richv

ROM: SystemBootstrap, Version 12.2(22r)S, RELEASE SOFTWARE (fc1)

Router uptime is 1 minute

Uptime for thiscontrol processor is 1 minute

System returnedto ROM by power-on

System image fileis "bootdisk:c7300-boot-mz.122-28.SB.bin"

cisco 7300(NPEG100) processor (revision B) with 983040K/65536K bytes of memory.

Processor boardID SMQ1043N6GK

SB-1 CPU at800Mhz, Implementation 1025, Rev 0.2, 512KB L2 Cache

4 slot midplane,Version 69.48

Last reset fromsoftware reset or reload

8 FastEthernetinterfaces

3 GigabitEthernet interfaces

1021K bytes ofnon-volatile configuration memory.

125440K bytes ofATA compact flash in bootdisk (Sector size 512 bytes).

Configurationregister is 0x2142

Router(boot)>show hardware
