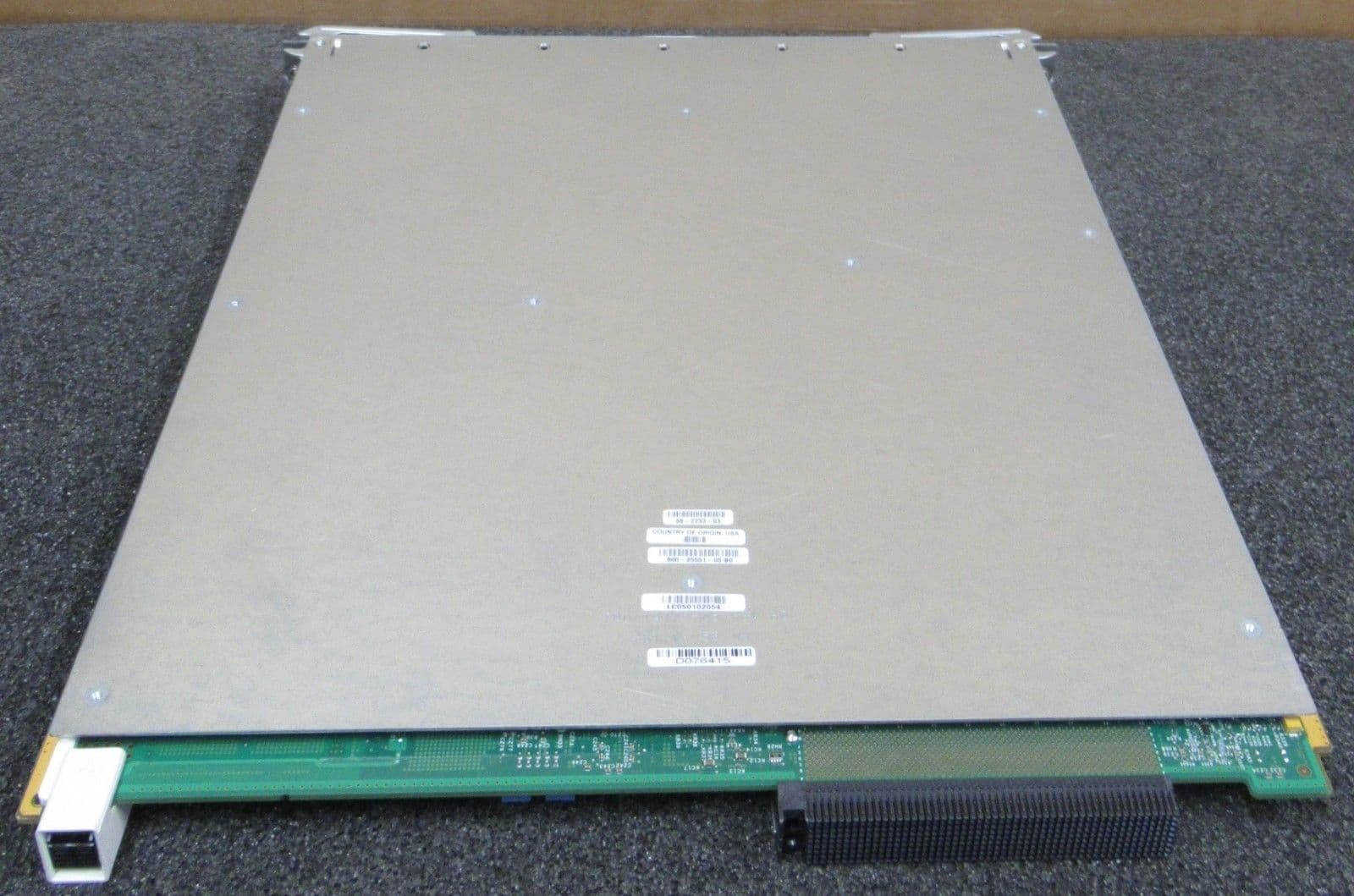

Cisco 7600 Ethernet Module/Catalyst 6500 48 port 100Base-X
WS-X6148-FE-SFP
Model No: WS-X6148-FE-SFP
In Good Condition
In Full Working Order
Included
- 1 x Cisco 7600 Ethernet Module/Catalyst 6500 48 port 100Base-X WS-X6148-FE-SFP
Specification
Standard Network Protocols
- Ethernet: IEEE 802.3| Fast Ethernet: IEEE 802.3 and 100BASE-FX| IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, and IEEE 802.3ah
Indicators and Interfaces
- Status: Green (operational); red (faulty); orange (module booting or running diagnostics)| Link good: Green (port active); orange (disabled); off (not active or not connected); blinking orange (failed diagnostic and disabled)| 100BASE-X: SFPs, LC connector (female)| 100BASE-FX multimode: MT-RJ (female, multimode)| 100BASE-FX single-mode: MT-RJ (female, single mode)| 10BASE-FL: MT-RJ (female, multimode)
Environmental Conditions
- Operating temperature: 32 to 104°F (0 to 40°C)| Storage temperature: -40 to 167°F (-40 to 75°C)| Relative humidity: 10 to 90 percent, noncondensing| Operating altitude: Sea level to 6500 ft (1981m)
Maximum Cabling Distance
- 100BASE-FX multimode Fast Ethernet: 62.5- and 125-micron multimode fiber: 400m half duplex, 2-km full duplex| 100BASE-FX single-mode Fast Ethernet: standard ITU-T G.652 (IEC 60793-2 B1.1/B1.3) single-mode fiber: 10-km half or full duplex| 100BASE-LX Fast Ethernet: standard ITU-T G.652 (IEC 60793-2 B1.1/B1.3) single-mode fiber: 10-km half or full duplex| 100BASE-BX10 Fast Ethernet: standard ITU-T G.652 (IEC 60793-2 B1.1/B1.3) single-mode fiber: 10 km over single strand of fiber| 10BASE-FL Ethernet: 62.5- and 125-micron multimode fiber: 2-km half or full duplex
Max. Frame Size Support
- Up to 9216 bytes per frame
Physical Specification
- Occupies one slot in a Cisco Catalyst 6500 Series chassis| Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm)
Network Management
- ETHERLIKE-MIB (RFC 1643)| IF-MIB (RFC 1573)| Bridge MIB (RFC 1493)| CISCO-STACK-MIB| CISCO-VTP-MIB| CISCO-CDP-MIB| RMON MIB (RFC 1757)| CISCO-PAGP-MIB| CISCO-STP-Extensions-MIB| CISCO-VLAN-Bridge-MIB| CISCO-VLAN-Membership-MIB| CISCO-UDLDP-MIB| CISCO-ENTITY-FRU-CONTROL-MIB| CISCO-COPS-CLIENT-MIB| ENTITY-MIB (RFC 2037)| HC-RMON| RFC1213-MIB (MIB-II)| SMON-MIB
Buffers per Portﾠ
- 256 MB shared between 48 ports (5.4 MB per port)
Safety Compliance
- UL 60950| CSA-C22.2 No. 60950| EN 60950| IEC 60950| AS/NZS 60950/TS001
Interface Media SFP
- EMC Compliance FCC Part 15 (CFR 47) Class A| VCCI Class A| EN55022 Class A| CISPR 22 Class A| CE marking| AS/NZS 3548 Class A| ETS300 386| EN55024| EN61000-6-1| EN50082-1
Connectors: LC
Ports: 48
TH 203504
specifications
-
MPN:WS-X6148-FE-SFP
