Cisco 8000(R)Series BIOS Ver 0.240 Primary
Intel(R) Xeon(R)CPU D-1530 @ 2.40GHz
Board Type 0x10APID 8102-64H-O
X86FPGA 1.81.0TamLib 3.04.26
Welcome to GRUB!
GNU GRUB version 2.02
+----------------------------------------------------------------------------+
|*SONiC-OS-202012.02 |
| ONIE |
| |
| |
| |
| |
| |
| |
| |
| |
| |
| |
+----------------------------------------------------------------------------+
Use the ^ and v keys to select whichentry is highlighted.
Press enter to boot the selected OS, `e'to edit the commands
before booting or `c' for a command-line.
The highlighted entry will be executedautomatically in 0s.
Booting `SONiC-OS-202012.02'Booting`SONiC-OS-202012.02'
Loading SONiC-OSOS kernel ...Loading SONiC-OS OS kernel ...
Loading SONiC-OSOS initial ramdisk ...Loading SONiC-OS OS initial ramdisk ...
tune2fs 1.44.5(15-Dec-2018)
Setting reservedblocks percentage to 0% (0 blocks)
Setting reservedblocks count to 0
[ 5.967788] m25p80 spi-PRP0001:16:unrecognized JEDEC id bytes: ff, ff, ff
[ 6.556046] rc.local[511]: + cat /etc/sonic/sonic_version.yml
[ 6.632635] rc.local[512]: + grepbuild_version
[ 6.693417] rc.local[515]: + sed -es/build_version: //g;s/'//g
[ 6.769296] rc.local[506]: +SONIC_VERSION=202012.02
[ 6.839537] rc.local[506]: +FIRST_BOOT_FILE=/host/image-202012.02/platform/firsttime
[ 6.943572] rc.local[506]: +SONIC_CONFIG_DIR=/host/image-202012.02/sonic-config
[ 7.035569] rc.local[506]: +SONIC_ENV_FILE=/host/image-202012.02/sonic-config/sonic-environment
[ 7.143565] rc.local[506]: + [ -d /host/image-202012.02/sonic-config-a -f /host/image-202012.02/sonic-config/sonic-environment ]
[ 7.287564] rc.local[506]: + logger SONiCversion 202012.02 starting up...
[ 7.375544] rc.local[506]: +grub_installation_needed=
[ 7.439570] rc.local[506]: + [ ! -e/host/machine.conf ]
[ 7.503592] rc.local[506]: + ./host/machine.conf
[ 7.563568] rc.local[506]: + onie_arch=x86_64
[ 7.623765] rc.local[506]: +onie_base_mac_addr=a8:4f:b1:de:4e:98
[ 7.699547] rc.local[506]: + onie_bin=
[ 7.755565] rc.local[506]: +onie_boot_reason=install
[ 7.828166] rc.local[506]: +onie_build_date=2022-06-08T16:32+00:00
[ 7.915563] rc.local[506]: +onie_build_machine=cisco_8000
[ 7.987550] rc.local[506]: +onie_build_platform=x86_64-cisco_8000-r0
[ 8.075580] rc.local[506]: +onie_cli_static_parms=
[ 8.135534] rc.local[506]: +onie_cli_static_url=/mnt/media/sonic-cisco-8000.202012.02.bin
[ 8.239609] rc.local[506]: +onie_config_version=1
[ 8.299667] rc.local[506]: + onie_dev=/dev/sda2
[ 8.359688] rc.local[506]: + onie_dhcp=eth0
[ 8.415556] rc.local[506]: +onie_exec_url=/mnt/media/sonic-cisco-8000.202012.02.bin
[ 8.519639] rc.local[506]: +onie_firmware=auto
[ 8.579549] rc.local[506]: +onie_grub_image_name=grubx64.efi
[ 8.655520] rc.local[506]: +onie_initrd_tmp=/
[ 8.715556] rc.local[506]: +onie_installer=/var/tmp/installer
[ 8.791531] rc.local[506]: +onie_kernel_version=4.9.189
[ 8.864082] rc.local[506]: +onie_machine=8102_64h_o
[ 8.935565] rc.local[506]: +onie_machine_rev=0
[ 8.995543] rc.local[506]: +onie_partition_type=gpt
[ 9.055543] rc.local[506]: +onie_platform=x86_64-8102_64h_o-r0
[ 9.131591] rc.local[506]: +onie_root_dir=/mnt/onie-boot/onie
[ 9.207537] rc.local[506]: + onie_skip_ethmgmt_macs=no
[ 9.279532] rc.local[506]: +onie_switch_asic=cisco
[ 9.339534] rc.local[506]: +onie_uefi_arch=x64
[ 9.399565] rc.local[506]: +onie_uefi_boot_loader=grubx64.efi
[ 9.475548] rc.local[506]: + onie_vendor_id=9
[ 9.535528] rc.local[506]: +onie_version=2020.11br.CISCO
[ 9.607536] rc.local[506]: +program_console_speed
[ 9.672662] rc.local[528]: + cat/proc/cmdline
[ 9.733802] rc.local[529]: + grep -Eoconsole=ttyS[0-9]+,[0-9]+
[ 9.813048] rc.local[530]: + cut -d , -f2
[ 9.869425] rc.local[506]: + speed=9600
[ 9.923528] rc.local[506]: + [ -z 9600 ]
[ 9.979609] rc.local[506]: +CONSOLE_SPEED=9600
[ 10.041101] rc.local[531]: + grep agetty/lib/systemd/system/serial-getty@.service
[ 10.138720] rc.local[532]: + grep keep-baud
[ 10.192903] rc.local[506]: + [ 1 = 0 ]
[ 10.247747] rc.local[506]: + sed -i s|u' .*%I|u' 9600 %I|g /lib/systemd/system/serial-getty@.service
[ 10.367532] rc.local[506]: + systemctldaemon-reload
[ 10.427726] rc.local[506]: + [ -f/host/image-202012.02/platform/firsttime ]
[ 10.523589] rc.local[506]: + [ -f/var/log/fsck.log.gz ]
[ 10.599995] rc.local[561]: +
[ 10.645250] rc.local[560]: +
[ 10.687538] rc.local[561]: logger -t FSCK
[ 10.745148] rc.local[560]: gunzip -d -c/var/log/fsck.log.gz
[ 10.820329] rc.local[506]: + rm -f/var/log/fsck.log.gz
[ 10.891825] rc.local[506]: + exit 0
[FAILED] Failedto start Update hostname based on configdb.
Debian GNU/Linux10 localhost ttyS0
localhost login:[ 29.385953] iio iio:device0: ds4424_verify_chipfailed. ret: -14
[ 29.465945] iio iio:device0:ds4424_verify_chip failed. ret: -14
localhost login:root
Password:
Last login: FriAug 18 13:40:57 UTC 2023 on ttyS0
Linux localhost 4.19.0-12-2-amd64#1 SMP Debian 4.19.152-1 (2020-10-18) x86_64
You are on
____ ___ _ _ _ ____
/ ___| / _ \| \ | (_)/ ___|
\___ \| | | | \| | | |
___) | |_| | |\ | | |___
|____/ \___/|_| \_|_|\____|
-- Software forOpen Networking in the Cloud --
Unauthorizedaccess and/or use are prohibited.
All access and/oruse are subject to monitoring.
Help: http://azure.github.io/SONiC/
root@localhost:~#show version
SONiC SoftwareVersion: SONiC.202012.02
Distribution:Debian 10.12
Kernel: 4.19.0-12-2-amd64
Build commit:a442391c7
Build date: ThuJun 9 02:17:36 UTC 2022
Built by:sonicci@sonic-ci-10-lnx
Platform:x86_64-8102_64h_o-r0
HwSKU:Cisco-8102-C64
ASIC: cisco-8000
ASIC Count: 1
Uptime: 13:47:34up 2 min, 1 user, load average: 1.93, 0.76, 0.29
Docker images:
REPOSITORY TAG IMAGE ID SIZE
docker-syncd-cisco 202012.02 3993a51dc3c3 882MB
docker-syncd-cisco latest 3993a51dc3c3 882MB
docker-dhcp-relay 202012.02 f66c43ab8e61 375MB
docker-dhcp-relay latest f66c43ab8e61 375MB
docker-sflow 202012.02 c5688a606525 374MB
docker-sflow latest c5688a606525 374MB
docker-teamd 202012.02 ff328750e301 373MB
docker-teamd latest ff328750e301 373MB
docker-nat 202012.02 3485f935033c 376MB
docker-nat latest 3485f935033c 376MB
docker-sonic-mgmt-framework 202012.02 20ba79167eae 687MB
docker-sonic-mgmt-framework latest 20ba79167eae 687MB
docker-router-advertiser 202012.02 9601425f9c75 362MB
docker-router-advertiser latest 9601425f9c75 362MB
docker-lldp 202012.02 d585a384791c 402MB
docker-lldp latest d585a384791c 402MB
docker-database 202012.02 6cbf24e5eced 362MB
docker-database latest 6cbf24e5eced 362MB
docker-orchagent 202012.02 08edd613e6b3 390MB
docker-orchagent latest 08edd613e6b3 390MB
docker-sonic-telemetry 202012.02 ea3fa5a7f886 451MB
docker-sonic-telemetry latest ea3fa5a7f886 451MB
docker-snmp 202012.02 32ce3f5649e8 405MB
docker-snmp latest 32ce3f5649e8 405MB
docker-fpm-frr 202012.02 0f9f52e1883a 391MB
docker-fpm-frr latest 0f9f52e1883a 391MB
docker-mux 202012.02 f2a9f83a9bce 414MB
docker-mux latest f2a9f83a9bce 414MB
docker-platform-monitor 202012.02 4e0de19c298d 545MB
docker-platform-monitor latest 4e0de19c298d 545MB
root@localhost:~#show platform summary
Platform:x86_64-8102_64h_o-r0
HwSKU: Cisco-8102-C64
ASIC: cisco-8000
ASIC Count: 1
root@localhost:~#show platform firmware status
Unknown SSD typeHPC0T12
fail to getUnknown SSD type HPC0T12
fpd info
Chassis Module Component Version Description
---------- -------- ------------ --------- --------------------------------
8102-64H-O N/A BIOS 0-240 BIOS - Basic Input Output System
IOFPGA_SJTAG 1.4 Omega FPGA - Xilinx
Aikido 1.81 Aikido - x86 FPGA
TAM 6.13 TAM FW - x86
SSD 0.0 SSD

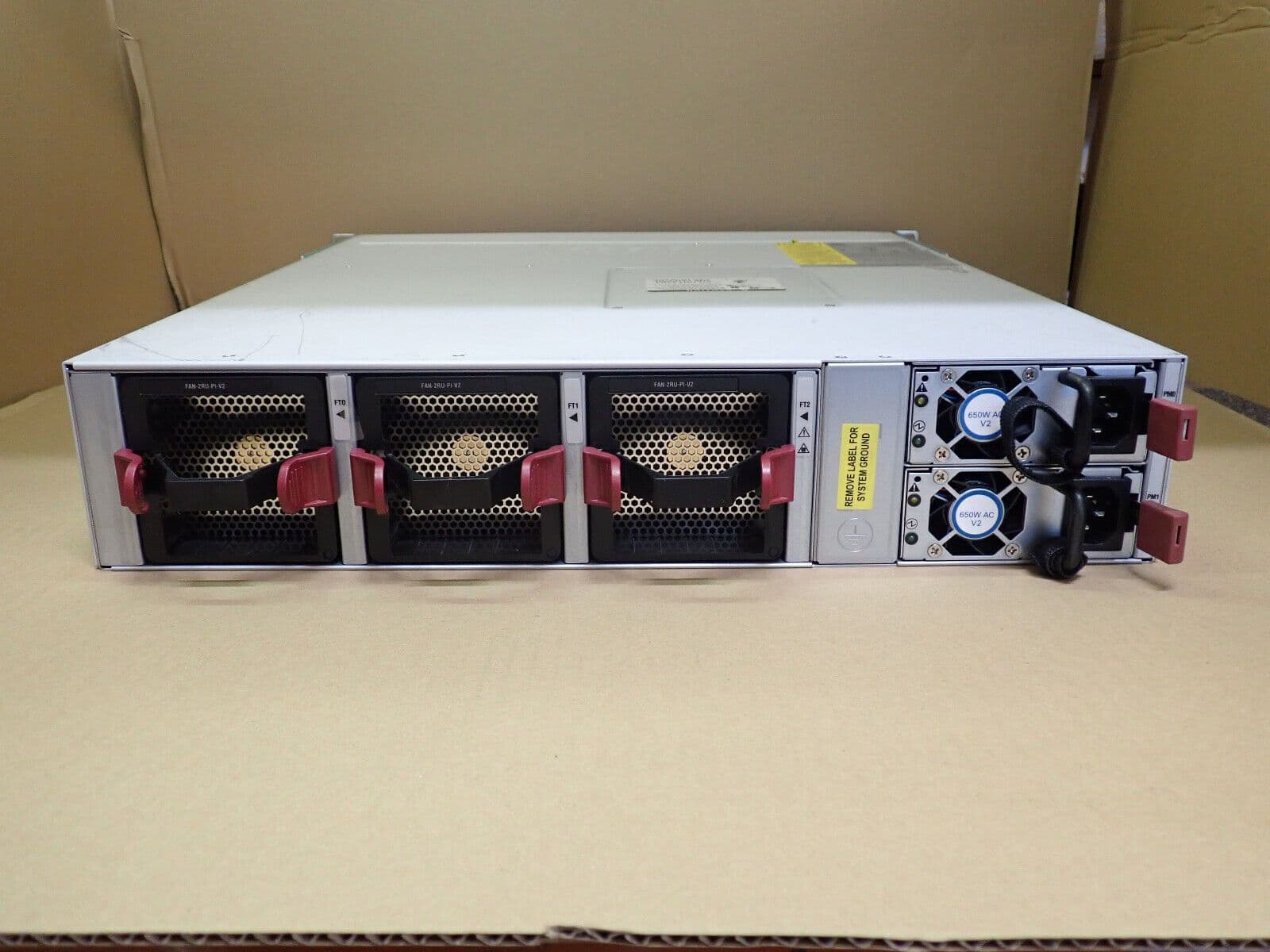

root@localhost:~#show platform fan
Drawer LED FAN Speed Direction Presence Status Timestamp
-------- ----- ------------- ------- ----------- ---------- -------- -----------------
N/A N/A PSU0.fan0 50% intake Present OK 20230818 13:50:12
N/A N/A PSU1.fan0 50% intake Present OK 20230818 13:50:12
fantray0 green fantray0.fan0 21% intake Present OK 20230818 13:50:11
fantray0 green fantray0.fan1 20% intake Present OK 20230818 13:50:11
fantray1 green fantray1.fan0 20% intake Present OK 20230818 13:50:11
fantray1 green fantray1.fan1 20% intake Present OK 20230818 13:50:11
fantray2 green fantray2.fan0 20% intake Present OK 20230818 13:50:11
fantray2 green fantray2.fan1 20% intake Present OK 20230818 13:50:11
root@localhost:~#show platform psustatus
PSU Model Voltage (V) Current (A) Power (W) Status LED
----- ------------ ----------- ------------- ------------- ----------- -------- -----
PSU 1 PSU650W-ACPI 12.14 8.09 96.00 OK N/A
PSU 2 PSU650W-ACPI 12.08 7.26 88.00 OK N/A
root@localhost:~#show platform temperature
Sensor Temperature High TH Low TH Crit High TH Crit Low TH Warning Timestamp
----------------------- ------------- --------- -------- -------------- ------------- --------- -----------------
ACPI 29.8 97.0 -5.0 102.0 -10.0 False 20230818 13:50:12
CPU_U17_P1P05V_TEMP 38.312 125.0 -5.0 135.0 -10.0 False 20230818 13:50:13
CPU_U17_PVCCIN_TEMP 38.062 125.0 -5.0 135.0 -10.0 False 20230818 13:50:13
CPU_U117_P1P2V_TEMP 35.375 125.0 -5.0 135.0 -10.0 False 20230818 13:50:13
CPU_U117_P1P05V_TEMP 35.875 125.0 -5.0 135.0 -10.0 False 20230818 13:50:13
DIMM_TEMP1 31.0 125.0 -5.0 135.0 -10.0 False 20230818 13:50:15
FAN_Sensor 33.375 97.0 -5.0 102.0 -10.0 False 20230818 13:50:12
MB_3_3V_L_TEMP_L1 38.312 125.0 -5.0 135.0 -10.0 False 20230818 13:50:15
MB_3_3V_L_TEMP_L2 38.312 125.0 -5.0 135.0 -10.0 False 20230818 13:50:15
MB_3_3V_R_VDDCK_TEMP_L1 37.125 125.0 -5.0 135.0 -10.0 False 20230818 13:50:14
MB_3_3V_R_VDDCK_TEMP_L2 49.812 125.0 -5.0 135.0 -10.0 False 20230818 13:50:14
MB_GB_CORE_TEMP_L1 46.125 110.0 -5.0 115.0 -10.0 False 20230818 13:50:14
MB_PORT_Sensor 24.813 120.0 -5.0 125.0 -10.0 False 20230818 13:50:12
MB_TMP421_Local 27.313 120.0 -5.0 125.0 -10.0 False 20230818 13:50:12
MB_VDDS_VDDA_TEMP_L1 47.625 125.0 -5.0 135.0 -10.0 False 20230818 13:50:14
MB_VDDS_VDDA_TEMP_L2 50.062 125.0 -5.0 135.0 -10.0 False 20230818 13:50:14
PSU0 HSNK_Temp1 31.5 91.0 -5.0 96.0 -10.0 False 20230818 13:50:15
PSU0 HSNK_Temp2 31.0 110.0 -5.0 115.0 -10.0 False 20230818 13:50:15
PSU0 Inlet_Temp 29.5 80.0 -5.0 85.0 -10.0 False 20230818 13:50:15
PSU0 Outlet_Temp N/A N/A N/A N/A N/A False 20230818 13:50:15
PSU1 HSNK_Temp1 31.5 91.0 -5.0 96.0 -10.0 False 20230818 13:50:15
PSU1 HSNK_Temp2 31.25 110.0 -5.0 115.0 -10.0 False 20230818 13:50:15
PSU1 Inlet_Temp 28.75 80.0 -5.0 85.0 -10.0 False 20230818 13:50:15
PSU1 Outlet_Temp N/A N/A N/A N/A N/A False 20230818 13:50:15
SSD_Temp 32.0 80.0 -5.0 85.0 -10.0 False 20230818 13:50:15
X86_CORE_0_T 42.0 125.0 -5.0 135.0 -10.0 False 20230818 13:50:12
X86_CORE_1_T 43.0 125.0 -5.0 135.0 -10.0 False 20230818 13:50:12
X86_CORE_2_T 42.0 125.0 -5.0 135.0 -10.0 False 20230818 13:50:12
X86_CORE_3_T 42.0 125.0 -5.0 135.0 -10.0 False 20230818 13:50:12
X86_PKG_TEMP 42.0 125.0 -5.0 135.0 -10.0 False 20230818 13:50:12
root@localhost:~#show platform fan
Drawer LED FAN Speed Direction Presence Status Timestamp
-------- ----- ------------- ------- ----------- ---------- -------- -----------------
N/A N/A PSU0.fan0 50% intake Present OK 20230818 14:13:11
N/A N/A PSU1.fan0 50% intake Present OK 20230818 14:13:11
fantray0 green fantray0.fan0 20% intake Present OK 20230818 14:13:11
fantray0 green fantray0.fan1 20% intake Present OK 20230818 14:13:11
fantray1 green fantray1.fan0 21% intake Present OK 20230818 14:13:11
fantray1 green fantray1.fan1 20% intake Present OK 20230818 14:13:11
fantray2 green fantray2.fan0 20% intake Present OK 20230818 14:13:11
fantray2 green fantray2.fan1 20% intake Present OK 20230818 14:13:11
root@localhost:~#show environment
tps53679-i2c-25-65
Adapter:i2c-4-mux (chan_id 2)
MB_3_3V_R_L1_VIN: +12.06 V (crit min = +5.50 V, crit max =+14.00 V)
MB_GB_VDDCK_L2_VIN: +12.06 V (crit min = +5.50 V, crit max =+14.00 V)
MB_3_3V_R_L1_VOUT: +1.68 V (crit min = +1.48 V, crit max= +2.60 V)
MB_GB_VDDCK_L2_VOUT: +1.15 V (crit min = +0.95 V, crit max= +1.52 V)
pout1: 0.00 W
pout2: 20.06 W
MB_3_3V_R_L1_IOUT: +0.12 A (max = +96.00 A, crit max = +120.00 A)
MB_GB_VDDCK_L2_IOUT:+17.81 A (max = +40.00 A, crit max =+50.00 A)
pmbus-i2c-25-62
Adapter:i2c-4-mux (chan_id 2)
MB_GB_CORE_VIN_L1: +12.08 V (crit min = +10.80 V, min = +10.92 V)
(max = +13.08 V,crit max = +13.20 V)
MB_GB_CORE_VOUT_L1: +1.04 V (crit min = +1.24 V, min = +1.21 V)
(max = +0.76 V, crit max = +0.76 V)
pin: 62.56 W (max = 832.00 W)
pout1: 58.56 W
MB_GB_CORE_IIN_L1: +5.20 A (max = +72.00 A, crit max = +80.00 A)
MB_GB_CORE_IOUT_L1:+83.00 A (crit min = -40.00 A, max =+320.00 A)
(crit max =+400.00 A)
jc42-i2c-14-1b
Adapter: iMCsocket 0 channel 1
pmbus-i2c-29-58
Adapter:i2c-4-mux (chan_id 6)
vin: +239.00 V
vout1: +12.14 V
fan1: 10080 RPM
pin: 110.00 W
pout1: 93.00 W
iin: +0.47 A
iout1: +7.80 A
jc42-i2c-14-1f
Adapter: iMCsocket 0 channel 1
jc42-i2c-14-19
Adapter: iMCsocket 0 channel 1
tps53679-i2c-21-58
Adapter:i2c-1-mux (chan_id 6)
CPU_U17_PVCCIN_VIN: +12.09 V (crit min = +5.50 V, crit max =+14.00 V)
CPU_U17_P1P05V_VIN: +12.09 V (crit min = +5.50 V, crit max =+14.00 V)
CPU_U17_PVCCIN_VOUT: +1.80 V (crit min = +1.46 V, crit max= +2.20 V)
CPU_U17_P1P05V_VOUT: +1.05 V (crit min = +0.85 V, crit max= +1.52 V)
pout1: 8.66 W
pout2: 289.06 mW
CPU_U17_PVCCIN_IOUT: +2.32 A (max = +66.00 A, crit max = +82.00 A)
CPU_U17_P1P05V_IOUT: +0.24 A (max = +16.00 A, crit max = +20.00 A)
jc42-i2c-14-1d
Adapter: iMCsocket 0 channel 1
jc42-i2c-13-18
Adapter: iMCsocket 0 channel 0
tmp75-i2c-20-48
Adapter:i2c-1-mux (chan_id 5)
tmp421-i2c-24-4c
Adapter: i2c-4-mux(chan_id 1)
ltc2979-i2c-26-5d
Adapter:i2c-4-mux (chan_id 3)
vin: +12.08 V (crit min = +0.00 V, min = +0.00 V)
(max = +13.00 V, critmax = +14.00 V)
(lowest = +12.06 V,highest = +12.08 V)
GB_PCIE_VDDH: +1.20 V (crit min = +1.02 V, min = +1.05 V)
(max = +1.34 V, crit max = +1.38 V)
(lowest = +1.20 V, highest = +1.20 V)
GB_PCIE_VDDACK: +0.75 V (crit min = +0.64 V, min = +0.66 V)
(max = +0.84 V, crit max = +0.86 V)
(lowest = +0.75 V, highest = +0.75 V)
vout3: +0.49 V (crit min = +0.10 V, min = +0.15 V)
(max = +3.75 V, crit max = +4.00 V)
(lowest = +0.52 V, highest = +0.52 V)
GB_P1V8_VDDIO: +1.80 V (crit min = +1.53 V, min = +1.58 V)
(max = +2.02 V, crit max = +2.07 V)
(lowest = +1.80 V, highest = +1.80 V)
GB_P1V8_PLLVDD: +1.80 V (crit min = +1.53 V, min = +1.58 V)
(max = +2.02 V, crit max = +2.07 V)
(lowest = +1.80 V, highest = +1.80 V)
vout6: +0.14 V (crit min = +0.10 V, min = +0.15 V)
(max = +3.75 V, crit max = +4.00 V)
(lowest = +0.14 V, highest = +0.14 V)
vout7: +0.08 V (crit min = +0.10 V, min = +0.15 V)
(max = +3.75 V, crit max = +4.00 V)
(lowest = +0.18 V, highest = +0.18 V)
vout8: +0.14 V (crit min = +0.10 V, min = +0.15 V)
(max = +3.75 V, crit max = +4.00 V)
(lowest = +0.38 V, highest = +0.38 V)
acpitz-acpi-0
Adapter: ACPIinterface
tps53679-i2c-25-64
Adapter:i2c-4-mux (chan_id 2)
MB_3_3V_L_L1_VIN: +12.05 V (crit min = +5.50 V, crit max =+14.00 V)
vin2: +12.05 V (crit min = +5.50 V, crit max = +14.00 V)
MB_3_3V_L_L1_VOUT: +1.68 V (crit min = +1.48 V, crit max= +2.60 V)
vout2: +0.00 V (crit min = +0.00 V, crit max = +1.52 V)
pout1: 102.66 mW
pout2: 0.00 W
MB_3_3V_L_L1_IOUT: +0.00 A (max = +64.00 A, crit max = +80.00 A)
iout2: +0.00 A (max = +35.00 A, crit max = +43.00 A)
jc42-i2c-14-1c
Adapter: iMCsocket 0 channel 1
pmbus-i2c-30-58
Adapter:i2c-4-mux (chan_id 7)
vin: +239.00 V
vout1: +12.08 V
fan1: 9952 RPM
pin: 99.00 W
pout1: 85.00 W
iin: +0.41 A
iout1: +6.97 A
tps53679-i2c-25-60
Adapter:i2c-4-mux (chan_id 2)
MB_GB_VDDS_L1_VIN: +12.09 V (crit min = +5.50 V, crit max =+14.00 V)
MB_GB_VDDA_L2_VIN: +12.08 V (crit min = +5.50 V, crit max =+14.00 V)
MB_GB_VDDS_L1_VOUT: +0.75 V (crit min = +0.55 V, crit max= +1.52 V)
MB_GB_VDDA_L2_VOUT: +0.96 V (crit min = +0.76 V, crit max= +1.52 V)
pout1: 11.08 W
pout2: 34.50 W
MB_GB_VDDS_L1_IOUT: +7.57 A (max = +80.00 A, crit max = +100.00 A)
MB_GB_VDDA_L2_IOUT:+18.56 A (max = +80.00 A, crit max =+100.00 A)
jc42-i2c-14-1a
Adapter: iMCsocket 0 channel 1
tps53679-i2c-21-59
Adapter:i2c-1-mux (chan_id 6)
CPU_U117_P1P2V_VIN: +12.11 V (crit min = +5.50 V, crit max =+14.00 V)
CPU_U117_P1P05V_VIN: +12.11 V (crit min = +5.50 V, crit max =+14.00 V)
CPU_U117_P1P2V_VOUT: +1.20 V (crit min = +1.00 V, crit max= +1.52 V)
CPU_U117_P1P05V_VOUT: +1.05 V (crit min = +0.85 V, crit max= +1.52 V)
pout1: 915.04 mW
pout2: 1.79 W
CPU_U117_P1P2V_IOUT: +0.92 A (max = +20.00 A, crit max = +25.00 A)
CPU_U117_P1P05V_IOUT: +1.77 A (max = +20.00 A, crit max = +25.00 A)
jc42-i2c-14-1e
Adapter: iMCsocket 0 channel 1
jc42-i2c-14-18
Adapter: iMCsocket 0 channel 1
coretemp-isa-0000
Adapter: ISAadapter
ltc2979-i2c-26-5e
Adapter:i2c-4-mux (chan_id 3)
vin: +12.06 V (crit min = +0.00 V, min = +0.00 V)
(max = +13.00 V, crit max =+14.00 V)
(lowest = +12.06 V,highest = +12.08 V)
vout1: +1.70 V (crit min = +1.44 V, min = +1.50 V)
(max = +1.90 V, crit max = +1.95 V)
(lowest = +1.70 V, highest = +1.70 V)
MB_A1V8: +1.80 V (crit min = +1.53 V, min = +1.58 V)
(max = +2.02 V, crit max = +2.07 V)
(lowest = +1.80 V, highest = +1.80 V)
MB_A1V: +1.00 V (crit min = +0.85 V, min = +0.88 V)
(max = +1.12 V, crit max = +1.15 V)
(lowest = +1.00 V, highest = +1.00 V)
MB_A3V3: +3.28 V (crit min = +2.81 V, min = +2.90 V)
(max = +3.70 V, crit max = +3.79 V)
(lowest = +3.28 V, highest = +3.29 V)
MB_A1V2: +1.20 V (crit min = +1.02 V, min = +1.05 V)
(max = +1.34 V, crit max = +1.38 V)
(lowest = +1.20 V, highest = +1.20 V)
MB_P3V3: +3.30 V (crit min = +2.81 V, min = +2.90 V)
(max = +3.70 V, crit max = +3.79 V)
(lowest = +3.30 V, highest = +3.30 V)
vout7: +1.30 V (crit min = +1.10 V, min = +1.14 V)
(max = +1.46 V, crit max = +1.50 V)
(lowest = +1.30 V, highest = +1.30 V)
vout8: +1.50 V (crit min = +1.27 V, min = +1.32 V)
(max = +1.68 V, crit max = +1.72 V)
(lowest = +1.50 V, highest = +1.50 V)
bmc-isa-0000
Adapter: ISAadapter
fan1: 2280 RPM
fan2: 2400 RPM
fan3: 2250 RPM
fan4: 2400 RPM
fan5: 2250 RPM
fan6: 2430 RPM
fan7: 0 RPM
fan8: 0 RPM
fan9: 0 RPM
fan10: 0 RPM
fan11: 0 RPM
fan12: 0 RPM
fan13: 0 RPM
fan14: 0 RPM
fan15: 0 RPM
fan16: 0 RPM
fan17: 0 RPM
fan18: 0 RPM
fan19: 0 RPM
fan20: 0 RPM
fan21: 0 RPM
fan22: 0 RPM
-

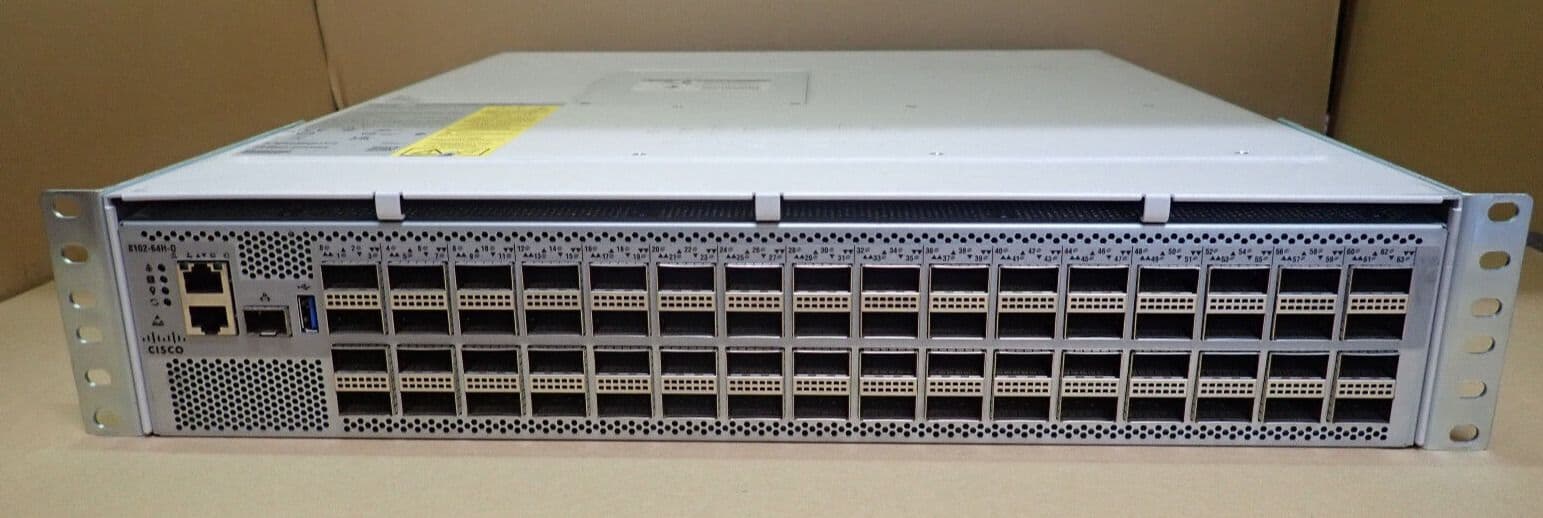

MPN:8102-64H-O
to request a price please fill out the form below...
close
