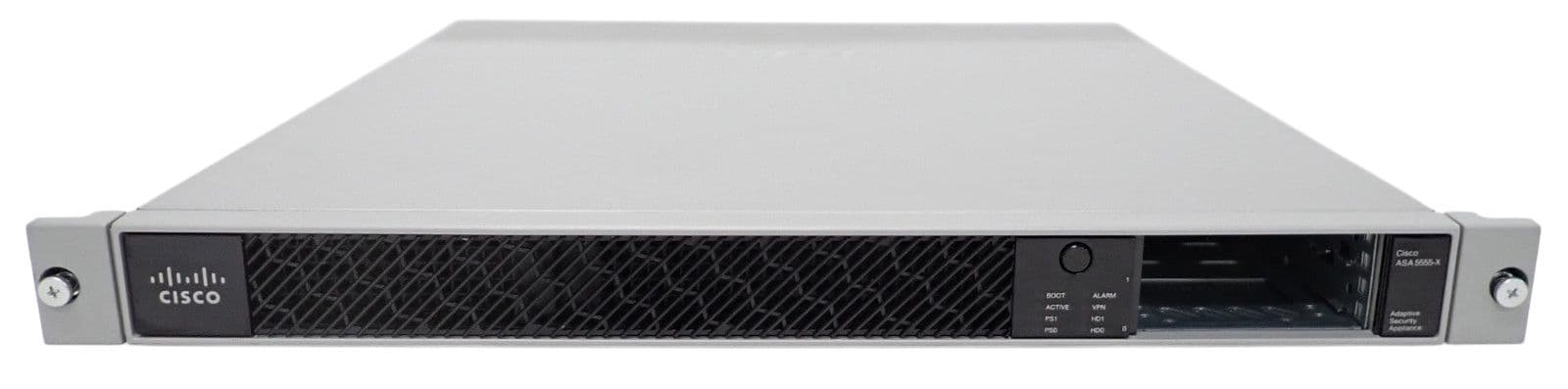

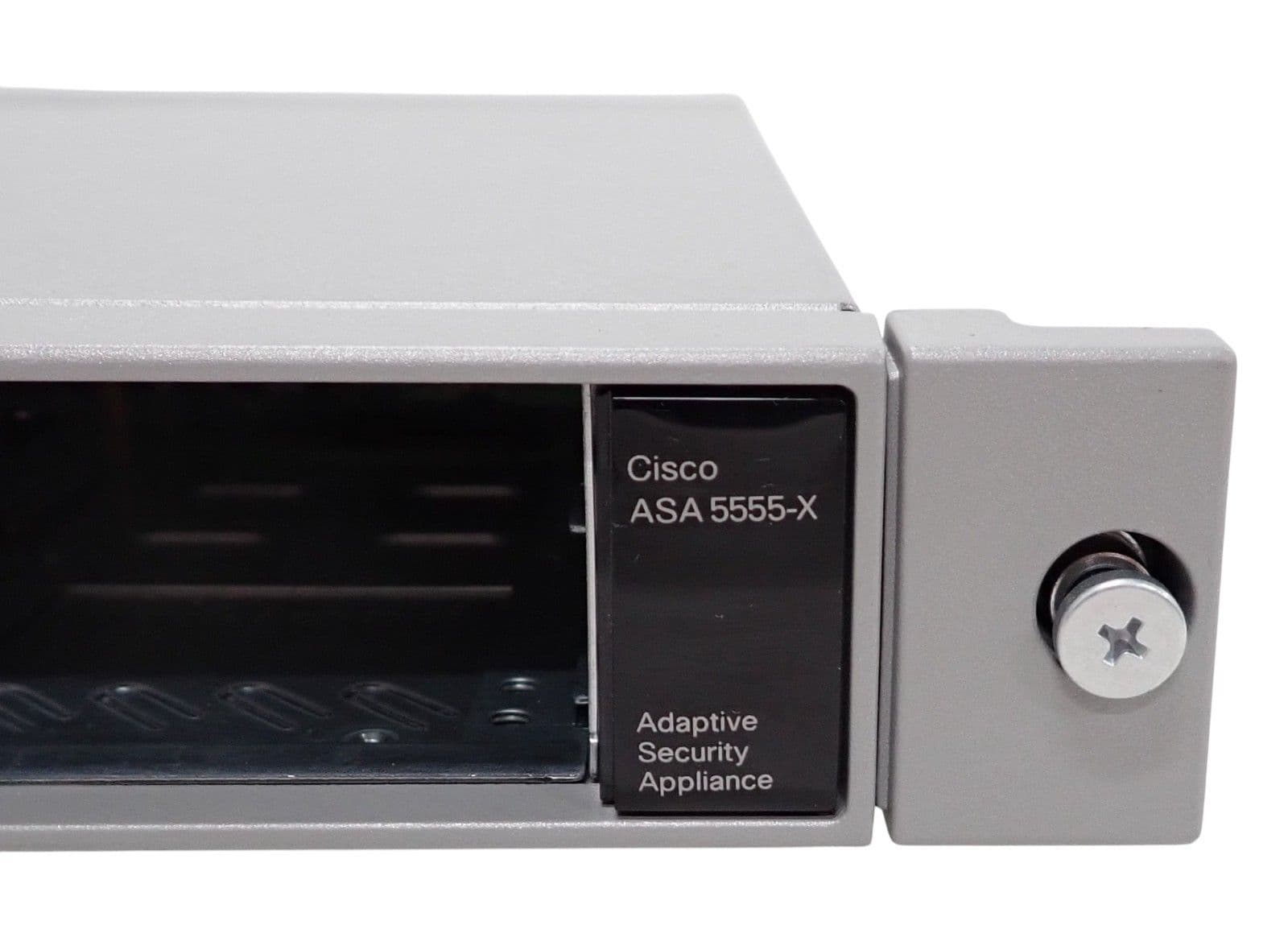

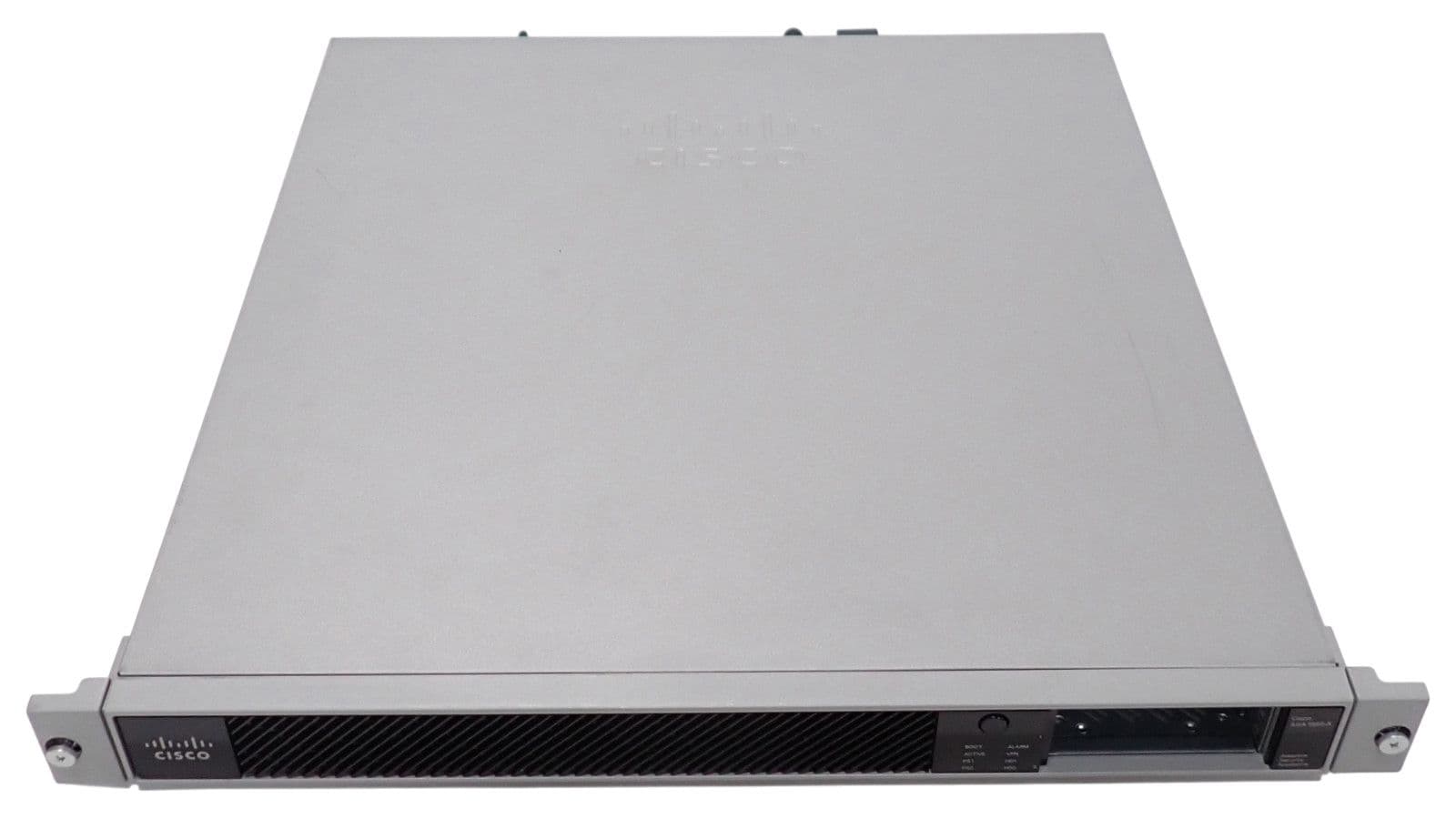

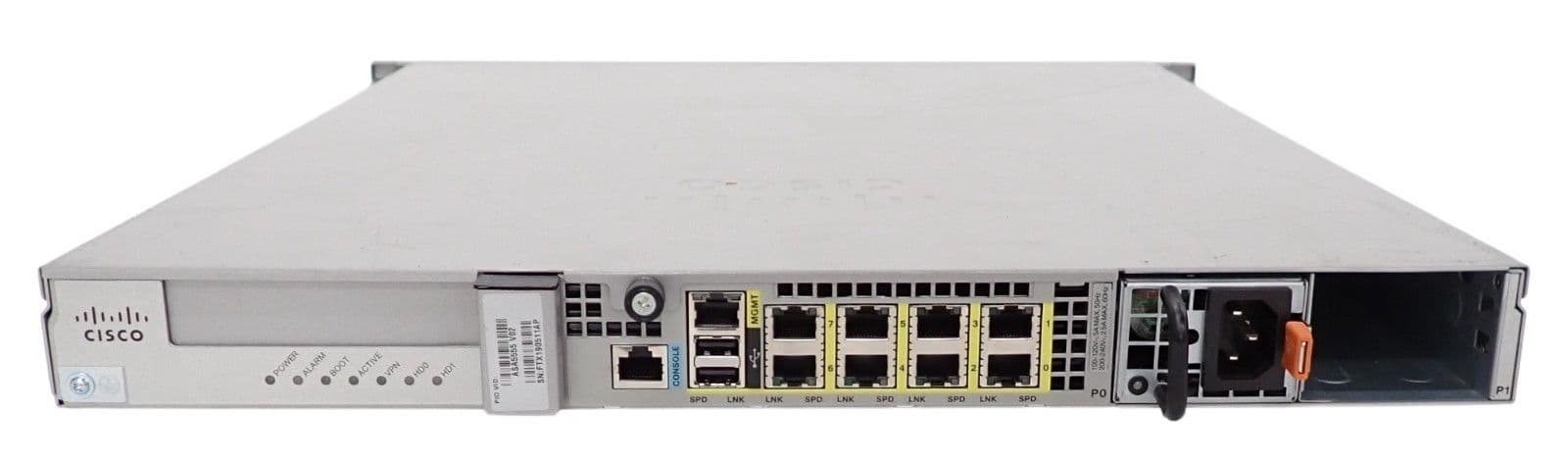

Cisco ASA 5555-X 5500 Adaptive Security Appliance VPN Premium License
In Good Condition, Full Working Order
Tested
2 Year Warranty
Includes VPN Premium License
No Drives Included
Included:
- 1 x Cisco ASA 5555-X 5500 Adaptive Security Appliance VPN Premium License
- 1 x Power Supply
- Model: ASA5555-K9
- Brand: Cisco
- Stateful Inspection Throughput (Maximum): 4 Gbps
- Stateful Inspection Throughput (Multiprotocol): 2 Gbps
- IPS Throughput: 1.3 Gbps
- Next-Generation Throughput (Multiprotocol): 1.4 Gbps
- 3DES/AES VPN Throughput: 700 Mbps
- Users/Nodes: Unlimited
- IPsec VPN Peers: 5,000
- Cisco Cloud Web Security Users: 6,000
- Premium AnyConnect VPN Peers (Included/Maximum): 2/5000
- Concurrent Connections: 1,000,000
- New Connections per Second: 50,000
- Virtual Interfaces (VLANs): 500
- Security Contexts (Included/Maximum): 2 / 100
- High Availability: Active/Active and Active/Standby
- Expansion Slot: 1 interface card
- User-Accessible Flash Slot: 0
- USB 2.0 Ports: 2

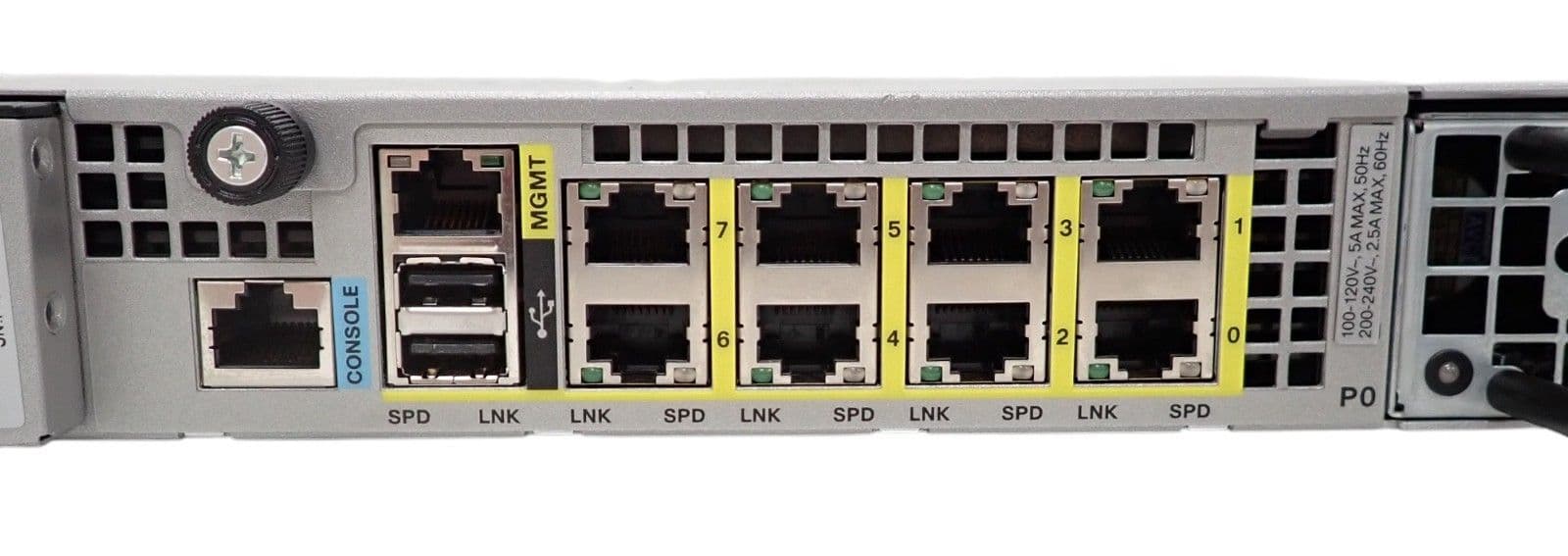

- Integrated I/O: 8 GE Copper
- Expansion I/O: 6 GE Copper or 6 GE SFP
- Serial Ports: 1 RJ-45 console
- Solid State Drive: 2 slots, RAID 1; 120 GB MLC SED
- Memory: 16 GB
- Minimum System Flash: 8 GB
- System Bus: Multibus architecture
- Operational Temperature: 23 to 104 °F (-5 to 40 °C)
- Operational Relative Humidity: 90% non-condensing
- Operational Altitude: 0 to 10,000 ft (3050 m)
- Shock (Operational): 50 G, 2 m/sec
- Vibration (Operational): 0.41 Grms2 (3 to 500 Hz) random input
- Acoustic Noise: 64.2 dBa max
- Storage Temperature: -13 to 158 °F (-25 to 70 °C)
- Storage Relative Humidity: 10% to 90% non-condensing
- Storage Altitude: 0 to 15,000 ft (4572 m)
- Shock (Non-operational): 70 G, 4.22 m/sec
- Vibration (Non-operational): 1.12 Grms2 (3 to 500 Hz) random input
- AC Range Line Voltage: 100 to 240 VAC
- AC Normal Line Voltage: 100 to 240 VAC
- AC Current: 4.85 A
- AC Frequency: 50/60 Hz
- Dual-Power Supplies: Yes
- DC Domestic Line Voltage: -40.5 to 56 VDC (-48 VDC nominal)
- DC International Line Voltage: -55 to -72 VDC (-60 VDC nominal)
- DC Current: 15 A max input
- Steady State Power Consumption: 90 W
- Maximum Peak Power: 134 W
- Maximum Heat Dissipation: 458 BTU/hr
- Form Factor: 1 RU, 19-in. rack-mountable
- Dimensions (H x W x D): 1.67 x 16.7 x 19.1 in. (4.24 x 42.9 x 48.4 cm)
ciscoasa# showversion
Cisco AdaptiveSecurity Appliance Software Version 9.8(3)29
FirepowerExtensible Operating System Version 2.2(2.119)
Device ManagerVersion 7.12(1)
Compiled on Mon01-Apr-19 12:24 PDT by builders
System image fileis "disk0:/asa983-29-smp-k8.bin"
Config file atboot was "startup-config"
ciscoasa up 16mins 33 secs
Hardware: ASA5555, 16384 MB RAM, CPU Lynnfield 2792MHz, 1 CPU (8 cores)
ASA: 8542 MB RAM, 1 CPU (2 cores)
Internal ATACompact Flash, 8192MB
BIOS FlashMX25L6445E @ 0xffbb0000, 8192KB
Encryptionhardware device : Cisco ASA Crypto on-board accelerator (revision 0x1)
Bootmicrocode : CNPx-MC-BOOT-2.00
SSL/IKEmicrocode : CNPx-MC-SSL-SB-PLUS-0005
IPSecmicrocode : CNPx-MC-IPSEC-MAIN-0026
Number ofaccelerators: 1
BaseboardManagement Controller (revision 0x1) Firmware Version: 2.4
0: Int: Internal-Data0/0 : address is 5c83.8fe1.c9f6, irq 11
1: Ext: GigabitEthernet0/0 : address is 5c83.8fe1.c9fb, irq 5
2: Ext: GigabitEthernet0/1 : address is 5c83.8fe1.c9f7, irq 5
3: Ext: GigabitEthernet0/2 : address is 5c83.8fe1.c9fc, irq 10
4: Ext: GigabitEthernet0/3 : address is 5c83.8fe1.c9f8, irq 10
5: Ext: GigabitEthernet0/4 : address is 5c83.8fe1.c9fd, irq 5
6: Ext: GigabitEthernet0/5 : address is 5c83.8fe1.c9f9, irq 5
7: Ext: GigabitEthernet0/6 : address is 5c83.8fe1.c9fe, irq 10
8: Ext: GigabitEthernet0/7 : address is 5c83.8fe1.c9fa, irq 10
9: Int: Internal-Data0/1 : address is 0000.0001.0002, irq 0
10: Int:Internal-Control0/0 : address is 0000.0001.0001, irq 0
11: Int:Internal-Data0/2 : address is0000.0001.0003, irq 0
12: Ext:Management0/0 : address is5c83.8fe1.c9f6, irq 0
13: Int:Internal-Data0/3 : address is0000.0100.0001, irq 0
Licensed featuresfor this platform:
Maximum PhysicalInterfaces : Unlimited perpetual
MaximumVLANs : 500 perpetual
Inside Hosts : Unlimited perpetual
Failover : Active/Active perpetual
Encryption-DES : Enabled perpetual
Encryption-3DES-AES : Enabled perpetual
SecurityContexts : 2 perpetual
Carrier : Disabled perpetual
AnyConnectPremium Peers : 2 perpetual
AnyConnectEssentials : Disabled perpetual
Other VPNPeers : 5000 perpetual
Total VPNPeers : 5000 perpetual
AnyConnect forMobile : Disabled perpetual
AnyConnect forCisco VPN Phone : Disabled perpetual
Advanced EndpointAssessment : Disabled perpetual
SharedLicense :Disabled perpetual
Total TLS ProxySessions : 2 perpetual
Botnet TrafficFilter : Disabled perpetual
IPS Module : Disabled perpetual
Cluster : Enabled perpetual
ClusterMembers : 2 perpetual
This platform hasan ASA5555 VPN Premium license.
Serial Number:FCH1931J5E5
Running PermanentActivation Key: **************************
Configurationregister is 0x1
Image type : Release
Key version : A
Configuration hasnot been modified since last system restart.
ciscoasa# showinventory
Name:"Chassis", DESCR: "ASA 5555-X with SW, 8 GE Data, 1 GEMgmt"
PID: ASA5555 , VID: V03 , SN: FGL193470SB
Name: "powersupply 0", DESCR: "ASA 5545-X/5555-X AC Power Supply"
PID:ASA-PWR-AC , VID: N/A , SN: 57Y24C
-
MPN:ASA5555-X/K9
