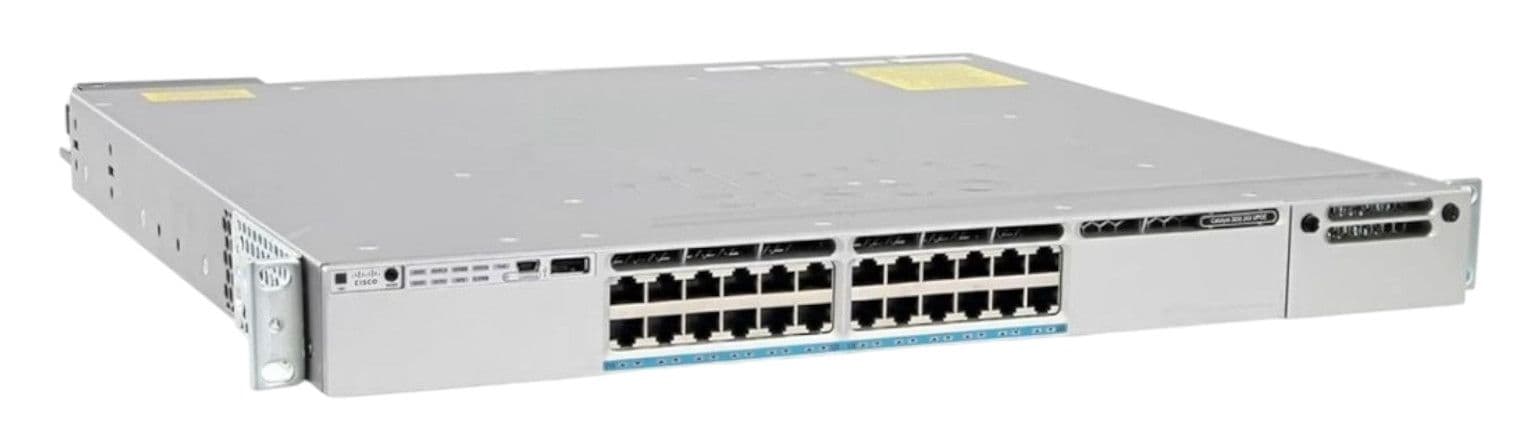

Cisco Catalyst C9300-24UX-A 24x MGig UPOE 1U Managed Switch Network Advantage
Switch Model: C9300-24UX-A
Cisco Refresh Sealed - Manufacturer Refurbished
2 Year Warranty
Includes Network Advantage License
Includes:
- 1 x Cisco Catalyst C9300-24UX-A 24x MGig UPOE 1U Managed Switch Network Advantage
Specification:
- Model: C9300-24UX-A
- Brand: Cisco
- Product Description: Catalyst 9300 24-port Multigigabit Ethernet and UPOE, Network Advantage
- Total Multigigabit copper ports: 24 Multigigabit Cisco UPOE (100 Mbps or 1, 2.5, 5, or 10 Gbps)
- Default AC power supply: 1100W AC
- Available PoE power: 490W
- Cisco StackWise-480: Yes
- Cisco StackPower: Yes
- Default power supply: PWR-C1-1100WAC
- Switching capacity: 640 Gbps on 24-port Multigigabit Ethernet model
- Stacking bandwidth: 480 Gbps
- Total number of MAC addresses: 32,000
- Total number of IPv4 routes: 32,000 (24,000 direct routes and 8,000 indirect routes)
- IPv4 routing entries: 32,000
- IPv6 routing entries: 16,000
- Multicast routing scale: 8,000
- QoS scale entries: 5,120
- ACL scale entries: 5,120
- Packet buffer per SKU: 32 MB buffer for 24-port Multigigabit
- FNF entries: 128,000 flows on 24-port Multigigabit
- DRAM: 8 GB
- Flash: 16 GB
- VLAN IDs: 4,000
- Total Switched Virtual Interfaces (SVIs): 2,000
- Jumbo frames: 9,198 bytes
- Total routed ports per 9300 Series stack: 208
- Wireless bandwidth per switch: Up to 48 Gbps on 24-port Gigabit Ethernet model
- Forwarding rate: 154.76 Mpps
- Dimensions (H x W x D): 1.73 x 17.5 x 17.5 inches
- Mean time between failures (hours): 299,000
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£4000 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS C9300-24UX-A/FS -1 dup .com
specifications
-
MPN:C9300-24UX-A
