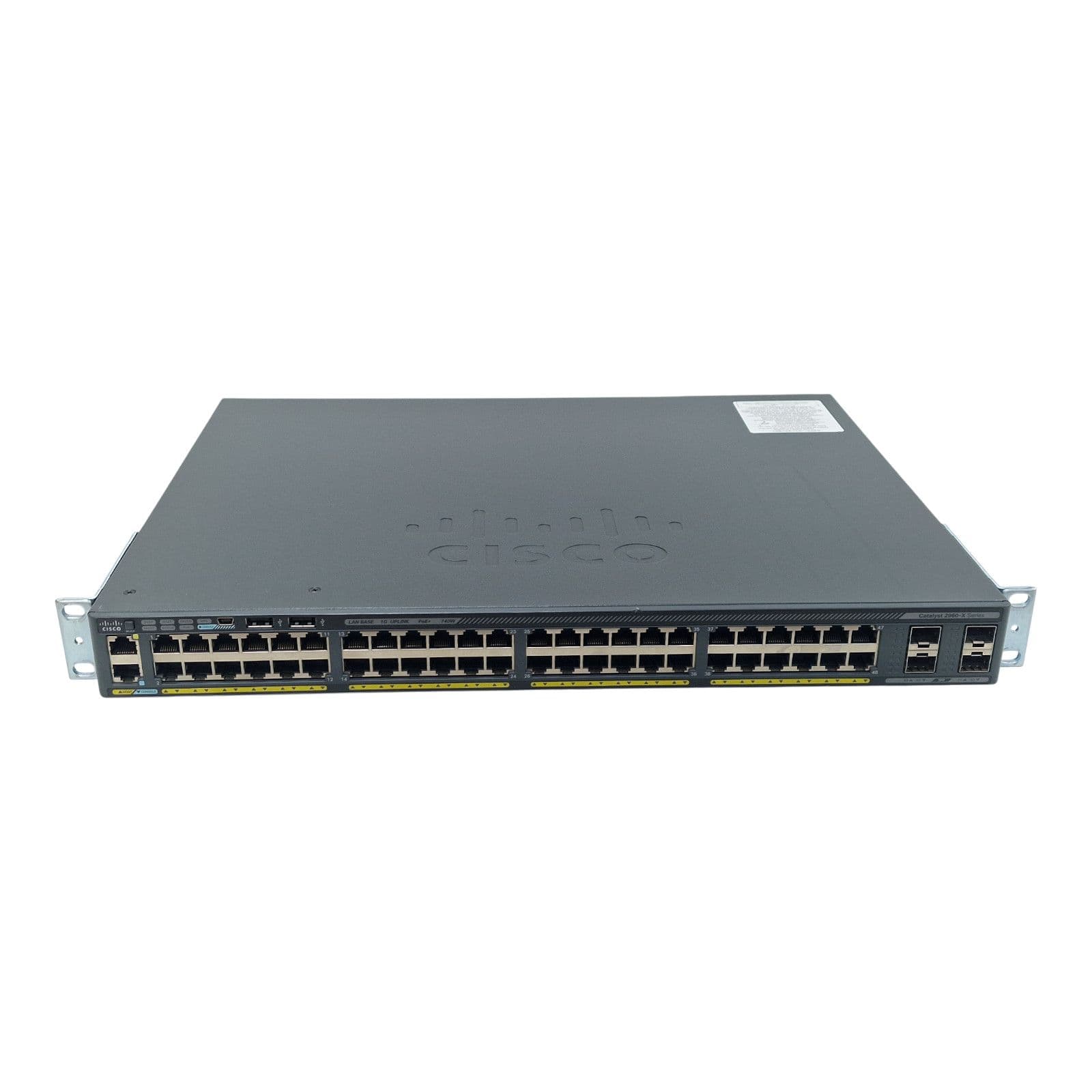

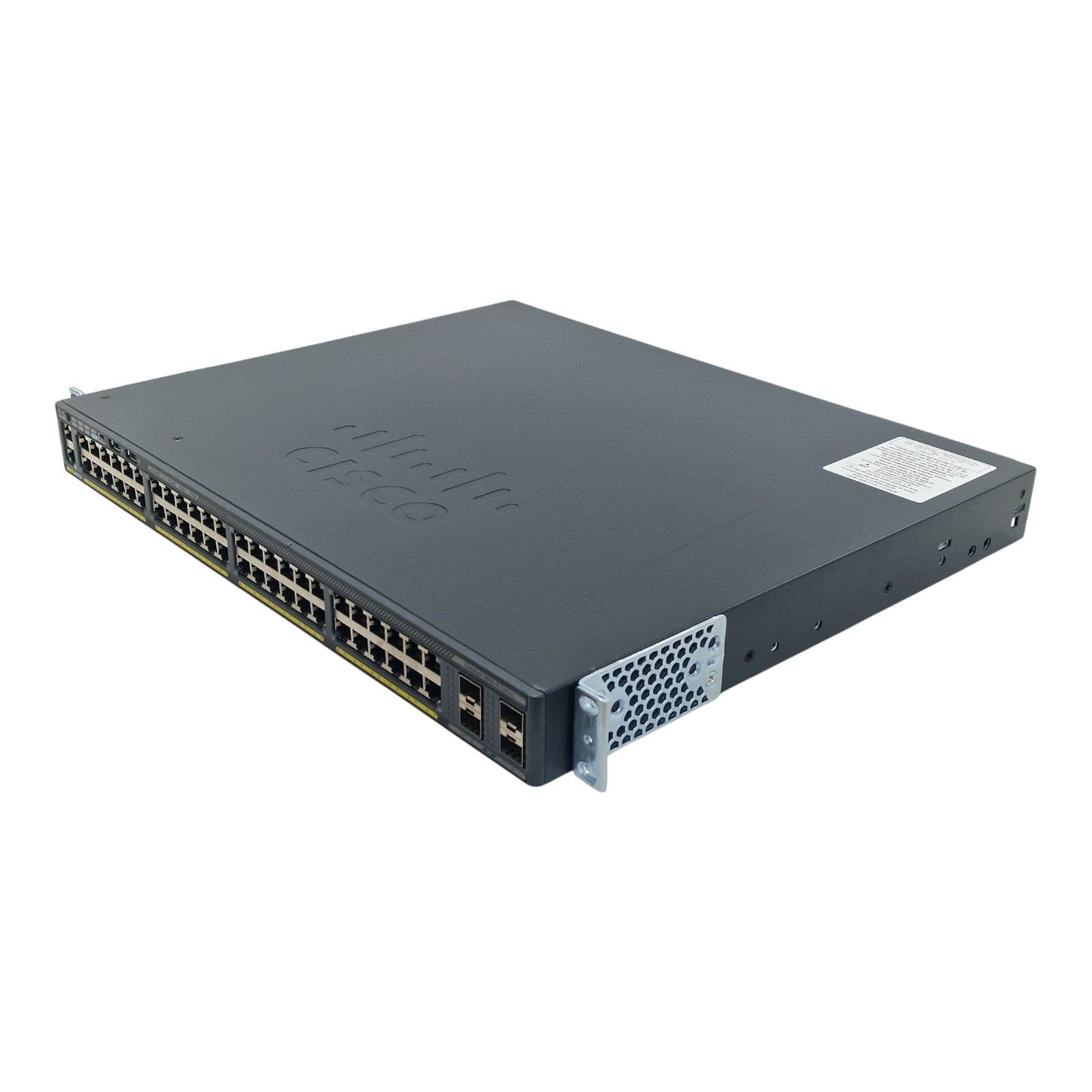

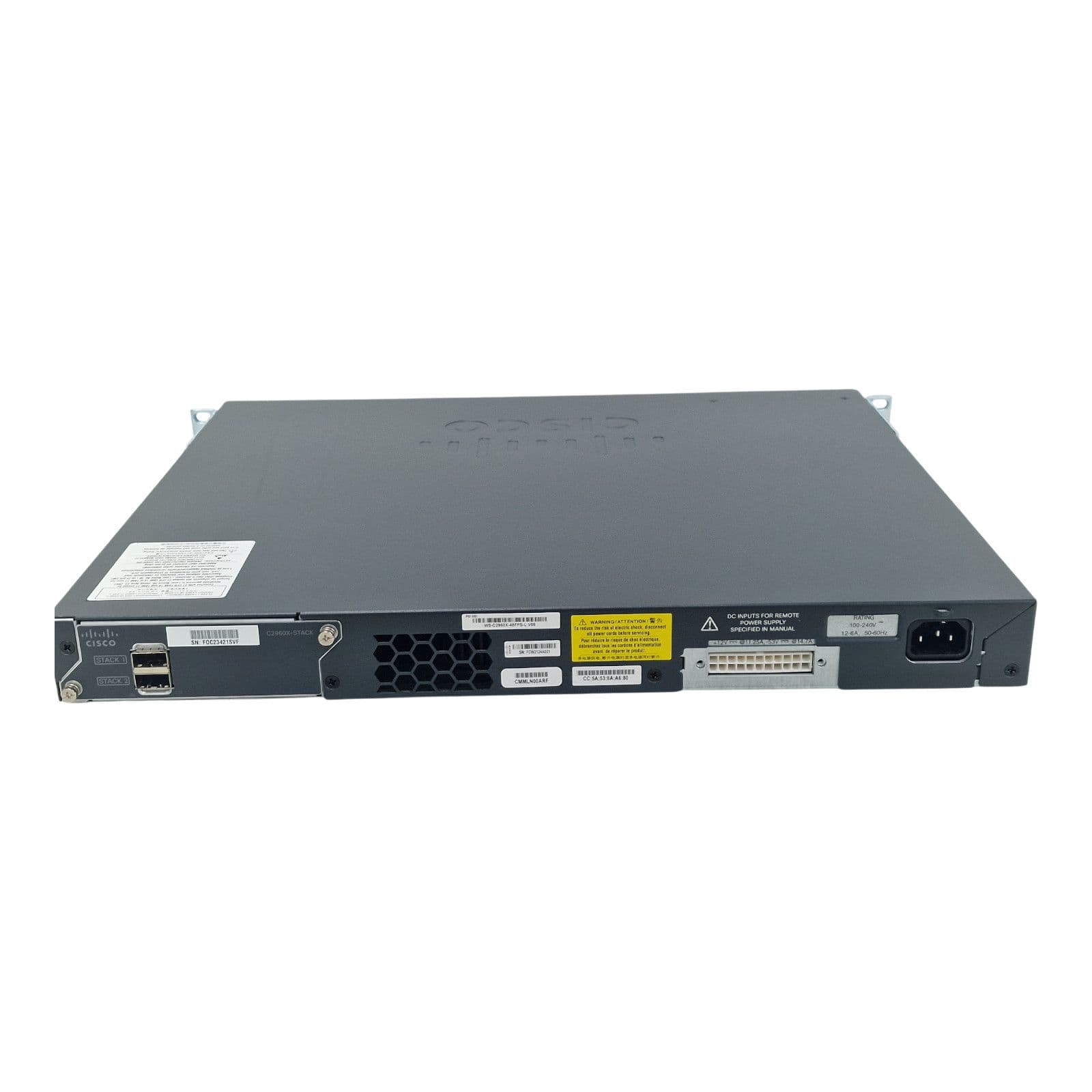

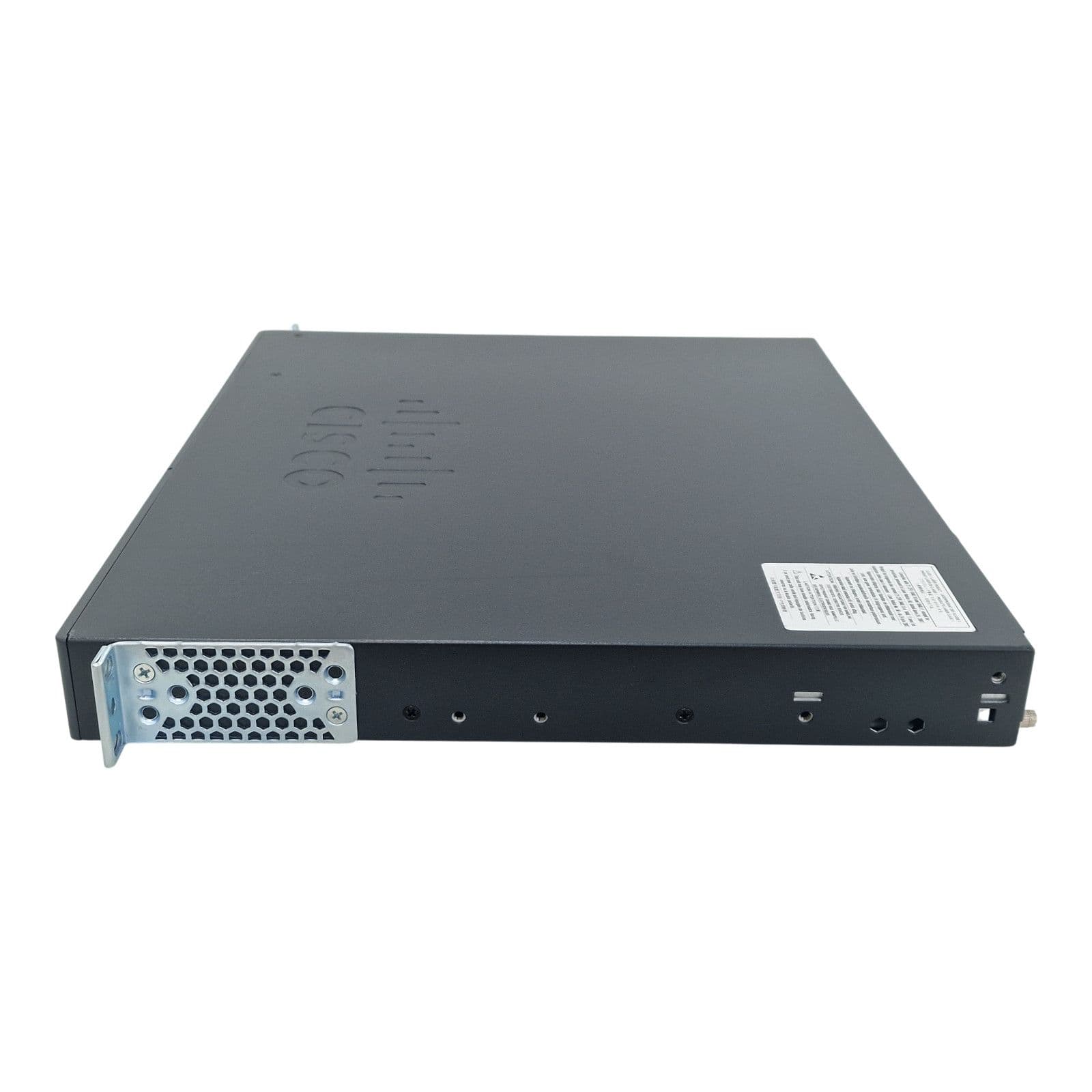

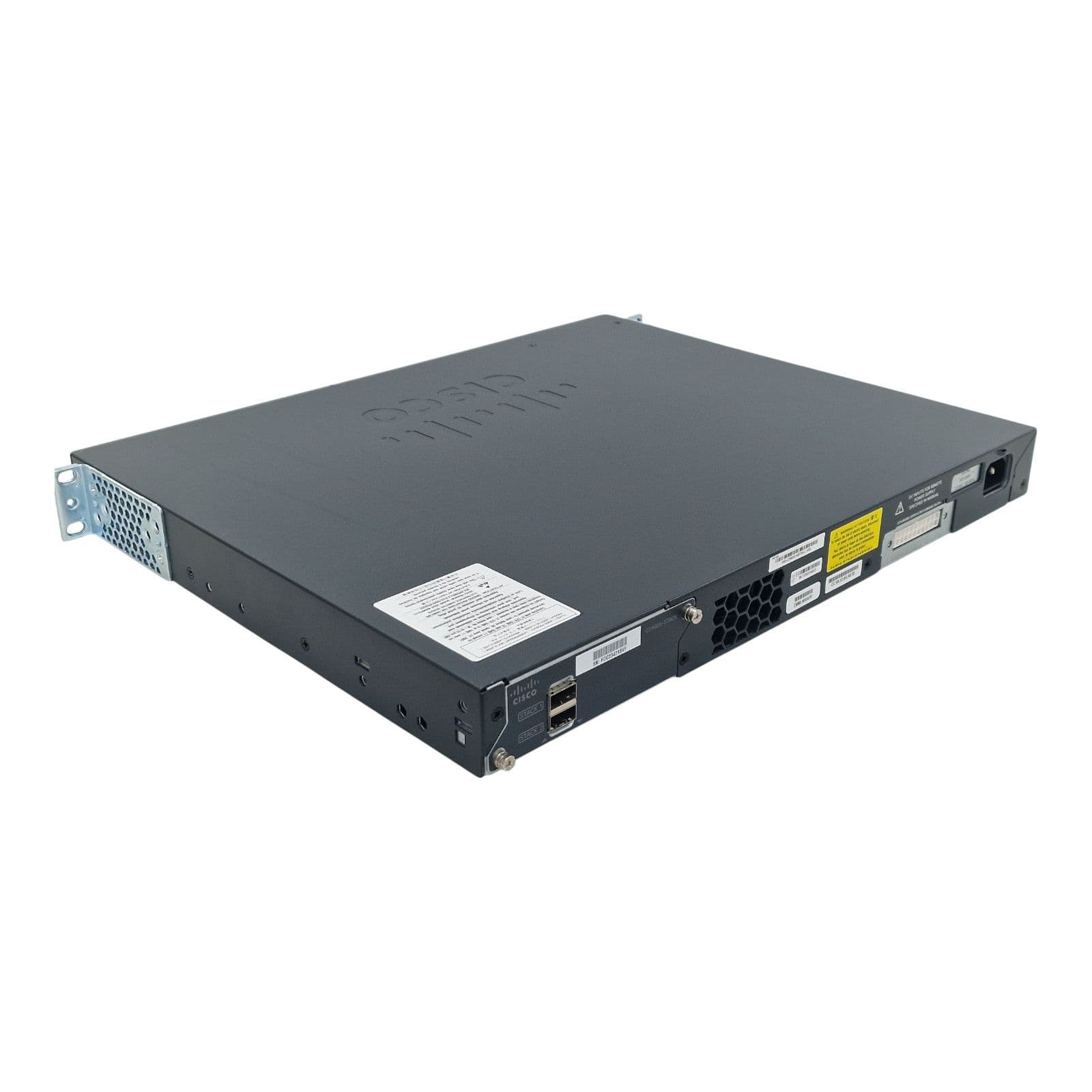

Cisco Catalyst WS C2960X 48LPS L V05 Ethernet Switch 48 Port 1Gbps PoE 4x SFP

• 1 x Cisco Catalyst WS-C2960X-48FPS-L 48-Port PoE Stacking Switch
• 1 x Stacking Module C2960X-STACK

• Enclosure type: Rack-mountable - 1U
• Ports: 48 x 10/100/1000
• Network management Interface: 10/100 Mbps Ethernet (RJ-45)
• Available PoE Power: 740W
• Forwarding bandwidth(Gbps): 108Gbps
• Maximum stacking number: 8
• Stack Bandwidth: 80 G
• Forwarding Performance: 107.1Mpps
• Switching bandwidth: 216Gbps
• Maximum active VLANs: 1023
• MAC Address Table Size: 16K (default)
• CPU: APM86392 600MHz dual core
• RAM: 524 MB
• Flash Memory: 512 KB
• Status Indicators: Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed

• Console ports: USB (Type-B), Ethernet (RJ-45)
• Stacking cable: Optional
• Power Redundancy: Option (PWR-RPS2300)
• Voltage range (Auto): 110V-240V
• Power Consumption Operational: 0.89KVA

• Width: 17.5 Inches (44.5 cm)
• Depth: 14.5 Inches (36.8 cm)
• Height: 1.75 Inches (4.5 cm)
• Weight: 12.9 lb (5.8 Kg)
• Package Weight: 23.48 lb (10.65 Kg)
• Rack Mounting Kit: optional
• MTBF in hours: 232,610

• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1p CoS Prioritization
• IEEE 802.1Q VLAN
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1X
• IEEE 802.1ab (LLDP)
• IEEE 802.3ad
• IEEE 802.3af and IEEE 802.3at
• IEEE 802.3ah (100BASE-X single/multimode fiber only)
• IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• RMON I and II standards
• SNMP v1, v2c, and v3
• IEEE 802.3az
• IEEE 802.1ax

• IOS LAN BASE

• Jumbo Frames
• VLANS
• Voice Vlan
• VTPv2
• CDPv2
• LLDP
• 802.3ad LACP
• PVST/PVST+
• 802.1W/802.1S
• Port Fast/Uplink Fast
• port CoS Trust and Override
• Scheduling
• Priority Queuing
• Configure CoS Priority Queues
• Weighted Tail Drop
• DSCP transparency

• SSH, SSL and SCP
• RADIUS and TACACS+
• SNMPv3 crypto
• 802.1x
• 802.1x Accounting / MIB
• 802.1x w/ port security
• 802.1x w/Voice VLAN
• 802.1x Guest VLAN
• 802.1x VLAN assignment
• 802.1x MAC-Auth Bypass
• BPDU/Root Guard
• Port Security
• Private VALN Edge
• Storm Control
• Block unknown unicast and multicast
• IGMP Snooping
• IGMP Filter/Throttle

• Auto-MDOX
• TDR
• UDLD
• IP SLA Responder
• layer 2 / IP Traceroute
• SPAN
• RSPAN
• Express Setup
• Device Manager
• Cisco Network Assistant
• Smartports + Advisor
• Troubleshooting Advisor
• Drag-and-drop Cisco IOS Upgrade
• IP Address DHCP
• Autoinstall with saved configuration
• Configuration Replace
• DHCP Auto Image Upgrade
• DHCP Port Based Allocation
• Error Disable MIB

Switch#showversion
Cisco IOSSoftware, C2960X Software (C2960X-UNIVERSALK9-M), Version 15.2(2)E7, RELEASESOFTWARE (fc3)
TechnicalSupport:
Copyright (c)1986-2017 by Cisco Systems, Inc.
Compiled Wed12-Jul-17 13:06 by prod_rel_team

ROM: Bootstrapprogram is C2960X boot loader
BOOTLDR: C2960XBoot Loader (C2960X-HBOOT-M) Version 15.2(3r)E1, RELEASE SOFTWARE (fc1)

Switch uptime is2 minutes
System returnedto ROM by power-on
System restartedat 09:36:08 UTC Thu Mar 23 2034
System image fileis"flash:/c2960x-universalk9-mz.152-2.E7/c2960x-universalk9-mz.152-2.E7.bin"
Last reloadreason: Unknown reason



This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
third-partyauthority to import, export, distribute or use encryption.
Importers,exporters, distributors and users are responsible for
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.


ciscoWS-C2960X-48FPS-L (APM86XXX) processor (revision S0) with 524288K bytes ofmemory.
Processor boardID FCW2124A021
Last reset frompower-on
1 VirtualEthernet interface
1 FastEthernetinterface
52 GigabitEthernet interfaces
Thepassword-recovery mechanism is enabled.

512K bytes offlash-simulated non-volatile configuration memory.
Base ethernet MACAddress : CC:5A:53:8A:A6:80
Motherboardassembly number : 73-16691-06
Power supply partnumber : 341-0527-03
Motherboardserial number : FOC21212H7A
Power supplyserial number : LIT21173N5Y
Model revisionnumber : S0
Motherboardrevision number : B0
Model number : WS-C2960X-48FPS-L
Daughterboardassembly number : 73-14200-03
Daughterboardserial number : FOC212164LM
System serialnumber : FCW2124A021
Top Assembly PartNumber : 68-100469-03
Top AssemblyRevision Number : A0
Version ID : V06
CLEI CodeNumber : CMMLN00ARF
Daughterboardrevision number : B0
Hardware BoardRevision Number : 0x19


Switch PortsModel SW Version SW Image
------ ---------- ---------- ----------
* 2 52 WS-C2960X-48FPS-L 15.2(2)E7 C2960X-UNIVERSALK9-M


Configurationregister is 0xF

Switch#showinventory
NAME:"2", DESCR: "WS-C2960X-48FPS-L"
PID:WS-C2960X-48FPS-L , VID: V06 , SN:FCW2124A021

NAME:"Switch 2 - FlexStackPlus Module", DESCR: "Stacking Module"
PID:C2960X-STACK , VID: V02 , SN: FOC23421SVF

Switch#showlicense
Index 1 Feature:lanlite
Period left: 0 minute 0 second
Index 2 Feature:lanbase
Period left: Life time
License Type: Permanent
License State: Active, In Use
License Priority: Medium
License Count: Non-Counted


Switch#show envall
FAN is OK
SYSTEMTEMPERATURE is OK
SystemTemperature Value: 19 Degree Celsius
SystemTemperature State: GREEN
Yellow Threshold: 58 Degree Celsius
RedThreshold : 68 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
2 Built-in Good

SW Status RPS Name RPS Serial# RPS Port#
-- ------------- ---------------- ----------- ---------
2 <> <>
