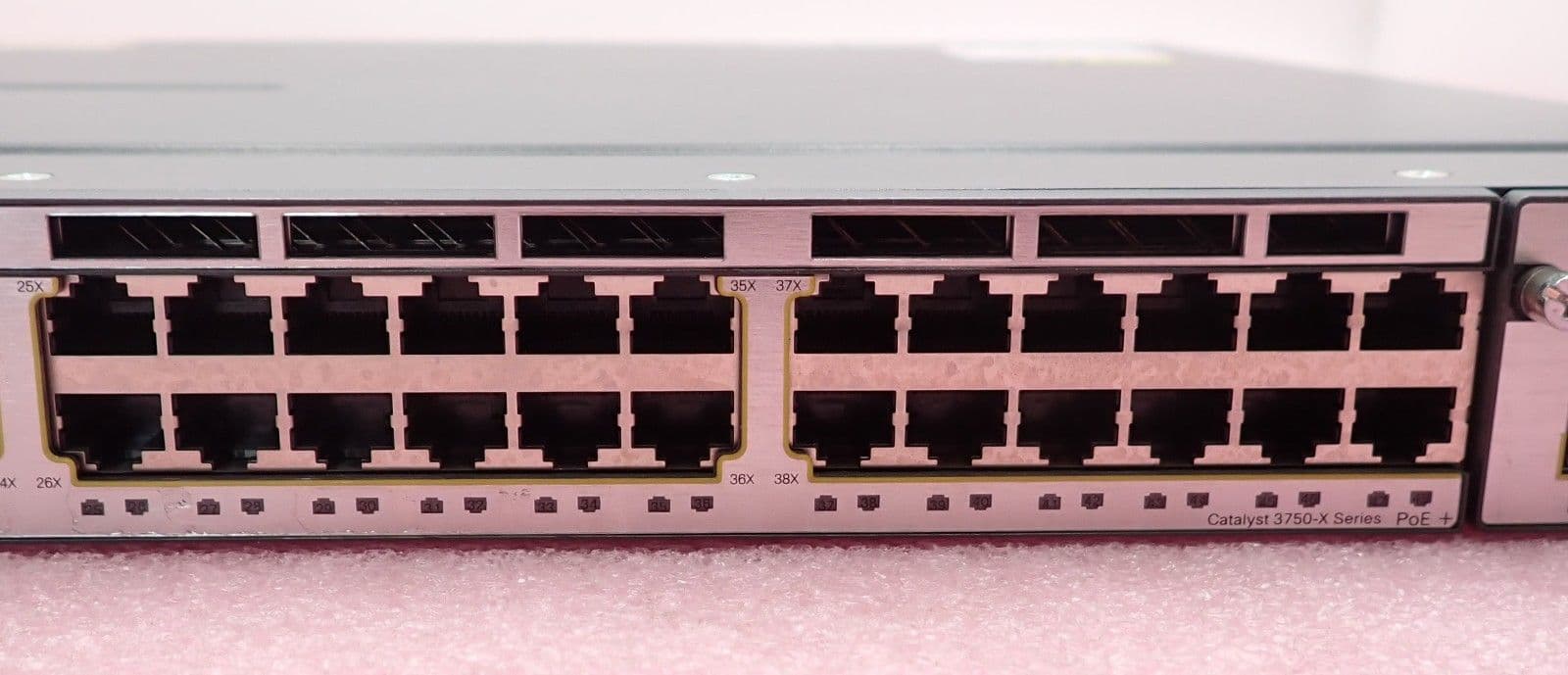

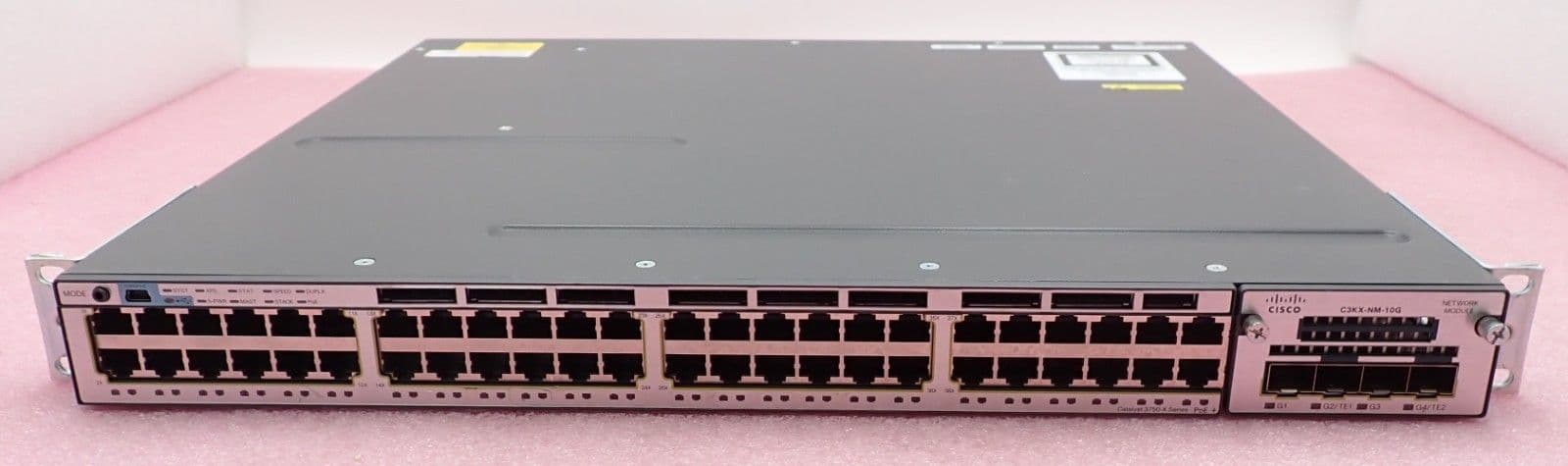

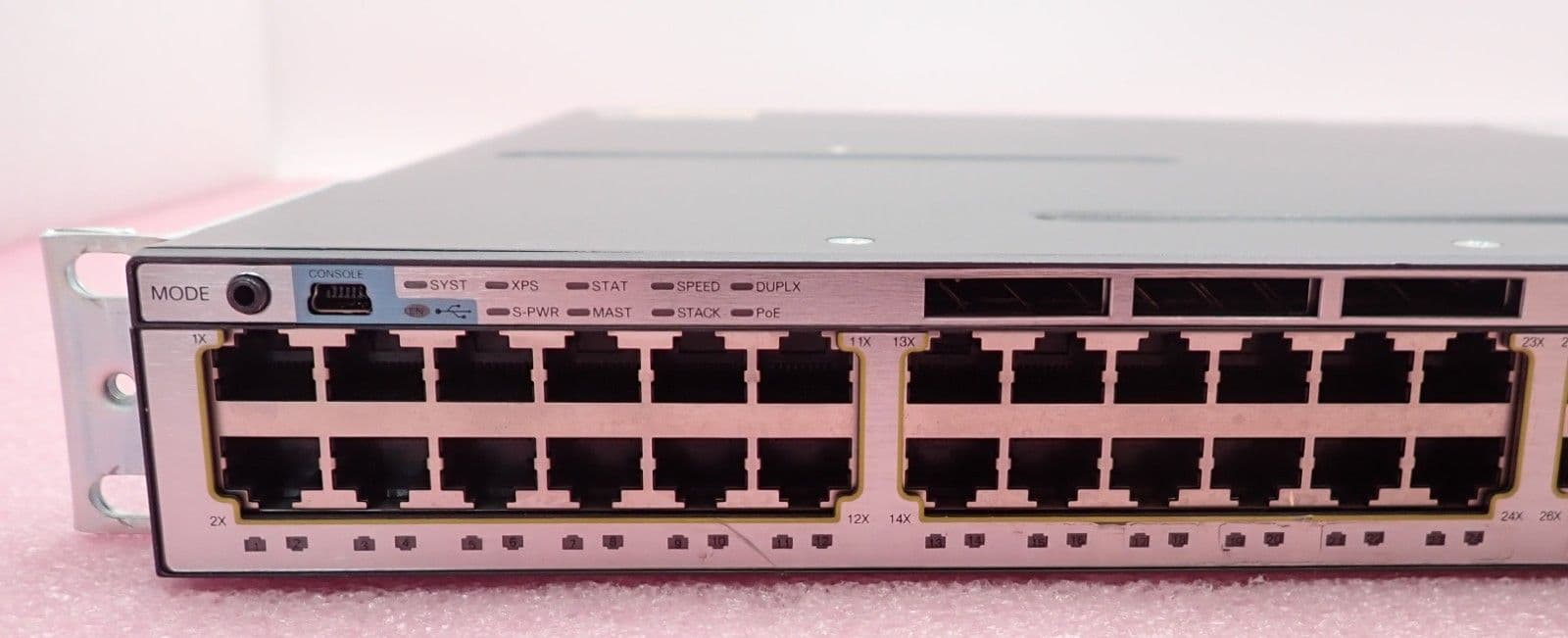

Cisco Catalyst WS-C3750X-48P-E 48x 1GbE PoE+ 435W IPServices Switch +C3KX-NM-10G

Switch#showversion
Cisco IOSSoftware, C3750E Software (C3750E-UNIVERSALK9-M), Version 15.0(2)SE7, RELEASESOFTWARE (fc1)
TechnicalSupport:
Copyright (c)1986-2014 by Cisco Systems, Inc.
Compiled Thu23-Oct-14 12:32 by prod_rel_team

ROM: Bootstrapprogram is C3750E boot loader
BOOTLDR: C3750EBoot Loader (C3750X-HBOOT-M) Version 12.2(53r)SE2, RELEASE SOFTWARE (fc1)

Switch uptime is3 minutes
System returnedto ROM by power-on
System restartedat 01:27:32 UTC Wed Mar 30 2011
System image fileis "flash:/c3750e-universalk9-mz.150-2.SE7.bin"

This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
third-partyauthority to import, export, distribute or use encryption.
Importers,exporters, distributors and users are responsible for
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.


License Level:ipservices
License Type:Permanent
Next reloadlicense Level: ipservices

ciscoWS-C3750X-48P (PowerPC405) processor (revision A0) with 262144K bytes ofmemory.
Processor boardID FDO1651P0CS
Last reset frompower-on
1 VirtualEthernet interface
1 FastEthernetinterface
52 GigabitEthernet interfaces
2 Ten GigabitEthernet interfaces
Thepassword-recovery mechanism is enabled.

512K bytes offlash-simulated non-volatile configuration memory.
Base ethernet MACAddress : 00:06:F6:35:03:80
Motherboardassembly number : 73-12553-08
Motherboardserial number : FDO165109U0
Model revisionnumber : A0
Motherboardrevision number : A0
Model number : WS-C3750X-48P-E
Daughterboardassembly number : 800-32727-03
Daughterboardserial number : FDO16503HPG
System serialnumber : FDO1651P0CS
Top Assembly PartNumber : 800-31324-07
Top AssemblyRevision Number : B0
Version ID : V04
CLEI CodeNumber : COMJZ00ARD
Hardware BoardRevision Number : 0x04

Switch PortsModel SW Version SW Image
------ ---------- ---------- ----------
* 5 54 WS-C3750X-48P 15.0(2)SE7 C3750E-UNIVERSALK9-M

Configurationregister is 0xF

Switch#showinventory
NAME:"5", DESCR: "WS-C3750X-48P"
PID:WS-C3750X-48P-E , VID: V04 , SN: FDO1651P0CS

NAME:"Switch 5 - Power Supply 0", DESCR: "FRU Power Supply"
PID:C3KX-PWR-715WAC , VID: V02D , SN:DTN1640K3T1

NAME:"Switch 5 - Power Supply 1", DESCR: "FRU Power Supply"
PID:C3KX-PWR-715WAC , VID: V02D , SN:DCB1731A124

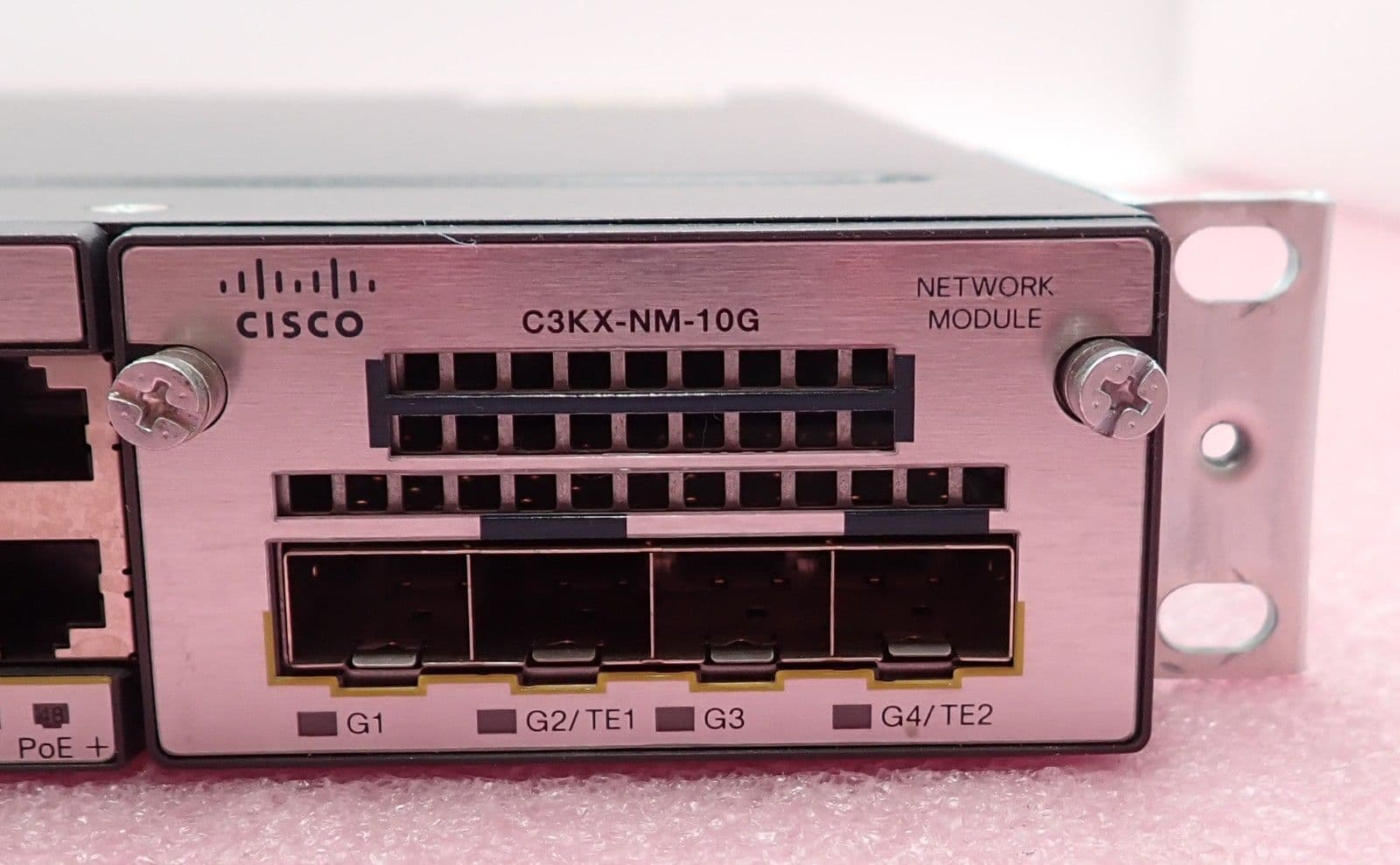

NAME:"Switch 5 - FRULink Slot 1 - FRULink Module", DESCR: "FRULink10G ST Module"
PID:C3KX-NM-10G , VID: V01 , SN: FDO16190TN0


Switch#showlicense feature
Feature name Enforcement Evaluation Clear Allowed Enabled RightToUse
ipservices yes yes yes yes yes
ipbase yes yes yes no yes
lanbase no no yes no no

Switch#show envall
FAN 1 is OK
FAN 2 is OK
FAN PS-1 is OK
FAN PS-2 is OK
SYSTEMTEMPERATURE is OK
SystemTemperature Value: 26 Degree Celsius
SystemTemperature State: GREEN
Yellow Threshold: 46 Degree Celsius
RedThreshold : 60 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
--- ------------------ ---------- --------------- ------- ------- -----
5A C3KX-PWR-715WAC DTN1640K3T1 OK Good Good 715/0
5B C3KX-PWR-715WAC DCB1731A124 OK Good Good 715/0

SW Status RPS Name RPS Serial# RPS Port#
-- ------------- ---------------- ----------- ---------
5 Not Present <>
