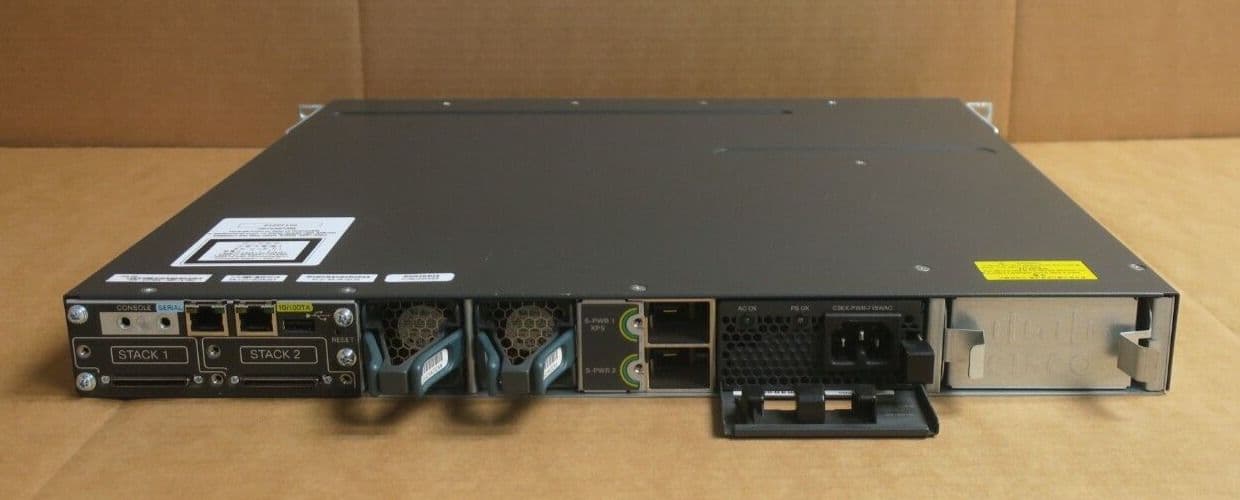

Cisco Catalyst WS-C3750X-48P-L 48x 1GbE RJ45 PoE+ Stackable Switch + C3KX-NM-10G

• 1 x Cisco Catalyst WS-C3750X-48P-L 48x 1GbE RJ45 PoE+ Stackable Switch
• 1 x Cisco Catalyst Dual Port 1/10Gb SFP+ + Dual Port 1Gb SFP Port Network Module C3KX-NM-10G
• 1 x PSU C3KX-PWR-715WAC
• 2 x Fan Modules C3KX-FAN-23CFM

• Manufacturer: Cisco Systems, Inc
• Manufacturer Part Number: WS-C3750X-48P-L
• Product Type: Switch - 48 ports - Managed - stackable
• Form Factor: Fixed, Rack Mountable 1U, Stackable/Clustering
• Switch Port density - Uplinks: 48 x 10/100/1000 Ethernet Ports
• Power Over Ethernet (PoE): Yes
• Max Number of Stacks: 9
• Remote Management Protocol: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, FTP, TFTP, SSH, CLI
• Authentication Method: Kerberos, Secure Shell (SSH), RADIUS, TACACS+
• Features: Hot swap module replacement, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+)
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
• DRAM Memory: 256 MB
• Flash Memory: 128 MB Flash
• LED Status Lights Indicators: Port status, link activity, port transmission speed, port duplex mode, power, system

• Interfaces:
  • 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - PoE
  • USB: 1 x 4 PIN USB Type A
  • 1 x console - mini-USB Type B - management
  • 1 x RS-232 - RJ-45 - management
  • 1 x 10Base-T/100Base-TX - RJ-45 - management
  • Network stack device : 2 x
• Expansion Slots Total (Free): 1 ( 0 ) x Expansion Slot

• Power Device: Power supply - redundant - plug-in module
• Installed Qty: 1 (installed) / 2 (max)
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with optional power supply)
• Voltage Required: AC 120/230 V ( 50/60 Hz )
• Features: Redundant Power System (RPS) connector

• Width: 44.5 cm
• Depth: 46 cm
• Height: 4.5 cm
• Weight: 7.5 kg
• Rack Mounting Kit: Optional
• MTBF: 139,913 hour(s)
• Compliant Standards: CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1

• Software Included: Cisco IOS LAN Base

Switch#showversion
Cisco IOSSoftware, C3750E Software (C3750E-UNIVERSALK9-M), Version 12.2(55)SE9, RELEASESOFTWARE (fc1)
TechnicalSupport: http://www.cisco.com/techsupport
Copyright (c)1986-2014 by Cisco Systems, Inc.
Compiled Mon03-Mar-14 22:16 by prod_rel_team
Image text-base:0x00003000, data-base: 0x02800000

ROM: Bootstrapprogram is C3750E boot loader
BOOTLDR: C3750EBoot Loader (C3750X-HBOOT-M) Version 12.2(53r)SE2, RELEASE SOFTWARE (fc1)

Switch uptime is5 minutes
System returnedto ROM by power-on
System image fileis"flash:/c3750e-universalk9-mz.122-55.SE9/c3750e-universalk9-mz.122-55.SE9.bin"

This productcontains cryptographic features and is subject to United
States and localcountry laws governing import, export, transfer and
use. Delivery ofCisco cryptographic products does not imply
third-partyauthority to import, export, distribute or use encryption.
Importers,exporters, distributors and users are responsible for
compliance withU.S. and local country laws. By using this product you
agree to complywith applicable laws and regulations. If you are unable
to comply withU.S. and local laws, return this product immediately.

A summary of U.S.laws governing Cisco cryptographic products may be found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html

If you requirefurther assistance please contact us by sending email to
export@cisco.com.

License Level:lanbase
License Type:Permanent
Next reloadlicense Level: lanbase

cisco WS-C3750X-48P(PowerPC405) processor (revision A0) with 262144K bytes of memory.
Processor boardID FDO1608K0E9
Last reset frompower-on
1 VirtualEthernet interface
1 FastEthernetinterface
52 GigabitEthernet interfaces
2 Ten GigabitEthernet interfaces
Thepassword-recovery mechanism is enabled.

512K bytes offlash-simulated non-volatile configuration memory.
Base ethernet MACAddress : 50:57:A8:48:0D:00
Motherboardassembly number : 73-12553-05
Motherboardserial number : FDO16071JNF
Model revisionnumber : A0
Motherboardrevision number : D0
Model number : WS-C3750X-48P-L
Daughterboardassembly number : 800-32727-01
Daughterboardserial number : FDO160720WV
System serialnumber : FDO1608K0E9
Top Assembly PartNumber : 800-31324-02
Top AssemblyRevision Number : E0
Version ID : V02
CLEI CodeNumber : COMJZ00ARB
Hardware BoardRevision Number : 0x03


Switch PortsModel SW Version SW Image
------ ---------- ---------- ----------
* 1 54 WS-C3750X-48P 12.2(55)SE9 C3750E-UNIVERSALK9-M

Configurationregister is 0xF

Switch#showinventory
NAME:"1", DESCR: "WS-C3750X-48P"
PID:WS-C3750X-48P-L , VID: V02 , SN: FDO1608K0E9

NAME:"Switch 1 - Power Supply 0", DESCR: "FRU Power Supply"
PID:C3KX-PWR-715WAC , VID: V02 , SN: LIT15441AJD

NAME:"Switch 1 - FRULink Slot 1 - FRULink Module", DESCR: "FRULink10G ST Module"
PID:C3KX-NM-10G , VID: V01 , SN: FDO1614028Q

Switch#showlicense feature
Feature name Enforcement Evaluation Clear Allowed Enabled
ipservices yes yes yes no
ipbase yes no yes no
lanbase no no yes yes

Switch#show envall
FAN 1 is OK
FAN 2 is OK
FAN PS-1 is OK
FAN PS-2 is NOTPRESENT
TEMPERATURE is OK
TemperatureValue: 16 Degree Celsius
TemperatureState: GREEN
Yellow Threshold: 46 Degree Celsius
RedThreshold : 60 Degree Celsius
SW PID Serial# Status Sys Pwr PoE Pwr Watts
-- ------------------ ---------- --------------- ------- ------- -----
1A C3KX-PWR-715WAC LIT15441AJD OK Good Good 715/0
1B Not Present

SW Status RPS Name RPS Serial# RPS Port#
-- ------------- ---------------- ----------- ---------
1 Not Present <>
