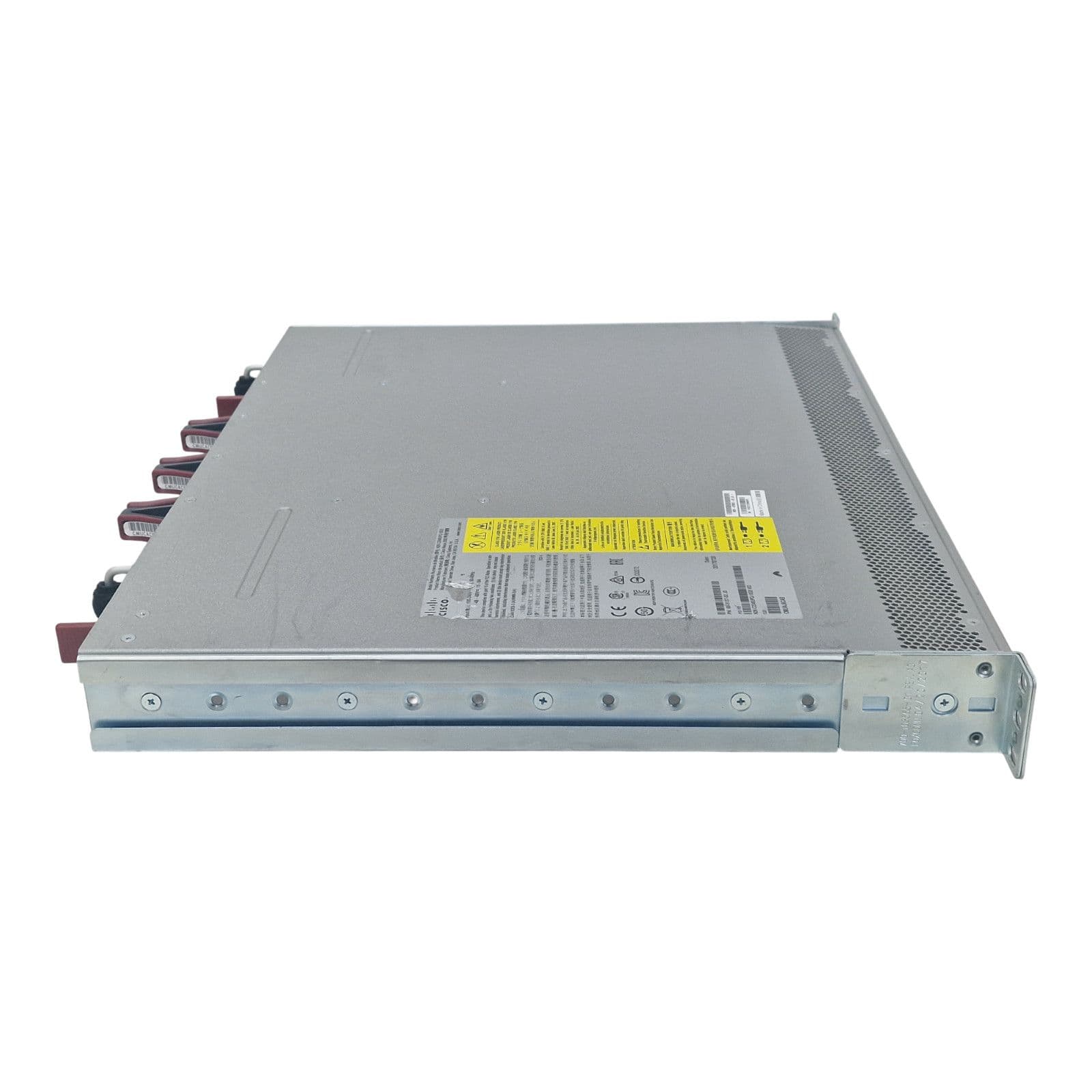

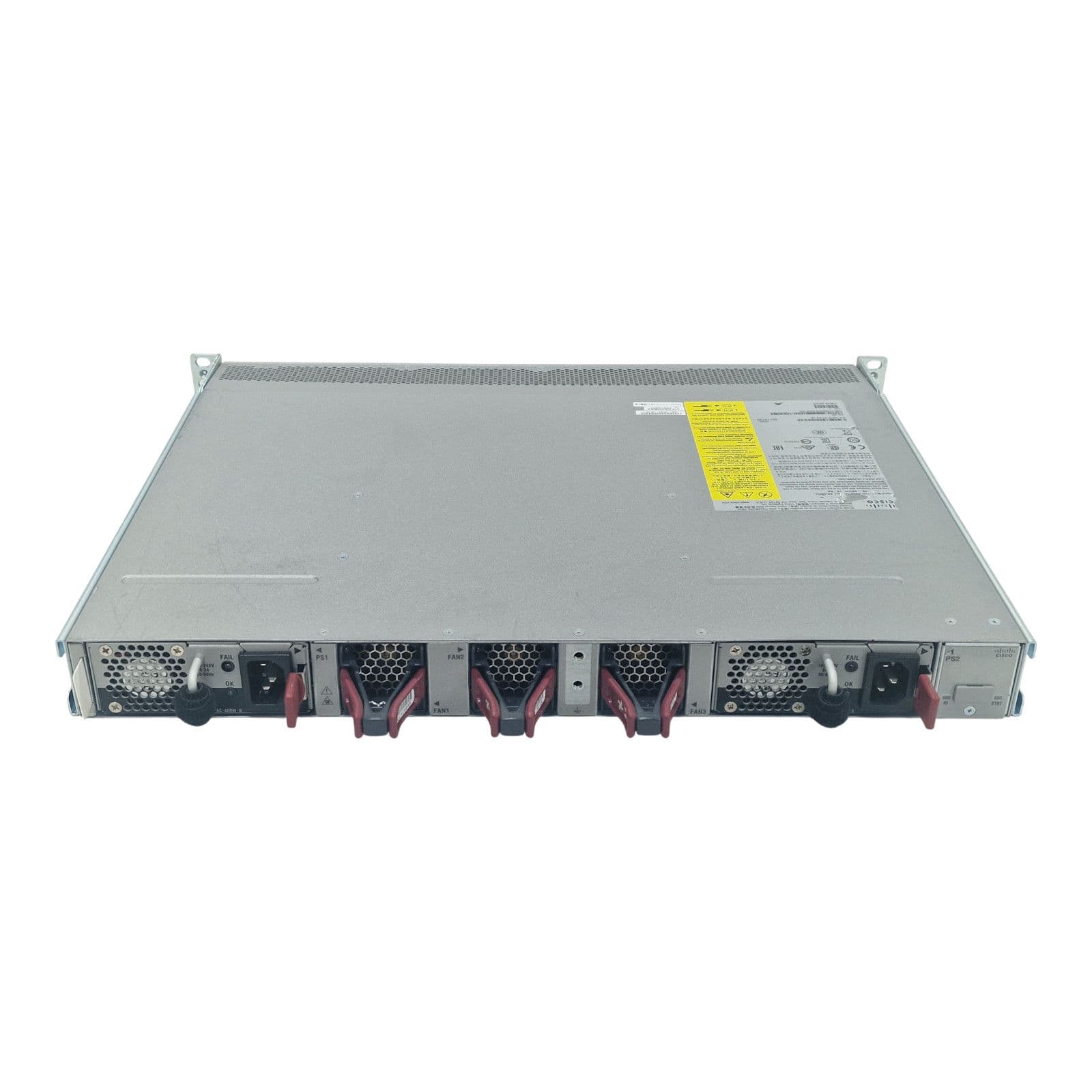

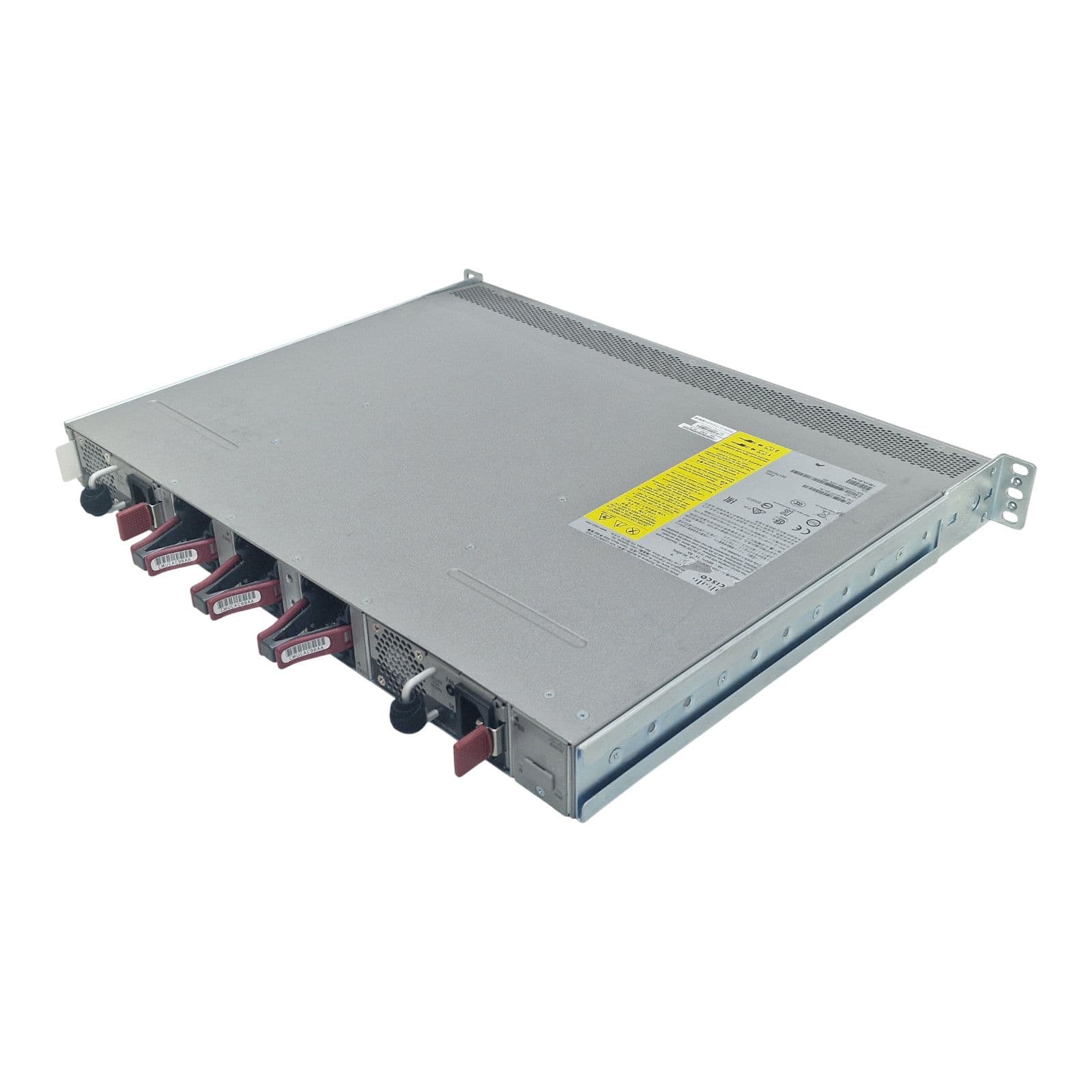

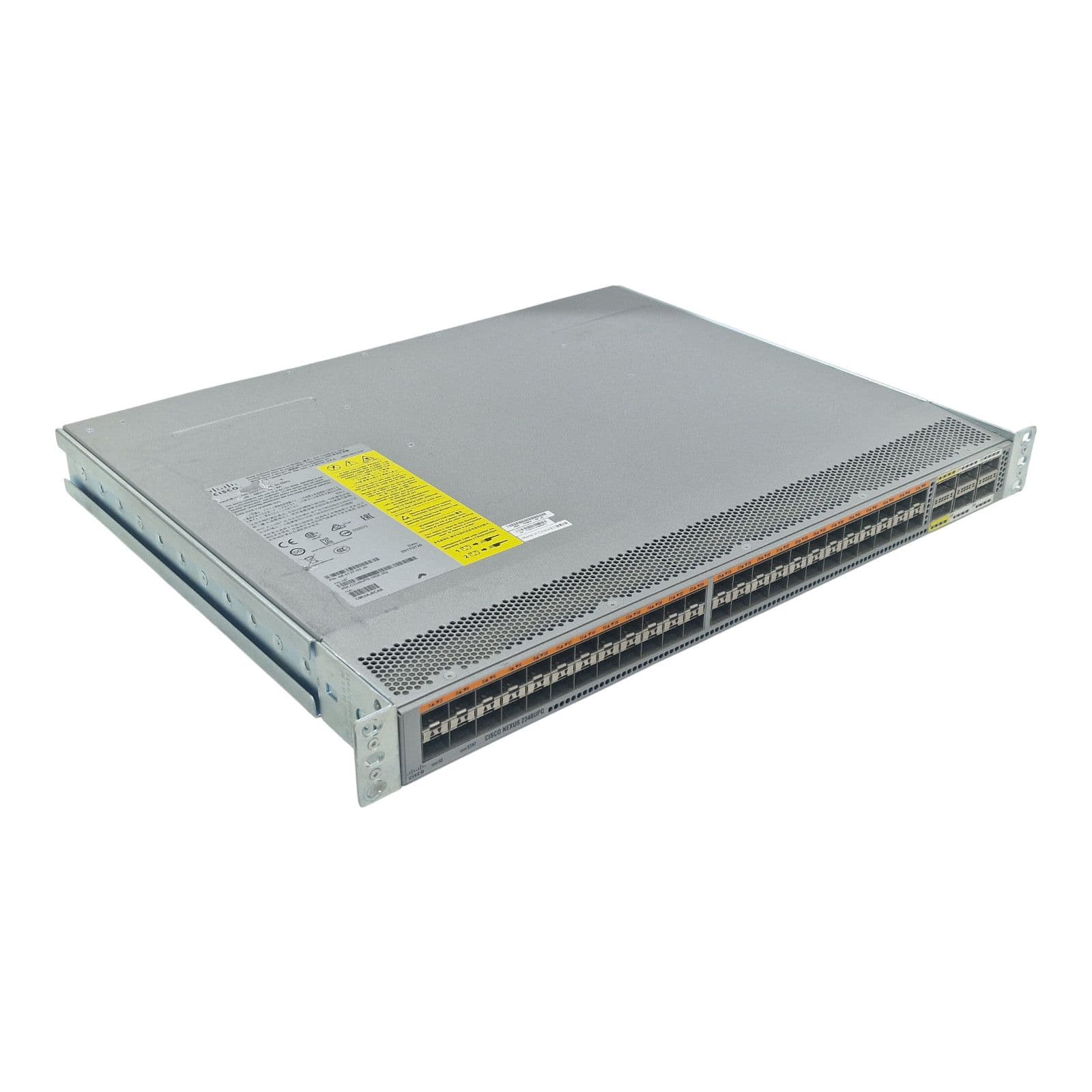

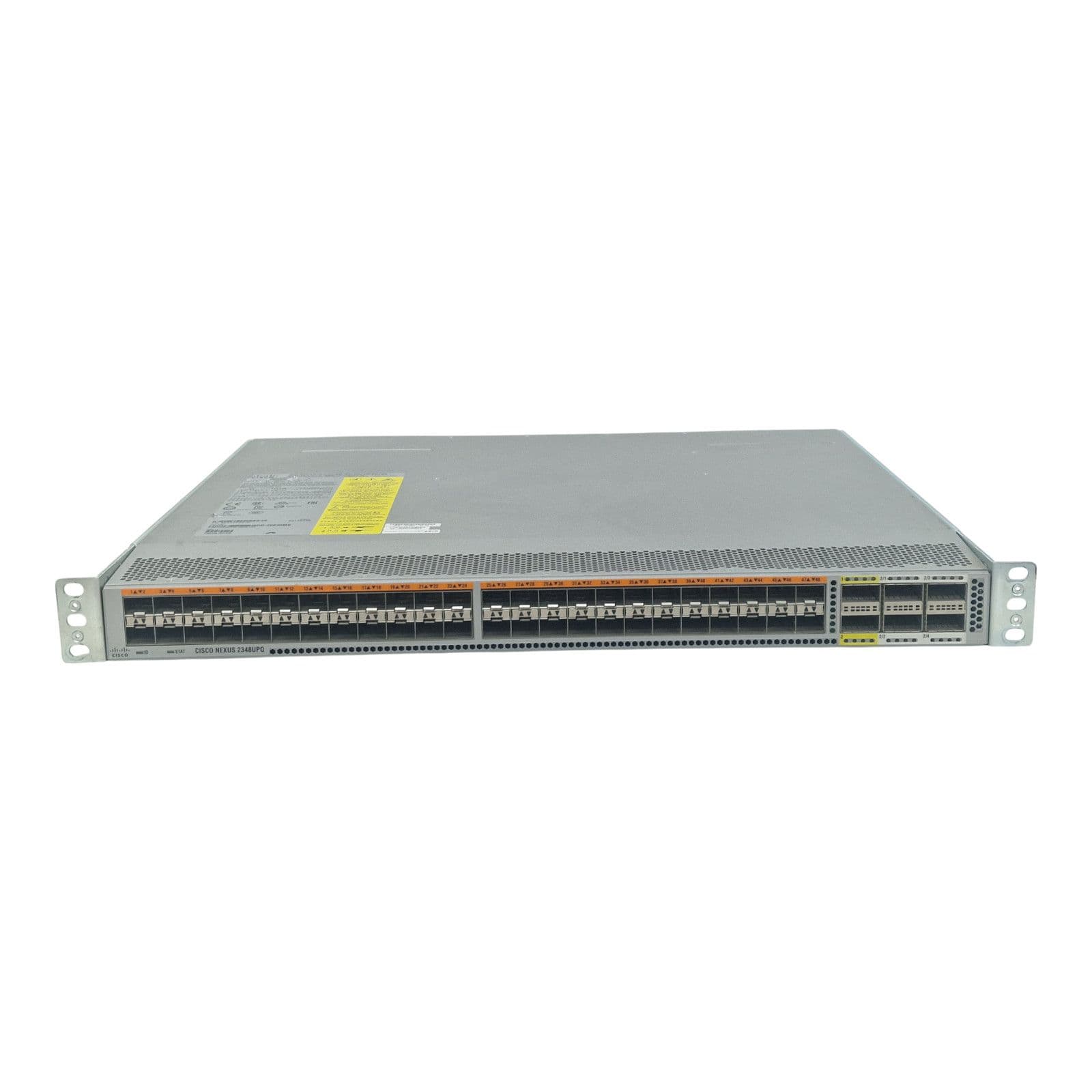

Cisco Nexus N2K-C2348UPQ-10GE Fabric Extender-48x1/10GE
P/N: 68-5137-02
In Good Condition and Full Working Order
Tested, 2 Year Warranty
Rack Mount Ears Included, Rear Side Exhaust Airflow
Included:
- 2 x 400W PSU (N2200-PAC-400W) Power Supply
- 3 x Fan Modules
- 1 x Pair of Rack Mount Ears
Description:
The Cisco Nexus 2348UPQ is part of the Cisco Nexus 2000 Series Fabric Extenders (FEX), designed to simplify data centre access architecture and operations. It operates as a remote line card for a parent Cisco Nexus switch, extending the parent switch fabric to provide high-density 1/10 Gigabit server connectivity.
Specification:
- Model: N2K-C2348UPQ
- Product Type: Fabric Extender (FEX)
- Ports: 48 × 1/10 Gigabit Ethernet (SFP/SFP+) host interfaces + 6 × 40 Gigabit Ethernet QSFP+ uplink interfaces
- Form Factor: Rack-mountable (1RU)
- Layer Supported: Fabric Extender (operates as remote line card, requires parent Cisco Nexus switch)
- Switching Capacity: 480 Gbps (full-duplex)
- Forwarding Rate: Up to 720 Mpps
- Power Supply: Dual hot-swappable AC power supplies
- Power Consumption: Typical ~125 W (up to ~200 W max)
- Cooling: Hot-swappable fan modules, front-to-back airflow
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -40°F to 158°F (-40°C to 70°C)
- Relative Humidity: 5% to 95% (non-condensing)
- Dimensions (D x W x H): 14.05 x 17.30 x 1.72 inches
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£100 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
MJ N2K-C2348UPQ-10GE/REF -4
specifications
-
MPN:N2K-C2348UPQ-10GE
