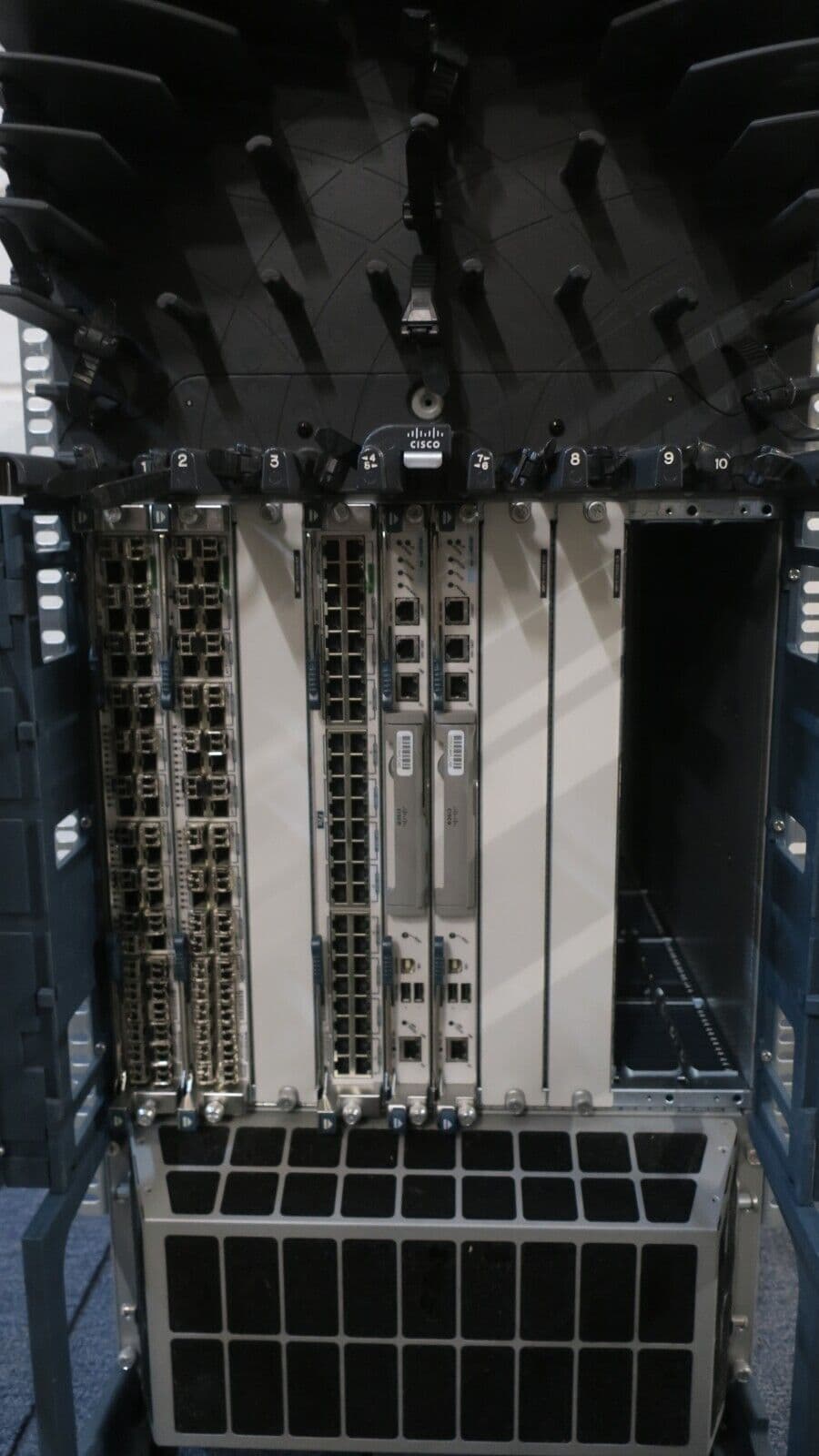

Cisco Nexus N7K-C7010 7000 Series 21U Network Chassis 2 x N7K-F248XP-25E SFP+

Name: Cisco Nexus N7K-C7010 7000 Series 21U Network Chassis 2 x N7K-F248XP-25E SFP+
Brand: Cisco Nexus
SKU: 95121
Price: 2280.00 GBP
Availability: InStock

mpn: N7K-C7010

product brand: Cisco Nexus

product condition: Used

excluding vat: £1,900.00

including vat: £2,280.00

information

Cisco Nexus N7K-C7010 7000 Series 21U Network Chassis 1 x N7K-F248XP-25E SFP+

In Good Condition And In Full Working Order

Tested

Included:-

1 x Cisco Nexus N7K-C7010 7000 Series 21U Network Chassis

1 x Cisco N7K-F248XT-25E Nexus 48 Port 1Gb/10Gb RJ45 Copper C7010 10GE Switch Module
1 x Cisco Nexus N7K-F248XP-25E 7000 Enhanced F2-Series 48-Port Fiber 1 and 10 Gigabit Ethernet Module - Switch - L3 - 48 x 1 Gigabit / 10 Gigabit SFP+ - plug-in module

3 x N7K Module Blank
2 x Cisco Nexus N7K-SUP1 Supervisor Engine Module 7000 Series 8GB

2 x Cisco N7K-F248XP-25 Nexus 7000 Enhanced F2-Series 48 Port 1G/10G
- 30 x SFP's In Each Card

2 x Cisco Nexus 10-Slot Fabric Fan Tray N7K-C7010-FAN-S

2 x Cisco Nexus 10-Slot Fabric Fan Tray N7K-C7010-FAN-F

3 x Cisco Nexus 7000 6000W Redundant Power Supply N7K-AC-6.0KW

1 x Rails

The Cisco Nexus 7000 Series 10-slot chassis with up to eight I/O module slots supports up to 256 10 Gigabit Ethernet or 384 Gigabit Ethernet ports, meeting the demands of large deployments.

- Front-to-back airflow helps ensure that use of the Cisco Nexus 7000 Series 10-slot chassis addresses the requirement for hot-aisle and cold-aisle deployments without additional complexity.

- The system uses dual system and fabric fan trays for cooling. Each fan tray is redundant and composed of independent variable-speed fans that automatically adjust to the ambient temperature, helping reduce power consumption in well-managed facilities while providing optimum operation of the switch. The system design increases cooling efficiency and provides redundancy capabilities, allowing hot swapping without affecting the system; if either a single fan or a complete fan tray fails, the system continues to operate without a significant degradation in cooling capacity.

- The integrated cable management system is designed for fully configured systems cabling to be groomed either to a single side or to both sides for maximum flexibility without obstructing any important components, which eases maintenance even when the system is fully cabled.

- The system supports an optional air filter to help ensure clean air flow through the system. The addition of the air filter satisfies Network Equipment Building Standards (NEBS) requirements.

- A series of LEDs at the top of the chassis provides a clear summary of the status of the major system components, alerting operators to the need to conduct further investigation. These LEDs report the power supply, fan, fabric, supervisor, and I/O module status.

- The cable management cover and optional front module doors provide protection from accidental interference with both the cabling and modules installed in the system. The transparent front door allows observation of cabling and module indicator and status lights.

Technical details
Rack capacity	21U
Noise level	67.2 dB
Required software	Cisco NX-OS 4.0
Product colour	Black
Heat dissipation	12000 BTU/h
Ports & interfaces
Expansion slots	10
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 2000 m
Certificates
Safety	UL/CSA/IEC/EN 60950-1, AS/NZS 60950
Weight & dimensions
Width	439 mm
Weight	90 kg
Height	933 mm
Depth	841 mm

Cisco Nexus 7000 F2-Series Ethernet Module | 48 Port | N7K-F248XP-25E

The Cisco Nexus 7000 Enhanced F2 Series 48 Port Fiber 1 and 10 GB Ethernet module enables high-density, low-latency, scalable data center architecture and is built with SoC (Switch-on-Chip) architecture. The N7K-F248XP-25E delivers 720 mpps of Layer 2 and Layer 3 forwarding and 480 Gbps of data throughput. The flexible architecture allows you to use each port at 1 GB Ethernet speeds and allows you to fully migrate to 10 GB Ethernet when time and budget are available. This 1 and 10 GB Ethernet module can also deploy Fiber Channel over Ethernet in access layer and converged networks. The Nexus 7000 ethernet module utilizes Cisco NX-OS software allows for modular multitasking and multithreading as well as high availability, resiliency, detailed fault management, and nondisruptive serviceability.

Features

Protects investments with 10 Gigabit Ethernet, Fiber Channel over Ethernet (FCoE), and virtual machine awareness features
Ports can be used at either 1 or 10 GB Ethernet speeds for ease of migration to 10 GB Ethernet
Layer 2 and Layer 3 functionality perfect for data centers
Supports both SFP and SFP+ with a variety of media types in Cisco's extensive collection
Efficient low power consumption allows for cost savings (typically only 7.5 watts per port)
Can be used in conjunction with the Cisco Nexus 2000 Series Fabric Extenders

Quick Specs:

Ports: 48 ports of 1 and 10 Gigabit Ethernet (SFP or SFP+)
Product Line: Nexus 7000 F2-Series
Form Factor: Plug-In Module
Manufacturer: Cisco
Type: Ethernet Module
Model: N7K-F248XP-25E
Software Compatibility: Cisco NX-OS Software Release 6.1.2 or later
Dimensions: 1.733" x 15.3" x 21.9"
Weight: 14 lbs
Jumbo Frame Support: 9,216 bytes
VLAN: 4,096 simultaneous VLANs per VDC
MAC Address Entries: 16,384 per SoC; Up to 196,608 per module (dependent on VLAN allocation)

Software

BIOS: version 3.22.0

kickstart:version 6.2(16)

system: version 6.2(16)

BIOScompile time: 02/20/10

kickstartimage file is: bootflash:///n7000-s1-kickstart.6.2.16.bin

kickstartcompile time: 1/27/2016 9:00:00 [04/05/2016 21:13:14]

systemimage file is: bootflash:///n7000-s1-dk9.6.2.16.bin

systemcompile time: 1/27/2016 9:00:00 [04/05/2016 22:16:00]

Hardware

ciscoNexus7000 C7010 (10 Slot) Chassis ("Supervisor Module-1X")

Intel(R)Xeon(R) CPU with 8254396 kB ofmemory.

ProcessorBoard ID JAF1421DAAS

Devicename: switch

bootflash: 2000880 kB

slot0: 2093273 kB (expansion flash)

Kernel uptime is0 day(s), 0 hour(s), 11 minute(s), 32 second(s)

Last reset at99704 usecs after Thu Sep 30 12:33:17 2021

Reason:Reset Requested by CLI command reload

Systemversion: 6.2(16)

Service:

plugin

CorePlugin, Ethernet Plugin

CMP (Module 5) ok

CMP Software

CMP BIOSversion: 02.01.05

CMP Imageversion: 6.1(1) [build 6.0(0.66)]

CMP BIOScompile time: 7/13/2008 19:44:27

CMP Imagecompile time: 6/26/2012 0:00:00

CMP (Module 6) ok

CMP Software

CMP BIOSversion: 02.01.05

CMP Imageversion: 6.1(1) [build 6.0(0.66)]

CMP BIOScompile time: 7/13/2008 19:44:27

CMP Imagecompile time: 6/26/2012 0:00:00

Software

BIOS: version 3.22.0

kickstart:version 6.2(16)

system: version 6.2(16)

BIOScompile time: 02/20/10

kickstartimage file is: bootflash:///n7000-s1-kickstart.6.2.16.bin

kickstartcompile time: 1/27/2016 9:00:00 [04/05/2016 21:13:14]

systemimage file is: bootflash:///n7000-s1-dk9.6.2.16.bin

systemcompile time: 1/27/2016 9:00:00 [04/05/2016 22:16:00]

Hardware

ciscoNexus7000 C7010 (10 Slot) Chassis ("Supervisor Module-1X")

Intel(R)Xeon(R) CPU with 8254396 kB ofmemory.

ProcessorBoard ID JAF1421DAAS

Devicename: switch

bootflash: 2000880 kB

slot0: 2093273 kB (expansion flash)

Kernel uptime is0 day(s), 0 hour(s), 11 minute(s), 55 second(s)

Last reset at99704 usecs after Thu Sep 30 12:33:17 2021

Reason:Reset Requested by CLI command reload

Systemversion: 6.2(16)

Service:

plugin

CorePlugin, Ethernet Plugin

CMP (Module 5) ok

Hardware

FreescaleInc mpc8343 (rev 3.1 (pvr 8083 0031)) CPU with 128 MB of memory

Modelnumber is N7K-SUP1

H/WVersion is 1.6

PartNumber is 73-10877-15

PartRevision is B0

Serialnumber is JAF1421DAAS

CLEI codeis COUCAHLCAE

MACaddress is 00-26-98-2a-47-7c

CMP (Module 6) ok

Hardware

FreescaleInc mpc8343 (rev 3.1 (pvr 8083 0031)) CPU with 128 MB of memory

Modelnumber is N7K-SUP1

H/WVersion is 1.6

PartNumber is 73-10877-15

PartRevision is B0

Serialnumber is JAF1421FQNP

CLEI codeis COUCAHLCAE

MACaddress is 00-26-98-2b-17-7d

--------------------------------

Switch hardwareID information

--------------------------------

Switch is bootedup

Switchtype is : Nexus7000 C7010 (10 Slot) Chassis

Modelnumber is N7K-C7010

H/Wversion is 2.0

PartNumber is 73-10900-06

Part Revisionis A0

Manufacture Date is Year 14 Week 21

Serialnumber is JAF1421FDJL

CLEI codeis IPMKA00ARB

--------------------------------

Chassis has 10Module slots and 5 Fabric slots

--------------------------------

Module1 ok

Moduletype is : 1/10 Gbps Ethernet Module

0submodules are present

Modelnumber is N7K-F248XP-25

H/Wversion is 1.2

PartNumber is 73-12942-08

PartRevision is B0

Manufacture Date is Year 17 Week 30

Serialnumber is JAF1730ADNP

CLEI codeis CMUIAB7CAB

Module2 ok

Moduletype is : 1/10 Gbps Ethernet Module

0submodules are present

Modelnumber is N7K-F248XP-25

H/Wversion is 1.2

PartNumber is 73-12942-08

PartRevision is B0

Manufacture Date is Year 17 Week 31

Serialnumber is JAF1731AALB

CLEI codeis CMUIAB7CAB

Module3 empty

Module4 ok

Moduletype is : 1/10 Gbps BASE-T Ethernet Module

0submodules are present

Modelnumber is N7K-F248XT-25E

H/Wversion is 1.3

PartNumber is 73-14220-04

PartRevision is A0

Manufacture Date is Year 19 Week 7

Serialnumber is JAE190703U5

CLEI codeis CMUIAEBCAA

Module5 ok

Moduletype is : Supervisor Module-1X

0submodules are present

Modelnumber is N7K-SUP1

H/Wversion is 1.6

PartNumber is 73-10877-15

PartRevision is B0

Manufacture Date is Year 14 Week 21

Serialnumber is JAF1421DAAS

CLEI codeis COUCAHLCAE

Module6 ok

Moduletype is : Supervisor Module-1X

0submodules are present

Modelnumber is N7K-SUP1

H/Wversion is 1.6

PartNumber is 73-10877-15

PartRevision is B0

Manufacture Date is Year 14 Week 21

Serialnumber is JAF1421FQNP

CLEI codeis COUCAHLCAE

Module7 empty

Module8 empty

Module9 ok

Moduletype is : 1/10 Gbps Ethernet Module

0 submodulesare present

Modelnumber is N7K-F248XP-25E

H/Wversion is 1.2

PartNumber is 73-14976-04

PartRevision is A0

Manufacture Date is Year 19 Week 26

Serialnumber is JAE192607UN

CLEI codeis CMUIAFCCAB

Module10 ok

Moduletype is : 1/10 Gbps Ethernet Module

0submodules are present

Modelnumber is N7K-F248XP-25E

H/Wversion is 1.2

PartNumber is 73-14976-04

PartRevision is A0

ManufactureDate is Year 19 Week 28

Serialnumber is JAE19280M7E

CLEI codeis CMUIAFCCAB

Xbar1 ok

Moduletype is : Fabric card module

0submodules are present

Modelnumber is N7K-C7010-FAB-2

H/Wversion is 1.5

PartNumber is 73-13199-04

PartRevision is A0

Manufacture Date is Year 17 Week 32

Serialnumber is JAF1732AKTE

CLEI codeis COUCASPCAA

Xbar2 ok

Moduletype is : Fabric card module

0submodules are present

Modelnumber is N7K-C7010-FAB-2

H/Wversion is 1.5

PartNumber is 73-13199-04

PartRevision is A0

ManufactureDate is Year 17 Week 31

Serialnumber is JAF1731AQPG

CLEI codeis COUCASPCAA

Xbar3 ok

Moduletype is : Fabric card module

0submodules are present

Modelnumber is N7K-C7010-FAB-2

H/Wversion is 1.5

PartNumber is 73-13199-04

PartRevision is A0

Manufacture Date is Year 17 Week 31

Serialnumber is JAF1731AQRD

CLEI codeis COUCASPCAA

Xbar4 ok

Moduletype is : Fabric card module

0submodules are present

Modelnumber is N7K-C7010-FAB-2

H/Wversion is 1.5

Part Numberis 73-13199-04

PartRevision is A0

Manufacture Date is Year 17 Week 32

Serialnumber is JAF1732APFC

CLEI codeis COUCASPCAA

Xbar5 ok

Moduletype is : Fabric card module

0submodules are present

Modelnumber is N7K-C7010-FAB-2

H/Wversion is 1.5

PartNumber is 73-13199-04

PartRevision is A0

Manufacture Date is Year 17 Week 31

Serialnumber is JAF1731AKBT

CLEI codeis COUCASPCAA

---------------------------------------

Chassis has 3 PowerSupplySlots

---------------------------------------

PS1 ok

Powersupply type is: 6000.00W 220v AC

Modelnumber is N7K-AC-6.0KW

H/Wversion is 1.0

PartNumber is 341-0230-02

PartRevision is D0

Manufacture Date is Year 14 Week 23

Serial numberis DTM1423008U

CLEI codeis IPUPADBAAA

PS2 ok

Powersupply type is: 6000.00W 220v AC

Modelnumber is N7K-AC-6.0KW

H/Wversion is 1.0

PartNumber is 341-0230-02

PartRevision is D0

ManufactureDate is Year 14 Week 23

Serialnumber is DTM1423005P

CLEI codeis IPUPADBAAA

PS3 ok

Powersupply type is: 6000.00W 220v AC

Modelnumber is N7K-AC-6.0KW

H/Wversion is 1.0

PartNumber is 341-0230-02

PartRevision is D0

ManufactureDate is Year 14 Week 23

Serialnumber is DTM1423001D

CLEI codeis IPUPADBAAA

----------------------------------

Chassis has 4 Fanslots

----------------------------------

Fan1(sys_fan1) ok

Modelnumber is N7K-C7010-FAN-S

H/Wversion is 1.1

PartNumber is 73-10741-04

PartRevision is B1

Manufacture Date is Year 14 Week 24

Serialnumber is FOX1424XA96

CLEI codeis COM8210ARA

Fan2(sys_fan2) ok

Modelnumber is N7K-C7010-FAN-S

H/Wversion is 1.1

PartNumber is 73-10741-04

PartRevision is B1

Manufacture Date is Year 14 Week 23

Serialnumber is FOX1423XBPC

CLEI codeis COM8210ARA

Fan3(fab_fan1) ok

Modelnumber is N7K-C7010-FAN-F

H/Wversion is 1.1

PartNumber is 73-10967-02

Part Revisionis B3

Manufacture Date is Year 14 Week 23

Serialnumber is FOX1423XAT7

CLEI codeis IPEQABEEAA

Fan4(fab_fan2) ok

Modelnumber is N7K-C7010-FAN-F

H/Wversion is 1.1

PartNumber is 73-10967-02

PartRevision is B3

Manufacture Date is Year 14 Week 23

Serialnumber is FOX1423XAR6

CLEI codeis IPEQABEEAA

SL 257872 + RAILS

specifications

MPN:

N7K-C7010
