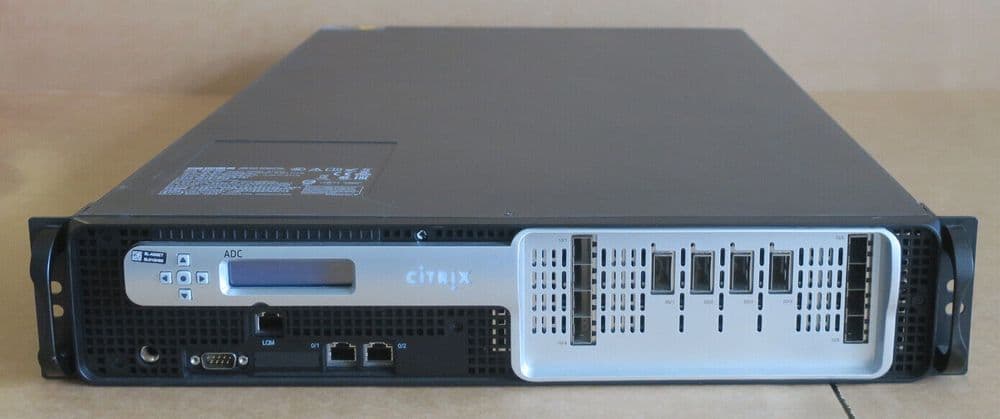

Citrix ADC MPX 15000-50G 8x 10G SFP+ + 4x 50G SFP 2U Load Balancing Appliance
In Good Condition
No Firmware or Operating System is Installed
No Hard Drive or Memory Card is Included
Included
- 1 x Citrix ADC MPX 15000-50G 8x 10G SFP+ + 4x 50G SFP 2U Load Balancing Appliance
Description:
The Citrix ADC MPX 15000-50G appliance is a 2U appliance. This platform has two 8-core processors and 128 GB of memory. The MPX 15000-50G appliance provides a total of 12 network ports:
- Eight 10G SFP+ Ethernet Ports
- Four 50G Ethernet Ports
The Citrix ADC MPX 15000-50G appliances have the following ports:
- RS232 serial console port.
- One 10/100/1000Base-T RJ45 copper Ethernet LOM port. Use this port to remotely monitor and manage the appliance independently of the Citrix ADC software.
- Two 10/100/1000Base-T RJ45 copper Ethernet Management ports, numbered 0/1 and 0/2. This port is used to connect directly to the appliance for Citrix ADC administration functions.
- Eight 10G SFP+ Ethernet ports, numbered 10/1 to 10/8.
- Four 50G ports, numbered 50/1 to 50/4.
Storage Bays:
- 8 x 2.5" SAS/SATA Drive Bays (2-Bays For OS)
Specification:
Attributes
- Memory: 128 GB
- Ethernet Ports: 4x 50GE QSFP28; 8x 10GE SFP+
- Transceivers Support: 50GE QSFP28 Port: 50GE/100GE QSFP28: SR4; 40GE QSFP+: SR4; 25GE SFP28: SR (Adapter required); 10GE SFP+: SR, LR (Adapter required); 10GE SFP+ Port: 10GE SFP+: SR, LR
- RAID Support: Yes
Mechanical, Environmental and Regulatory
- Power Supplies: 2
- Input Voltage, Frequency Range: 100-240 VAC full range, 50-60 Hz
- Optional DC Power Supply: Yes
- Max Power Supply: 1000W
- Typical, Max Power Consumption: 364W, 487W
- Weight (lbs): 39
- Height: 2U
- Width: EIA 310-D, IEC 60297, DIN 41494 SC48D rack width with mounting brackets
- Depth: 71.1 cm (28 in)
- Operating Temperature: 0-45°C (32-113°F)
- Allowed Relative Humidity: 5%-95%, Non-condensing
- Safety Certifications: IEC/EN/UL/CSA/AS/NZS 62368-1 and 60950-1
- Electromagnetic Emissions Certifications & Susceptibility Standard: US (FCC (Part 15 Class A)), Canada (ICES-003) EU (CE (EN 55032/55024)), Australia (RCM),Japan (VCCI), Korea (KCC), Taiwan (BSMI), China (CCC), India (BIS), Russia (EAC), Saudi Arabia (CITC), Brazil (Anatel), South Africa (ICASA), Mexico (NOM), Egypt (NTRA), Israel (MoC)
- Regulatory Compliance: RoHS, WEEE, REACH
- Citrix Compliance Regulatory Model: 2U1P1A
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£400 excluding VAT
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS 281305 281304 281300
specifications
-
MPN:MPX 15000-50G
