information
AJ 222836 -1

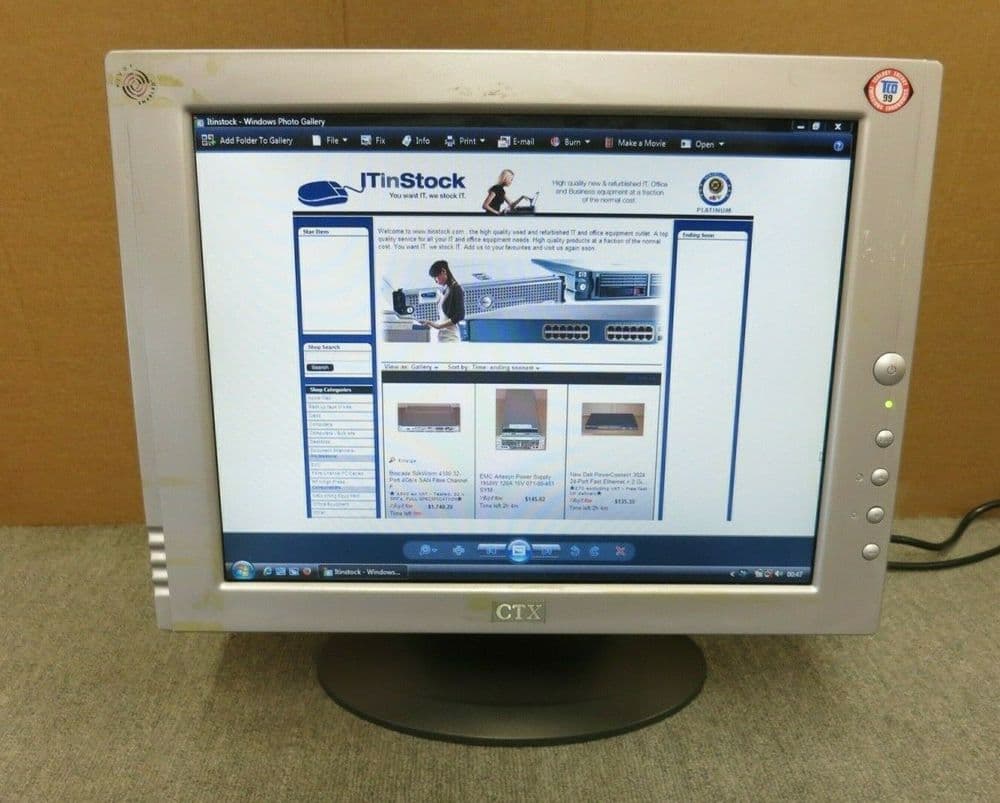

Model Number: PV520
In good condition and in full working order Complete with PC cable and power cable Includes
More Info:
GENERAL
Dimensions (WxDxH)15.1 in x 6.7 in x 14.8 in
Display TypeLCD monitor / TFT active matrix
Native Resolution1024 x 768 at 75 Hz
Contrast Ratio350:1
Color Support16.7 million colors
Controls & AdjustmentsBrightness, contrast, H/V position, color temperature, phase, dithering
Horizontal Viewing Angle120
OSD LanguagesEnglish, German, French, Italian, Spanish
Vertical Viewing Angle110
Color Temperature9300K, 6500K
Viewable Size15"
Pixel Pitch0.3 mm
Brightness200 cd/m²
Screen CoatingAnti-glare
Horizontal Refresh Rate60 kHz
Vertical Refresh Rate75 Hz
ManufacturerCTX
CONNECTIVITY
Interfaces1 x VGA - 15 pin HD D-Sub (HD-15)
POWER DEVICE
Typepower adapter
Nominal VoltageAC 120/230 V
Frequency Required50/60 Hz
Power Consumption Operational35 Watt
POWER
Power Consumption Stand by / Sleep5 Watt
Power Supplyexternal
INTERFACE PROVIDED
Qty1
Connector Type15 pin HD D-Sub (HD-15)
DISPLAY
Image Brightness200 cd/m2
Image Contrast Ratio350:1
Color Support24-bit (16.7 million colors)
TypeLCD monitor
MISCELLANEOUS
OSD LanguagesEnglish, French, German, Italian, Spanish
Controls & AdjustmentsH/V position, brightness, color temperature, contrast, dithering, phase
Colorcharcoal gray, silver
MECHANICAL
Display Position AdjustmentsPivot (rotation)
ENVIRONMENTAL PARAMETERS
Max Altitude Operating9840 ft
Min Operating Temperature41 °F
Max Operating Temperature95 °F
Humidity Range Operating20 - 80%
DIMENSIONS & WEIGHT
Width15.1 in
Depth6.7 in
Height14.8 in
Weight13.67 lbs
HEADER
BrandCTX
Product LineCTX
ModelPV520
Packaged Quantity1
CompatibilityMac, PC
PROJECTOR
Max V-Sync Rate75 Hz
Max H-Sync Rate60 KHz
CABLE DETAILS
TypeVGA cable
Included Qty1
SOFTWARE
TypeDrivers & Utilities, Pivot Pro
GENERAL
ManufacturerCTX
|
|||||
specifications
-
MPN:PV520
