Overview
Product Description

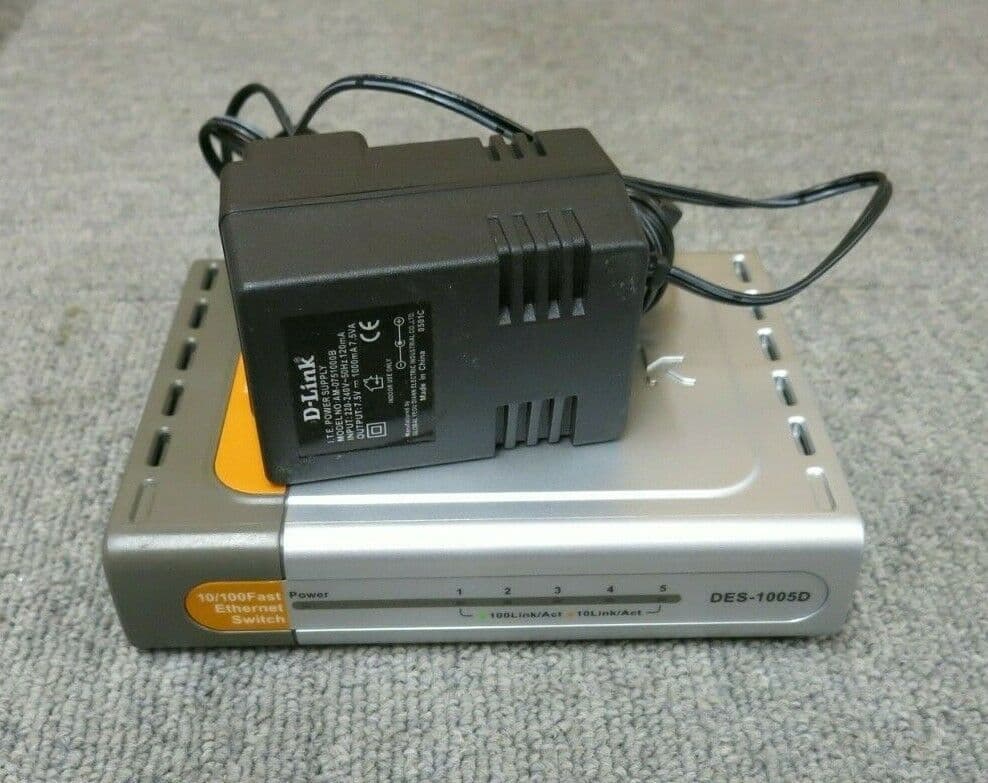

This product is customized for use in the UK and Ireland. What it does? The DES-1005D 5-port Desktop Switch allows you to easily connect any Ethernet-enabled device, thus extending your home network. No configuration is required, making this switch completely plug-and-play.
Each of the 5 intelligent ports detects the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full- and half-duplex. Each supports auto-negotiation of MDI/MDIX cross over, eliminating the need for cross-over cables or uplink ports.
Specification
| D-Link DES 1005D - switch - 5 ports |
| Device Type |
Switch - 5 ports |
| Subtype |
Fast Ethernet |
| Ports |
5 x 10/100 |
| MAC Address Table Size |
8K entries |
| Features |
Flow control, full duplex capability, auto-sensing per device, auto-correction of twisted-pair polarity reverse, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Dimensions (WxDxH) |
14.2 cm x 10.8 cm x 3.2 cm |
| Localisation |
United Kingdom, Ireland |
| Manufacturer Warranty |
2-year warranty |
Extended Specification
| General |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Device Type |
Switch - 5 ports |
| Enclosure Type |
Desktop |
| Features |
Flow control, full duplex capability, auto-sensing per device, auto-correction of twisted-pair polarity reverse, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward |
| MAC Address Table Size |
8K entries |
| Ports |
5 x 10/100 |
| Status Indicators |
Collision status, port transmission speed, port duplex mode, power, link/activity |
| Subtype |
Fast Ethernet |
| Dimensions & Weight |
| Depth |
10.8 cm |
| Height |
3.2 cm |
| Width |
14.2 cm |
| Environmental Parameters |
| Humidity Range Operating |
10 - 90% |
| Max Operating Temperature |
50 °C |
| Min Operating Temperature |
0 °C |
| Expansion / Connectivity |
| Interfaces |
5 x 100Base-TX RJ-45 |
