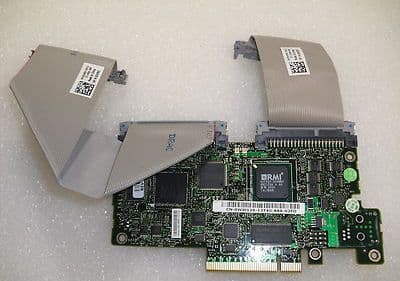

Dell DRAC 5 Remote Access Poweredge for Dell PowerEdhe R900 with long cables
tested pulls from new servers
DRAC 5 Primary Features:
-
Dynamic Domain Name System (DNS) registration
-
Remote system management and monitoring using a Web-based interface, serial connection, or telnet connection.
-
Support for Active Directory authentication — Centralizes all DRAC 5 user ID and passwords in Active Directory using an optional Dell snap-in schema.
-
Console Redirection — Provides remote system keyboard, video, and mouse functions.
-
Virtual Media — Enables a managed system to access a media drive on the management station.
-
Access to system event logs — Provides access to the system event log (SEL), DRAC 5 log, and last crash screen of the crashed or unresponsive system that is independent of the operating system state.
-
Dell OpenManage™ software integration — Enables you to launch the DRAC5 Web-based interface from Dell OpenManage Server Administrator or IT Assistant.
-
RAC alert — Alerts you to potential managed node issues through e-mail messages or an SNMP trap using the Dedicated , Shared with Failover , or Shared NIC settings.
-
Local and remote configuration — Provides local and remote configuration using the RACADM command-line utility.
-
Remote power management — Provides remote power management functions from a management console, such as shutdown and reset.
-
IPMI support.
-
Secure Sockets Layer (SSL) encryption — Provides secure remote system management through the Web-based interface.
-
Password-level security management — Prevents unauthorized access to a remote system.
-
Role-based authority — Provides assignable permissions for different systems management tasks.
Security Features:
-
User authentication through Microsoft® Active Directory® (optional) or hardware-stored user IDs and passwords
-
Role-based authority, which enables each user to configure specific privileges
-
RACADM CLI and Web-based interface operation, which supports 128-bit SSL encryption and 40-bit SSL encryption (for countries where 128 bit is not acceptable)
-
Session time-out configuration (in seconds) through the Web-based interface or RACADM CLI
-
Configurable IP ports (where applicable)
-
Secure Shell (SSH), which uses an encrypted transport layer for higher security.|
-
Login failure limits per IP address, with login blocking from the IP address when the limit is exceeded.
-
Limited IP address range for clients connecting to the DRAC 5
PE6950
PE900
PE905
PE T300
|
