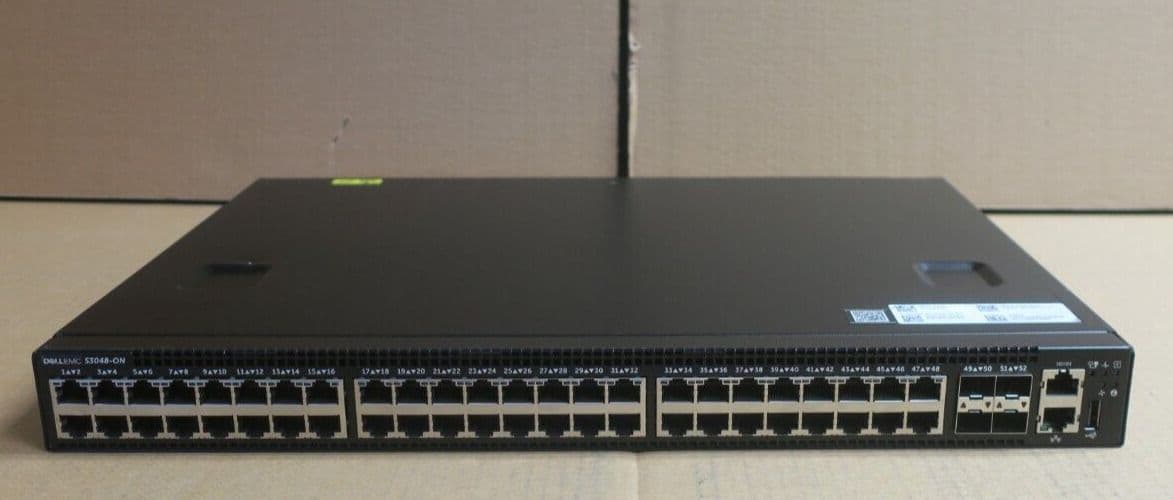

Dell EMC S3048-ON 48x 1GbE RJ45 + 4x 10GbE SFP+ Ports L2/3 1U Switch - J4T5K
- 1 x Dell EMC S3048-ON 48x 1GbE RJ45 + 4x 10GbE SFP+ Ports L2/3 1U Switch - J4T5K

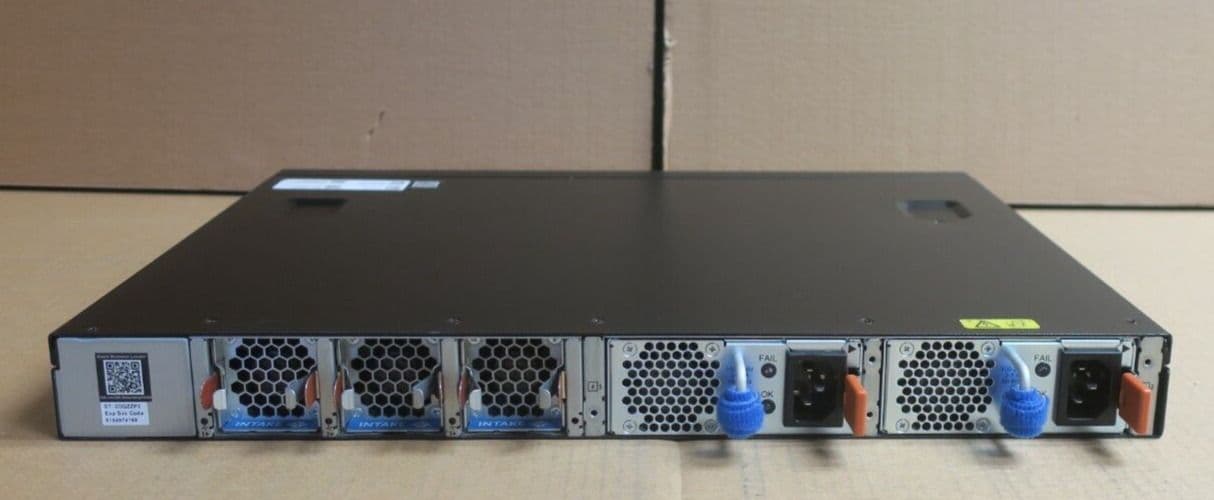

- 3 x Dell Fan Modules S3048-ON-FAN-R 5JHJD
- 2 x Dell 200W Power Supply S3048-ON-PWR-AC-R 0X3X6
- I/O panel to PSU airflow or PSU to I/O panel airflow for hot/cold aisle environments
- Redundant, hot-swappable power supplies and fans with color coded touch points for ease of identification/removal
- Dell ReadyRails for efficient installation of the switch into data center cabinets
- Scalable L2 and L3 Ethernet switching with QoS and a full complement of standards-based IPv4 and IPv6 features, including OSPF, BGP and PBR (Policy Based Routing) support
- Four SFP+ 10GbE ports for maximum flexibility and investment protection
- I/O panel to PSU airflow or PSU to I/O panel airflow
- Redundant, hot-swappable power supplies and fans
- Supports ONIE for zero-touch installation of alternate network operating systems
- Open Networking offers choice of OS, such as Dell SmartFabric OS10 and Dell OS9, for inherent stability and feature richness, or the flexibility of a third-party OS
- VRF-lite enables sharing of networking infrastructure and provides L3 traffic isolation across tenants (including support for multicast and IPv6 routing)
- Enhanced automation capabilities (puppet agent, REST API extensions)
- Supports jumbo frames for high-end performance in virtualized environments and IP storage/server communication
- Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities like Routed VLT, VLT Proxy Gateway
- User port stacking support for up to six units managed as one logical device
- Embedded Open Automation Framework adds VM awareness automated configuration and provisioning capabilities to simplify the management of virtual network environments
- 48 line-rate 1000BASE-T ports
- 4 line-rate 10GbE SFP+ ports
- 1 RJ45 console/management port with RS232 signaling
- Size: 1 RU, 1.71"h x 17.09" w x 12.6" d (4.4 h x 43.4 w x 32.0 cm d)
- Weight: 12.8 lbs (5.84 kg) with 1 power supply, 14.8 lbs (6.74kg) with 2 power supplies
- ISO 7779 A-weighted sound pressure level: <36 dBA at 78.8°F (26°C)
- Power supply: 90-264 VAC 50/60 Hz
- 1) AC forward airflow
- 2) AC reverse airflow
- Max. thermal output: 290 BTU/h
- Max. current draw per system: <1A at 100/120V VAC <0.5A at 200/240VAC
- Max. power consumption: 87W
- Typ. power consumption: 65 Watts
- Max. operating specifications:
- Operating temperature: 32° to 113°F (0° to 45°C)
- Operating humidity: 5 to 85% (RH), noncondensing
- Operating altitude: 0ft to 10,000ft above sea level
- Max. non-operating specifications:
- Storage temperature: -40° to 158°F (-40° to 70°C)
- Storage humidity: 5 to 95% (RH), noncondensing
- Hot swappable redundant power supplies
- Hot swappable redundant fans
- User port stacking up to 6 units
- MAC addresses: up to 80k
- IPv4 routes: 16K
- IPv6 routes: 8K (shared CAM space with IPv4)
- Switch fabric capacity: 260Gbps (full-duplex) 130 Gbps (half-duplex)
- Forwarding capacity: 131 Mpps
- Link aggregation: 16 links per group, 128 groups per stack
- Queues per port: 8 queues
- Layer 2 VLANs: 4K
- MSTP : 64 instances
- VRF-lite: 64 instances
- Line-rate Layer 2 switching: all protocols, including IPv4 and IPv6
- Line-rate Layer 3 routing: IPv4 and IPv6
- IPv4 host table size up to 40k max
- IPv6 host table size 8K
- IPv4 Multicast table size 8K
- LAG load balancing: based on Layer 2, IPv4 or IPv6 headers
- Latency 3.7 μsec for 1000BASE-T, ~1.8 μsec for SFP+
- Packet buffer memory: 4MB
- CPU memory: 2GB
DellEMC#showversion
Dell EMC RealTime Operating System Software
Dell EMCOperating System Version: 2.0
Dell EMCApplication Software Version: 9.14(2.23)
Copyright (c)1999-2024 by Dell Inc. or its subsidiaries. All Rights Reserved.
Build Time: WedMar 13 15:09:55 2024
Build Path:/neteng/build/clones/coveritybuild-eqx-04/build/build01/s3000/SW/SRC
System image fileis "system://A"
System Type:S3048-ON
ControlProcessor: Intel Rangeley with 2 Gbytes (2127646720 bytes) of memory, core(s)2.
8G bytes of bootflash memory.
1 52-port GE/TE (SG-ON)
48 GigabitEthernet/IEEE 802.3 interface(s)
4 Ten GigabitEthernet/IEEE 802.3 interface(s)

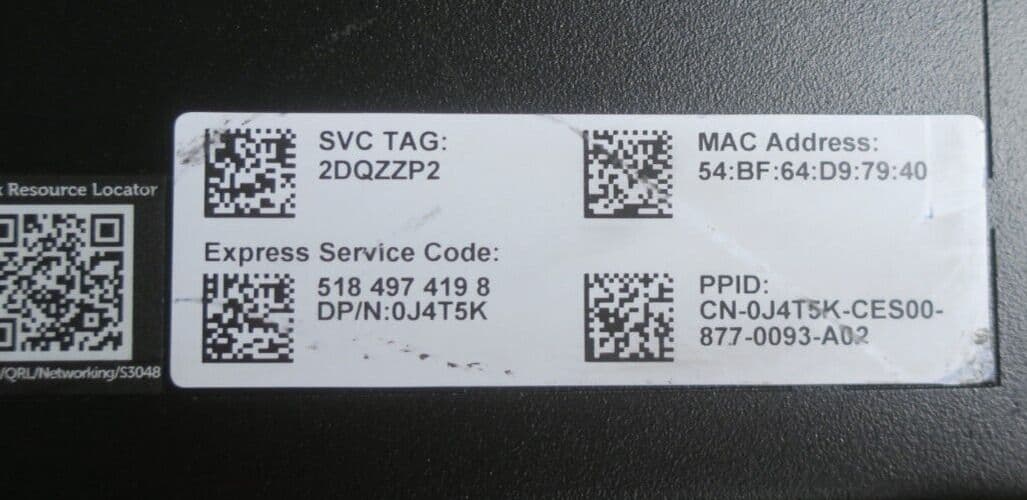

DellEMC#showinventory
System Type : S3048-ON
System Mode : 1.0
SoftwareVersion : 9.14(2.23)
Unit Type Serial Number Part Number Rev Piece Part ID Rev Svc Tag Exprs Svc Code
--------------------------------------------------------------------------------------------------------------
* 1 S3048-ON-01-FE-52T NA 0J4T5K A02 CN-0J4T5K-CES00-877-0093 A02 2DQZZP2 518 497 419 8
1 S3048-ON-PWR-AC-R NA 00X3X6 A00 TH-00X3X6-17971-86P-0GC3 A00 N/A NA
1 S3048-ON-PWR-AC-R NA 00X3X6 A00 TH-00X3X6-17971-868-0FM9 A00 N/A NA
1 S3048-ON-FAN-R NA 05JHJD A00 CN-05JHJD-CES00-86N-0192 A00 N/A NA
1 S3048-ON-FAN-R NA 05JHJD A00 CN-05JHJD-CES00-86N-0202 A00 N/A NA
1 S3048-ON-FAN-R NA 05JHJD A00 CN-05JHJD-CES00-86N-0172 A00 N/A NA
* - Management Unit
Software ProtocolConfigured
--------------------------------------------------------------
LLDP
DellEMC#showsystem brief
Stack MAC : 54:bf:64:d9:79:40
Reload-Type : normal-reload [Next boot: normal-reload]
-- Stack Info --
Unit UnitType Status ReqTyp CurTyp Version Ports
------------------------------------------------------------------------------------
1 Management online S3048-ON S3048-ON 9.14(2.23) 52
2 Member not present
3 Member not present
4 Member not present
5 Member not present
6 Member not present
-- Power Supplies --
Unit Bay Status Type FanStatus FanSpeed Power AvgPower AvgPowerStartTime
-------------------------------------------------------------------------------------
1 1 up AC up 8288 21 22 06/07/2024-11:52
1 2 up AC up 8480 14 14 06/07/2024-11:52
-- Fan Status --
Unit Bay TrayStatus Fan1 Speed
------------------------------------------------------------------------------------
1 1 up up 7200
1 2 up up 7200
1 3 up up 7200
Speed in RPM
-
MPN:S3048-ON-01-FE-52T
