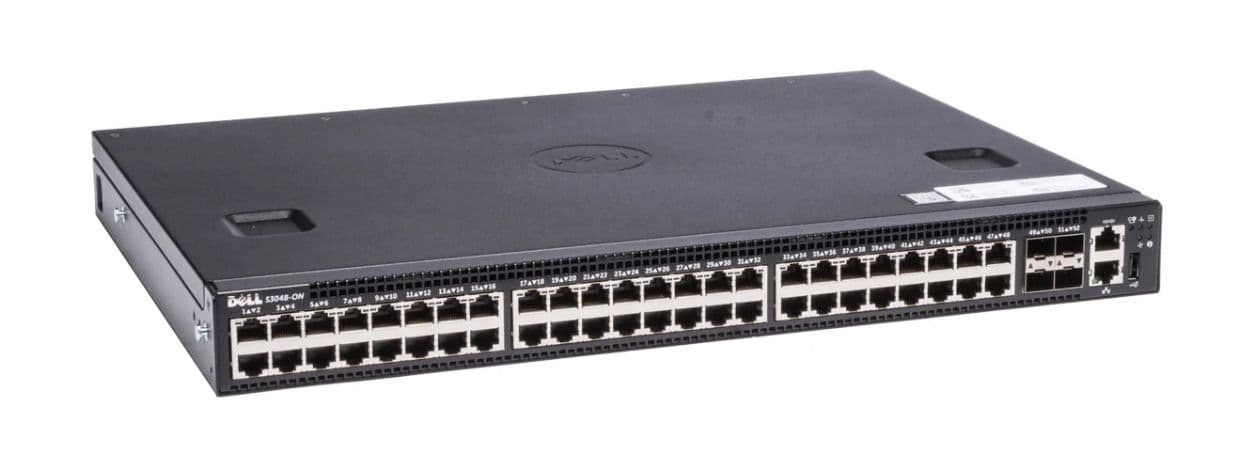

Dell EMC S3048-ON 48x 1GbE RJ45 + 4x 10GbE SFP+ Ports L2/3 Switch Only - FKTNP
Model: S3048-ON
Dell P/N:0FKTNP FKTNP

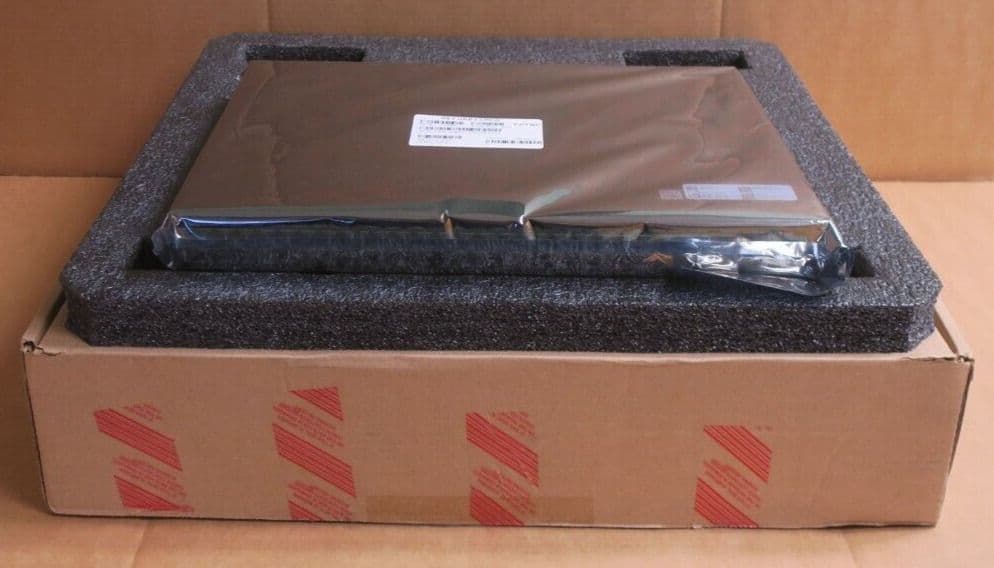

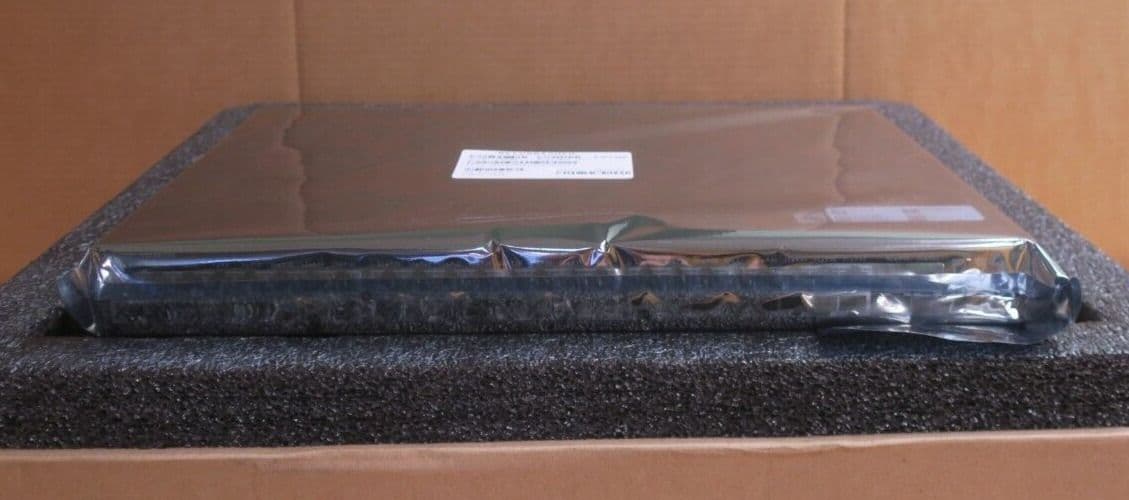

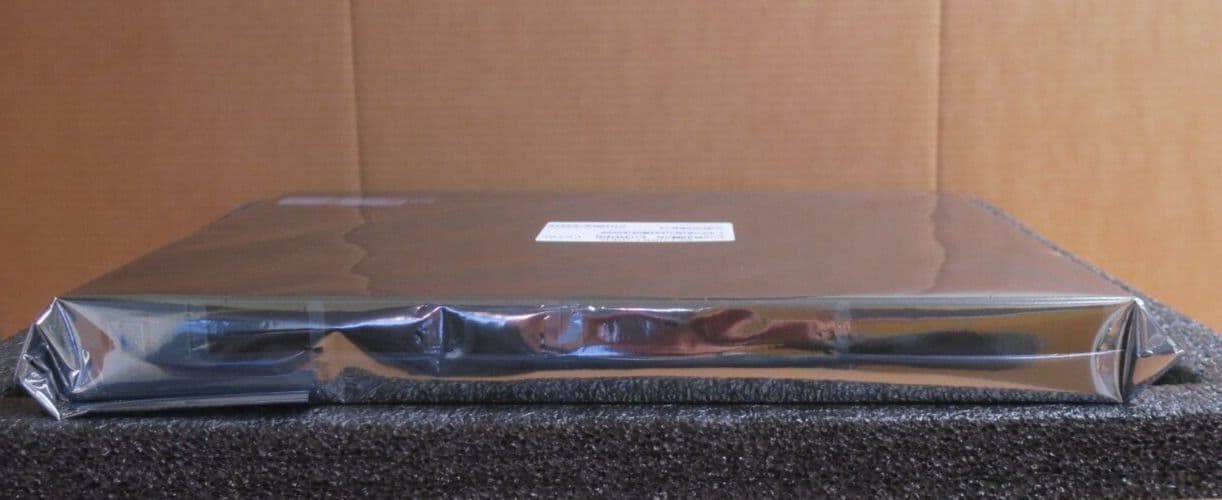

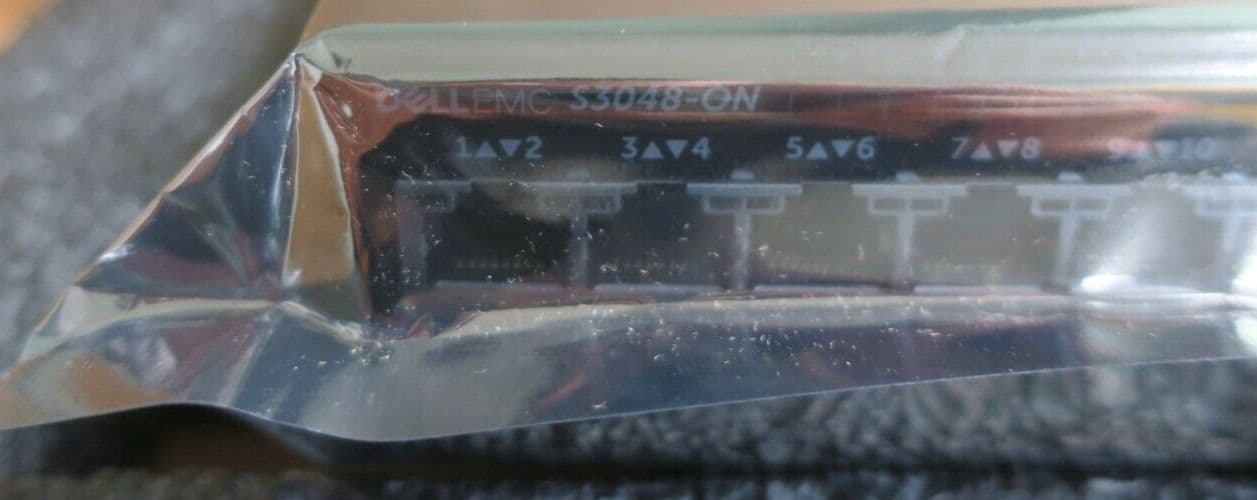

Manufacturer Refurbished - Sealed
Switch Only
No Power Supplies, No Fan Modules, No Rails, No Cables Included
Included
- 1 x Dell EMC S3048-ON 48x 1GbE RJ45 + 4x 10GbE SFP+ Ports L2/3 Switch Only - FKTNP
Description:
The Dell PowerSwitch S3048-ON 1000BASE-T top-ofrack (ToR) switch is the industry's first 1GbE enterprise switching platform to deliver both an industry hardened OS and support for open networking, providing freedom to run third-party operating systems (OS).
This open networking platform is built for highperformance, software-defined data centers and provides the features to run traditional workloads and the flexibility to deploy new workloads such as Hadoop, SDS and Big Data. The S3048-ON offers the flexibility to run OS options optimized for diverse deployment needs on a common hardware platform and architecture.
The S3048-ON features a non-blocking switching architecture coupled with OS9.X software, delivering line-rate L2/L3 features for maximized network performance. The S3048-ON design provides (48) 1000BASE-T ports that support 10MbE/100MbE/1GbE and four 10GbE SFP+ uplinks. Each 10GbE interface can be used as uplinks to the network spine/core, as stack ports to connect up to six units in a stacked configuration, or a combination of both, depending on network architecture and uplink/stack bandwidth requirements.
The S3048-ON incorporates multiple architectural features that optimize data center network flexibility, efficiency and availability including:
- I/O panel to PSU airflow or PSU to I/O panel airflow for hot/cold aisle environments
- Redundant, hot-swappable power supplies and fans with color coded touch points for ease of identification/removal
- Dell ReadyRails for efficient installation of the switch into data center cabinets
The S3048-ON also supports Dell Technologies' Embedded Open Automation Framework, which provides advanced network automation and virtualization capabilities for virtual data center environments. Embedded Open Automation Framework is a suite of network management apps that can be used together or independently to provide a network that is flexible, available and manageable while helping to reduce operational expenses.
Key Features
- Scalable L2 and L3 Ethernet switching with QoS and a full complement of standards-based IPv4 and IPv6 features, including OSPF, BGP and PBR (Policy Based Routing) support
- Four SFP+ 10GbE ports for maximum flexibility and investment protection
- I/O panel to PSU airflow or PSU to I/O panel airflow
- Redundant, hot-swappable power supplies and fans
- Supports ONIE for zero-touch installation of alternate network operating systems
- Open Networking offers choice of OS, such as Dell SmartFabric OS10 and Dell OS9, for inherent stability and feature richness, or the flexibility of a third-party OS
- VRF-lite enables sharing of networking infrastructure and provides L3 traffic isolation across tenants (including support for multicast and IPv6 routing)
- Enhanced automation capabilities (puppet agent, REST API extensions)
- Supports jumbo frames for high-end performance in virtualized environments and IP storage/server communication
- Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities like Routed VLT, VLT Proxy Gateway
- User port stacking support for up to six units managed as one logical device
- Embedded Open Automation Framework adds VM awareness automated configuration and provisioning capabilities to simplify the management of virtual network environments
Specifiction:
Physical
- 48 line-rate 1000BASE-T ports
- 4 line-rate 10GbE SFP+ ports
- 1 RJ45 console/management port with RS232 signaling
- Size: 1 RU, 1.71"h x 17.09" w x 12.6" d (4.4 h x 43.4 w x 32.0 cm d)
- Weight: 12.8 lbs (5.84 kg) with 1 power supply, 14.8 lbs (6.74kg) with 2 power supplies
- ISO 7779 A-weighted sound pressure level: <36 dBA at 78.8°F (26°C)
- Power supply: 90-264 VAC 50/60 Hz
- 1) AC forward airflow
- 2) AC reverse airflow
- Max. thermal output: 290 BTU/h
- Max. current draw per system: <1A at 100/120V VAC <0.5A at 200/240VAC
- Max. power consumption: 87W
- Typ. power consumption: 65 Watts
- Max. operating specifications:
- Operating temperature: 32° to 113°F (0° to 45°C)
- Operating humidity: 5 to 85% (RH), noncondensing
- Operating altitude: 0ft to 10,000ft above sea level
- Max. non-operating specifications:
- Storage temperature: -40° to 158°F (-40° to 70°C)
- Storage humidity: 5 to 95% (RH), noncondensing
Redundancy
- Hot swappable redundant power supplies
- Hot swappable redundant fans
- User port stacking up to 6 units
Performance
- MAC addresses: up to 80k
- IPv4 routes: 16K
- IPv6 routes: 8K (shared CAM space with IPv4)
- Switch fabric capacity: 260Gbps (full-duplex) 130 Gbps (half-duplex)
- Forwarding capacity: 131 Mpps
- Link aggregation: 16 links per group, 128 groups per stack
- Queues per port: 8 queues
- Layer 2 VLANs: 4K
- MSTP : 64 instances
- VRF-lite: 64 instances
- Line-rate Layer 2 switching: all protocols, including IPv4 and IPv6
- Line-rate Layer 3 routing: IPv4 and IPv6
- IPv4 host table size up to 40k max
- IPv6 host table size 8K
- IPv4 Multicast table size 8K
- LAG load balancing: based on Layer 2, IPv4 or IPv6 headers
- Latency 3.7 μsec for 1000BASE-T, ~1.8 μsec for SFP+
- Packet buffer memory: 4MB
- CPU memory: 2GB
CS 294359
specifications
-
MPN:S3048-ON
