In good condition and full working order
2 Year Warranty
RESET TO FACTORY DEFAULT AND READY TO DEPLOY
Included

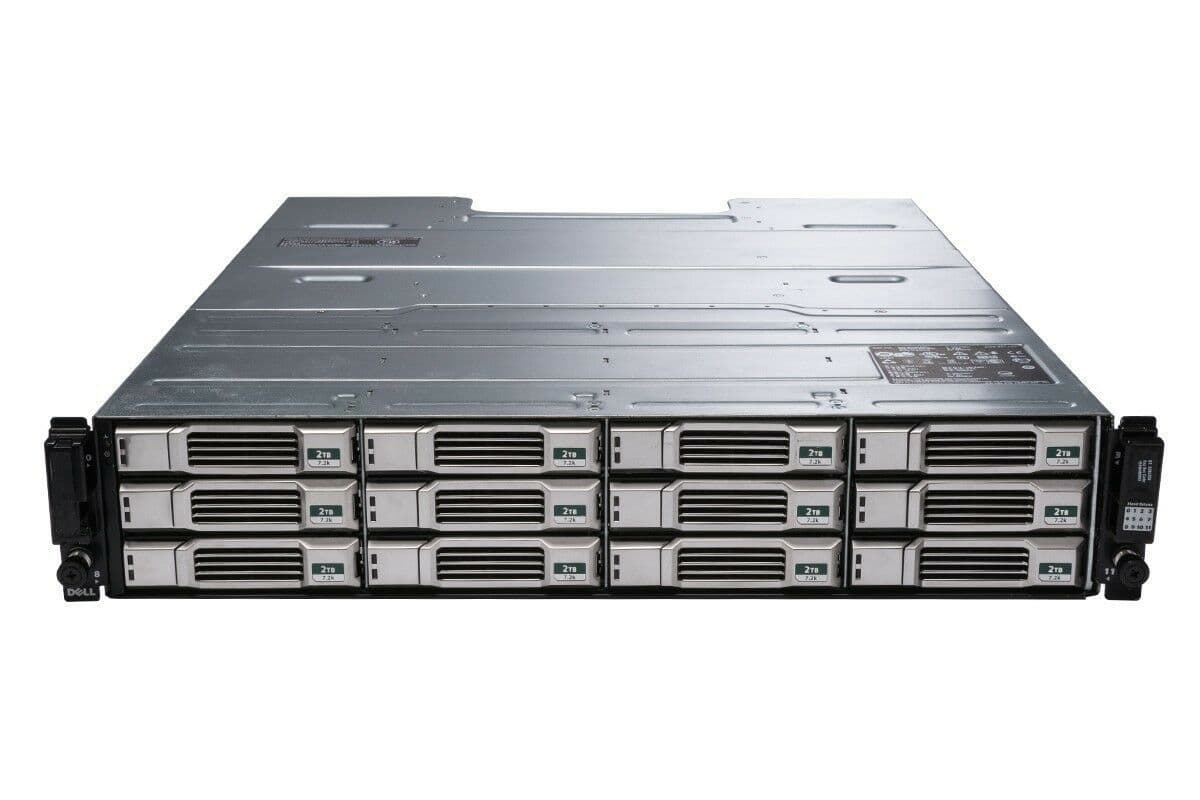

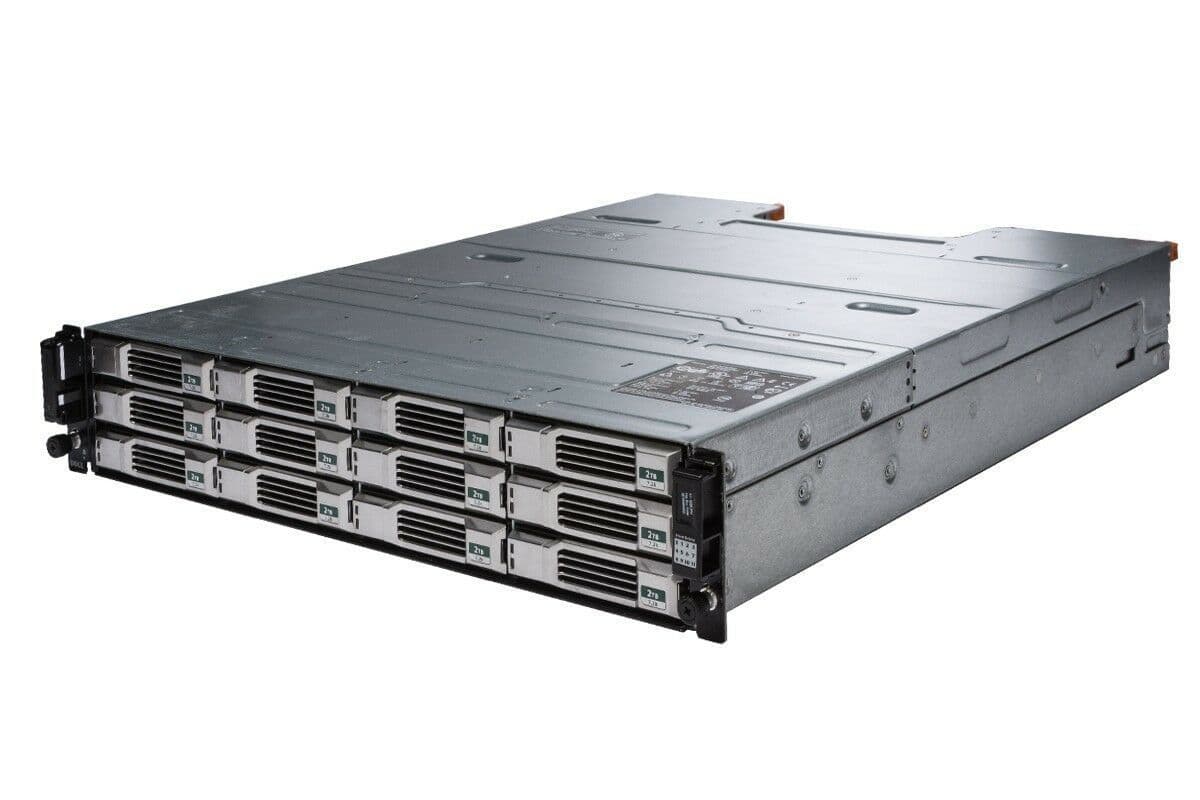

- 1 x Dell Equallogic PS4110E Storage Array
- 2 x Control Module Type 17 10GB Controllers 10GbE connectivity with one (1) 10GBASE-T with RJ45, one (1) 10GbE SFP+ for fiber or twin-ax copper cabling, and one (1) 100BASE-TX dedicated management port per controller - RAID 5, RAID 6, RAID 10, and RAID 50
- 12 x Equallogic 4TB 7.2k SAS 6Gbps 3.5" hot plug drives
- 2 x Power Supplies
| Storage Controllers |
Dual controllers, each with 4GB1 memory for PS-series firmware. Each controller provides cache to flash for data protection. |
| Network Interfaces |
10GbE connectivity with one (1) 10GBASE-T with RJ45, one (1) 10GbE SFP+ for fiber or twin-ax copper cabling, and one (1) 100BASE-TX dedicated management port per controller |
|
|
| Volumes |
Up to 256 |
| Snapshots |
128 per volume / up to 2,048 total per group |
| Volume Connections Per PS Series Group |
Up to 512 per pool / 1024 per group |
| Host Protocol |
Any standards-compliant iSCSI initiator |
| OS Supported |
Windows 2000 Server, Windows Server 2003, Windows Server 2008, including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UX, Mac OS X, VMware ESX Server 3 / 3.5 / 4 / 4.1 / 5, ESXi 3.5 / 4 / 4.1 / 5, Citrix XenServer, Novell NetWare |
| RAID Support |
RAID 5, RAID 6, RAID 10, and RAID 50 |
| TCP Network Support |
IPv4, IPv6 core support |
| Expansion Option |
Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. A maximum of two (2) PS4x00 arrays can be in a group. |
| Reliability |
Vertical port sharing
Redundant hot-swappable controllers, power supplies / cooling fans, and hot-swappable disks
Individual disk drive slot power control
Cache-to-flash |
| Enclosure Monitoring System |
Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives |
| Management Interfaces |
SAN Headquarters multi-group performance and event monitoring tool
Serial console
Ability to configure a separate management network
SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Multi-administrator support |
| Security |
CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support |
| Notification Methods |
SNMP traps, e-mail, syslog |
| Power |
AC voltage: 100-240 VAC ±10% single phase
700 W (max, total), +5V up to 155W; +12V up to 624W; +5Vsb up to 10W
Frequency: 50/60 Hz
Power factor: 0.98 (minimum)
Power supplies: Dual 700 W |
| Physical |
Height: 2U / 87 mm (3.42 inches)
Width: 446 mm (17.57 inches)
Depth: 546 mm (21.50 inches)
Weight: 24.1 kg (53 lbs) |
|
