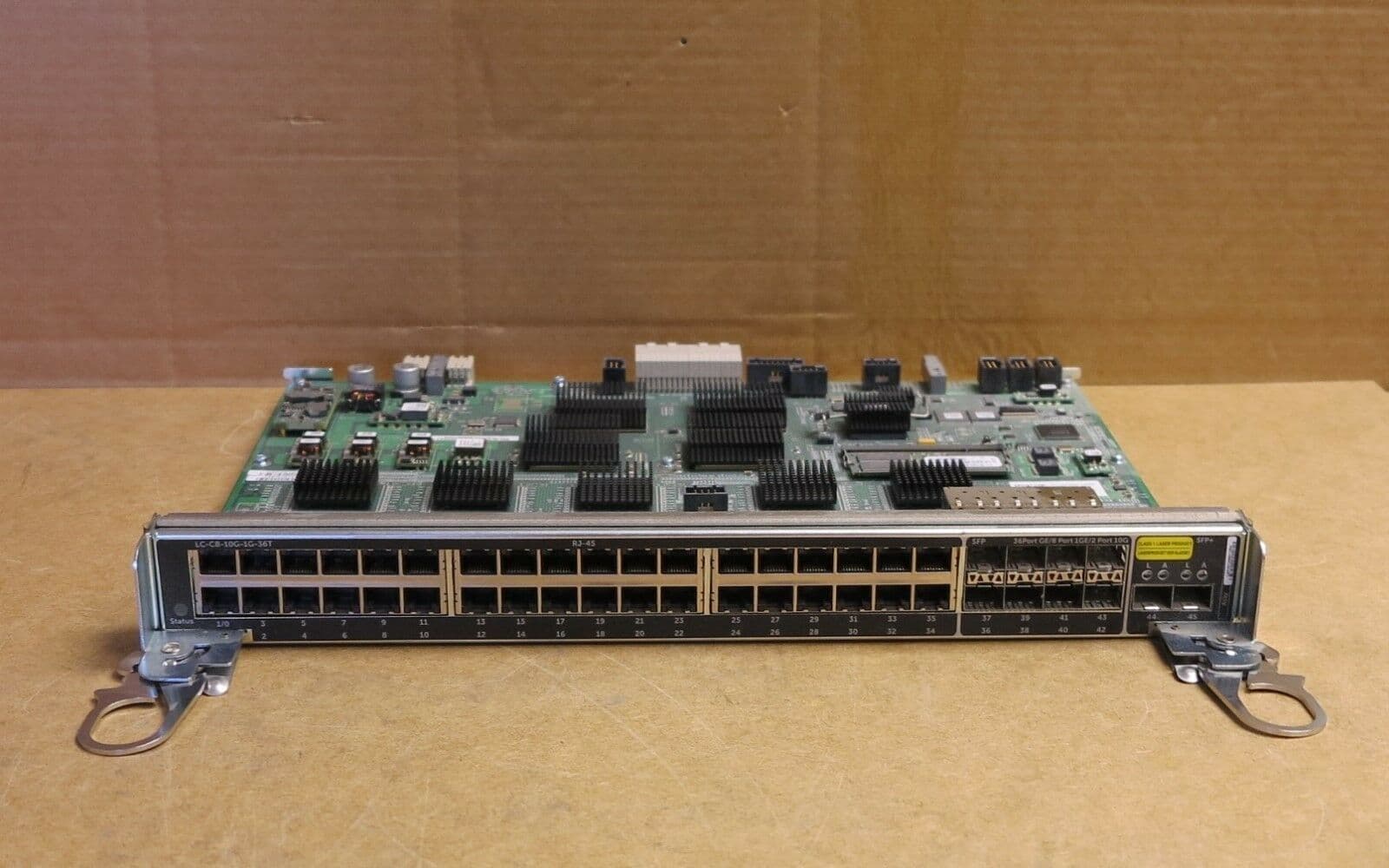

Dell Force10 C150 C100 36-Port FlexMedia 10Gb Enet Line Card LC-CB-10G-1G-36T

In Good Condition And Full Working Order

Description

FlexMedia 10 Gigabit Ethernet Line Card features 36 10/100/1000Base-T ports, eight Gigabit Ethernet SFP ports, and two 10 Gigabit Ethernet SFP+ ports. Additionally, the C-Series ASICs and architecture enables line rate performance with QoS and Access Control Lists (ACLs) enabled, jumbo frame support, and simultaneous L2 switching and IPv4 routing.

Specification

• Product Type: Line Card
• Manufacturer Part Number: LC-CB-10G-1G-36T
• Manufacturer: Force10 Networks, Inc
• Product Name: FlexMedia 10 Gigabit Ethernet Line Card
• Compatibility: C300 Resilient Switches, C150 Resilient Switches
• Green Compliance: Yes
• Green Compliance Certificate/Authority: RoHS
• Dimensions: 1.75" Height x 15.25" Width x 13.75" Depth
• Weight: 5.31 lb
• RJ45 Ports: 36 x 10/100/1000Base-T LAN
• 1Gb Ports: 8 x SFP
• 10Gb Ports: 2 x SFP+

Boot Log:

-- Line card 0 --
Status : online
Next Boot : online
Required Type : E46TB - 36-port GE 10/100/1000Base-T with RJ45 - 8-port FE/GE with SFP - 2-port 10GE with SFP+
Current Type : E46TB - 36-port GE 10/100/1000Base-T with RJ45 - 8-port FE/GE with SFP - 2-port 10GE with SFP+
Hardware Rev : 2.0
Num Ports : 46
Up Time : 22 sec
FTOS Version : 8.4.2.6
Jumbo Capable : yes
POE Capable : no
