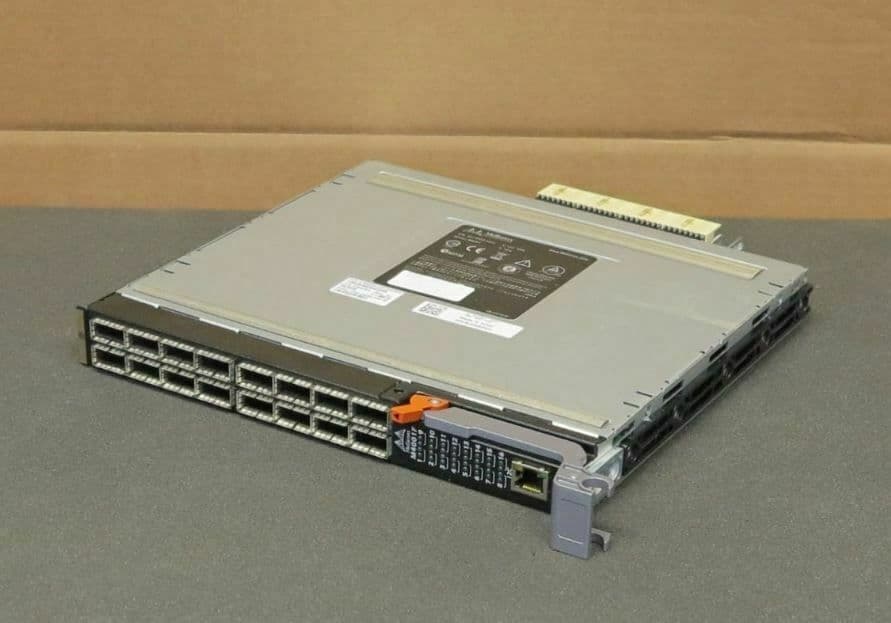

Dell Mellanox M4001F 10-port 10/40GB InfiniBand Blade Switch
Dell P/N: 0NG39H NG39H
In Full Working Order
Tested
2 Year Warranty
Included:
-
1 x Dell Mellanox M4001F 32-port 10/20/40/56GB InfiniBand Blade Switch 0NG39H NG39H
Specifications:
SWITCH
-
IBTA 1.21 and 1.3 compliant
-
32 non-blocking ports (16 internal, 16 external)
-
Up to 56Gb/s (FDR) per port
-
Port-to-port latency 170ns
-
Congestion control*
-
Adaptive Routing*
-
QoS
-
Port mirroring
-
9 virtual lanes: 8 data + 1 management
-
256 to 4Kbyte MTU
MANAGEMENT
-
I2C interface RJ45 connector
-
Supports OpenSM or third party subnet managers
CONNECTORS AND CABLING
-
16 QSFP+ connectors
-
Passive/Active copper or fibre cables
INDICATORS
-
Per port status LEDs: Link, Activity
-
System status LEDs
DIMENSIONS
-
12.2'' x 1.34'' x 10.7'' (HxWxD)
POWER CONSUMPTION
-
80W Typical
-
85W Max
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS see RJ -12
specifications
-
MPN:M4001F
