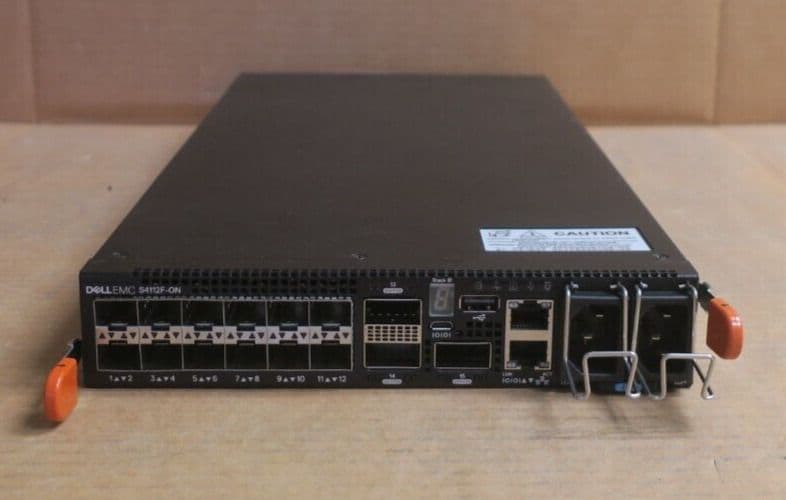

- 1 x Dell Networking S4112F-ON 12x 10GbE SFP+ + 3x 100GbE QSFP28 Managed Switch 7DWY1
- Device Type:Switch - 12 ports - L3 - Managed
- Enclosure Type: Front to back airflow rack-mountable 1U
- Subtype: 10 Gigabit Ethernet
- Ports: 12 x 10 Gigabit SFP+ + 3 x 100 Gigabit QSFP28
- Performance:
- Switching capacity: 840 Gbps
- Throughput: 640 Mpps
- Latency: 800 ns
- Capacity:
- ARP entries: 200000
- IPv4 routes: 200000
- IPv6 routes: 64000
- IPv6 hosts: 130000
- Multicast hosts: 8000
- Links per group: 32
- Link aggregation groups: 128
- Layer 2 VLANs: 4000
- MSTP instances: 32
- ACL entries (ingress): 6000
- ACL entries (egress): 1000
- MAC Address Table Size: 272000 entries
- Routing ProtocolO: SPF, BGP-4, OSPFv2, policy-based routing (PBR)
- Remote Management Protocol: SNMP 1, SNMP 2
- Encryption Algorithm: MD5
- Authentication Method: RADIUS, TACACS
- Features: Flow control, ARP support, port mirroring, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), LACP support, LLDP support, Dynamic VLAN Support (GVRP), Priority-Based Flow Control (PFC), Internet Control Message Protocol (ICMP), DNS client
- Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1t, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.3bj
- RAM: 4 GB
- Interfaces:
- 12 x 10Gbit LAN SFP+
- 3 x 100Gbit LAN QSFP28
- 1 x serial (RS-232) RJ-45 management
- 1 x 10/100/1000 Base-T RJ-45 management
- Power Device: External power adapter
- Installed Qty: 2
- Voltage Required: AC 120/230 V (50/60 Hz)
- Power Consumption Operational: 180 Watt
- Compliant Standards: EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, FDA 21CFR1040.10, FDA 21CFR1040.11, AS/NZS CISPR 32 Class A, VCCI V-3/2009 Class A, CSA 60950-1 Second Edition, EN 55032:2015+A1:2007, FCC CFR47 Part 15 B 2009 Class A, EN 55024:1998+A1:2001+A2:2003
- Width: 20.9 cm
- Depth: 45 cm
- Height: 4.125 cm
- Weight: 3.76 kg
- Min Operating Temperature: 5 °C
- Max Operating Temperature: 40 °C
- Humidity Range Operating: 5 - 85% (non-condensing)
- Min Storage Temperature: -40 °C
- Max Storage Temperature: 65 °C
- Humidity Range Storage: 5 - 95% (non-condensing)
OS10# showversion
Dell EMCNetworking OS10 Enterprise
Copyright (c)1999-2018 by Dell Inc. All Rights Reserved.
OS Version:10.4.0E(R3)
Build Version:10.4.0E(R3.233)
Build Time:2018-03-30T18:05:41-0700
System Type:S4112F-ON
Architecture:x86_64
Up Time: 00:02:30
OS10# showinventory
Product : S4112F-ON
Description : S4112F-ON 12x10GbE, 3x100GbE InterfaceModule
Software version: 10.4.0E(R3)
Unit Type Part Number Rev Piece Part ID Svc Tag Exprs Svc Code
-------------------------------------------------------------------------------------------
* 1 S4112F-ON 07DWY1 A01 CN-07DWY1-DND00-93T-0485 2Z0WNK2 647 140 435 4
1 S4112F-ON-PWR-1-AC NA NA NA
1 S4112F-ON-PWR-2-AC NA NA NA
1 S4112F-ON-FANTRAY-1-R NA NA NA
OS10# showlicense status
SystemInformation
---------------------------------------------------------
Vendor Name : Dell EMC
Product Name : S4112F-ON
HardwareVersion: A01
PlatformName : x86_64-dellemc_s4112f_c2338-r0
PPID : CN07DWY1DND0093T0485
Service Tag : 2Z0WNK2
License Details
----------------
Software : OS10-Enterprise
Version : 10.4.0E(R3)
License Type : PERPETUAL
LicenseDuration: Unlimited
LicenseStatus : Active
Licenselocation: /mnt/license/2Z0WNK2.lic
---------------------------------------------------------
OS10# showenvironment
Unit State Temperature
-------------------------------------
1 up 49
Thermal sensors
Unit Sensor-Id Sensor-name Temperature
------------------------------------------------------------------------------
1 1 CPU Ambient temp sensor 31
1 2 Near NPU Ambient temp sensor 36
1 3 SFP+ Ambient temp sensor 30
1 4 QSFP Ambient temp sensor 33
1 5 Front Ambient temp sensor 38
1 6 Rear Ambient temp sensor 26
1 7 NPU temp sensor 49
-
MPN:S4112F-ON
