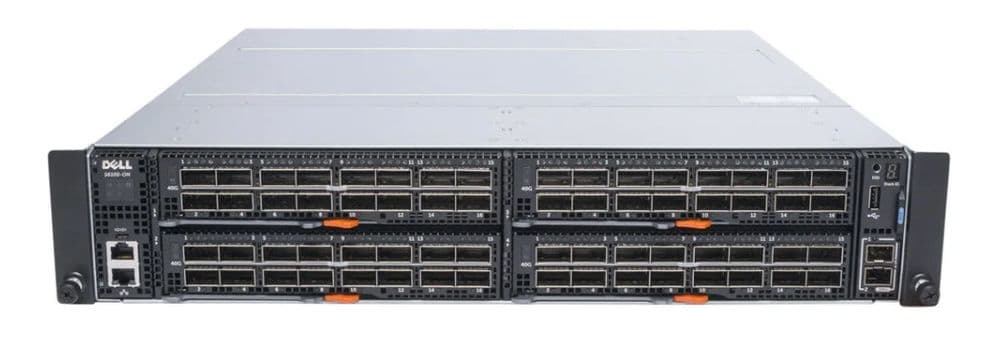

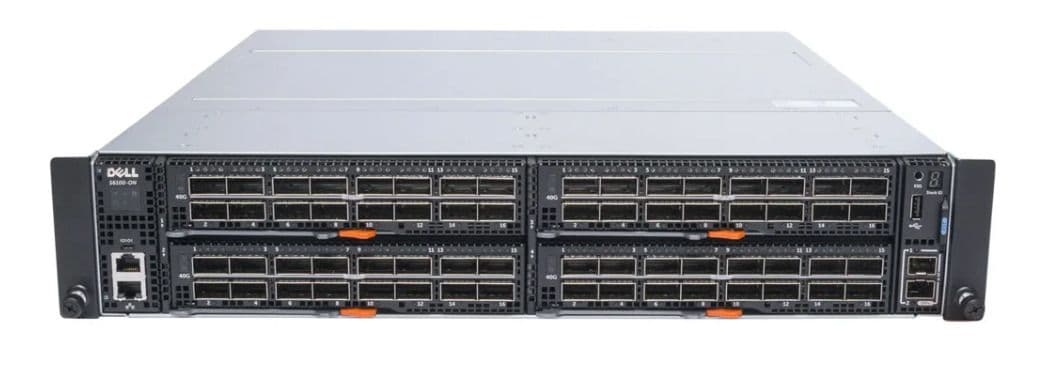

Dell Networking S6100-ON Modular Switch 4x 16x 40G QSFP+ Modules + 2x SFP+ Ports
Model: S6010-ON
Dell P/N:0V5G6H V5G6H
Manufacturer Refurbished

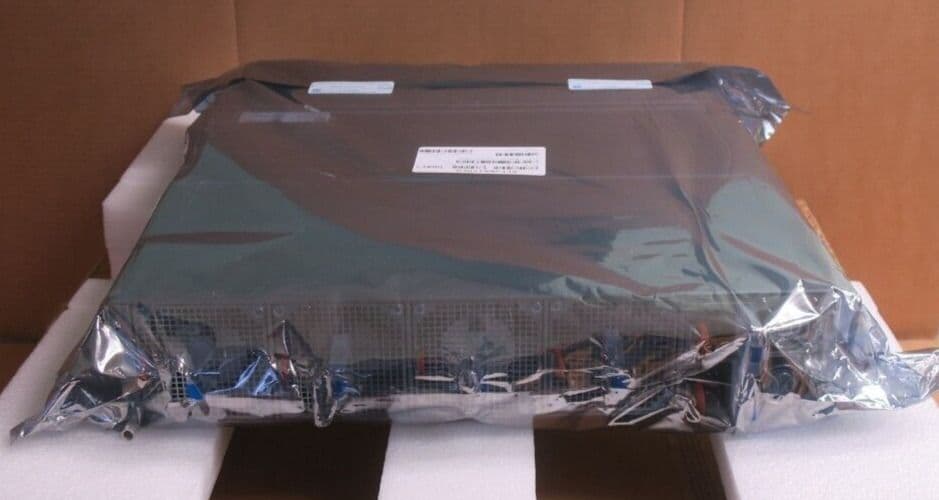

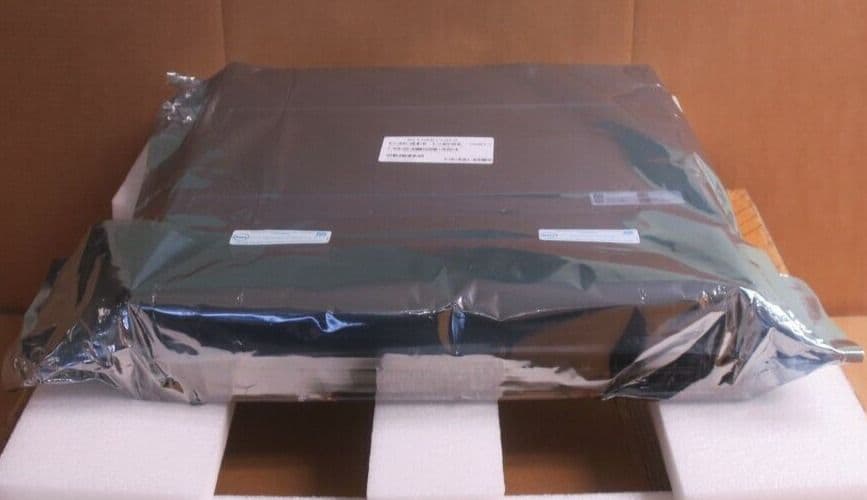

Sealed
Reverse Airflow - PSU to IO

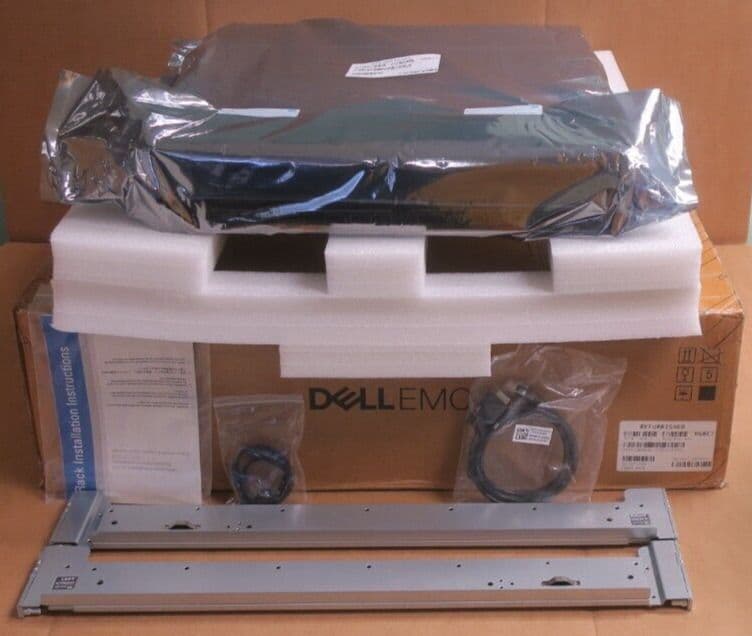

Included
- 1 x Dell Networking S6100-ON 4-Expansion Bay Modular Switch
- 4 x 16x QSFP+ I/O Module (Each with 16 ports of 40Gb QSFP+, All 16 can be used as 40GbE or 8 ports can breakout to 4x10GbE)
- 2 x 1100W Power Supplies
- 5 x Fan Modules
- 1 x Set Of Rails
- 1 x Serial Cable - 1J753
Description:
The S6100-ON is purpose-built for applications in high-performance data center and computing environments. Leveraging a non-blocking switching architecture, the S6100-ON delivers line-rate L2 and L3 forwarding capacity to maximize network performance. The compact design provides industry-leading density, conserving rack space while enabling denser footprints and simplifying migration to 100Gbps in the data center core. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S6100-ON ideally suited for DCB environments. In addition, the S6100-ON incorporates multiple architectural features that optimize data center network flexibility, efficiency and availability, including redundant, hot-swappable power supplies and fans.
The S6100-ON also supports Dell EMC Networking's Open Automation Framework, providing enhanced network automation and virtualization capabilities for virtual data center environments. The Open Automation Framework comprises a suite of inter-related network management tools that can be used together or independently to provide a network that is flexible, available and manageable while helping to reduce operational expenses. Built-in support for key network virtualization and softwaredefined networking initiatives help enable customers with future-ready agility, optimized for virtual services deployment and delivery.
The S6100-ON supports disaggregated hardware and software data center networking solutions, allowing organizations to deploy modern workloads and applications designed for the open networking era.
Organizations that once utilized the disaggregation model with their data center server platforms can now leverage even greater benefits from Dell open networking platforms. Take advantage of this disaggregated networking model using industry-leading hardware and a choice of leading network operating systems to simplify data center fabric orchestration and automation.
These new offerings provide the flexibility to transform data centers and offer high-capacity network fabrics that are easy to deploy and costeffective, providing a clear path to a software-defined data center. The Dell S6100-ON supports the industry standard Open Network Install Environment (ONIE) for zero touch installation of alternate network operating systems.
Key Features
- 2RU high-density 10/25/40/50/100GbE fixed switch with choice of up to 32 ports of 100GbE (QSFP28), 64 ports of 50GbE (QSFP28), 64 ports of 40GbE (QSFP+), 128 ports of 25GbE (SFP28) or 128 ports of 10GbE (using breakout cable) and two fixed SFP+ ports of 10GbE/1GbE/100MbE
- Up to 6.4Tbps of switching I/O bandwidth (full duplex) available and non-blocking switching fabric delivering line-rate performance under full load with sub usec latency
- Scalable L2 and L3 Ethernet switching with QoS and a full complement of standards-based IPv4 and IPv6 features, including OSPF and BGP routing support
- L2 multipath support via Virtual Link Trunking (VLT) and multiple VLT (mVLT) multi-chassis link aggregation technology
- VRF-lite enables sharing of networking infrastructure and provides L3 traffic isolation across tenants
- VXLAN gateway functionality support for optimized virtual operation
- Open Automation Framework adding automated configuration and provisioning capabilities to simplify the management of network environments
- Modular Dell Networking software delivering inherent stability as well as enhanced monitoring and serviceability functions
- Jumbo frame support for large data transfers
- 128 link aggregation groups with up to sixteen members per group, using enhanced hashing
- Redundant, hot-swappable power supplies and fans
Specification:
Physical:
- Compact full featured modular 10/25/40/100GE switch with four I/O module slots.
- Following I/O modules are supported in each empty slot:
- 16x 40GE QSFP+ I/O module
- 8x 100GE QSFP28 I/O module
- 4x 100GE CXP and 4x100GEQSFP28 IO module
- 1 RJ45 console/management port with RS232 signaling
- 1 10/100/1000bT Ethernet for management
- 1 USB 2.0 type A storage port
- 1 micro USB type B port for console/management port access
- 2 SFP+ 10GbE/1GbE ports for data access
Chassis:
- Size:2pxRU, 17.08"w x 18"d x 3.5"h
- Weight: Base with 2 PSU and Fans: 34 lbs (15.42kg)
- Add 4 IO modules : 44lbs (20kg)
Environmental:
- Power supply: 100-240 VAC 50/60 Hz
- Max. power consumption: 750 Watts
- Typ. power consumption: 350 Watts
- Max. operating specifications:
- Operating temperature: 32°F to 113°F (0°C to 45°C)
- Operating humidity: 10 to 90% (RH), noncondensing
- Max. non-operating specifications:
- Storage temperature: -40°F to 158°F (-40°C to 70°C)
- Storage humidity: 5 to 95% (RH), non-condensing
- Fresh Air Compliant to 45°C
- ReadyRails rack mounting system, no tools required
Redundancy:
- Two hot swappable power supplies with integrated fans
- Hot swappable redundant fan trays
Performance:
- Switching I/O bandwidth: 6.4Tbps
- Forwarding capacity: Up to 4400 Mpps (Full Duplex)
- MAC addresses: 160K
- IPv4 Unicast routes: 128K
- IPv6 Unicast routes: 64K
- IPv4 Multicast routes: 64K
- IPv6 Multicast routes: 32K
- Multicast Hosts: 8K
- ARP entries: 128K
- Layer 2 VLANs: 4K per port
- Layer 3 VLANs: 512 per system
- MST: 64 instances
- PVST+: 128 instances
- LAG: 128 groups, 16 members per LAG group
- LAG load balancing: Based on layer 2, IPv4 or IPv6 headers
- Latency: L2: 300ns, L3: 400ns
- Packet buffer memory: 16MB
- CPU memory: 8GB
- QOS data queues: 8
- QOS control queues:12
- QOS: Default 768 entries scalable to 2.5K
- ACL Support: 3K
CS 294354
specifications
-
MPN:S6100-ON
