NHG3J

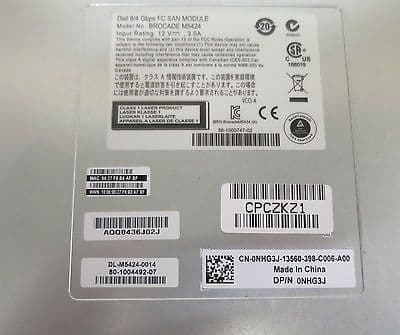

DL-M5424-0014 80-1004492-07
Dell Pro Support PLUS 24/7 365 Warranty till 16/11/16
In good condition and full working order
Included

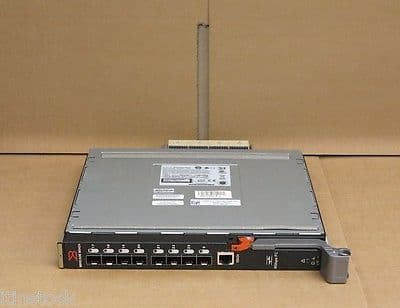

- 1 x Dell NHG3J Brocade M5424 8GB Fibre Channel Blade Switch for M1000E
The Brocade® M5424 switch and the Dell™ PowerEdge™ M1000e blade enclosure provide robust solutions for Fibre Channel SAN deployments. Not only does this offering help simplify and reduce the amount of SAN hardware components required for a deployment, but it alsomaintains the scalability, performance, interoperability and managementof traditional SAN environments.
Features
- Ideal for larger storage area networks (SANs)
- Integration of SAN switching capabilities that can help to reduce complexity and increase SAN manageability
- Up to 16 internal fabric ports and up to 8 2GB/4GB/8GB auto-sensing uplinks
Specifications
- Up to 24 universal ports (E_Port, F_Port, and N_Port)
- Full fabric architecture with 239 switches maximum
- Single Brocade FOS fabric: 56 domains, 19 hops Single Brocade M-EOS fabric: 31 domains, 3 hops Larger fabrics certified as required; consult Brocade or OEM SAN design documents for configuration details
- 8.5 Gbit/sec line speed, full duplex;
- 4.25 Gbit/sec line speed, full duplex;
- 2.125 Gbit/sec line speed, full duplex
- 1.063 Gbit/sec line speed, full duplex;
- auto-sensing of 8, 4, 2, and 1 Gbit/sec port speeds; optionally programmable to fixed port speed; speed matching between 8, 4, 2, and 1 Gbit/sec ports
- Inter-Switch Link (ISL) Trunking allows all eight external SAN ports to be combined to form a single, logical ISL with an aggregate bandwidth of 64Gb delivering scalable I/O bandwidth utilization and load balancing.
- Aggregate bandwidth 384 Gbit/sec end-to-end (full duplex)
- Fabric latency 700 ns with no contention, cut through routing at 8 Gbit/sec
- Maximum frame size 2112-byte payload
- Classes of Service Class 2, Class 3, Class F (inter-switch frames)
- Port Types FL_Port, F_Port, M_Port (Mirror Port), and E_Port; self-discovery based on switch type (U_Port); optional port type control in Brocade Access Gateway mode: F_Port and NPIV-enabled N_Port
- Data Traffic Types Fabric switches supporting unicast and broadcast
- Fabric Services Simple Name Server (SNS); Registered State Change Notification (RSCN), NTP v3, Reliable Commit Service (RCS), Dynamic Path Selection (DPS), Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning), NPIV, and FDMI
- Supported Mgmt Software Telnet, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB); Auditing, Syslog, Change Management tracking; EZSwitchSetup wizard; Brocade Advanced Web Tools; Brocade DCFM Professional/Enterprise; SMI-S compliant, SMI-S scripting toolkit, Administrative Domains
- Security SSL, SSH v2, HTTPS, LDAP, RADIUS, Role-Based Access Control (RBAC), DH-CHAP (between switches and end devices), Port Binding, Switch Binding, Secure RPC, Secure Copy (SCP), Trusted Switch, IPSec, IP Filtering
- Management access In-band over Fibre Channel; serial port (RJ-45); call-home integration enabled through Brocade DCFM
- Diagnostics POST and embedded online/offline diagnostics, including RAStrace logging, environmental monitoring, non-disruptive daemon restart,FCping and Pathinfo (FC traceroute), port mirroring (SPAN port)
- Width: 272.75 mm
- Height: 32.48 mm
- Depth: 307.24 mm
- Weight: 4.65 Pounds— without media
|
