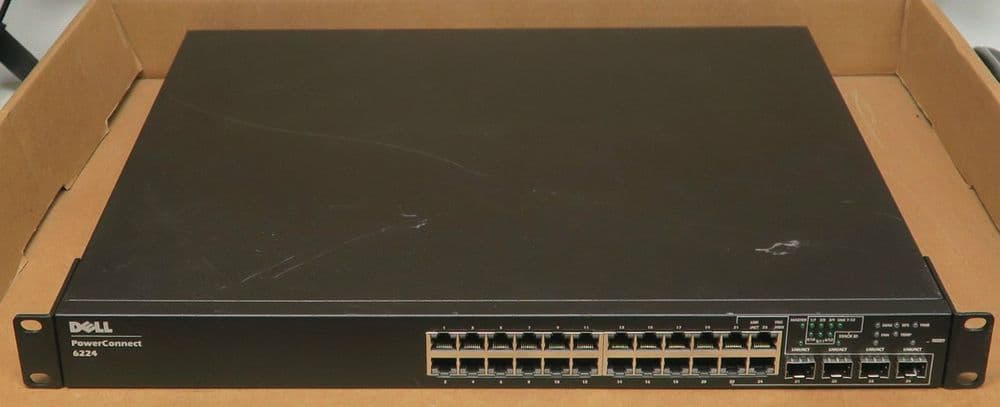

With 24 or 48 built-in copper Gigabit Ethernet portsin a 1U form factor, as well as a 24 port Fiber GbEversion for backbone or long-haul connectivity, thePowerConnect 6200 series gives users the flexibilityto maximize server and workstation connectivity ina 1U form factor. The switches also offer support upto four 10 Gigabit Ethernet uplinks for connectivitydirectly to 10GbE servers, enterprise backbonesand data centers.High-performance stacking with 10GbEThe PowerConnect 6200 series supports highperformanceresilient stacking for up to twelvesystems and almost 2 Terabits of capacity in a singlestack (each switch supports up to 184 Gbps in switchcapacity). The unique modular design allows you toupgrade to advanced stacking or 10 Gigabit Ethernetonly when you need it. Plus the 6200 series offersfurther flexibility with optional modules that allowfor either 10 Gigabit copper interfaces, or both. Theoptional stacking interfaces allow for high availabilitystacking with sub-100ms failover times, even in theevent of a master unit failure.Advanced switching features withrobust securityThe PowerConnect 6200 series supports advancedLayer 3 routing and multicast protocols to helpreduce congestion and manage traffic in thenetwork. The PowerConnect 6200 series supportsfrequently used LAN routing protocols such asRIPv1/v2, OSPFv2/v3, VRRP, IGMP, DVMRP, PIM andLLDP-MED. The PowerConnect 6200 offers flexibilityin Quality of Service (QoS) by giving networkadministrators the ability to prioritize time-criticalLayer 2 or Layer 3 network traffic.Support for L2-L4 Access Control Lists (ACLs) onthe switch allows the user to perform deep packetinspection. 802.1x port authentication offers bothsingle and multiple host access. Further securityis provided through Denial of Service (DoS) AttackPrevention, whereby the switch can protect againstcommon network attacks. PowerConnect 6200switches are IPv6 ready.

• Interfaces Gigabit Ethernet
• Ports 24 x 10/100/1000 + 4 x shared SFP
• Height (Rack Units) 1 m
• Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS+
• RAM 256 MB - SDRAM
• Flash Memory 32 MB
• Features Flow control, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, manageable, Broadcast Storm Control, IPv6 support
• MAC Address Table Size 16K entries
• Status Indicators Link activity, port transmission speed, port duplex mode, power, link OK
• Encryption Algorithm SSL, SSL 3.0, SSL 2.0
• Routing Protocol OSPF, RIP-1, RIP-2, DVMRP, VRRP, OSPFv2, static IP routing, OSPFv3
• Width 17.3 in
• Depth 15.2 in
• Height 1.7 in
• Weight 12.13 lbs
• ManufacturerDell, Inc.
