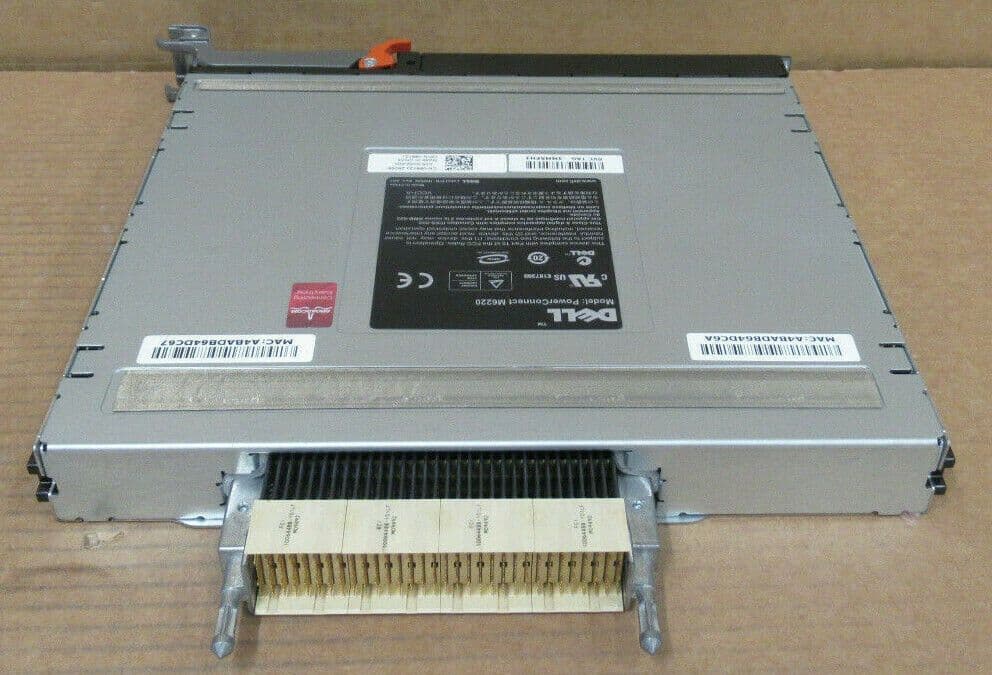

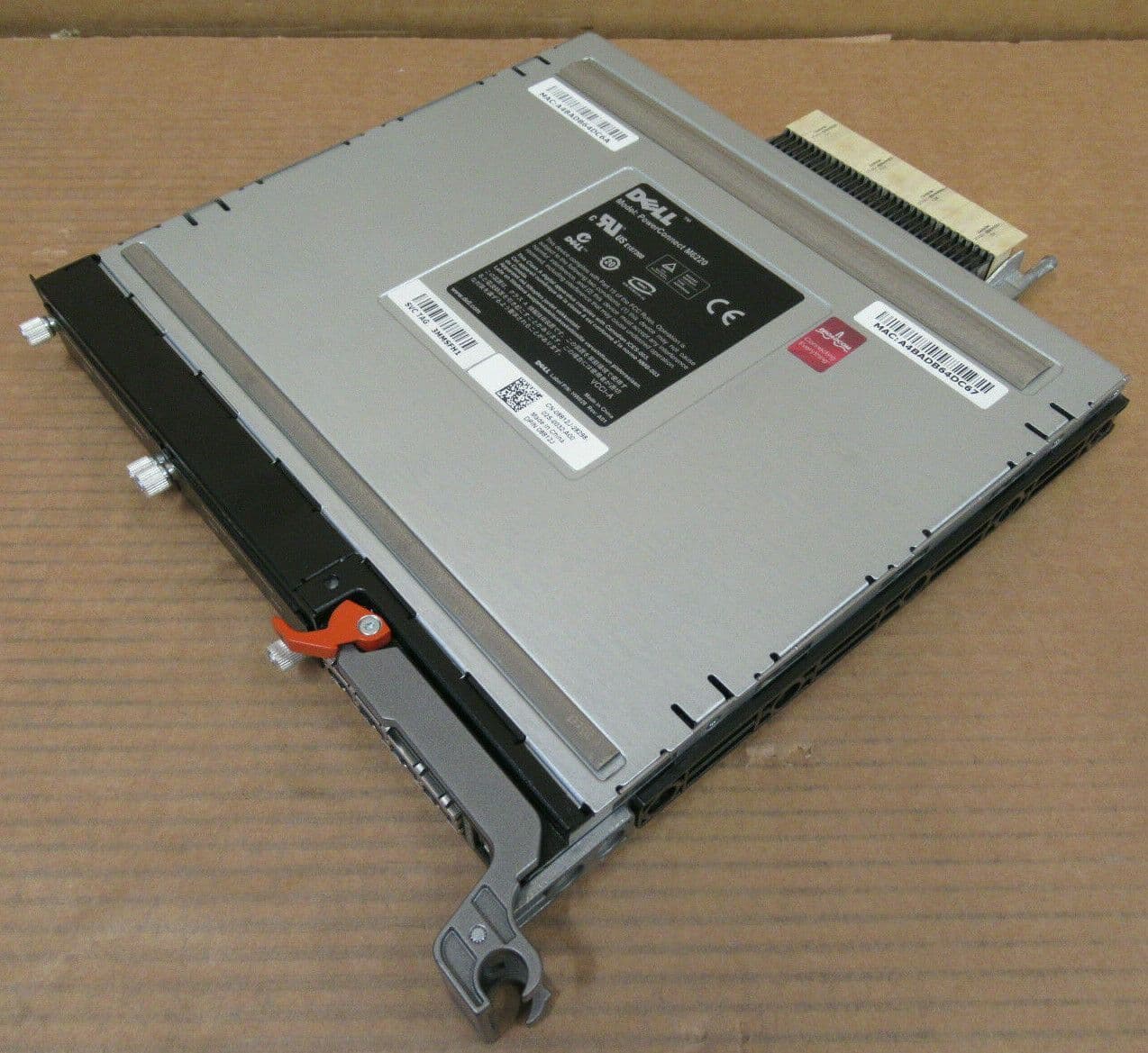

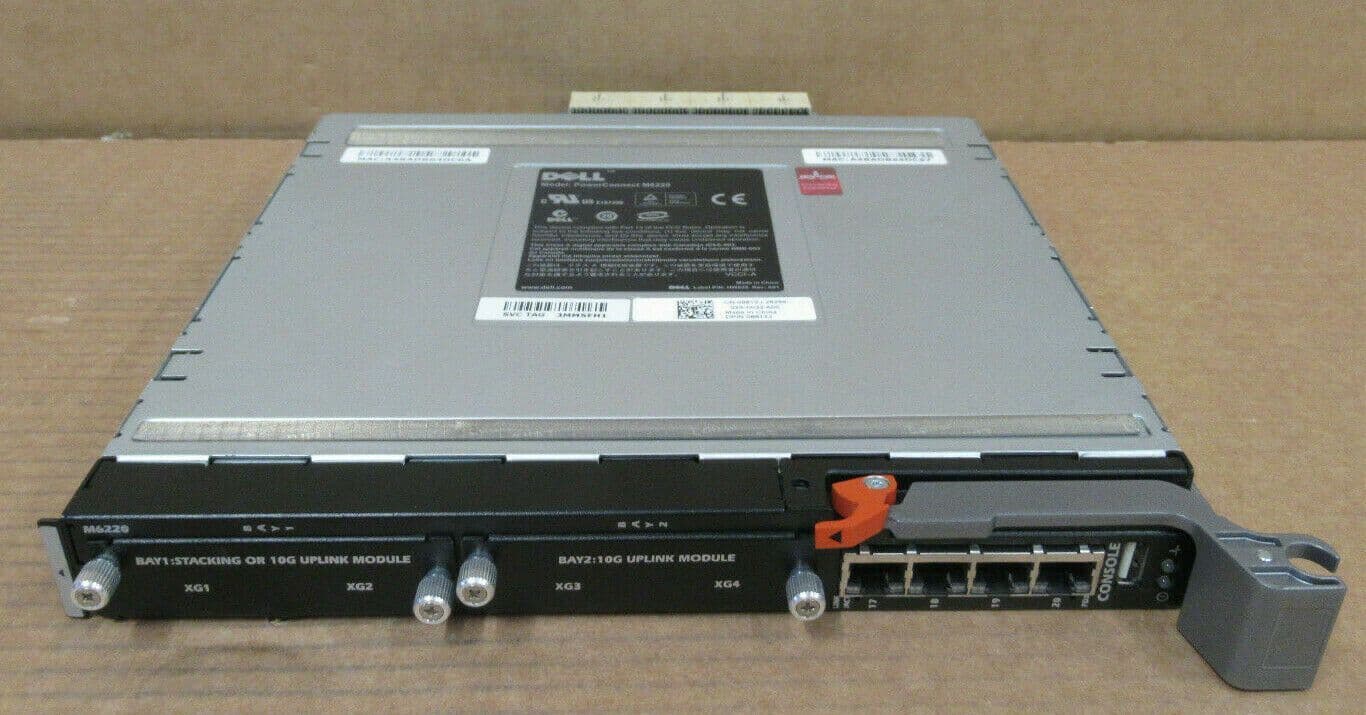

Dell PowerConnect Ethernet 20 Port Switch PowerEdge M1000e Blade Chassis 8812J

8812J PowerConnect Ethernet 20 Port Switch for PowerEdge M1000e Blade Enclosure.

Port Attributes

• 20 10/100/1000BASE-T Auto-Sensing Gigabit Ethernet Switching Ports (16 Internal, 3 External)
• 10 Gigabit Ethernet Uplink Modules (Optional)
• 48Gbps Stacking Module (Optional)
• Auto-Negotiation for Speed, Duplex Model and Flow Control
• Auto MDI/MDIX
• Port Mirroring
• Flow-Based Port Mirroring
• Broadcast Storm Control

Performance

• Switch Fabric Capacity 128 Gbps
• 95 Mpps Forwarding Rate
• Up to 8,000 MAC Addresses
• 256MB of CPU SDRAM
• 32MB Flash Memory

Management

• Web-Based Management Interface
• Industry-Standard CLI Accessible via Telnet or Local Serial Port
• SNMPv1, SNMP v2c and SNMPv3 Support
• 4 RMON Groups Supported
  • History, Statistics Alarms and Events
• TFTP Transfers of Firmware and Configuration Files
• Dual Firmware Images On-Board
• Multiple Configuration File Upload/Download Supported
• Syslog Remote Logging Capabilities

Chassis

• 10.5" x 10.2" x 1.2" (W x D x H)
• 5.8 LBs (Appoximate)
