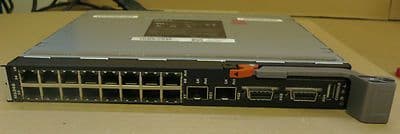

Dell PowerConnect M6348 Ethernet Blade Switch for PowerEdge M1000e Blade Chassis
Part number K968K
Tested, with Dell Pro-Support 24/7 4 hour response on-site warranty till March 2013
With SanSurfer and M6348 setup CD.
The PowerConnect™ M6348 Ethernet blade switch delivers increased port density that is valuable to blades utilizing virtualization in today’s data centers.
- 32 internal Gigabit Ethernet (GbE) server ports (two per server blade)
- 16 external integrated RJ45 GbE ports
- Stacking for up to 12 systems
- Supports CX4 and small form-factor pluggable + (SFP+) 10GE uplink connections
Porrt Attributes
- 48 auto-sensing 10/100/1000BASE-T Gigabit Ethernet switching ports:
- 32 internal server ports
- 16 external RJ45 Ethernet ports
- Two 10GE SFP+ uplink ports
- Two CX4 / 32Gbps Stacking ports (each port can be configured as either CX4 or 32Gbps stacking. 16Gbps in each direction)
- Auto-negotiation for speed, duplex mode and flow control
- Auto MDI/MDIX
- Port mirroring
- Flow-based port mirroring
- Broadcast storm control
- Performance
- Switch Fabric Capacity 184 Gb/s
- Forwarding Rate up to 160 Mpps
- Up to 32K MAC Addresses
- 512MB of CPU SDRAM
- 64MB of Flash Memory
Layer 3 Routing Performance
- Up to 10K IPv4 Routes
- Up to 3K IPv6 Routes
- Up to 512 RIP Routing Interfaces
- Maximum OSPF V2 LSAs is 25165
- Maximum OSPF V3 LSAs is 16992
- Up to 32 routes for ECMP Routing; up to 4 next hops per ECMP
- Up to 128 VLAN Routing Interfaces
- Up to 2K Multicast Forwarding Entries
- Up to 400 NDP entries
- Up to 8K IPv4 ARP Entries
- Up to 4K IPv6 ARP Entries
Availability
- Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
- Multiple spanning trees (IEEE 802.1s)
- Supports Virtual Redundant Routing Protocol (VRRP)
- Cable diagnostics
- Optical transceiver diagnostics
VLAN
- VLAN support for tagging and port-based as per IEEE 802.1Q
- Double VLAN tagging (QinQ)
- Up to 1024 VLANs supported
- Dynamic VLAN with GVRP support
- Voice VLAN support
Quality of Service
- Layer 2 Trusted Mode (IEEE 802.1p tagging)
- Layer 3 Trusted Mode (DSCP)
- Layer 4 Trusted Mode (TCP/UDP)
- Advanced Mode using Layer 2/3/4 flow-based Policies, including metering/rate limiting, marking and bandwidth guarantees; up to 100 ACLs can be used for QoS flow identification via Class-maps
- 8 Priority Queues per Port
- Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling
- Port-based QoS Services Mode
- Flow-based QoS Services Mode
Multicast
- Static IP Multicast
- Dynamic Multicast Support – 1024 Multicast groups supported in IGMP Snooping
- IGMP snooping for IP multicast support
- IGMP and MLD snooping Querier
- Protocol Independent Multicast (PIM-DM, PIM-SM)
- IEEE 802.1x based edge authentication -- supports single and multiple host access, guest access, and voice authorization.
- Switch access password protection
- User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
- IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
- RADIUS and TACACS+ remote authentication for switch management access
- Up to 100 Access Control Lists (ACLs) supported; up to 12 Access Control Entries (ACEs) per ACL
- SSLv3 and SSHv2 encryption for switch management traffic
- Management access filtering via Management Access Profiles
- Link Aggregation with support for up to 48 LAGs total, up to 18 of which can be dynamic, aggregated links, 8 dynamic aggregated links per switch and up to 8 member ports per aggregated link; LACP support (IEEE 802.3ad), LLDP-MED
Support for unicast NLB (multicast NLB not supported)
Management
- Supports a simple switch mode to allow auto configuration of complex network settings
- Web-based management interface
- Industry-standard CLI accessible via Telnet, SSH or Local Serial Port
- SNMPv1, SNMP v2c and SNMPv3 supported
- 4 RMON groups supported (history, statistics, alarms and events)
- FTP, HTTP, FTP, SFTP and SCP transfers of firmware and configuration files
- Dual Firmware images on-board
- Multiple Configuration file upload/download supported
- Statistics for error monitoring and performance optimization including port summary tables
- BootP/DHCP IP address and configuration management supported
- Syslog remote logging capabilities
- Temperature sensors for environmental monitoring
