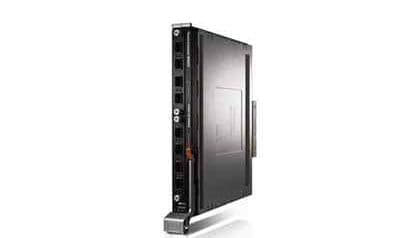

Dell PowerConnect M8024 10GbE 10 Gigabit Switch For M1000e 0N700D N700D

• 1 x Dell PowerConnect M8024 10GbE 10 Gigabit Switch 0N700D N700D

Specifications

Port Attributes

• 24 auto-sensing 1/10Gb Ethernet switching ports available
• 16 internal server 1/10Gigabit Ethernet ports
• Flexible media choices for up to 2 external 10GE uplink modules per switch
• 4-port SFP+ 10GbE module (SFP+ ports are 10GE only)
• 3-port CX-4 10GbE copper module (CX4 ports are 10GE only)
• 2-port 10Gb Base-T copper RJ45 module
• Auto-negotiation for speed, duplex mode and flow control
• Auto MDI/MDIX
• Port mirroring
• Flow-based port mirroring
• Broadcast storm control

Performance

• Switch Fabric Capacity 240 Gb/s
• Forwarding Rate 357 Mpps
• Up to 16K MAC Addresses
• 512MB of CPU SDRAM
• 32MB of Flash Memory

Availability

• Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
• Multiple spanning trees (IEEE 802.1s)
• Supports Virtual Redundant Routing Protocol (VRRP)

Routing

• Layer 3 Routing Protocols
• Static routes
• Routing Information Protocol (RIP) v1/v2
• Open Shortest Path First (OSPF) v1/v2/v3
• Classless Inter-Domain Routing (CIDR)
• Internet Control Message Protocol (ICMP)
• ICMP Router Discover Protocol (IRDP)
• Virtual Redundant Routing Protocol (VRRP)
• Address Resolution Protocol (ARP)
• Internet Group Management Protocol (IGMP) v2
• Distance-Vector Multicast Routing Protocol (DVMRP)
• DHCP – Helper/Relay
• Support IGMP v3

Layer 3 Routing Performance

• Up to 128 RIP Routing Interfaces
• Up to 128 OSPF Routing Interfaces; up to 128 OSPF Areas; up to 128 Routing Interfaces per OSPF
• Area; up to 32 routes for ECMP Routing; up to 4 next hops per ECMP
• Up to 128 VLAN Routing Interfaces
• Up to 256 Multicast Forwarding Entries
• Up to 8K ARP entries; Up to 4K NDP entries

VLAN

• VLAN support for tagging and port-based as per IEEE 802.1Q
• Double VLAN tagging (QinQ)
• Up to 1024 VLANs supported
• Dynamic VLAN with GVRP support

Quality of Service

• Layer 2 Trusted Mode (IEEE 802.1p tagging)
• Layer 3 Trusted Mode (DSCP)
• Layer 4 Trusted Mode (TCP/UDP)
• Advanced Mode using Layer 2/3/4 flow-based Policies, including metering/rate limiting, marking and bandwidth guarantees; up to 100 ACLs can be used for QoS flow identification via Class-maps
• 8 Priority Queues per Port
• Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling
• Port-based QoS Services Mode
• Flow-based QoS Services Mode

Multicast

• Static IP Multicast
• Dynamic Multicast Support – 1024 Multicast groups supported in IGMP Snooping
• IGMP snooping for IP multicast support
• IGMP Querier
• Protocol Independent Multicast (PIM-DM, PIM-SM)

Security

• IEEE 802.1x based edge authentication -- supports single and multiple host access, guest access, voice authorization, and Microsoft Active Directory
• Switch access password protection
• User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
• Port-based MAC Address alert and lock-down
• IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
• RADIUS and TACACS+ remote authentication for switch management access
• Up to 100 Access Control Lists (ACLs) supported; up to 28 Access Control Entries (ACEs) per ACL
• SSLv3 and SSHv2 encryption for switch management traffic
• Management access filtering via Management Access Profiles

Other Switching

• Link Aggregation with support for up to 12 static aggregated links, 8 dynamic aggregated links per switch and up to 8 member ports per aggregated link; LACP support (IEEE 802.3ad)
• Support for unicast NLB (multicast NLB not supported)

Management

• Supports a simple switch mode to allow auto configuration of complex network settings
• Web-based management interface
• Industry-standard CLI accessible via Telnet or Local Serial Port
• SNMPv1, SNMP v2c and SNMPv3 supported
• 4 RMON groups supported (history, statistics, alarms and events)
• TFTP transfers of firmware and configuration files
• Dual Firmware images
• Multiple Configuration file upload/download supported
• Statistics for error monitoring and performance optimization including port summary tables
• BootP/DHCP IP address management supported
• Syslog remote logging capabilities
• Temperature sensors for environmental monitoring

Chassis

• 267 x 258 x 31mm (W x D x H)
• 10.5" x 10.2" x 1.2"
• Approximate weight: 2.7kg, 5.8 lbs

Hardware

• 512MB of CPU SDRAM
• 32MB of Flash Memory

MIB Support

• RFC 1213 MIB II
• RFC 1215 Standard Traps
• RFC 1286 Bridge MIB
• RFC 1442 SMIv2 (SNMPv2 MIB)
• RFC 1451 Manager-to-Manager MIB
• RFC 1492 TACACS+
• RFC 1493 Definitions of Managed Objects for Bridges
• RFC 1573 Evolution of Interfaces
• RFC 1643 Etherlike MIB
• RFC 1757 Remote Network Monitoring (RMON) MIB
• RFC 1907 SNMP v2 MIB
