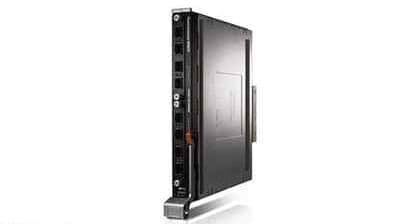

Dell PowerConnect M8024 10GbE 10 Gigabit Switch For M1000e 0T300D T300D

mpn: 0T300D T300D
product brand: Dell
product condition: Used
excluding vat: £285.00
including vat: £342.00
LinkedIn
information
Dell PowerConnect M8024 10GbE 10 Gigabit Switch

0T300D T300D

In good condition and full working order


For M1000e Blade Chassis

Included
  • 1 x Dell PowerConnect M8024 10GbE 10 Gigabit Switch 0T300D T300D

Specifications


Port Attributes

  • 24 auto-sensing 1/10Gb Ethernet switching ports available
  • 16 internal server 1/10Gigabit Ethernet ports
  • Flexible media choices for up to 2 external 10GE uplink modules per switch
  • 4-port SFP+ 10GbE module (SFP+ ports are 10GE only)
  • 3-port CX-4 10GbE copper module (CX4 ports are 10GE only)
  • 2-port 10Gb Base-T copper RJ45 module
  • Auto-negotiation for speed, duplex mode and flow control
  • Auto MDI/MDIX
  • Port mirroring
  • Flow-based port mirroring
  • Broadcast storm control

Performance

  • Switch Fabric Capacity 240 Gb/s
  • Forwarding Rate 357 Mpps
  • Up to 16K MAC Addresses
  • 512MB of CPU SDRAM
  • 32MB of Flash Memory

Availability

  • Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
  • Multiple spanning trees (IEEE 802.1s)
  • Supports Virtual Redundant Routing Protocol (VRRP)

Routing

  • Layer 3 Routing Protocols
  • Static routes
  • Routing Information Protocol (RIP) v1/v2
  • Open Shortest Path First (OSPF) v1/v2/v3
  • Classless Inter-Domain Routing (CIDR)
  • Internet Control Message Protocol (ICMP)
  • ICMP Router Discover Protocol (IRDP)
  • Virtual Redundant Routing Protocol (VRRP)
  • Address Resolution Protocol (ARP)
  • Internet Group Management Protocol (IGMP) v2
  • Distance-Vector Multicast Routing Protocol (DVMRP)
  • DHCP – Helper/Relay
  • Support IGMP v3

Layer 3 Routing Performance

  • Up to 128 RIP Routing Interfaces
  • Up to 128 OSPF Routing Interfaces; up to 128 OSPF Areas; up to 128 Routing Interfaces per OSPF
  • Area; up to 32 routes for ECMP Routing; up to 4 next hops per ECMP
  • Up to 128 VLAN Routing Interfaces
  • Up to 256 Multicast Forwarding Entries
  • Up to 8K ARP entries; Up to 4K NDP entries

VLAN

  • VLAN support for tagging and port-based as per IEEE 802.1Q
  • Double VLAN tagging (QinQ)
  • Up to 1024 VLANs supported
  • Dynamic VLAN with GVRP support

Quality of Service

  • Layer 2 Trusted Mode (IEEE 802.1p tagging)
  • Layer 3 Trusted Mode (DSCP)
  • Layer 4 Trusted Mode (TCP/UDP)
  • Advanced Mode using Layer 2/3/4 flow-based Policies, including metering/rate limiting, marking and bandwidth guarantees; up to 100 ACLs can be used for QoS flow identification via Class-maps
  • 8 Priority Queues per Port
  • Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling
  • Port-based QoS Services Mode
  • Flow-based QoS Services Mode

Multicast

  • Static IP Multicast
  • Dynamic Multicast Support – 1024 Multicast groups supported in IGMP Snooping
  • IGMP snooping for IP multicast support
  • IGMP Querier
  • Protocol Independent Multicast (PIM-DM, PIM-SM)

Security

  • IEEE 802.1x based edge authentication -- supports single and multiple host access, guest access, voice authorization, and Microsoft Active Directory
  • Switch access password protection
  • User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
  • Port-based MAC Address alert and lock-down
  • IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
  • RADIUS and TACACS+ remote authentication for switch management access
  • Up to 100 Access Control Lists (ACLs) supported; up to 28 Access Control Entries (ACEs) per ACL
  • SSLv3 and SSHv2 encryption for switch management traffic
  • Management access filtering via Management Access Profiles

Other Switching

  • Link Aggregation with support for up to 12 static aggregated links, 8 dynamic aggregated links per switch and up to 8 member ports per aggregated link; LACP support (IEEE 802.3ad)
  • Support for unicast NLB (multicast NLB not supported)

Management

  • Supports a simple switch mode to allow auto configuration of complex network settings
  • Web-based management interface
  • Industry-standard CLI accessible via Telnet or Local Serial Port
  • SNMPv1, SNMP v2c and SNMPv3 supported
  • 4 RMON groups supported (history, statistics, alarms and events)
  • TFTP transfers of firmware and configuration files
  • Dual Firmware images
  • Multiple Configuration file upload/download supported
  • Statistics for error monitoring and performance optimization including port summary tables
  • BootP/DHCP IP address management supported
  • Syslog remote logging capabilities
  • Temperature sensors for environmental monitoring

Chassis

  • 267 x 258 x 31mm (W x D x H)
  • 10.5" x 10.2" x 1.2"
  • Approximate weight: 2.7kg, 5.8 lbs

Hardware

  • 512MB of CPU SDRAM
  • 32MB of Flash Memory
Standards Supported
  • IEEE 802.1AB
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.2
  • IEEE 802.3
  • IEEE 802.3I
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.ab
  • IEEE 802.3ac
  • IEEE 802.3ad
  • IEEE 802.3ae
  • IEEE 802.3ak
