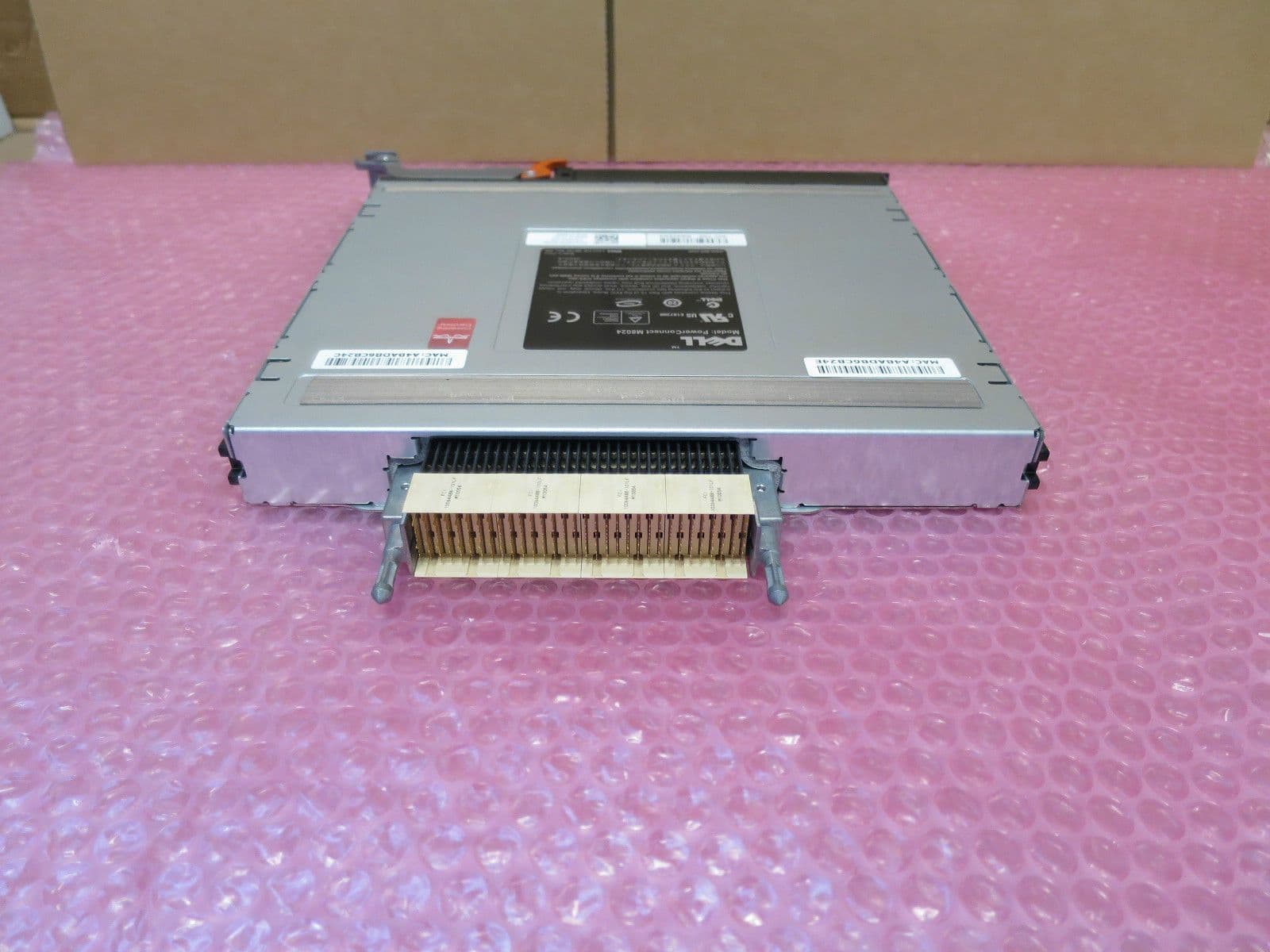

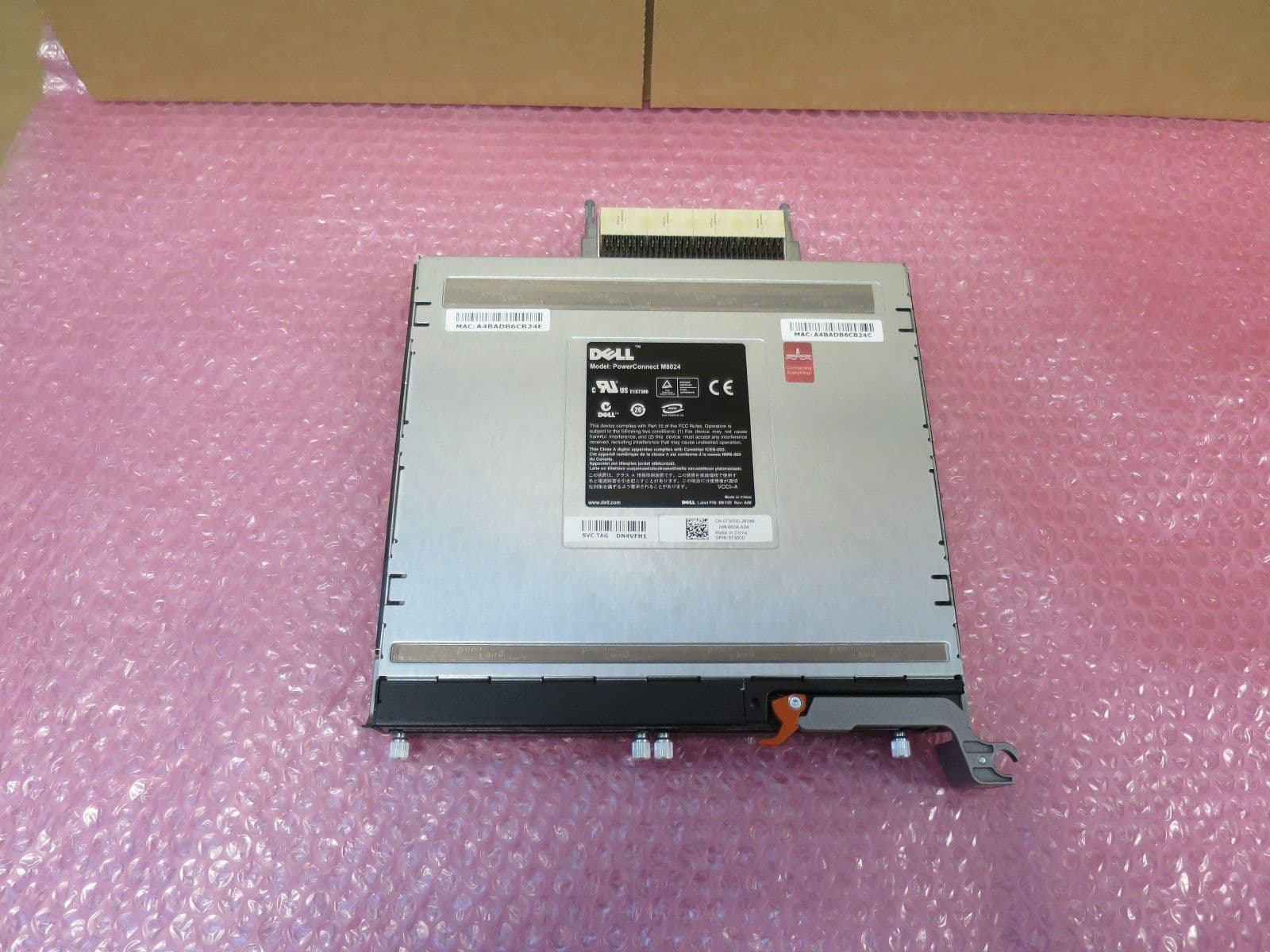

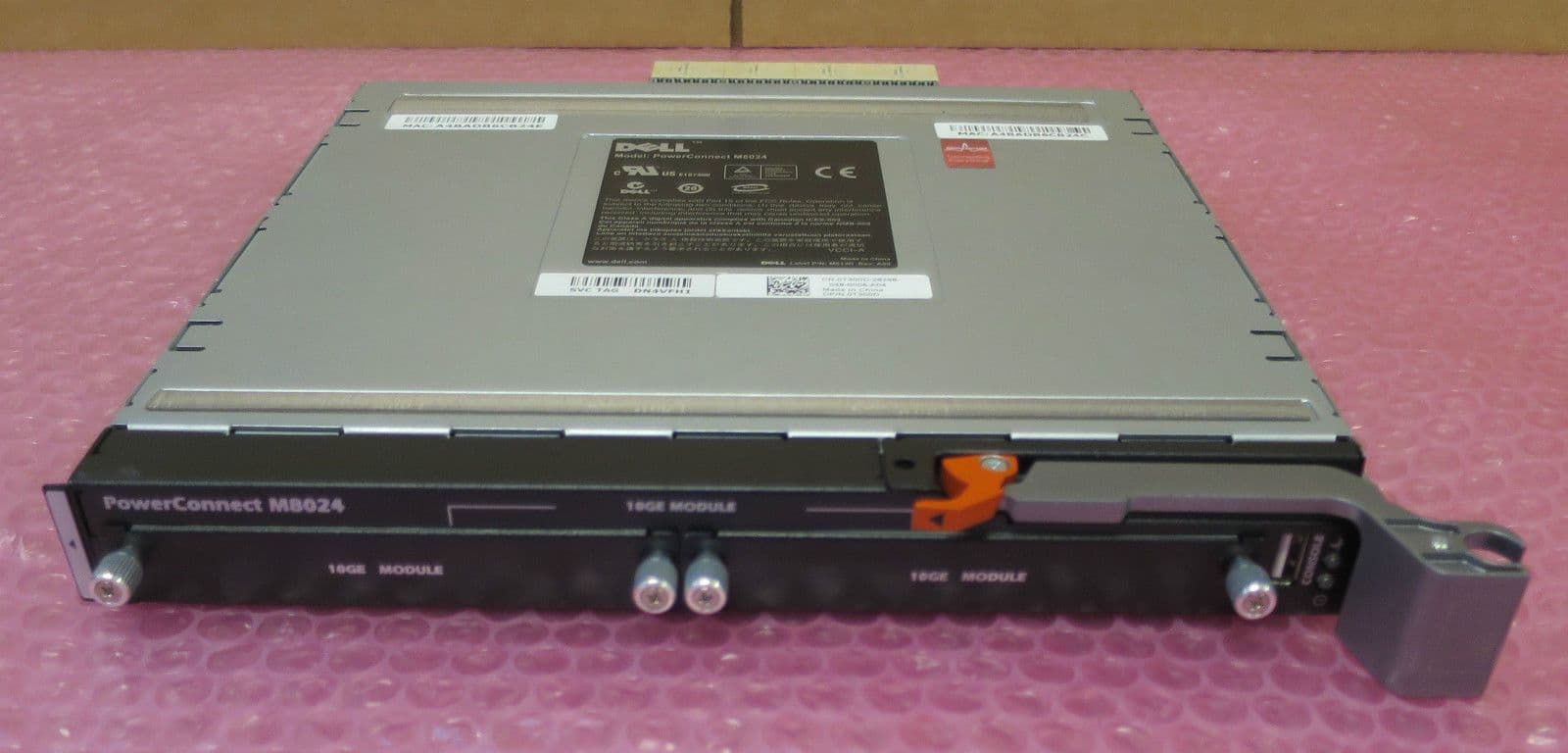

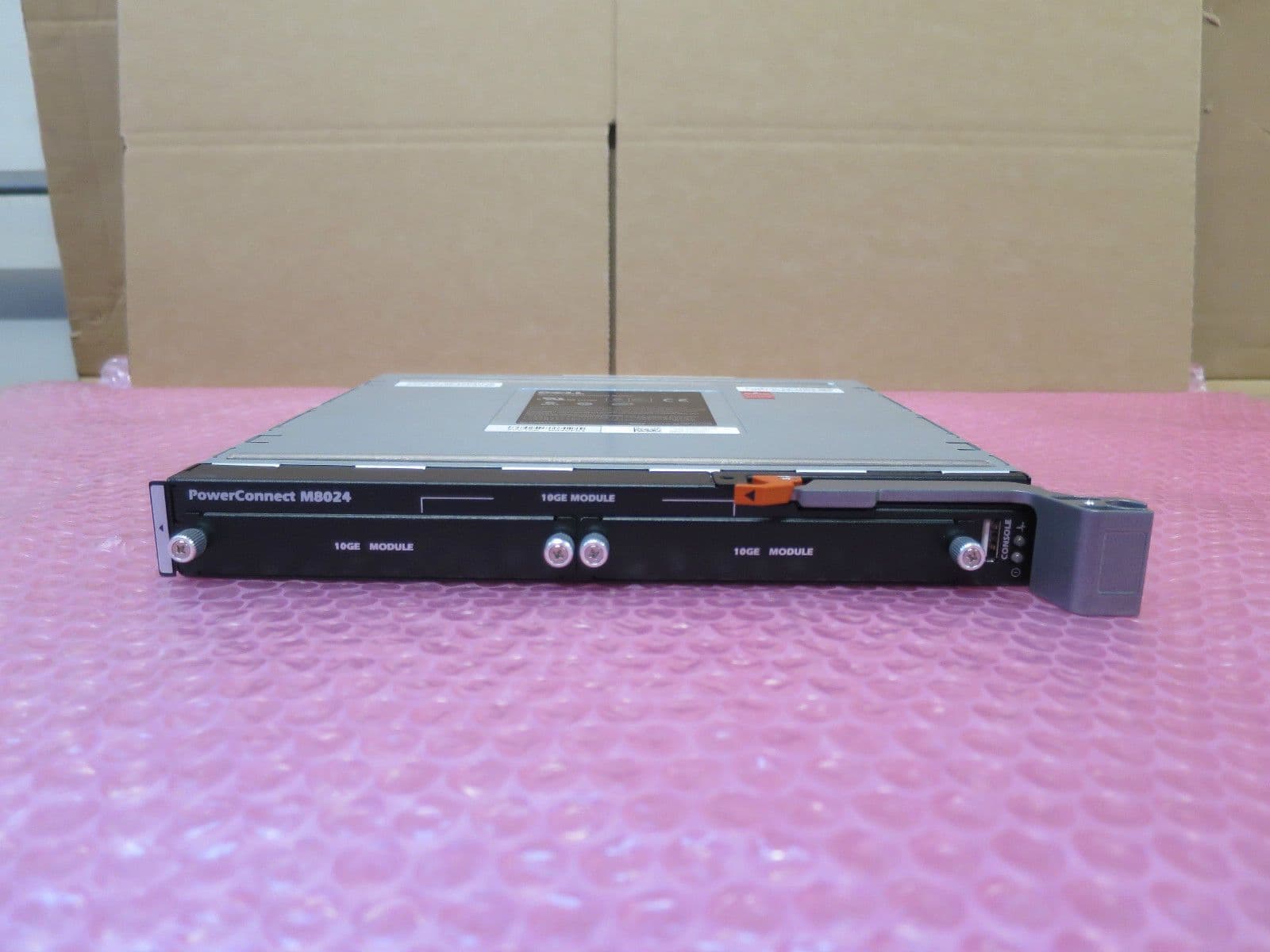

Dell PowerConnect M8024 24 port 10GbE 10 Gigabit Switch for M1000e T300D H83HF
In good condition and in full working order - tested - 12 months warranty
SpecificationsPort Attributes
Performance
Availability
Routing
Layer 3 Routing Performance
VLAN
Quality of Service
Multicast
Security
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
148489 -1
Dell PowerConnect M8024 24 port 10GbE 10 Gigabit Switch for M1000e T300D H83HF
In good condition and in full working order - tested - 12 months warranty
Specifications
- 24 auto-sensing 1/10Gb Ethernet switching ports available
- 16 internal server 1/10Gigabit Ethernet ports
- Flexible media choices for up to 2 external 10GE uplink modules per switch
- 4-port SFP+ 10GbE module (SFP+ ports are 10GE only)
- 3-port CX-4 10GbE copper module (CX4 ports are 10GE only)
- 2-port 10Gb Base-T copper RJ45 module
- Auto-negotiation for speed, duplex mode and flow control
- Auto MDI/MDIX
- Port mirroring
- Flow-based port mirroring
- Broadcast storm control
- Switch Fabric Capacity 240 Gb/s
- Forwarding Rate 357 Mpps
- Up to 16K MAC Addresses
- 512MB of CPU SDRAM
- 32MB of Flash Memory
- Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
- Multiple spanning trees (IEEE 802.1s)
- Supports Virtual Redundant Routing Protocol (VRRP)
- Layer 3 Routing Protocols
- Static routes
- Routing Information Protocol (RIP) v1/v2
- Open Shortest Path First (OSPF) v1/v2/v3
- Classless Inter-Domain Routing (CIDR)
- Internet Control Message Protocol (ICMP)
- ICMP Router Discover Protocol (IRDP)
- Virtual Redundant Routing Protocol (VRRP)
- Address Resolution Protocol (ARP)
- Internet Group Management Protocol (IGMP) v2
- Distance-Vector Multicast Routing Protocol (DVMRP)
- DHCP – Helper/Relay
- Support IGMP v3
- Up to 128 RIP Routing Interfaces
- Up to 128 OSPF Routing Interfaces; up to 128 OSPF Areas; up to 128 Routing Interfaces per OSPF
- Area; up to 32 routes for ECMP Routing; up to 4 next hops per ECMP
- Up to 128 VLAN Routing Interfaces
- Up to 256 Multicast Forwarding Entries
- Up to 8K ARP entries; Up to 4K NDP entries
- VLAN support for tagging and port-based as per IEEE 802.1Q
- Double VLAN tagging (QinQ)
- Up to 1024 VLANs supported
- Dynamic VLAN with GVRP support
- Layer 2 Trusted Mode (IEEE 802.1p tagging)
- Layer 3 Trusted Mode (DSCP)
- Layer 4 Trusted Mode (TCP/UDP)
- Advanced Mode using Layer 2/3/4 flow-based Policies, including metering/rate limiting, marking and bandwidth guarantees; up to 100 ACLs can be used for QoS flow identification via Class-maps
- 8 Priority Queues per Port
- Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling
- Port-based QoS Services Mode
- Flow-based QoS Services Mode
- Static IP Multicast
- Dynamic Multicast Support – 1024 Multicast groups supported in IGMP Snooping
- IGMP snooping for IP multicast support
- IGMP Querier
- Protocol Independent Multicast (PIM-DM, PIM-SM)
- IEEE 802.1x based edge authentication -- supports single and multiple host access, guest access, voice authorization, and Microsoft Active Directory
- Switch access password protection
- User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
- Port-based MAC Address alert and lock-down
- IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
- RADIUS and TACACS+ remote authentication for switch management access
- Up to 100 Access Control Lists (ACLs) supported; up to 28 Access Control Entries (ACEs) per ACL
- SSLv3 and SSHv2 encryption for switch management traffic
- Management access filtering via Management Access Profiles
148489 -1
specifications
-
MPN:T300D H83HF
