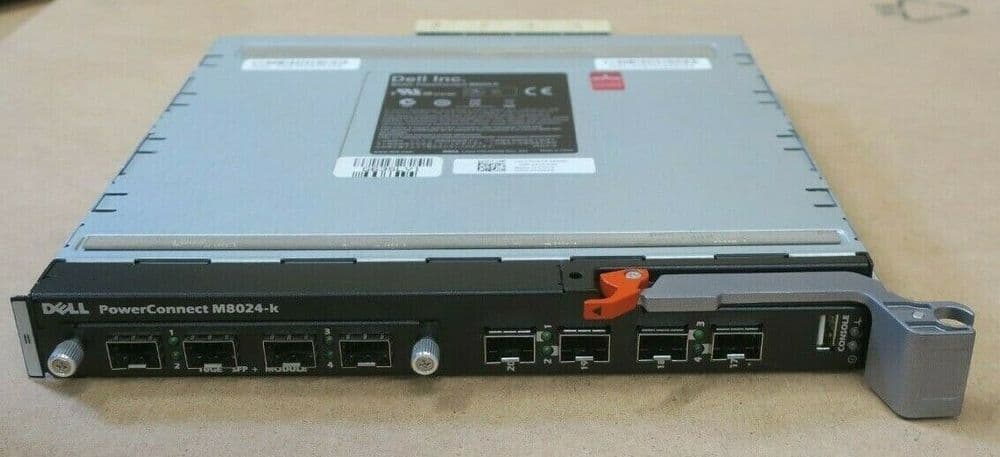

Dell PowerConnect M8024-k 20x 10GbE SFP+ Blade Switch YRKD0 + M8024-SFP+ N805D
In Good Condition, Full Working Order
Tested
1 Year Warranty
Includes:
- 1 x Dell PowerConnect M8024-k 20x 10GbE SFP+ Blade Switch YRKD0 with:
- 1 x Dell PowerConnect M8024-SFP+ Quad Port 10GbE Uplink Module N805D
Description:
Expand the value of your blade investment with Dell PowerConnect M8024-k, deliveringperformance and scalability in a flexible package that are designed to meet the shifting demands ofyour business and data center as you transition to 10Gb Ethernet. Providing 10Gb Ethernetconnectivity for up to sixteen M-Series blade servers equipped with the latest KR-based 10Gb networkdaughter cards (NDCs) or mezzanine cards, M8024-k simplifies deployment and management of MSeries blades within 10Gb Ethernet infrastructures. Not ready for 10Gb? No worries, as M8024-ksupports 1Gb connections both to the server and to LAN, ensuring you'll be ready for 10Gb when thetime comes. M8024-k's enhanced bandwidth, performance, and flexibility satisfy the changingdemands of data centers embracing virtualization and other I/O-intensive technologies.
Connect with the benefits of virtualization
With up to twenty-four total 10GbE ports,PowerConnect M8024-k meets the high bandwidthdemands placed by multi-core CPUs and servervirtualization. When combined with PowerEdgeM710HD blade servers featuring 10Gb NetworkDaughter Cards, M8024-k provides end-to-end 10GbFabric A connectivity and leaves room for growth orother technologies in Fabrics B and C. Supportingconnectivity to M-Series' KR-based 10Gb NICs andCNAs, M8024-k opens the door to cutting edgenetworking features such as NIC Partitioning (NPAR), SRIOV, and iSCSI Offload.
Simply deploy and manage
Deploy and manage 10Gb-based blade configurationssimply and with minimal network admin involvementusing M8024-k's default Simple Switch mode ofoperation, featuring port aggregation and autoconfiguration when connecting to any external LAN.Alternatively, when operating in full switch mode, enjoya shortened learning curve and seamless integrationof M8024-k into existing Cisco® or other LANs usingindustry standard CLI (IS-CLI). These capabilitiescombined with enterprise-class QoS, Security, andmanagement features, help ensure that M8024-k meetsyour in-chassis Ethernet switching needs both todayand in the future.
Flex and grow with FlexIO
Every PowerConnect M8024-k includes sixteen internal1/10GbE ports, as well as four integrated external1/10GbE SFP+ ports. To ensure room to grow andchange with your business, each M8024-k also includesone FlexIO bay for modular uplinks that can be addedor swapped as needed down the road. Choose from4-port SFP+, 2-port 10GBASE-T, and 3-port CX-4 FlexIOModules to expand aggregate (bi-directional) bandwidthby up to 80 Gigabit per second.
Specification:
Port attributes
- Up to 24 auto-sensing 10Gb Ethernet switching ports available 22 of this ports can be 1/10Gb
- 16 internal server 10Gb (KR) Ethernet ports with auto-negotiation capability to 1Gb Ethernet
- 4 external integrated 1/10Gb SFP+ Ethernet ports
- Up to 4 external ports via optional FlexIO plug-in module with
- flexible media choices:
- 4-port SFP+ 10GbE module (10Gb only)
- 3-port CX-4 10GbE copper module (10Gb only)
- 2-port 10GBASE-T 10GbE copper module (1/10Gb)
- Auto-negotiation for speed, duplex mode and flow control
- Auto MDI/MDIX
- Port mirroring
- Flow-based port mirroring
- Broadcast storm control
- 10Gb (10GBASE-KR) adapters supported with M8024-k:
- Brocade BR1741M-k mezzanine card
- Broadcom 57712-k NDC
- Intel X520-x/k mezzanine card
- Future 10Gb adapters for M-Series blades
- 1Gb NICs (mezz card and LOM) are also supported
Performance
- Switch Fabric Capacity 480 Gbps aggregate bandwidth
- Forwarding Rate 357 Mpps
- Up to 16K MAC Addresses
- 512MB of CPU SDRAM
- 32MB of Flash Memory
Availability
- Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
- Multiple spanning trees (IEEE 802.1s)
- Supports Virtual Redundant Routing Protocol (VRRP)
- Up to 128 RIP Routing Interfaces
- Up to 128 OSPF Routing Interfaces; up to 128 OSPF Areas; up to 128 Routing Interfaces per OSPF
- Area; up to 32 routes for ECMP Routing; up to 4 next hops per ECMP
- Up to 128 VLAN Routing Interfaces
- Up to 256 Multicast Forwarding Entries
- Up to 8K ARP entries; Up to 4K NDP entries
VLAN
- VLAN support for tagging and port-based as per IEEE 802.1Q
- Double VLAN tagging (QinQ)
- Up to 1024 VLANs supported
- Dynamic VLAN with GVRP support
Quality of Service
- Layer 2 Trusted Mode (IEEE 802.1p tagging)
- Layer 3 Trusted Mode (DSCP)
- Layer 4 Trusted Mode (TCP/UDP)
- Advanced Mode using Layer 2/3/4 flow-based Policies, including metering/rate limiting, marking and bandwidth guarantees; up to 100 ACLs can be used for QoS flow identification via Class-maps
- 8 Priority Queues per Port
- Adjustable Weighted-Round-Robin (WRR) and Strict Queue Scheduling
- Port-based QoS Services Mode
- Flow-based QoS Services Mode
- Priority Flow Control (PFC)
- iSCSI Optimization based on Link Layer Discovery Protocol (LLDP)
Security options
- IEEE 802.1x based edge authentication — supports single and multiple host access, guest access, voice authorization, and Microsoft Active Directory
- Switch access password protection
- User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
- Port-based MAC Address alert and lock-down
- Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
- RADIUS and TACACS+ remote authentication for switch management access
- Up to 100 Access Control Lists (ACLs) supported; up to 127 rules per ACL; up to 28 Access Control Entries (ACEs) per ACL
- SSLv3 and SSHv2 encryption for switch management traffic
- Management access filtering via Management Access Profiles
Other switching features
- Link Aggregation with support for up to 8 static aggregated links, 8 dynamic aggregated links per switch and up to 8 member ports per aggregated link; LACP support (IEEE 802.3ad)
Management
- Default mode of operation is Simple Switch (port aggregator) mode to allow auto configuration of complex network settings
- User configurable to fully managed switch mode
- Web-based management interface
- Industry-standard CLI accessible via Telnet or Local Serial Port
- SNMPv1, SNMP v2c and SNMPv3 supported
- 4 RMON groups supported (history, statistics, alarms and events)
- TFTP transfers of firmware and configuration files
- Dual Firmware images
- Multiple Configuration file upload/download supported
- Statistics for error monitoring and performance optimization including port summary tables
- BootP/DHCP IP address management supported
- Syslog remote logging capabilities
Chassis
- Single-wide I/O Module for M1000e blade enclosure
- 267 x 258 x 31mm (W x D x H)
- 10.5" x 10.2" x 1.2"
- Approximate weight: 2.7kg, 5.8 lbs
VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
CS tk frm 279019 -2 dup
specifications
-
MPN:M8024-k
