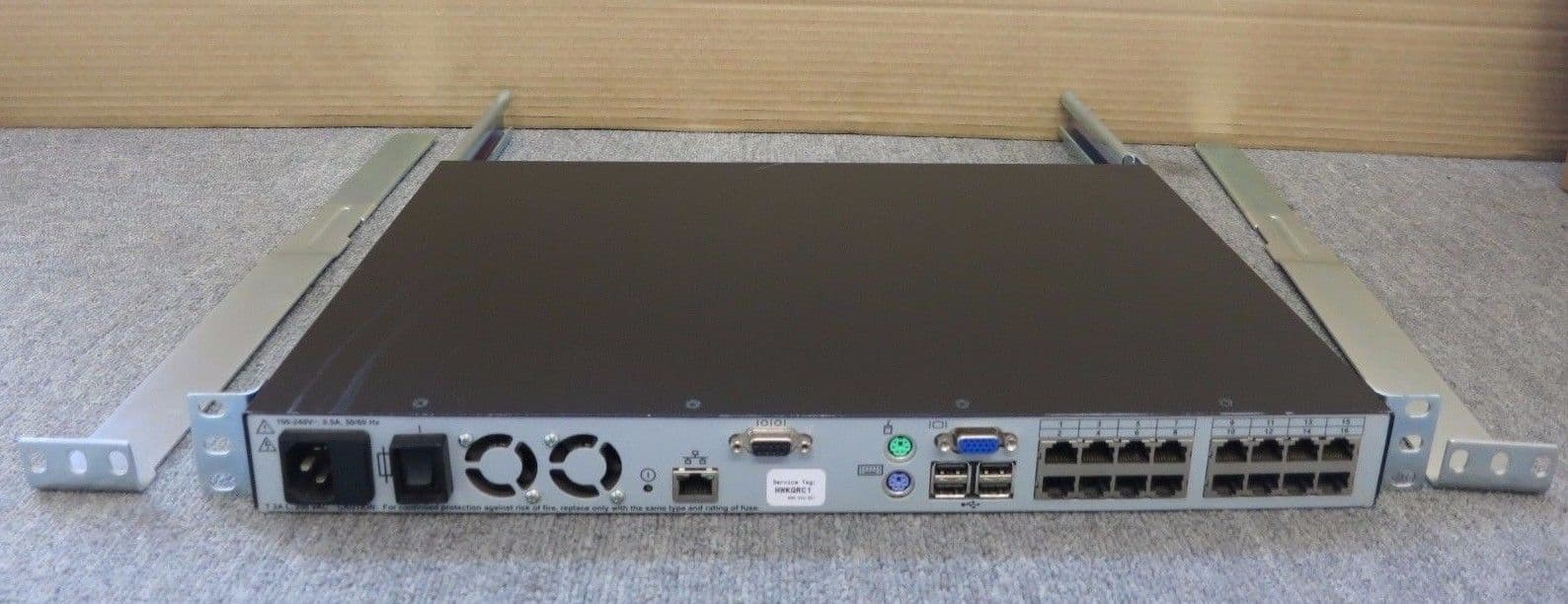

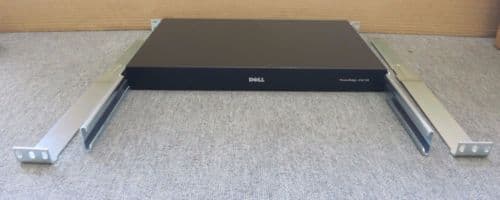

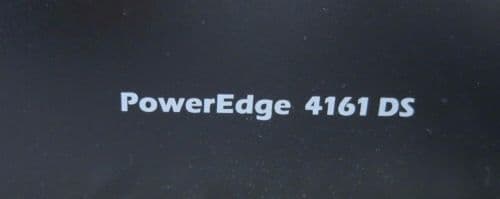

Dell PowerEdge 4161DS 16 Port IP-Based Remote Access Console KVM 0XJ892 XJ892

The Dell 4161DS comes with a choice of two Server Interface Pods (SIPs) - PS/2 or USB - to fit a variety of server needs. A SIP replaces a bulky KVM cable by converting the keyboard, monitor and mouse signals from a server and driving them up to 10 meters (32.8 feet) through a single CAT 5 cable. The SIP cable draws its power from the server and has a keep-alive functionality that is designed to keep the server working properly with or without connectivity to the 2161DS-2 unit.

The switch comes with the field-proven Dell Remote Console Software (RCS), a cross-platform management application that provides a single point of access for your entire system. This easy-to-use, Java-based software can be used locally or remotely over an IP connection. With RCS, administrators can easily configure the switch system and select different servers. In addition, the switch includes the On-Screen Configuration and Activity Reporting (OSCAR® ) interface for analog control from the local workstation.

An optional accessory to this switch is the Dell Port Expansion Module (PEM), which is a passive device that can be mounted next to the railing of the rack. A PEM connects to one system port on the 4161DS and then 8 servers. With a PEM connected to each of the 16 ports on the 4161DS, the total system capacity expands to 128 servers.

• Connectivity - features digital and analog paths
• Flash Upgradeable - designed for future hardware compatibility
• Flexibility - provides access and control of multiple servers from a single screen with the RCS Java-based software
• Scalability - provides control for up to 128 servers over a single network connection
• Space-Efficient Design - occupies 0U in a Dell Rack
• CAT 5 Cabling - reduces cable bulk
• Share Mode - allows multiple remote users to share a remote session onto the same server
