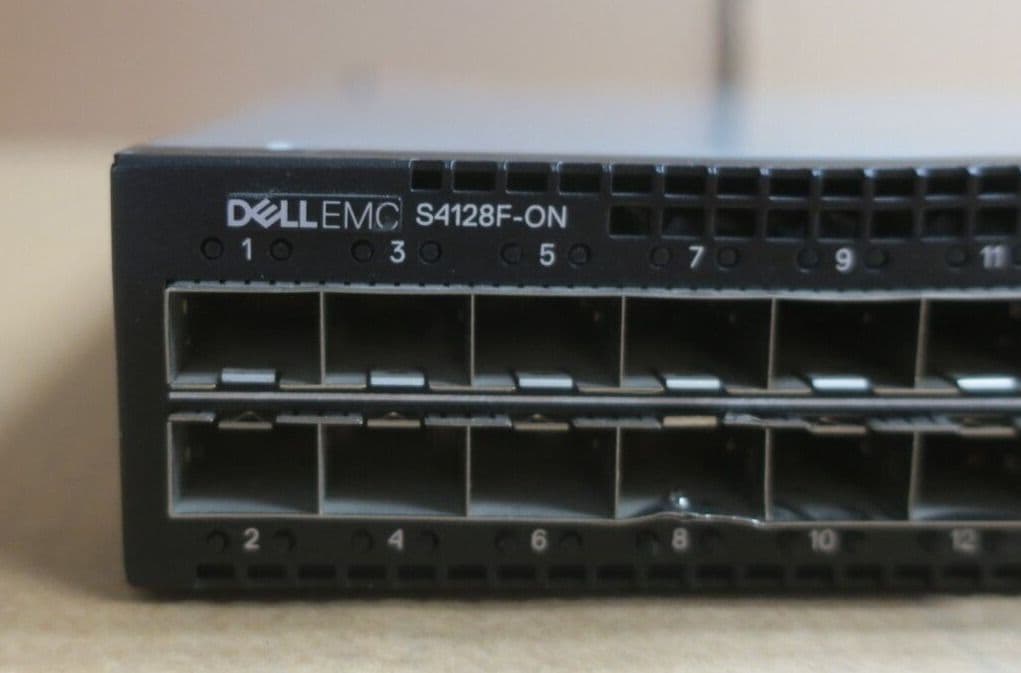

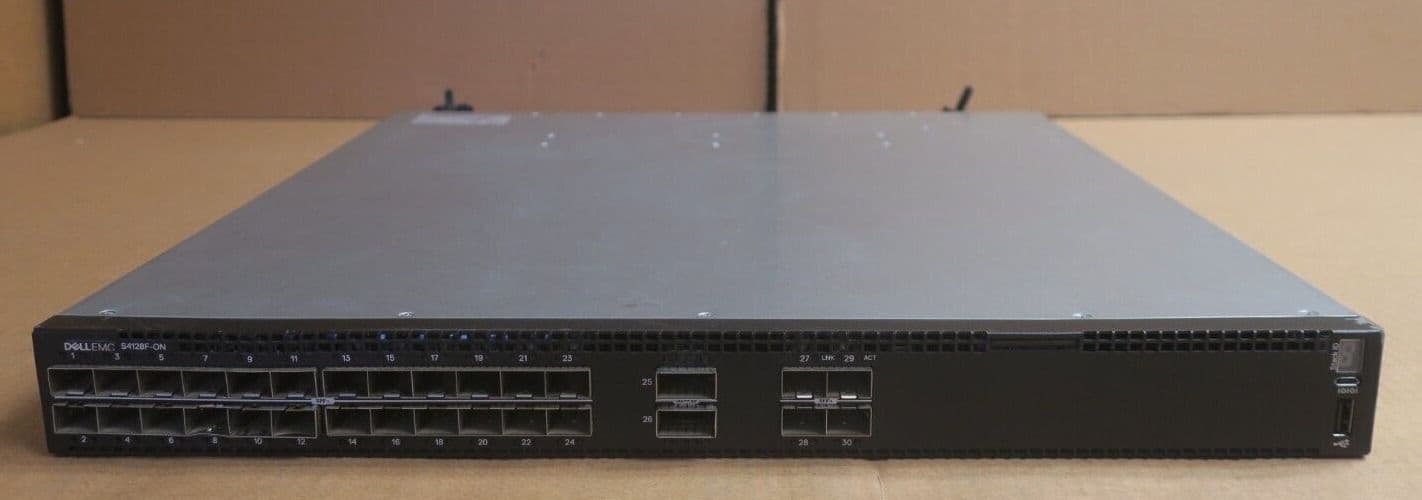

Dell PowerSwitch S4128F-ON 28x 10GbE SFP+ + 2x 100GbE QSFP28 Ports NY9FP

• 1RU high-density 10/100 GbE ToR switch with up to 24 10GbE (SFP+), and up to 2 ports of 100GbE (QSFP28)
• Multi-rate 100GbE ports support 10/25/40/50 GbE. 40GbE ports support 10GbE. 10GbE ports support 1GbE. Up to 4 different simultaneous speeds are possible in a given profile
• 960Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load
• 840Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load on S4112F-ON and S4112T-ON
• VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance
• Converged Network support with DCB
• IO panel to PSU airflow
• Redundant, hot-swappable power supplies and fans

• Ports:

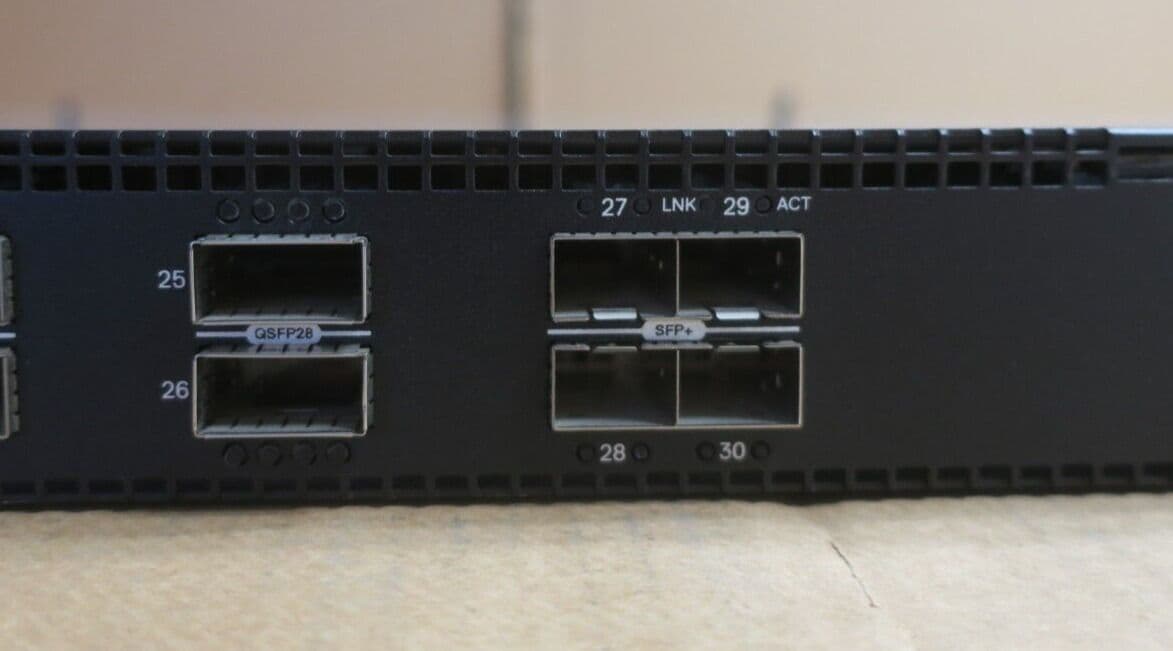

  • 28xSFP+
  • 2xQSFP28
• Max 10GbE density: 36 (28 SFP+ and 8 via QSFP28 breakout)
• Max 25GbE density: 8 via QSFP28 breakout
• Max 40GbE density: 2
• Max 50GbE density: 4
• Max 100GbE density: 2
• Switching capacity: 960Gbps
• Throughput: 720Mpps
• Max power consumption: 260W
• Typical operating power: 160W
• Number of fan trays: 4
• Fans per fan tray: 1
• Weight: 19.66 lbs (8.92 kg)
• Max thermal output: 886 BTU/h

OS10# showversion
Dell EMCNetworking OS10 Enterprise
Copyright (c)1999-2019 by Dell Inc. All Rights Reserved.
OS Version:10.5.0.0P5
Build Version:10.5.0.0P5.402
Build Time:2019-09-06T02:01:08+0000
System Type:S4128F-ON
Architecture:x86_64
Up Time: 00:01:54
OS10# showinventory
Product : S4128F-ON
Description : S4128F-ON 28x10GbE, 2x100GbEQSFP28 Interface Module
Softwareversion : 10.5.0.0P5
Product Base :
Product SerialNumber :
Product PartNumber :

Unit Type Part Number Rev Piece Part ID Svc Tag Exprs Svc Code
-------------------------------------------------------------------------------------------------
* 1 S4128F-ON 0NY9FP A02 CN-0NY9FP-28298-81I-0023 CM6DXC2 274 623 713 30
1 S4128F-ON-PWR-1-AC 06FKHH A01 CN-06FKHH-28298-7BH-00EJ
1 S4128F-ON-PWR-2-AC 06FKHH A01 CN-06FKHH-28298-7BH-00CZ
1 S4128F-ON-FANTRAY-1 0N7MH8 A00 CN-0N7MH8-28298-81I-0281
1 S4128F-ON-FANTRAY-2 0N7MH8 A00 CN-0N7MH8-28298-81I-0279
1 S4128F-ON-FANTRAY-3 0N7MH8 A00 CN-0N7MH8-28298-81I-0280
1 S4128F-ON-FANTRAY-4 0N7MH8 A00 CN-0N7MH8-28298-81I-0282

OS10# showlicense status

SystemInformation
---------------------------------------------------------
Vendor Name : Dell EMC
Product Name : S4128F-ON
HardwareVersion : A02
PlatformName : x86_64-dellemc_s4128f_c2338-r0
PPID : CN0NY9FP2829881I0023
Service Tag : CM6DXC2
Product Base :
Product SerialNumber:
Product PartNumber :
License Details
----------------
Software : OS10-Enterprise
Version : 10.5.0.0P5
License Type : EVALUATION
LicenseDuration: 120 days
LicenseStatus : 70 day(s) left
Licenselocation: /mnt/license/CM6DXC2.lic
---------------------------------------------------------
OS10# show system

Node Id : 1
MAC : e4:f0:04:91:e2:a7
Number ofMACs : 128
Up Time : 00:02:08

-- Unit 1 --
Status : up
SystemIdentifier : 1
Down Reason : user-triggered
Digital OpticalMonitoring : disable
System LocationLED : off
RequiredType : S4128
Current Type : S4128
HardwareRevision : A02
SoftwareVersion : 10.5.0.0P5
PhysicalPorts : 28x10GbE, 2x100GbE
BIOS : 3.33.0.0-4
System CPLD : 0.4
Master CPLD : 0.10
Slave CPLD : 0.7

-- Power Supplies--
PSU-ID Status Type AirFlow Fan Speed(rpm) Status
----------------------------------------------------------------
1 up AC NORMAL 1 10528 up

2 up AC NORMAL 1 10368 up


-- Fan Status --
FanTray Status AirFlow Fan Speed(rpm) Status
----------------------------------------------------------------
1 up NORMAL 1 10983 up

2 up NORMAL 1 11014 up

3 up NORMAL 1 10983 up

4 up NORMAL 1 11014 up


OS10# showenvironment

Unit State Temperature
-------------------------------------
1 up 33

Thermal sensors
Unit Sensor-Id Sensor-name Temperature
------------------------------------------------------------------------------
1 1 CPU Ambient temp sensor 23
1 2 Near NPU Ambient temp sensor 23
1 3 Left Ambient temp sensor 21
1 4 Right Ambient temp sensor 21
1 5 QSFP Ambient temp sensor 21
1 6 Ambient temp sensor 21
1 7 NPU temp sensor 33
