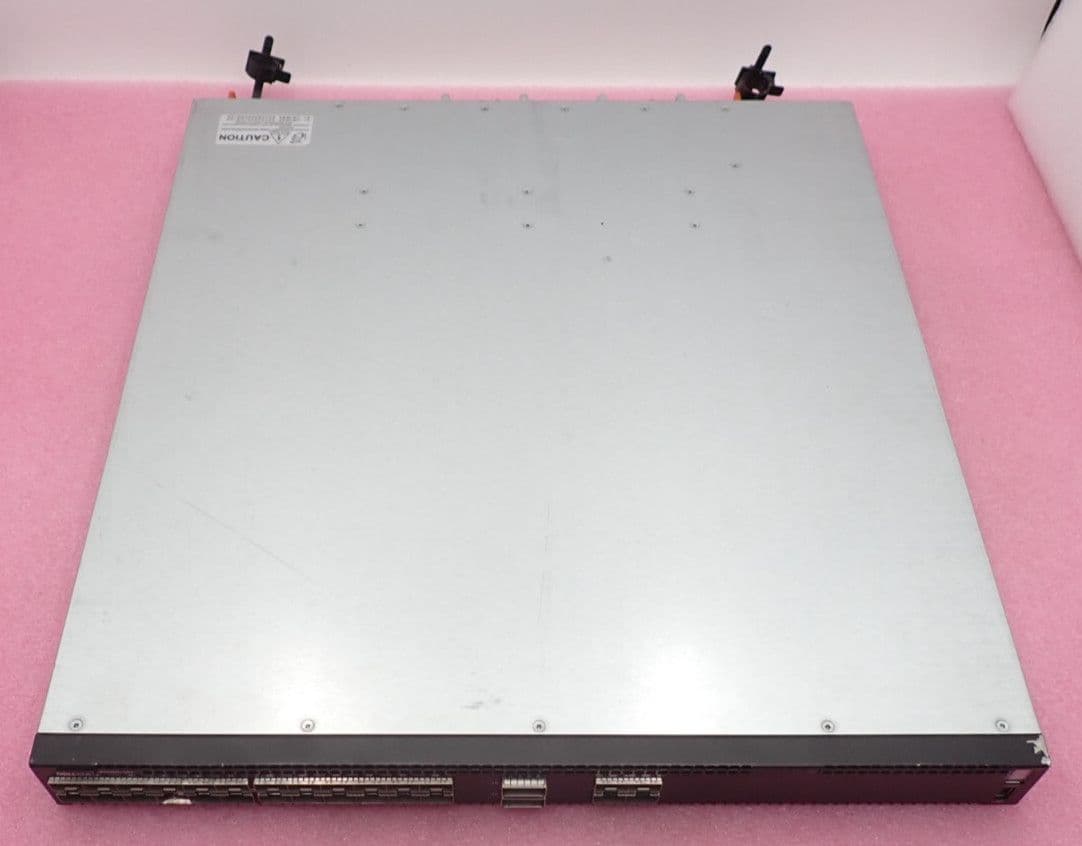

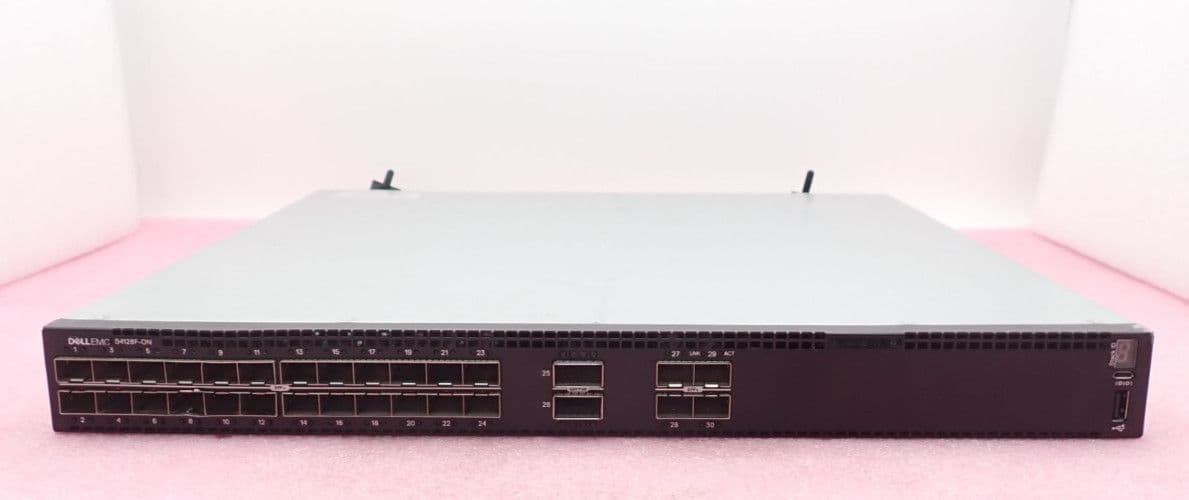

Dell PowerSwitch S4128F-ON 28x 10GbE SFP+ + 2x 100GbE QSFP28 Ports NY9FP
Model: S4128F-ON
In Good Condition, Full working Order
Tested
Front to Back Airflow
Running OpenSwitch OPX 3.2.1
Included:
- 1 x Dell PowerSwitch S4128F-ON 28x 10GbE SFP+ + 2x 100GbE QSFP28 Ports NY9FP

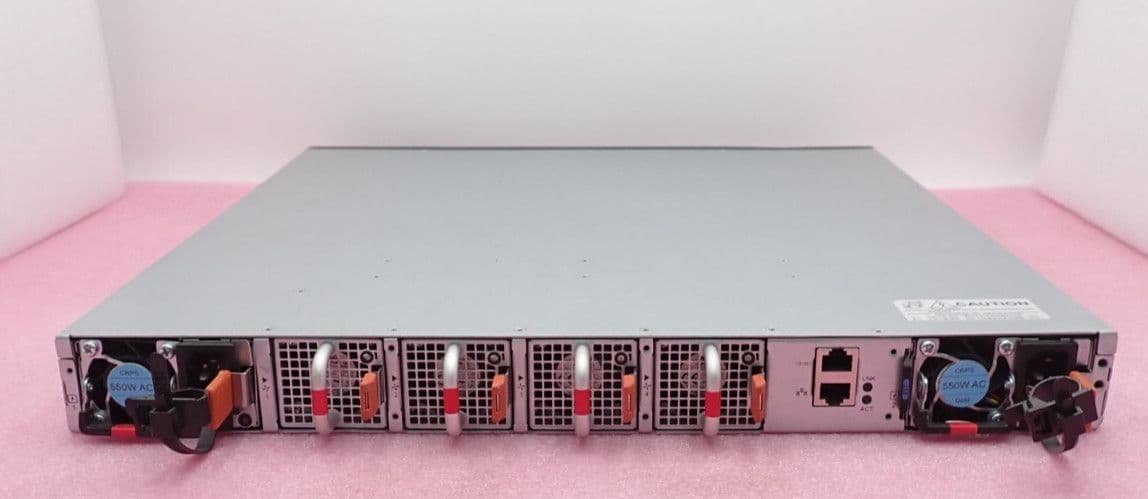

- 4 x Fan Modules reverse airflow IO to PSU
- 2 x 550W Power Supplies reverse airflow IO to PSU
Key Features:
- 1RU high-density 10/100 GbE ToR switch with up to 24 10GbE (SFP+), and up to 2 ports of 100GbE (QSFP28)
- Multi-rate 100GbE ports support 10/25/40/50 GbE. 40GbE ports support 10GbE. 10GbE ports support 1GbE. Up to 4 different simultaneous speeds are possible in a given profile
- 960Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load
- 840Gbps (full-duplex) non-blocking, cut-through switching fabric delivers line-rate performance under full load on S4112F-ON and S4112T-ON
- VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance
- Converged Network support with DCB
- IO panel to PSU airflow
- Redundant, hot-swappable power supplies and fans
Specification:
- Ports:

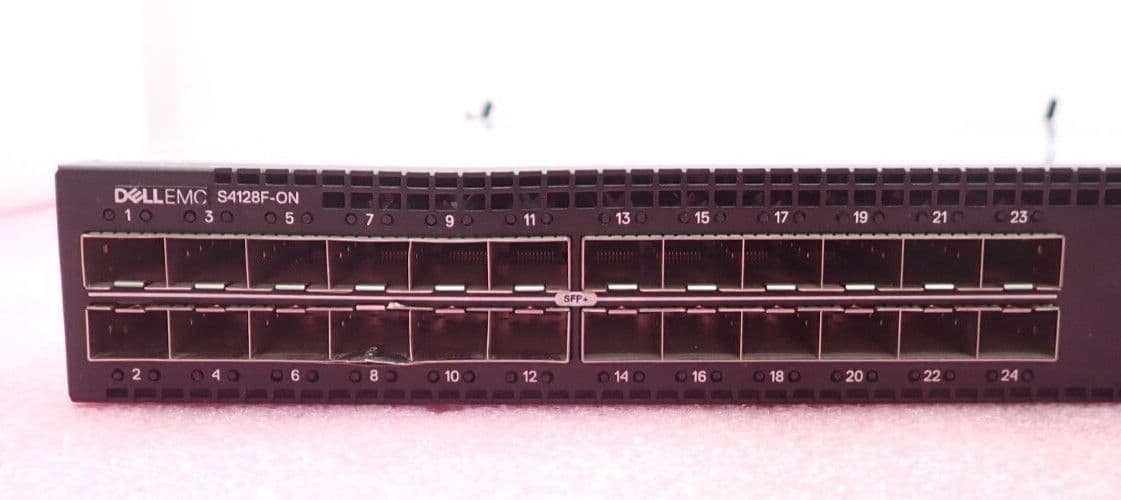

- 28xSFP+

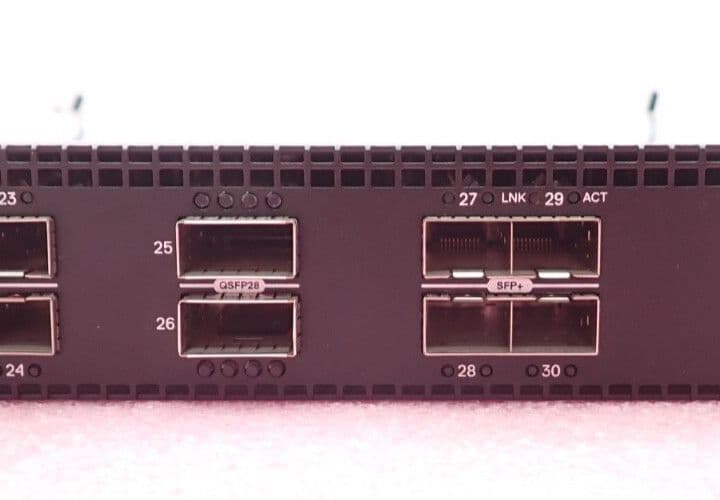

- 2xQSFP28
- Max 10GbE density: 36 (28 SFP+ and 8 via QSFP28 breakout)
- Max 25GbE density: 8 via QSFP28 breakout
- Max 40GbE density: 2
- Max 50GbE density: 4
- Max 100GbE density: 2
- Switching capacity: 960Gbps
- Throughput: 720Mpps
- Max power consumption: 260W
- Typical operating power: 160W
- Number of fan trays: 4
- Fans per fan tray: 1
- Weight: 19.66 lbs (8.92 kg)
- Max thermal output: 886 BTU/h
Boot Log:
admin@OPX:~$ opx-show-version
OS_NAME="OPX"
OS_VERSION="3.2.1"
PLATFORM="S4128F-ON"
ARCHITECTURE="x86_64"
INTERNAL_BUILD_ID="OpenSwitch blueprint for Dell 1.0.0"
BUILD_VERSION="3.2.1.0-rc4"
BUILD_DATE="2020-04-08T23:48:15-0700"
INSTALL_DATE="2024-07-22T10:41:46+00:00"
SYSTEM_UPTIME= 1 minute
SYSTEM_STATE= running
UPGRADED_PACKAGES=no
ALTERED_PACKAGES=yes
admin@OPX:~$ opx-show-system-status
System State: running
No Failed Service
Modified Packages:
opx-system-utils
CS 312478
specifications
-
MPN:Dell PowerSwitch S4128F-ON
